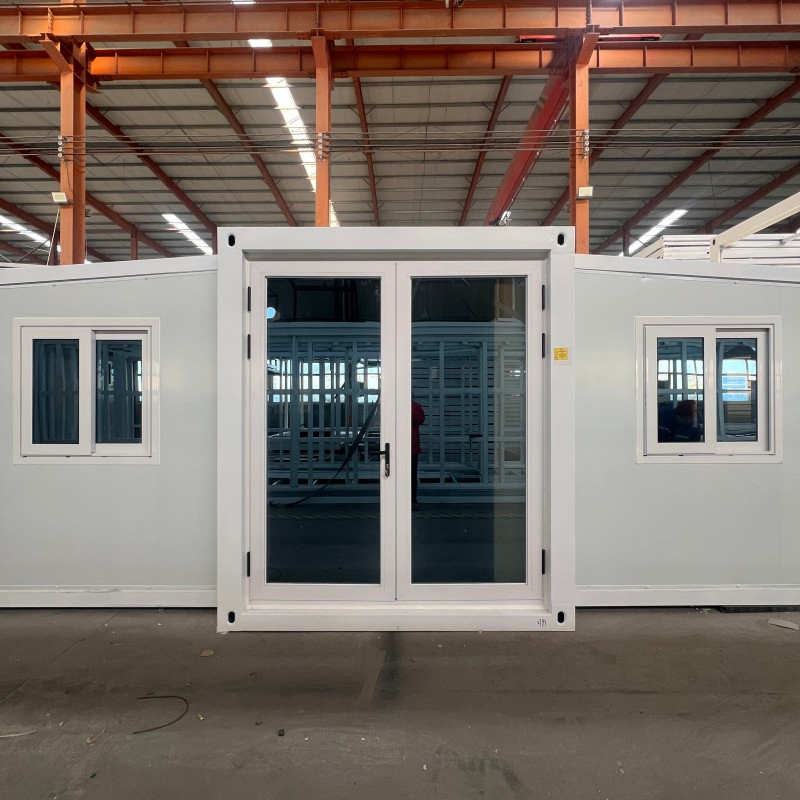

Luxury 20FT Cabin Container Mobile Folding Modular Prefab Modular Prefabricated Tiny House

1 / 5

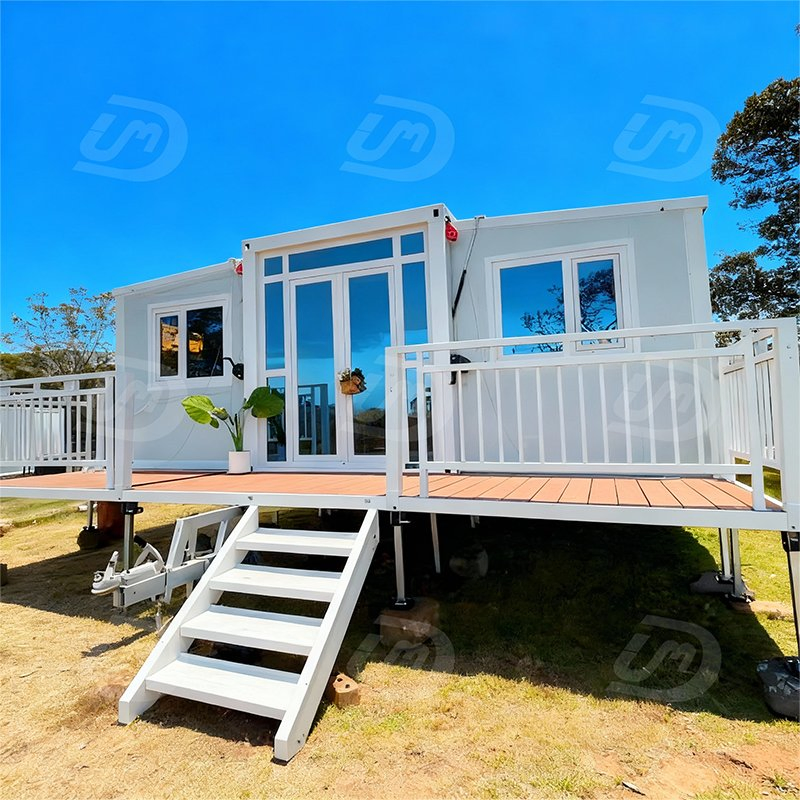

Luxury 20FT Cabin Container Mobile Folding Modular Prefab Modular Prefabricated Tiny House

Customization:	Available
After-sales Service:	Online Installation Guide
Application:	Residence, Hotel, Apartment, Shop, Office, Music R

Send Inquiry

Product Description

Overview

Reliable Solutions, Quality Homes

We are a global leader in prefabricated construction, delivering complete solutions from concept design to after-sales support. We build innovative, high-quality modular homes that turn your vision into reality worldwide.

Every visible element – from doors, windows, and roofing to interior layouts and wall finishes – is fully customizable. Color, material, version, thickness, and more can be tailored to your exact specifications.

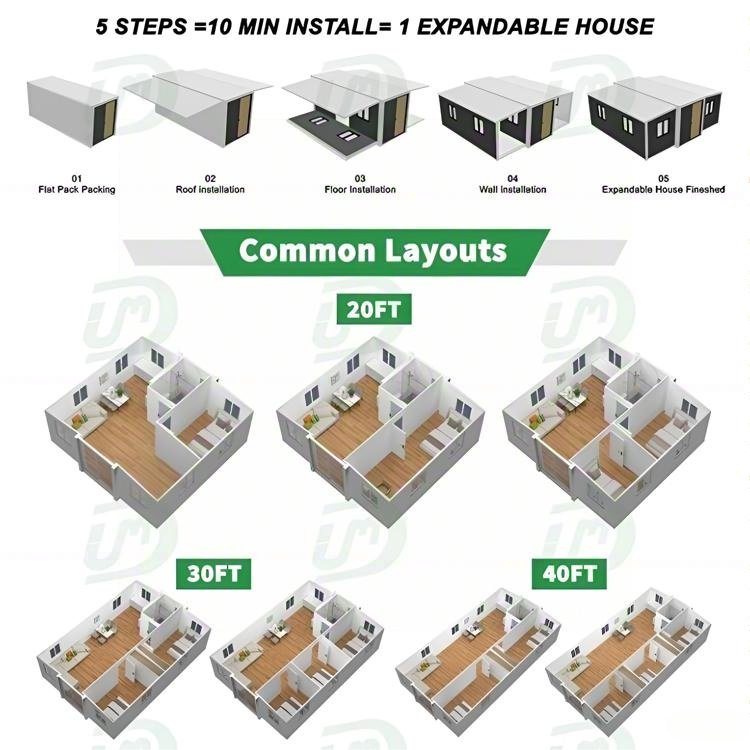

5 STEPS = 10 MIN INSTALL = 1 EXPANDABLE HOUSE

Technical Specifications

Basic Info

Model NO.

KKZ

Feature

Earthquake Resistant, Easily Movable, Eco-Friendliness, Leak Proof, Thermal Insulation, Waterproof, Wind Resistance

Material

Steel Structure

Color

Customized Color

Size

20FT/30FT/40FT/10FT

MOQ

1 Unit

Wall Material

50mm EPS/Rock Wool

Window

Aluminum/Plastic Steel Window

Life Time

20 Years

Floor

1.8mm Glass Magnesium Board

Origin

China

HS Code

9406900090

Packaging & Delivery

Package Size

2300.00cm * 12000.00cm * 2500.00cm

Package Gross Weight

440.000kg

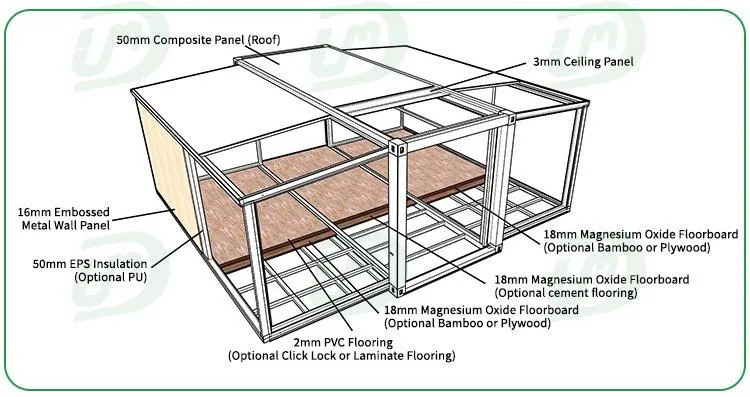

Product Structure

Category	Component	Details / Material	Component	Details / Material
Frame Structure	Middle Roof Beam	T2.5mm Q235B	End Side Beam	t1.5mm Q235B
	Middle Bottom Beam	T2.5mm Q235B	Middle Column	T2.5mm Q235B
	Side Wall Frame	t1.5mm Q235B	Lifting Lug	t4mm Q235B
	Subframe	t1.5mm Q235B	Folding Hinge	13mm Galvanized Hinge
	Central Cabinet Top/Bottom	80*100mm	Full Frame Protective Coating	Electrostatic Powder Coating / White Plastic Powder
	Side Cabinet Top/Bottom	40601.5mm Thick Square Tube	Full Frame Protective Coating	Electrostatic Powder Coating / White Plastic Powder
Roof Panel	External roof panel	50mm Composite Panel
Roof Panel	Interior ceiling	3mm Ceiling Panel
Wall Panel	Exterior wall panel	16mm Embossed Metal Wall Panel
Wall Panel	Internal partition	50mm EPS Insulation (Optional PU)
Floor	PVC Flooring	2mm PVC Flooring (Optional Click Lock or Laminate Flooring)
Floor	Flooring	18mm Magnesium Oxide Floorboard (Optional Bamboo or Plywood)

Stronger Frame, Longer Life

Our Standards

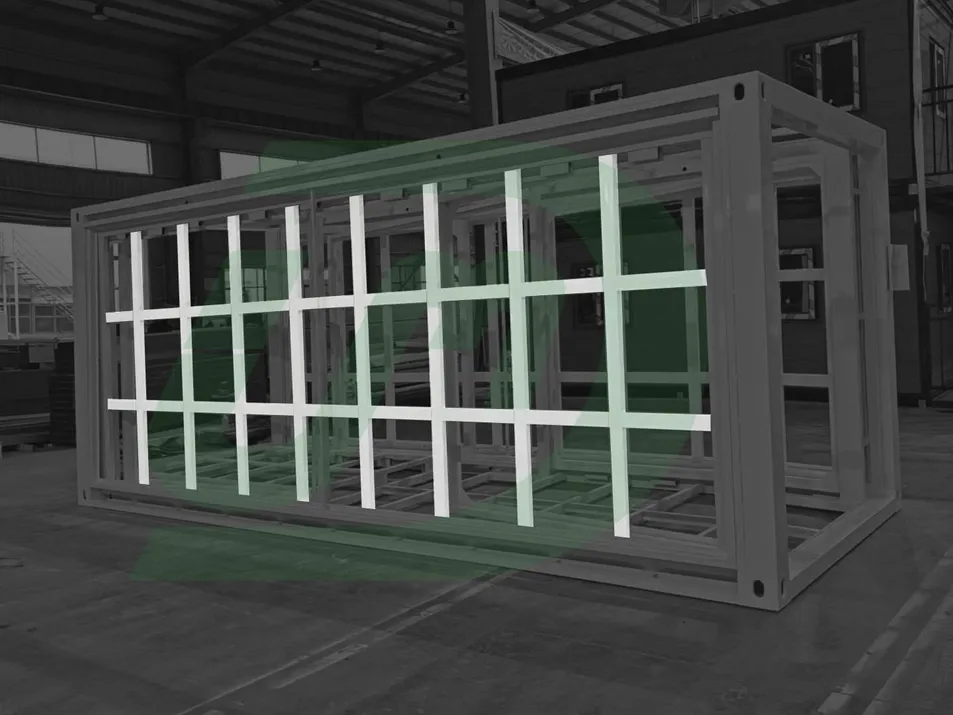

Densely spaced square tubes for better stability — no floor shaking, stronger overall structure.

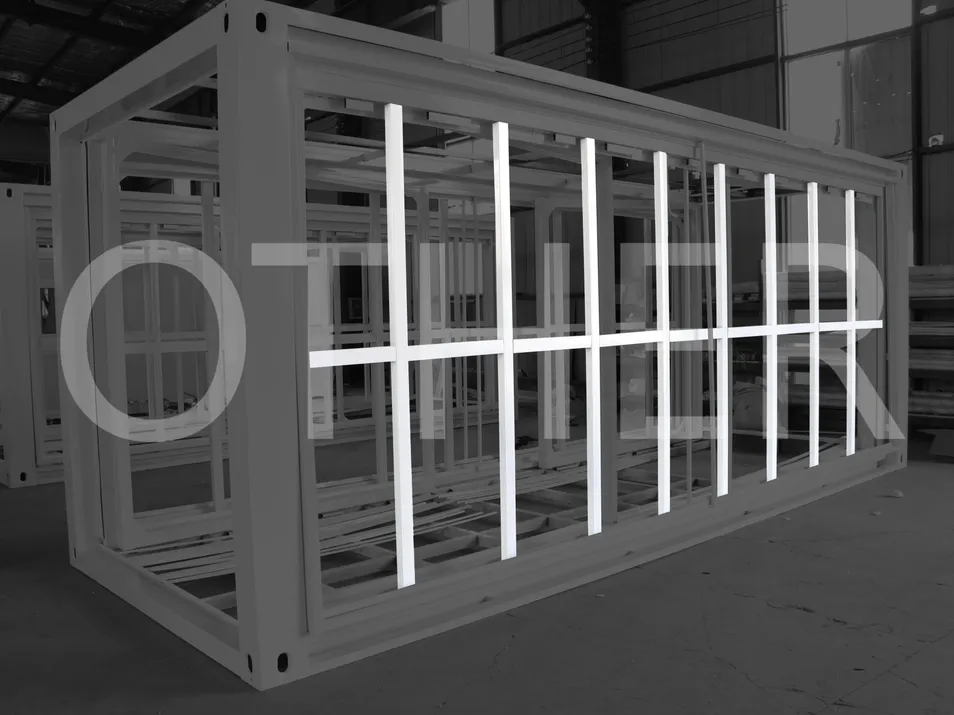

Other Standards

Fewer square tubes to save costs — weaker frame, unstable floors, and shorter service life.

Our Standards

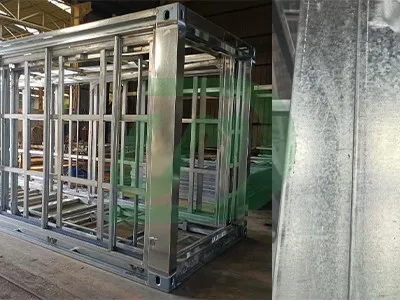

Fully galvanized steel with electrostatic powder coating — anti-rust, anti-corrosion, and highly durable.

Other Standards

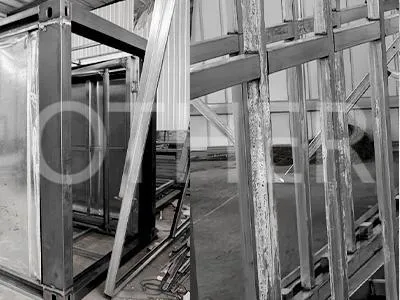

Untreated black steel used to cut costs — highly prone to rust, corrosion, and a significantly shorter lifespan.

Customization Options

Prefab cabin structural components options

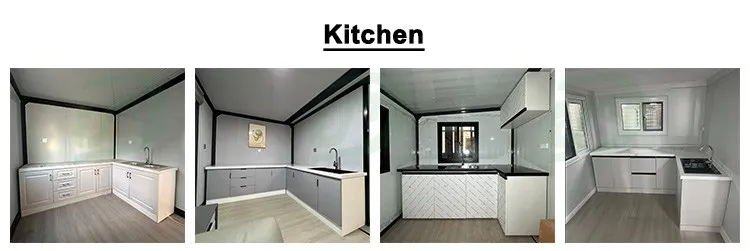

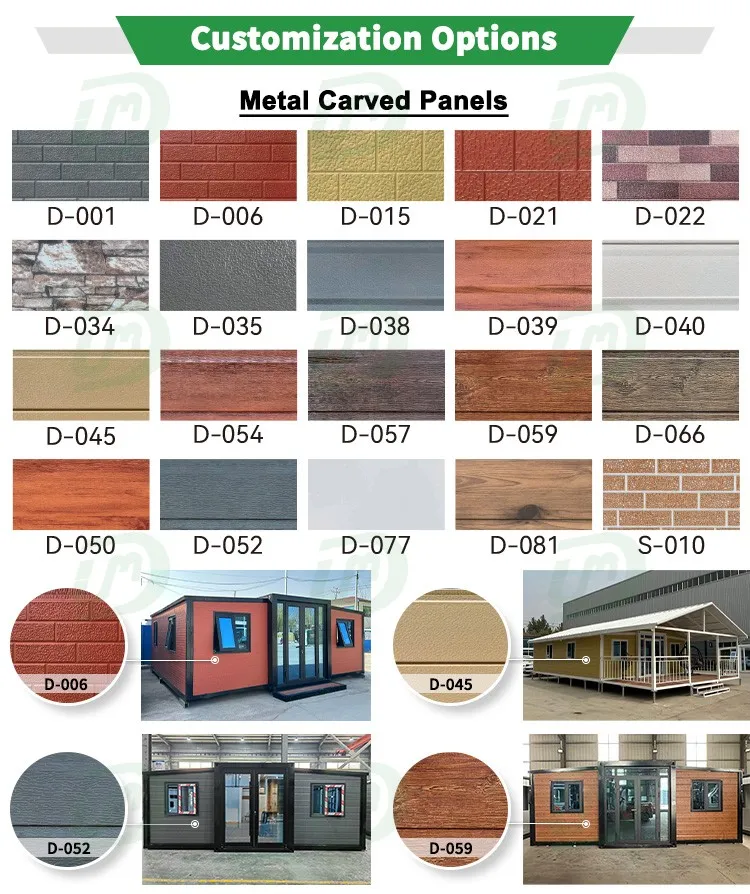

Expandable tiny house colors custom design

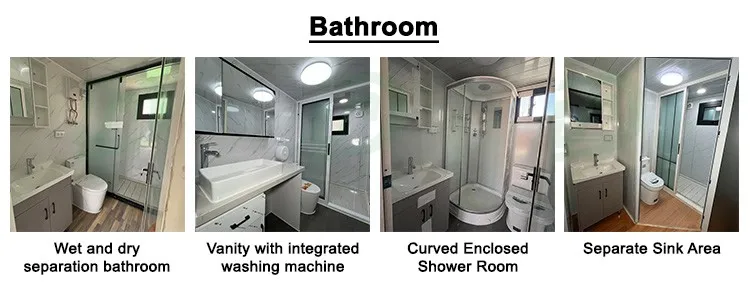

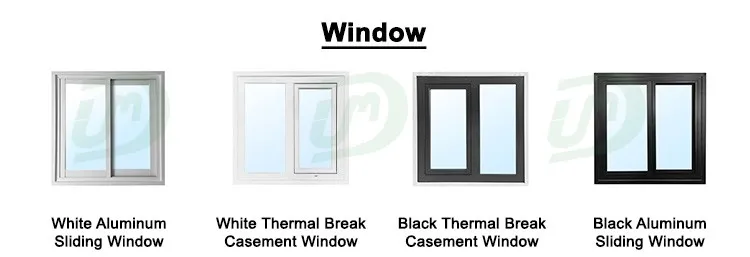

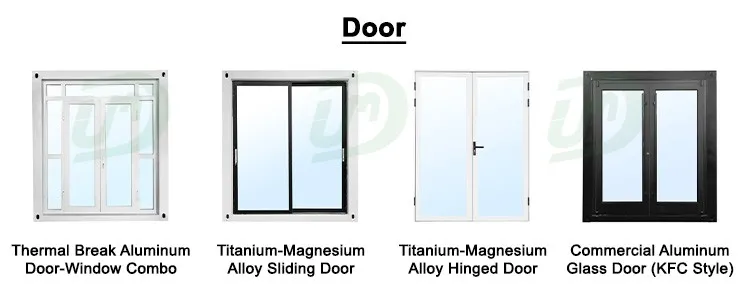

Luxury cabin window customization design

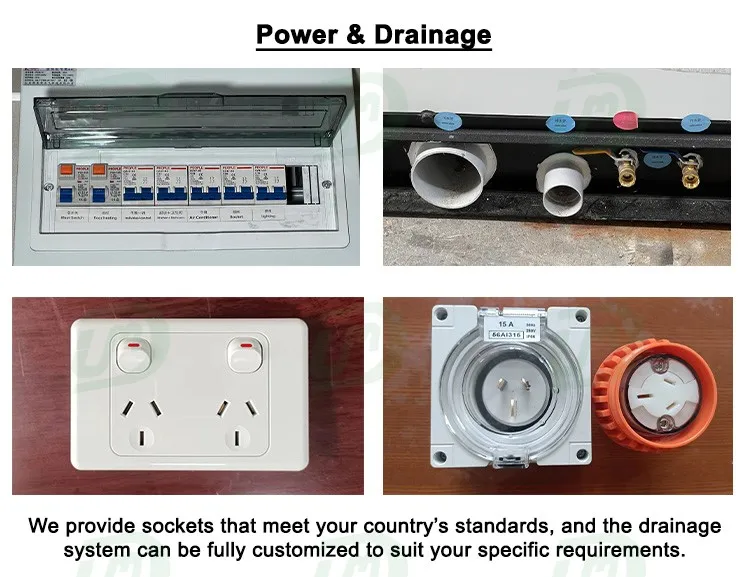

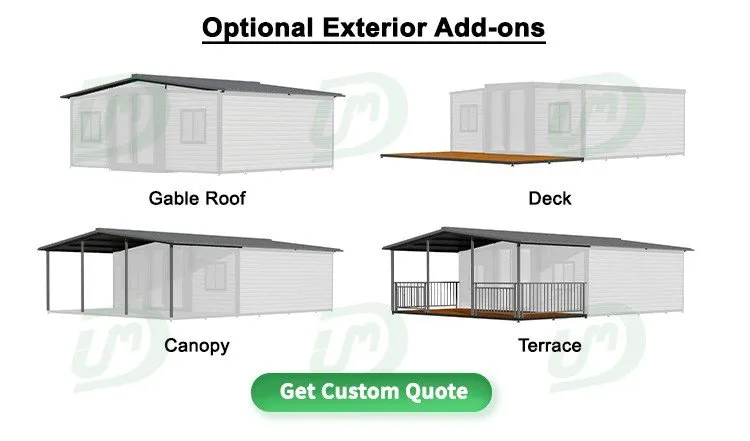

Mobile modular tiny house roof custom version

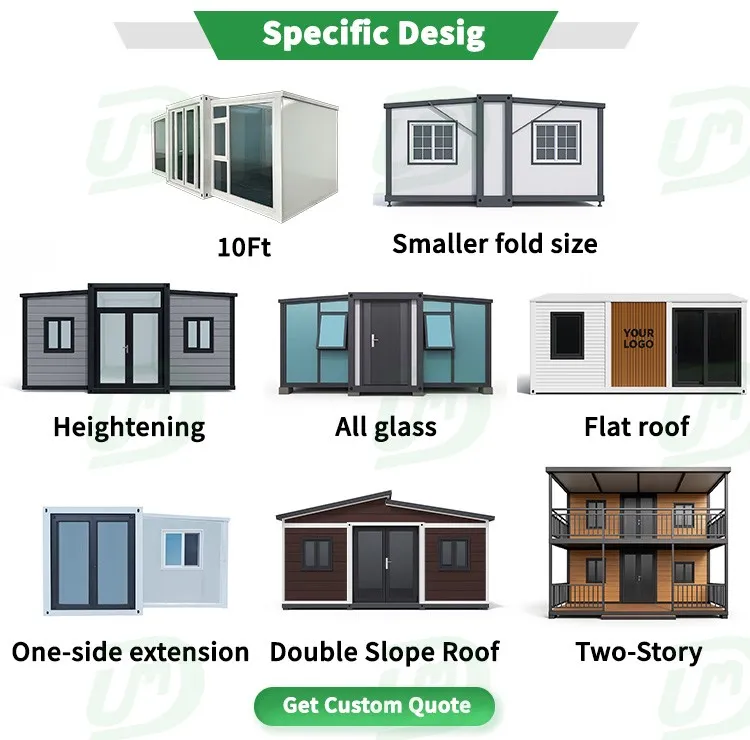

Custom modular prefabricated cabin specifications

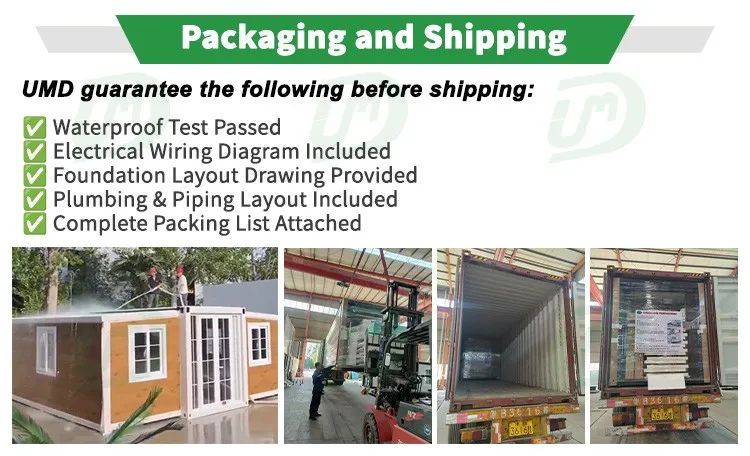

Customized finishes for modular tiny house

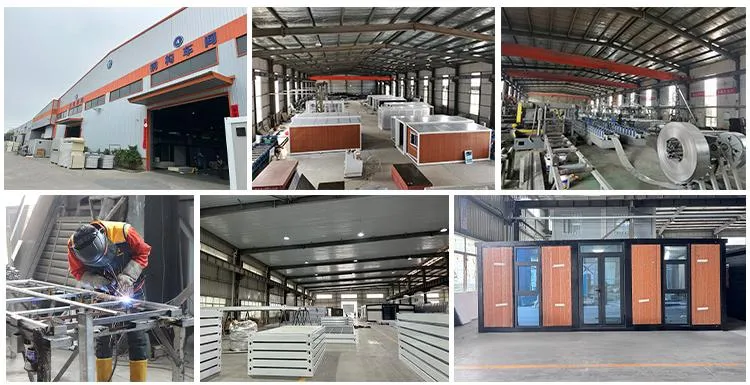

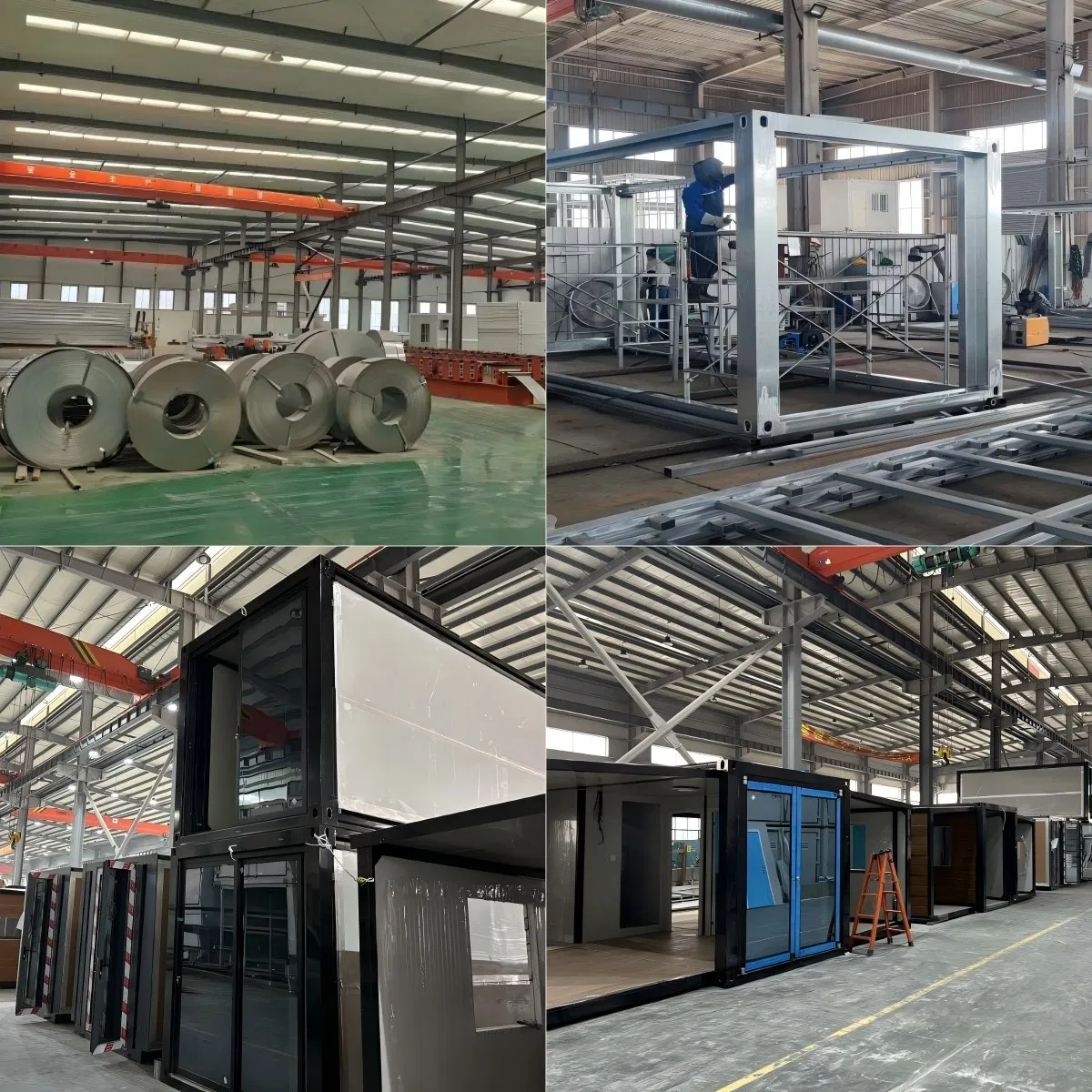

Welcome to Visit Our Factory

We invite you to tour our state-of-the-art facilities and see our high-quality production process firsthand. Our team will guide you through each stage, from design to assembly, and discuss how we can collaborate to meet your needs.

We look forward to welcoming you to our factory in China.

High quality production process factory tour

Global Trade Exhibitions

We are committed to expanding our presence in the global market by actively participating in key trade exhibitions worldwide. These events offer us the opportunity to connect with partners, showcase our innovative products, and stay at the forefront of industry trends.

Join us at the next exhibition and discover how we can collaborate to create outstanding solutions.

Global Trade Exhibition modular solutions booth

Frequently Asked Questions

What are the primary features of the expandable folding cabin house?

These houses are fully engineered to be earthquake resistant, easily movable, environmentally friendly (eco-friendliness), leak proof, wind resistant, waterproof, and provide high-efficiency thermal insulation.

How long does it take to install the prefabricated modular house?

Installation is extremely quick. Using our optimized 5-step process, it takes only 10 minutes to set up one complete expandable house.

What components and materials make up the product structure?

The frame structure uses high-durability Q235B galvanized steel beams and electrostatic powder coating. The roof is composed of a 50mm composite panel and a 3mm interior ceiling, while the walls use 16mm embossed metal panels with 50mm EPS insulation. The floor features 18mm magnesium oxide floorboard topped with 2mm PVC flooring.

What parameters can be customized for our container units?

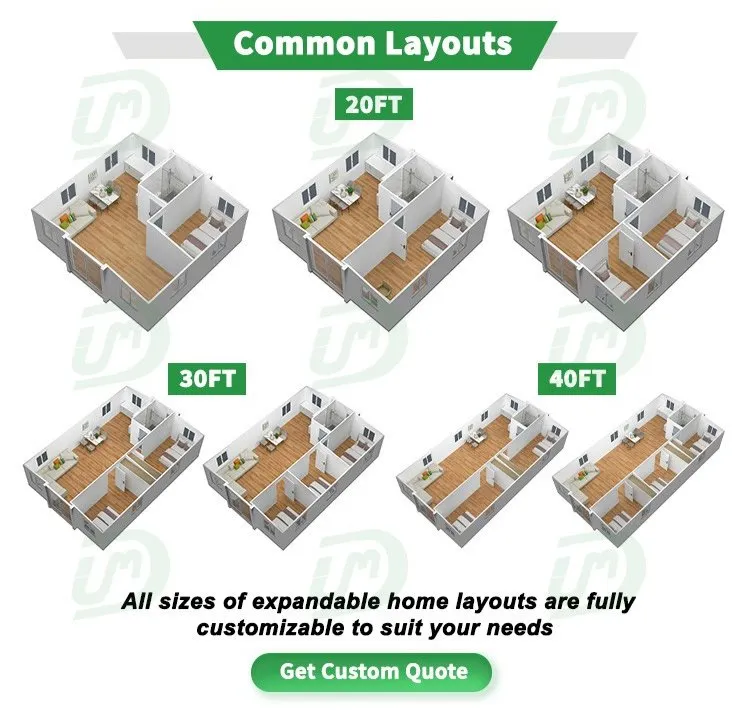

Virtually every visible element can be customized to your exact requirements, including the layout designs, overall dimensions (10FT, 20FT, 30FT, or 40FT), colors, thickness of components, structural materials, doors, windows, and flooring finishes.

How does your product frame compare to other modular options?

We use densely spaced square tubes for superior structure stability to prevent floor shaking, combined with fully galvanized steel coated in electrostatic powder to achieve anti-rust and anti-corrosion properties. In contrast, cheaper alternatives often use fewer square tubes and untreated black steel, leading to structural instability and rust.

What is the expected lifetime of this modular cabin house?

Thanks to our premium galvanized structure and rust-resistant coatings, the folding container home has an estimated operational lifetime of 20 years under normal environmental conditions.
