SES House
1 / 5
| Basic Info | |
|---|---|
| Model NO. | Expandable container house |
| Certificate | CE, ISO |
| Material | Steel Structure |
| Type | Detached Villa |
| After-Sales Service | Online Guidance or Send Someone on-Site |
| Application | Residential Hostel |
| Fast Installation | Fast Installation |
| Feature | Earthquake Resistant, Easily Movable, Eco-Friendliness, Flexibly Combinable, Leak Proof, Moisture Proof, Thermal Insulation, Waterproof, Wind Resistance |
| Lifespan | 15-20 Years |
| Fire Proof | A1grade Fire Proof |
| Resistant Temperature | -25 to 50℃ |
| Window | PVC or Alluminum Window |
| Door | Steel or Alluminum Door |
| Floor | Moisture-Proof MGO Floor |
| Color | Customized Color |
| Project Solution Capability | CAD/3D One-Stop Solution |
| Certification | ISO CE |
| Warranty | 1 Years |
| Use | Hotel/Office/Apartment |
| Keywords | Prefabricated House, Modular Prefabricated House, Folding Modular Homes, Container House |
| Transport Package | Wooden Box Packaging, Carton Package |
| Specification | 9000*6300*2480mm |
| HS Code | 9406900090 |
| Production Capacity | 30000sets |
| Packaging & Delivery | |
|---|---|
| Package Size | 630.00cm * 900.00cm * 248.00cm |
| Package Gross Weight | 3300.000kg |

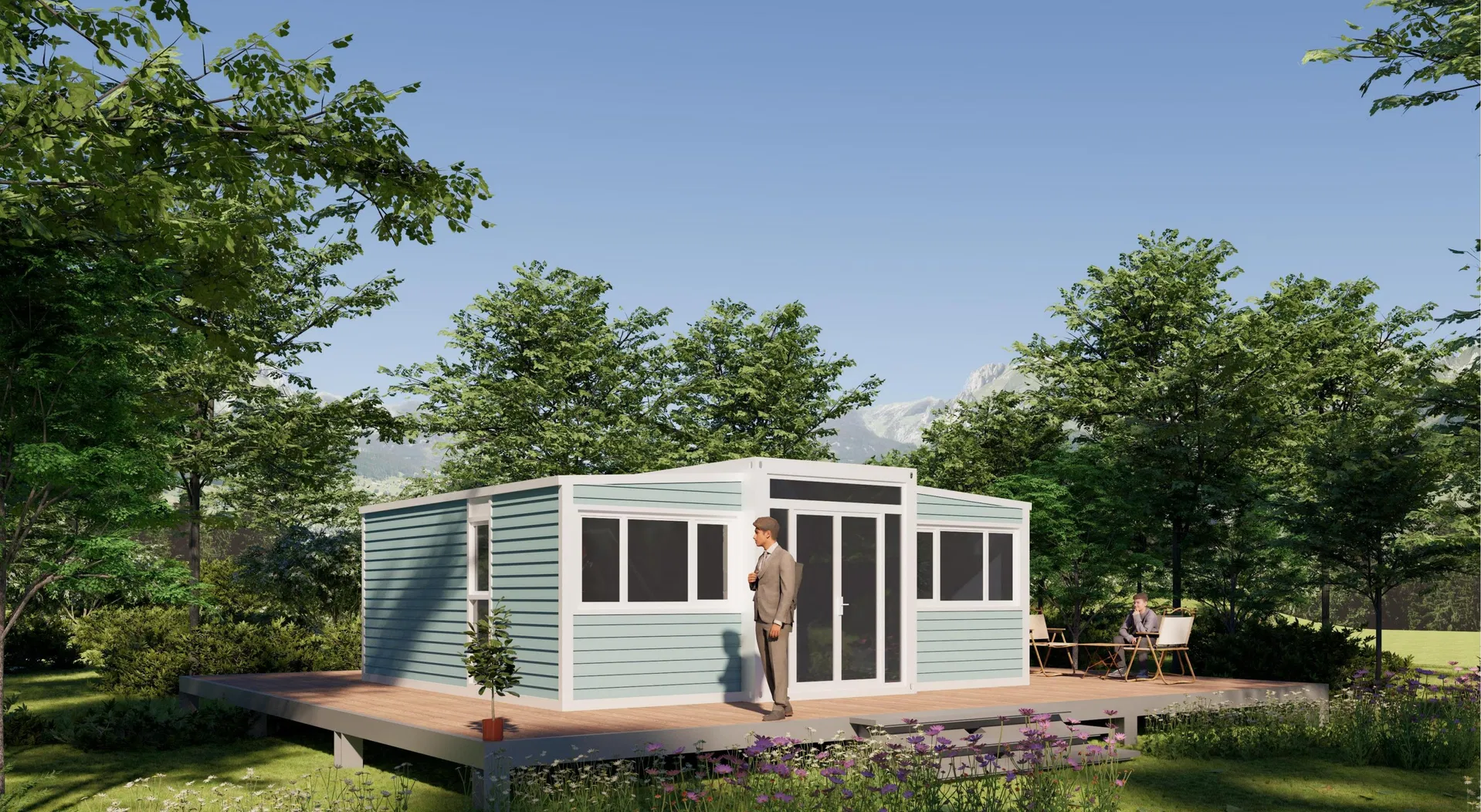

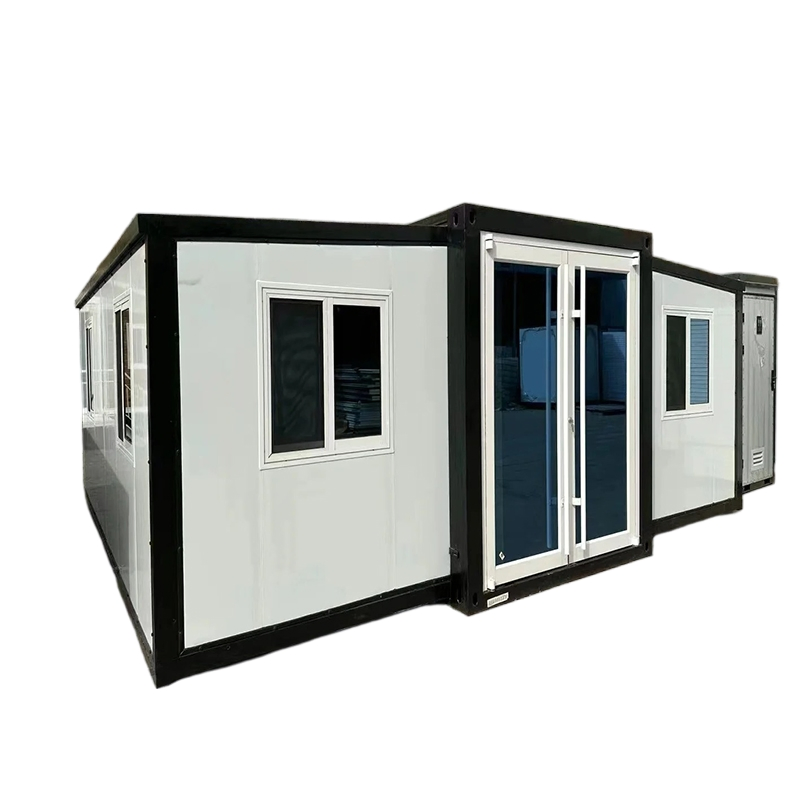

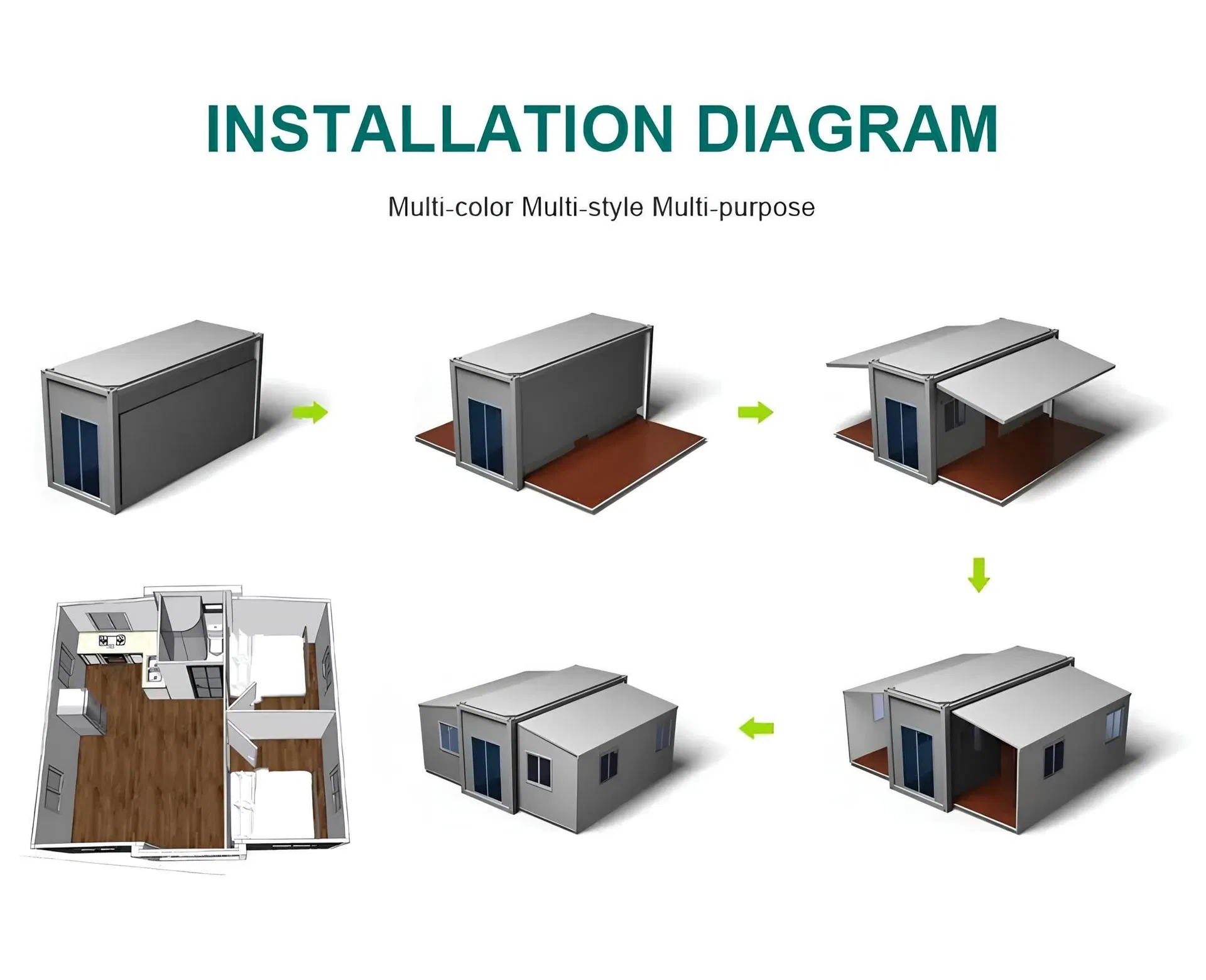

Factory-prefabricated, foldable and collapsible emergency rescue structure.
A simple house conversion system that can be reused over 50 times.
Adaptable to sea, land, and air transport, significantly reducing shipping expenses.
The price of one unit offers the space of three units, providing exceptional value.
| Container Material List | ||
|---|---|---|
| Dimensions | Outer dimensions (L * W * H) | 9000*2200*2480mm |
| Expanded size (L*W*H) | 9000*6300*2480mm | |
| Performance | Heat-insulating property & Wind resistance | In = 0.048W/m · K fire resistance performance / Wind resistance: 0.60kN/m² |
| Sound insulation & Fire protection | Sound insulation ≥ 30dB / Fire protection: A level | |
| Waterproof & Seismic performance | Organized drainage, precipitation 16mm/min without leakage / Seismic: Level 8 | |
| Ground & Roof live load | Ground live load: 2.0kN/m² / Roof live load: 0.9kN/W² | |

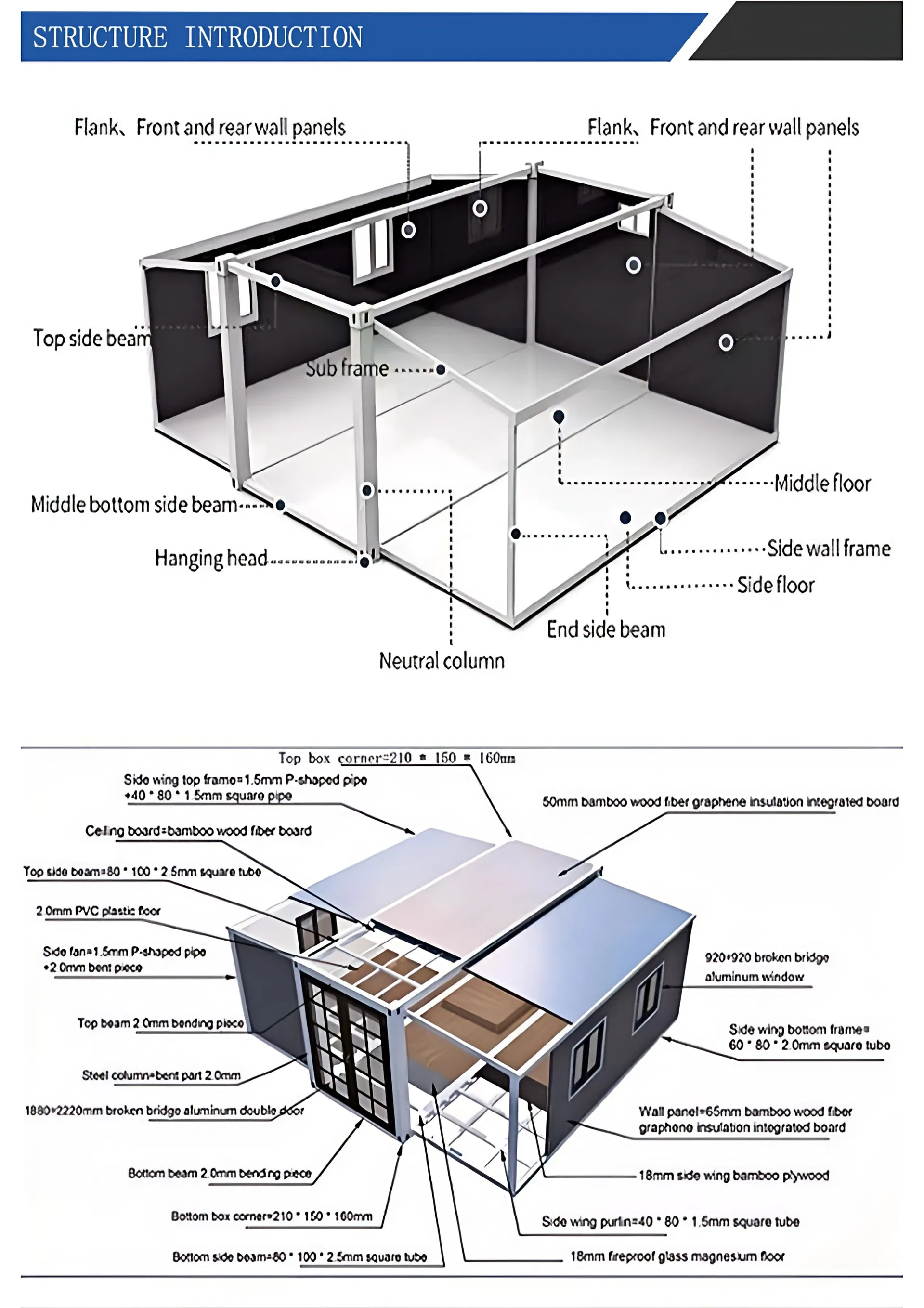

| Structure | The main frame |
Main ground beam: specification 80mm*100mm square steel, galvanized beam 2.5mm thick; Ground subbeam: specification 60*40*1.5mm thick galvanized square tube; Pillar: specification 210*150mm, galvanized 2.5mm thick; Roof main beam: square steel of specification 80mm*100mm, galvanized 2.5mm thick; Roof secondary beam: 40*40*1.5mm thick * 7 galvanized square tubes, 20*40*1.5 square tubes * 2 |
| Side frame & Surface prep |
P80*1.5mm Special pipe / P65*1.5mm Special pipe / L type special galvanized steel plate, thickness 2.0mm, 40*80*1.5mm Rectangular tube / L30*30*1.0 Angle steel. Surface: Electrostatic spray plastic powder paint > 80 Hm |
|
| Wallboard | Flame retardant benzene board | Color steel EPS composite plate thickness 50mm, width 950mm, color steel plate thickness 0.3mm, white ash color, pure flat inside and outside, density 12kg/m³ flame retardant. |
| Roofing | Roof boarding | 50mm thick EPS composite plate, steel plate thickness 0.3mm / Outer thickness 0.4mm |
| Furred ceiling | V195 type press plate | |
| Floor | Structural slab | The main floor is cement board with a thickness of 18mm; the side floors are 18mm plywood |
| Plastic flooring | PVC floor leather, thickness 2.0mm | |

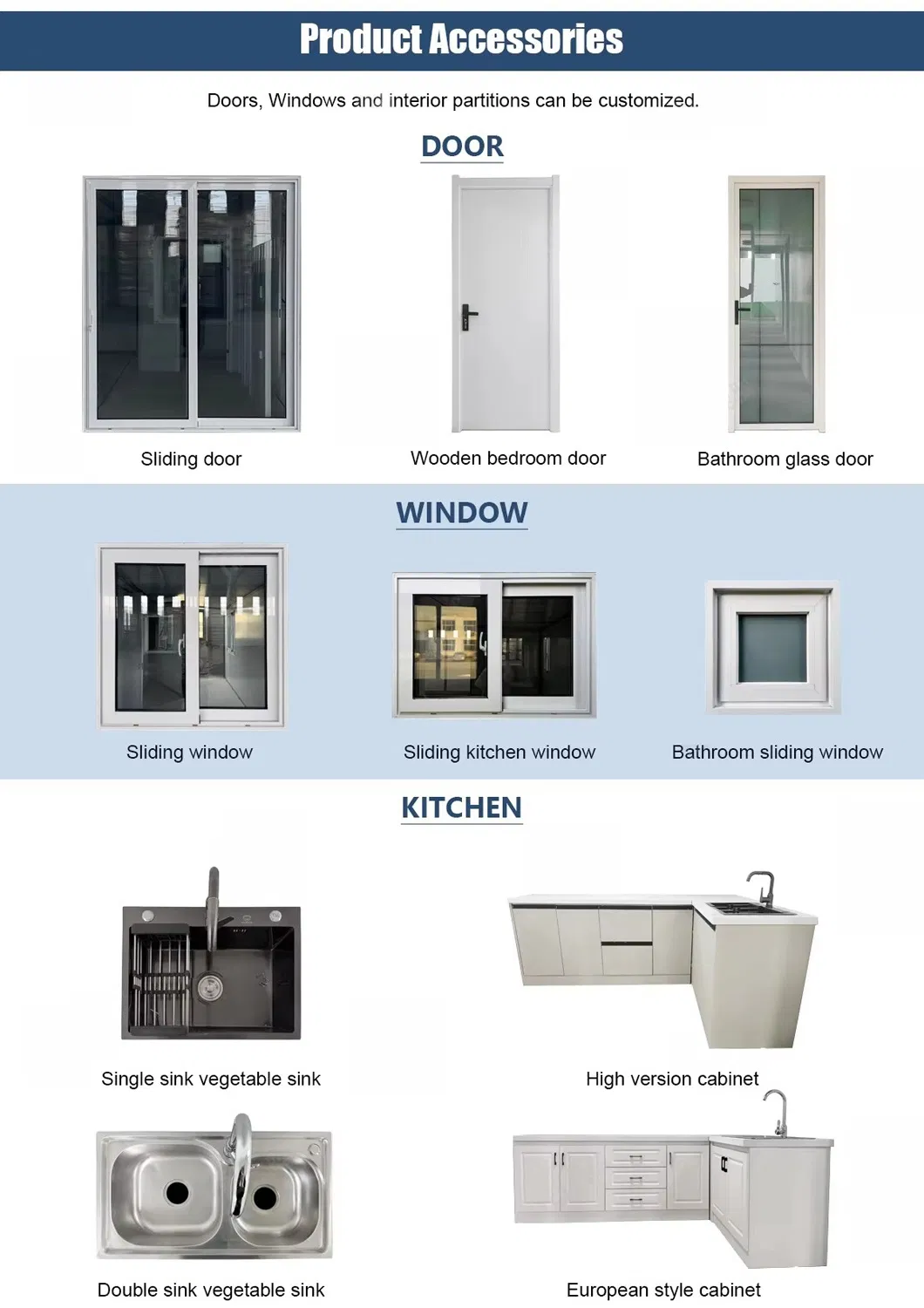

| Doors | The entrance door | Double opening aluminum alloy bridge: ≥ W1900mm * H2280mm, armoured glass |
| Indoor doors | W780xH2050 Indoor high-end steel doors | |
| Window | Exterior window | Broken bridge aluminum window: 1.27m * 2.34m (4 sets); 1.97m * 0.97m (2 sets); 1.21m * 0.54m (1 set for bathroom) |
| Electrical | Lamp | LED round ceiling light 15W/set. Bathroom 12W |
| Jack | Standard execution specification | |
