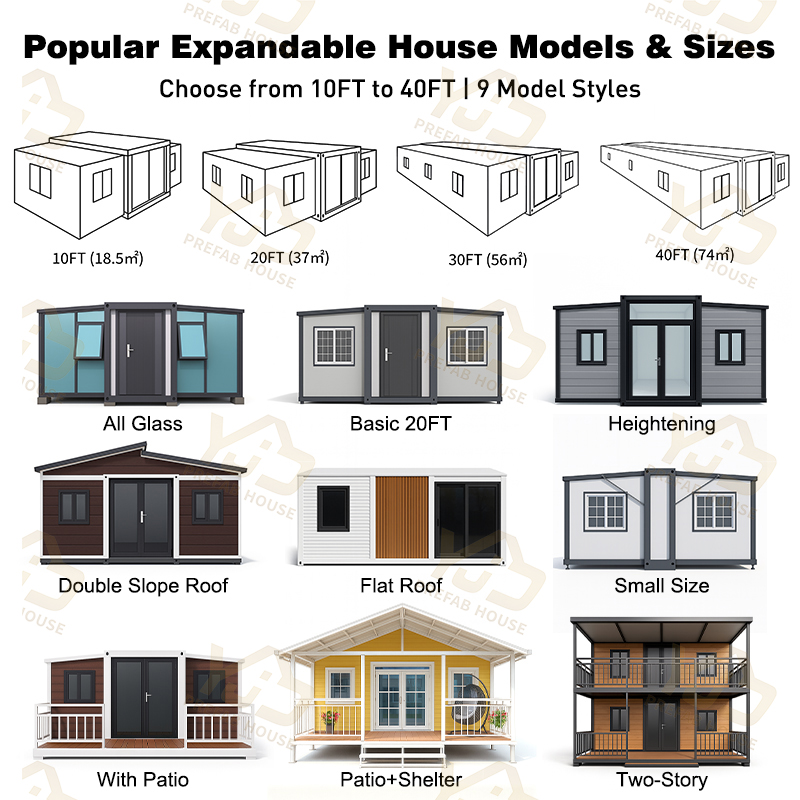

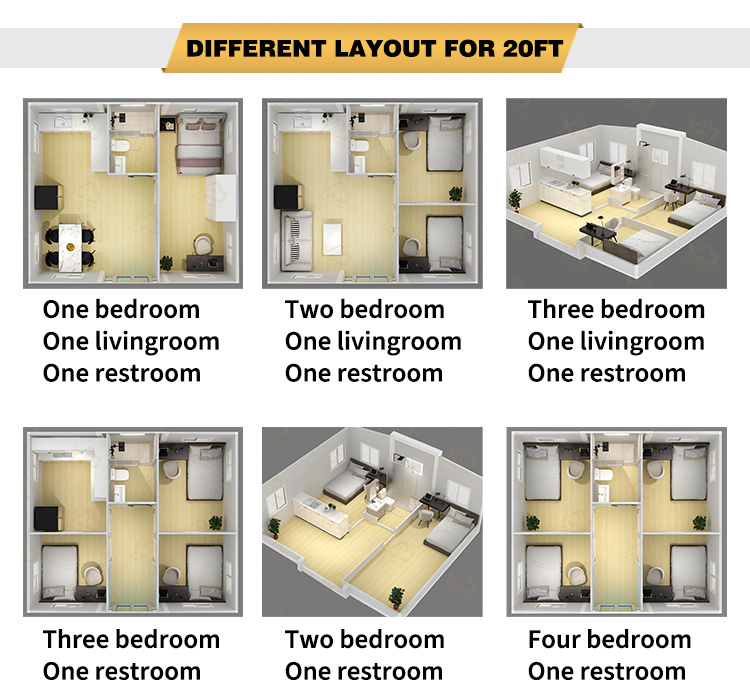

| 20FT | ||
|---|---|---|
| Open Size | W6320 × L5900 × H2480mm | W20.73' × L19.35' × H8.13' |
| Folded Size | W2200 × L5900 × H2480mm | W7.21' × L19.35' × H8.13' |
| Total Area | 36.54㎡ | |
| Net Weight | 2500kg | |

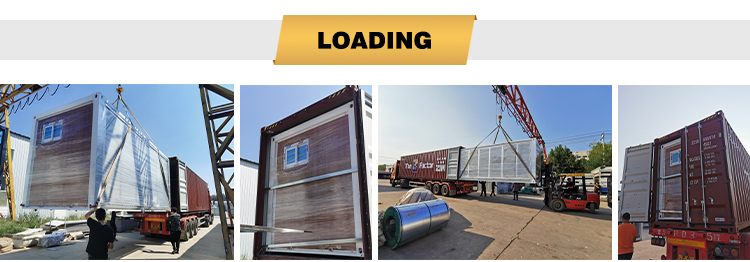

| Loading capacity | 2 Sets / 40HQ | |
| 30FT | ||
| Open Size | W6360 × L9000 × H2480mm | W20.86' × L29.52' × H8.13' |
| Folded Size | W2200 × L9000 × H2480mm | W7.21' × L29.52' × H8.13' |
| Total Area | 56.7㎡ | |
| Net Weight | 3750kg | |
| Loading capacity | 1 Set / 40HQ | |

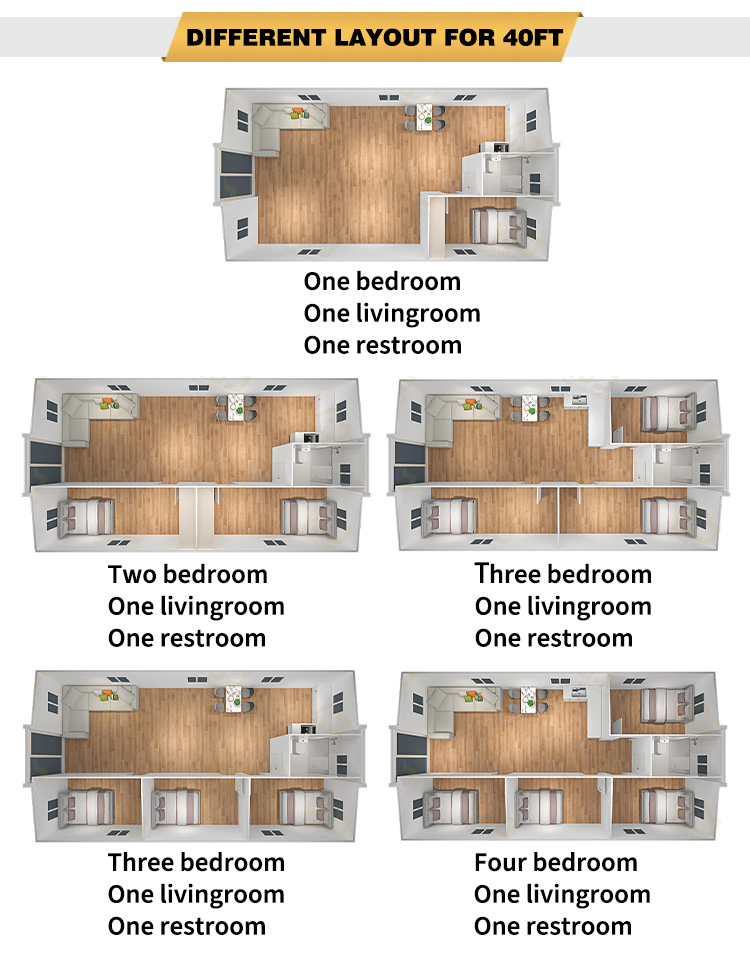

| 40FT | ||
| Open Size | W6240 × L11800 × H2480mm | W20.47' × L38.71' × H8.13' |
| Folded Size | W2200 × L11800 × H2480mm | W7.21' × L38.71' × H8.13' |
| Total Area | 74.34㎡ | |
| Net Weight | 4400kg | |
| Loading capacity | 1 Set / 40HQ | |
| Main material | Galvanized steel structure with sandwich wall panel and doors, windows, etc. |
|---|---|
| Steel structure | 2.5 mm hot galvanized steel structure with 4mm corner casts. (1) Floor: 18mm MgO board in the middle and 15mm laminate board on both sides; (2) Adding 2mm PVC flooring; (3) 75mm rock wool, EPS sandwich panel; (4) Galvanized steel base plate. |
| Columns | 2.5 mm hot galvanized steel structure |
| Wall | 3-4mm Hot galvanized steel structure with 4 corner casts and: (1) Galvanized steel roof covering; (2) 50mm EPS sandwich panel. |

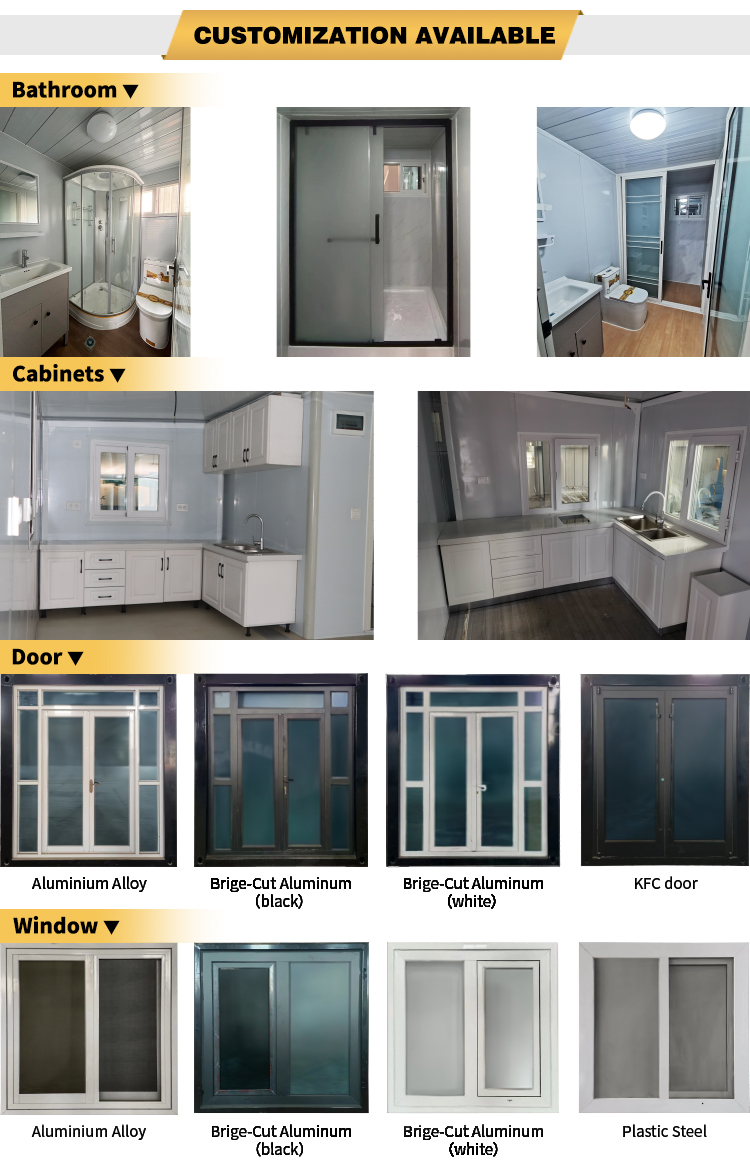

| Door | (1) Steel door; (2) Aluminum double glass door; (3) Cut-bridge aluminum double glass door. |
| Window | 920*920mm, double glass; (1) Plastic steel window; (2) Aluminum double glass window; (3) Cut-bridge aluminum double glass window. |
| Connection kits | PVC Connection kits for ceiling, floor and walls. |
| Electricity | 3C/CE/CL/SAA Standard, with breaker, lights, switch, sockets, etc. |

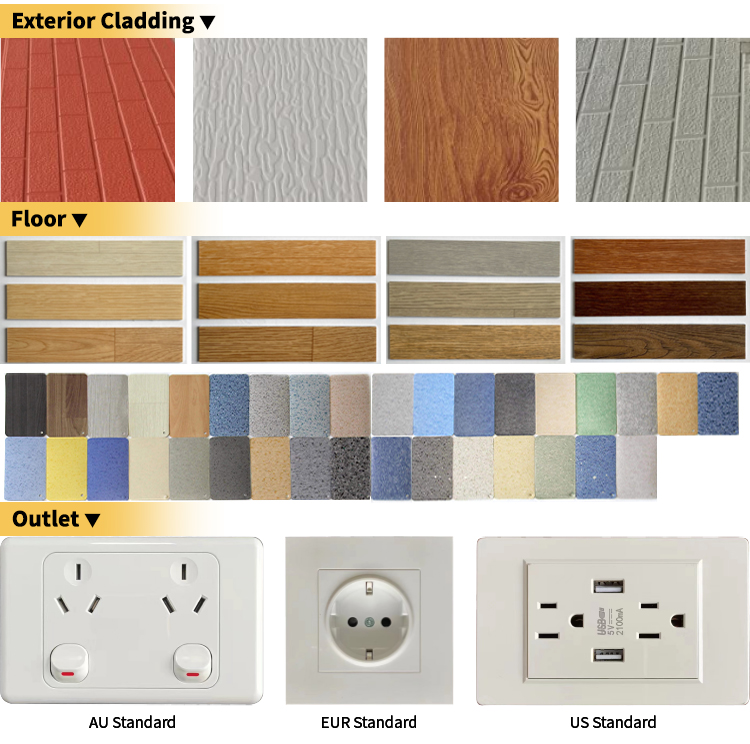

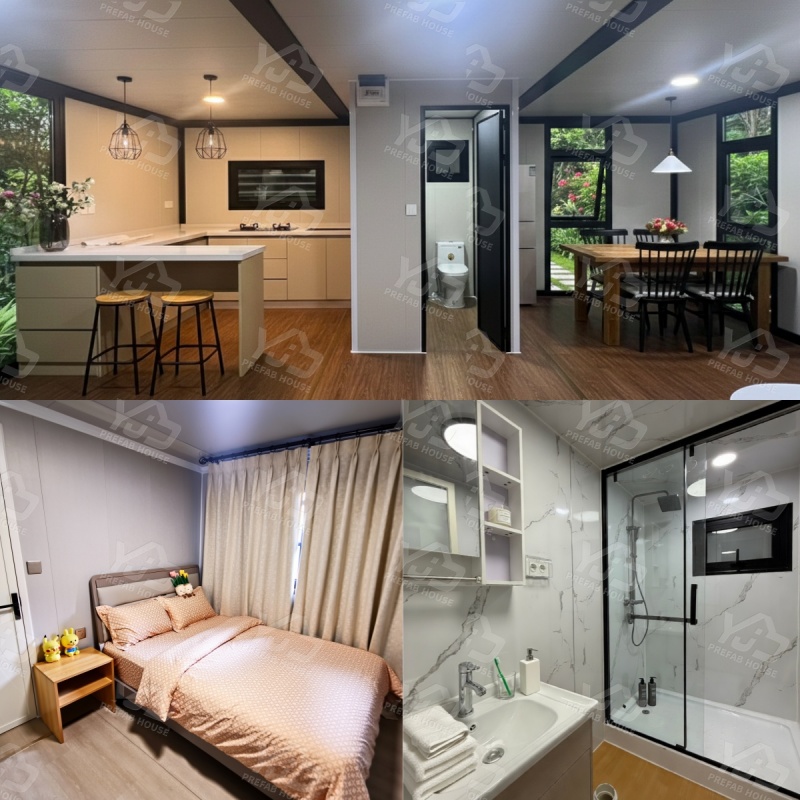

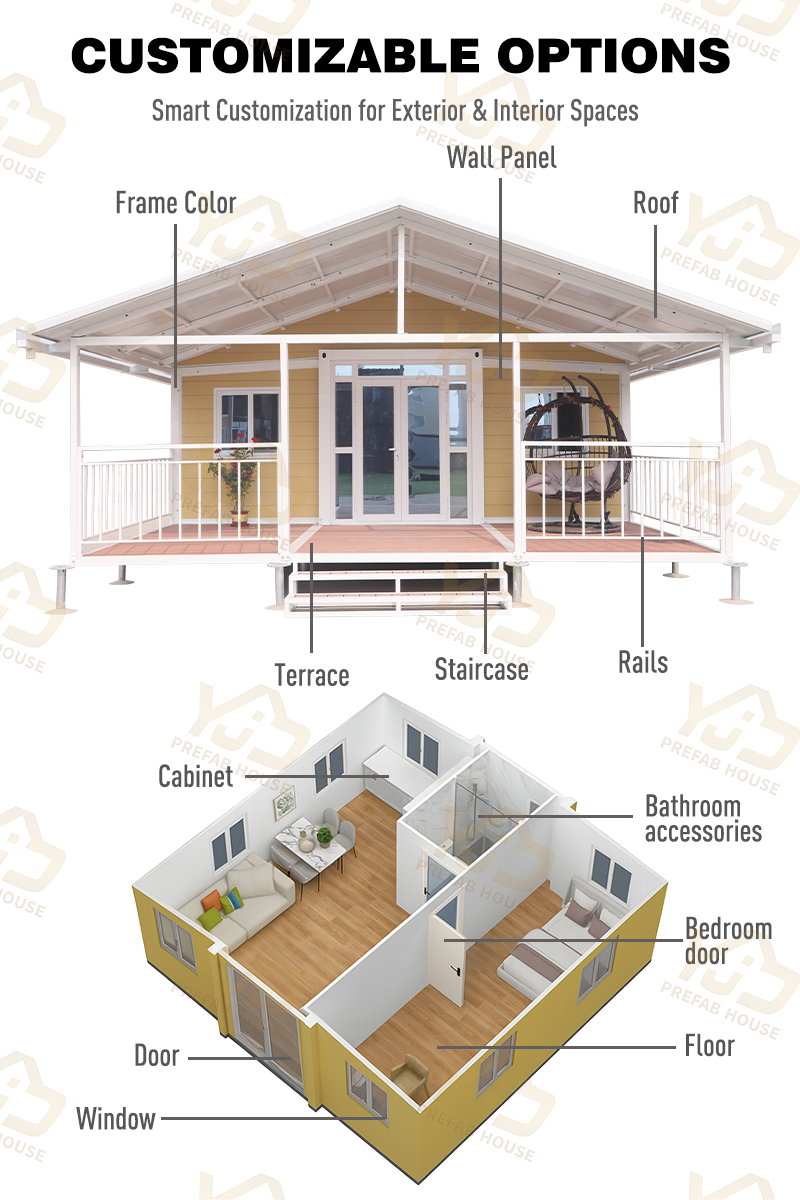

| Optional Accessories | Furniture, kitchen (including cabinet and sink), bathroom (including toilet, washing basin, mirror, shower room), electrical appliance, roof, terrace, decorative material, etc. |
