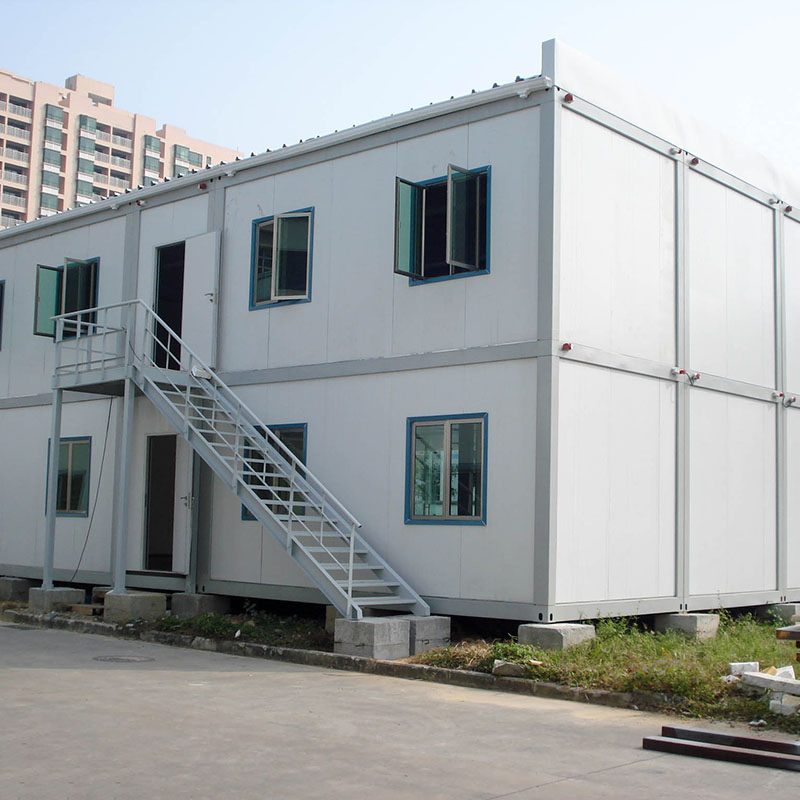

🏠 Product Description

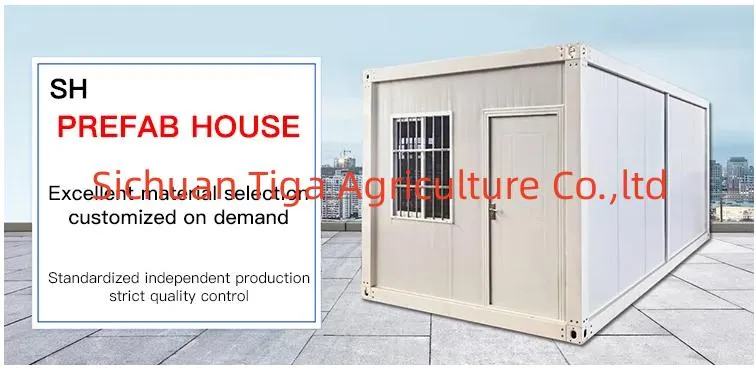

1. Container house brief introduction

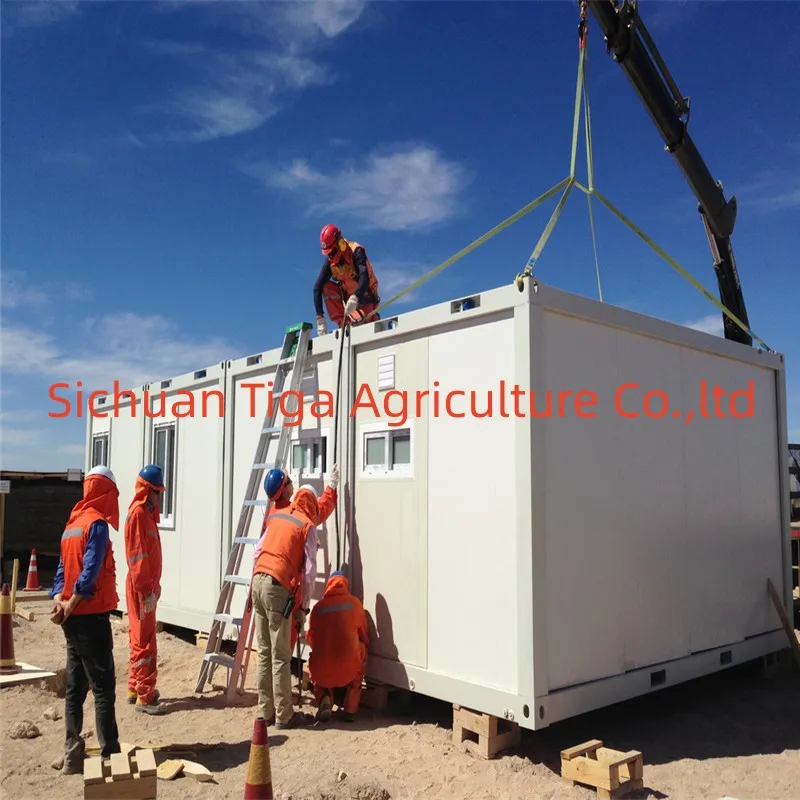

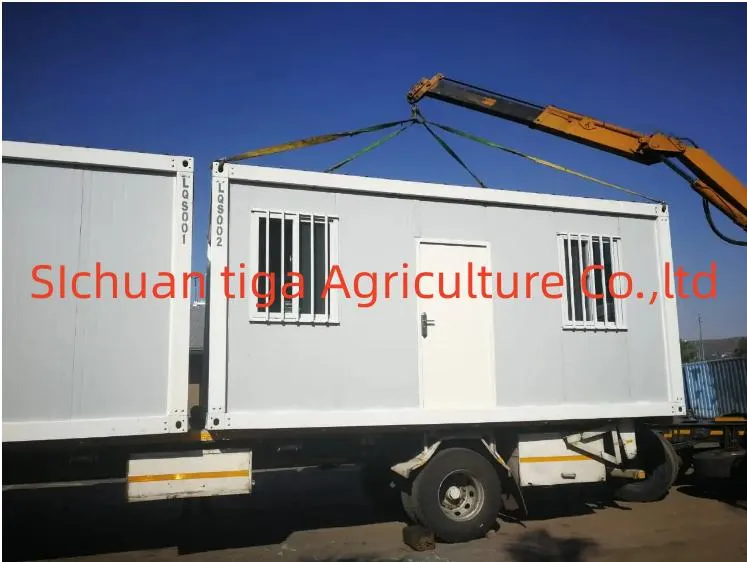

Container house is designed and developed according to the standard size of shipping container. Transportation is designed in accordance with a standard ISO shipping container. The corner casting structure enables lifting capability utilizing a crane in the same manner as a standard ISO shipping container.
2. Container house characteristics
- Good ability to assemble and disassemble for several times without damage.
- Could be lifted, fixed and combined freely.
- Heatproof and waterproof.

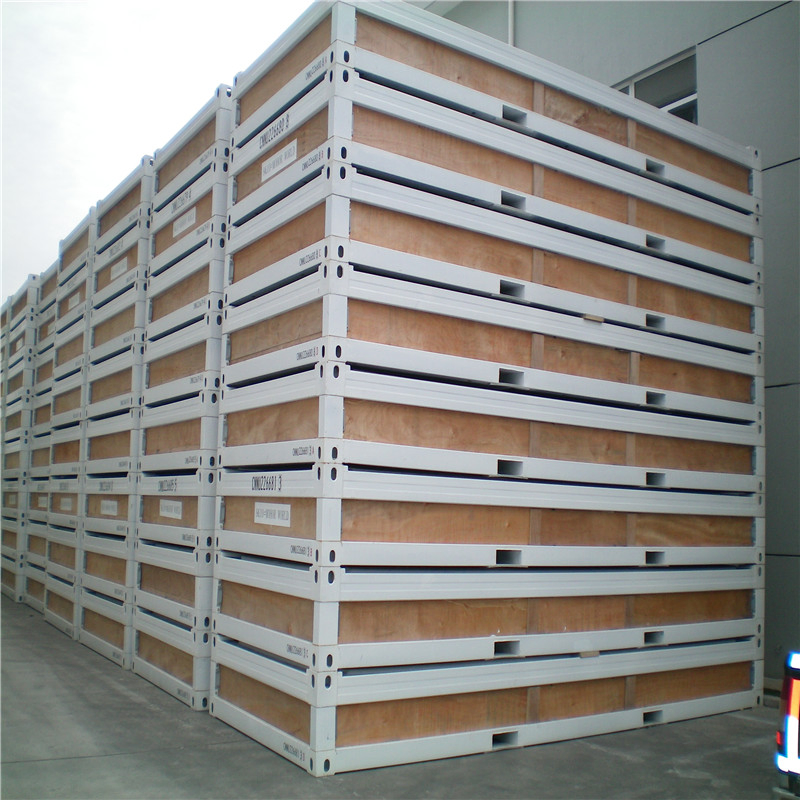

- Cost saving and convenient transportation (Each 4 container houses can be loaded in one standard container).
- Service life can reach up to 10 - 15 years.
- We can provide the service of installation, supervision and training by extra.

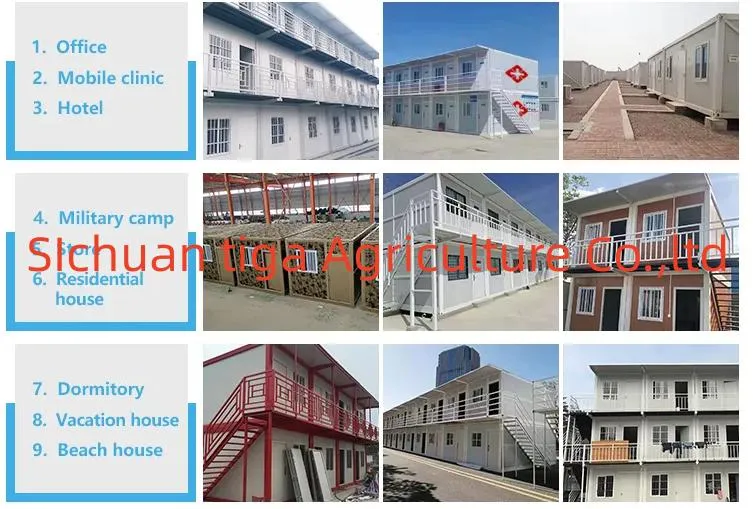

3. Container house usage
It is of heatproof and waterproof. It is widely used as site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room and so on. Light material without overload, easy to pack and transport. The house can be assembled and disassembled more than 6 times, and the service life is about 10-15 years.

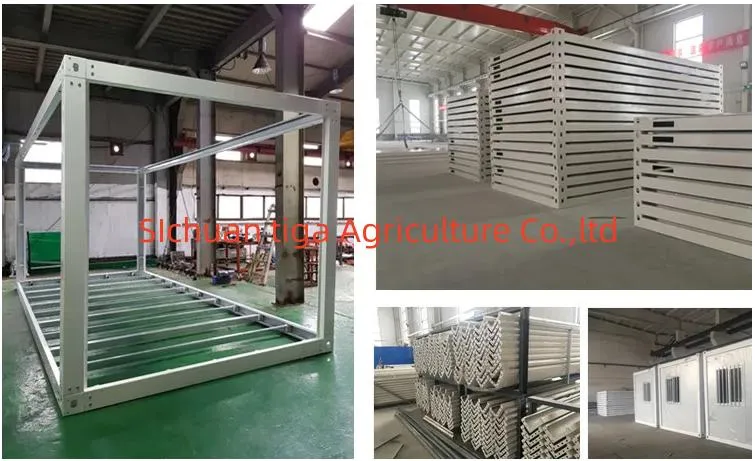

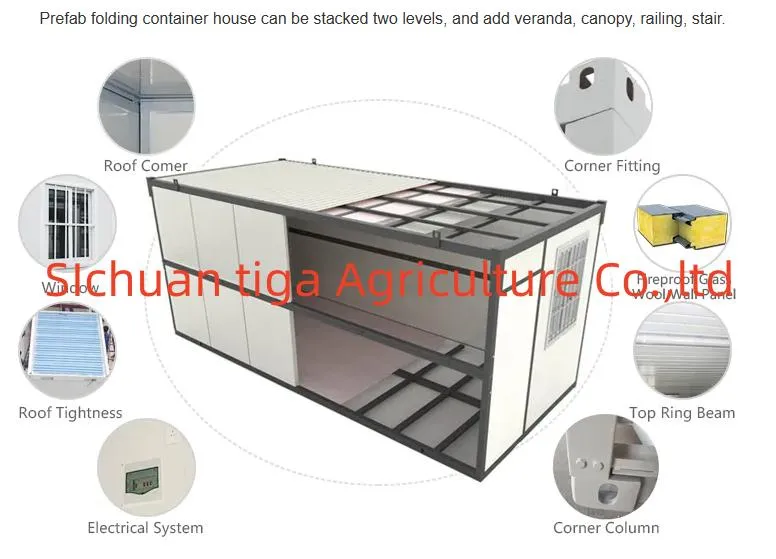

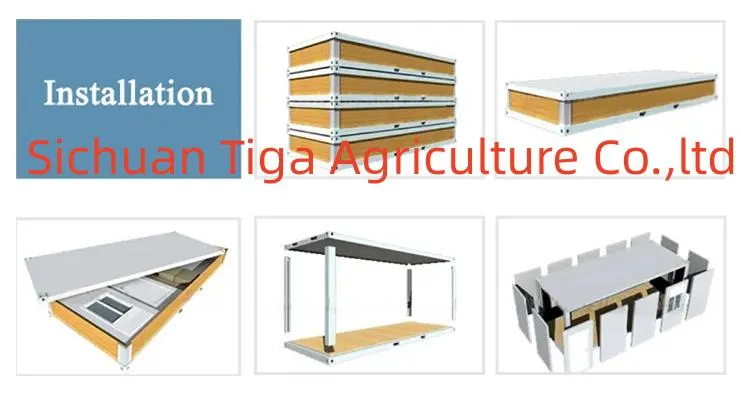

4. Container house main structure and installation

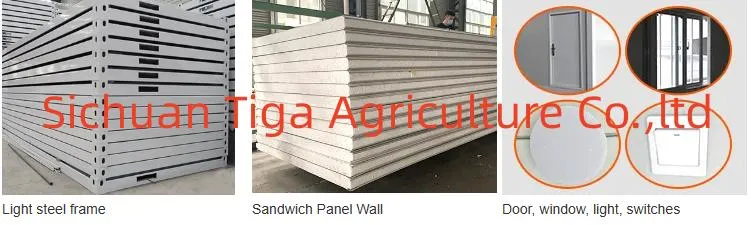

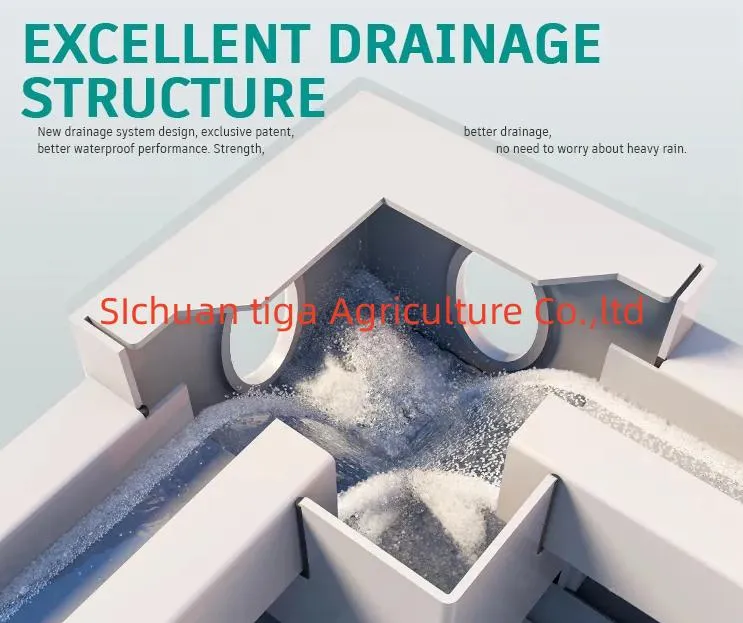

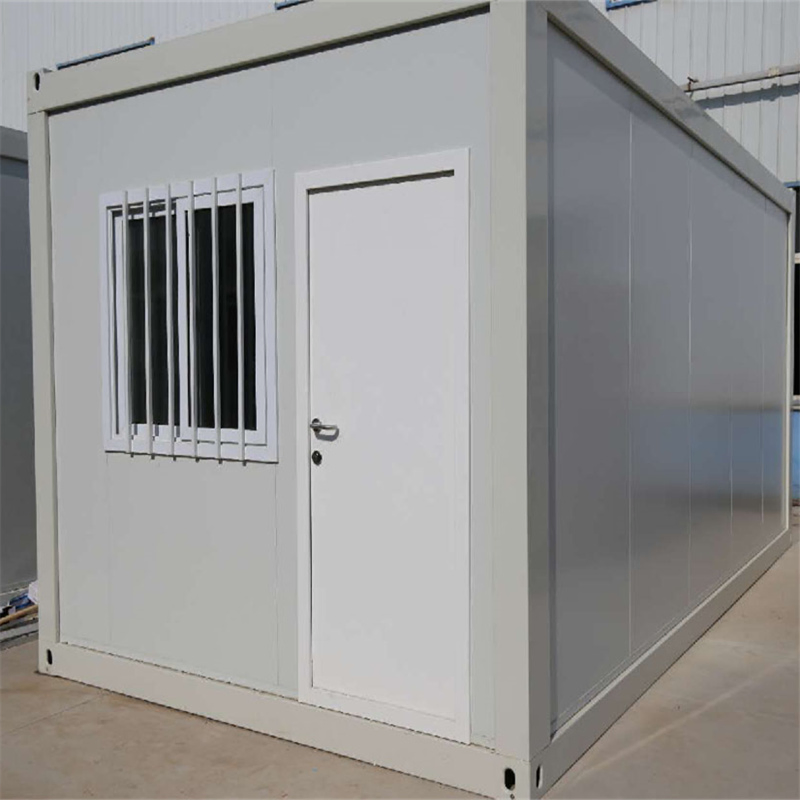

Flat Pack Container is 6.055m*2.435m*2.896m, with EPS/IEPS/Rock wool sandwich panel for wall & Glass wool for roof! 6 workers can install 1 unit in 2 hours! Can stack up to 3 floors! Electric wires run over ceiling, including DB, breaker, power inlet & lights. Sockets & Switch included. Total-sealed-top & corner-draining system ensures no water leaking on roof top. Fully Welded Top frame + truss & Bottom frame + supports ensure product strength!
Products Range:
- Prefabricated Buildings;
- Agricultural Machinery;
- Fresh Fruit & Sichuan Pepper;
- Canned Fruit & Jam.
| Accessory |
Roof System |
Q345B steel structure + two-sides 0.45mm steel sheets + 70mm PU foaming integrated formed roof + Electrical tube and wiring + outdoor connection socket + distribution box |
| Chassis System |
Steel structure chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (glass wool insulation for optional) |
| Permitted loading: >2.5KN/m² |
| Wall System |
50/75/100mm EPS sandwich panel, rock wool sandwich panel, glass fiber sandwich panel, or PU sandwich panel |
| Door System |
Steel door / Fire-proof door / Sandwich panel door |
| Window System |
Aluminum alloy shutter window and the plastic-steel window, single or double glass |
| Floor System |
PVC, plywood or customized |
| Option |
Drainage system |
Provided plan, design and construction |
| Electric system |
Provided plan, design and construction |
| Technical parameter |
Resistant temperature |
-40ºC to 40ºC |
| Wind resistance |
210km/h |
| Earthquake resistance |
Grade 8 |
⚙️ Customized Services
We offer customized services where you can select the colors or models you prefer. Our professional design team is ready to assist you.

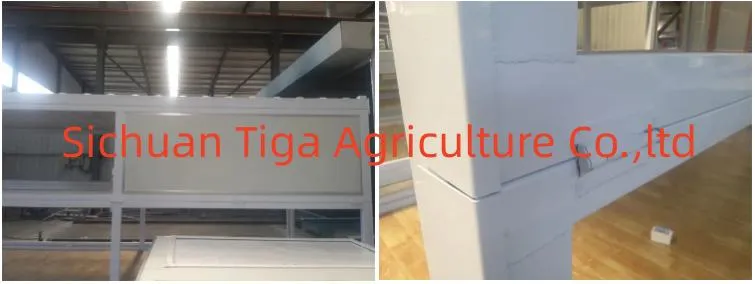

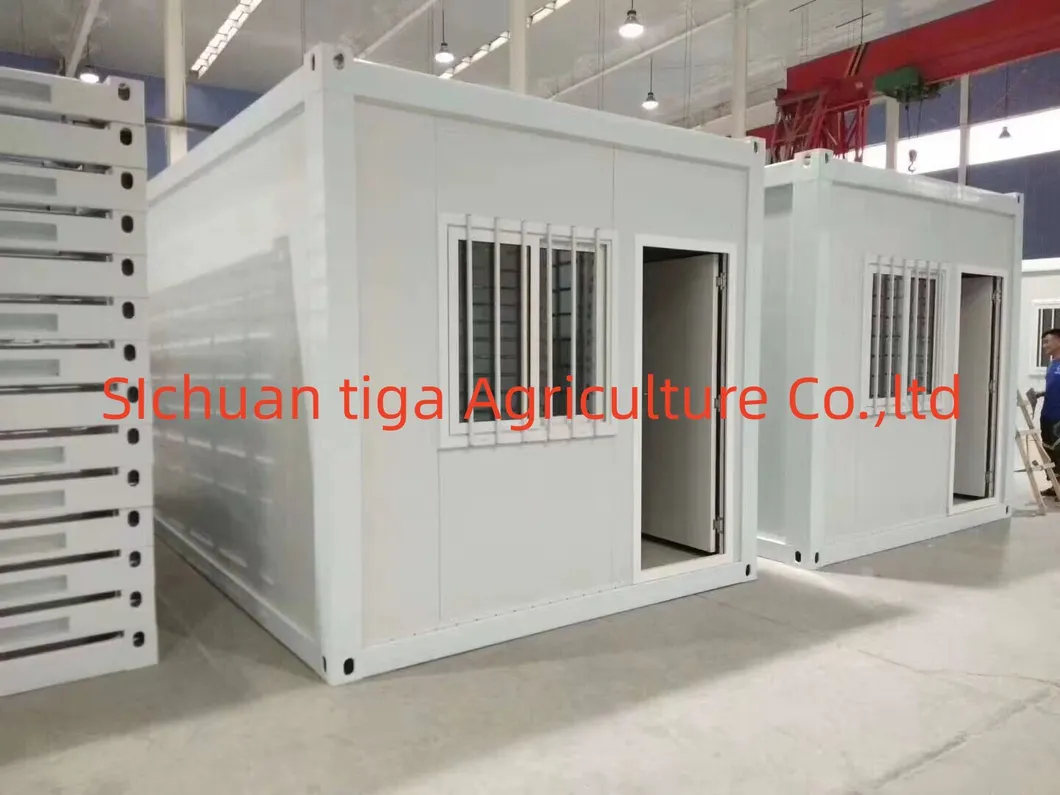

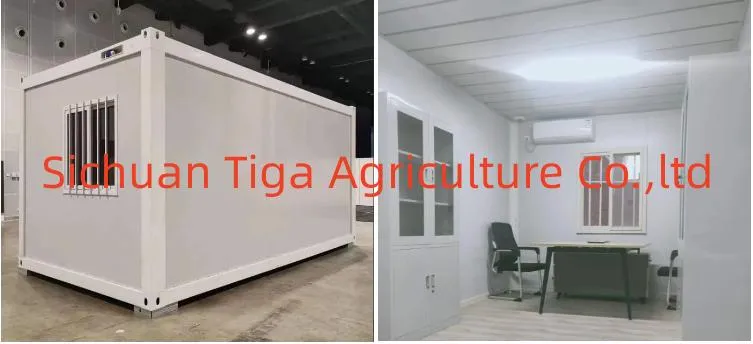

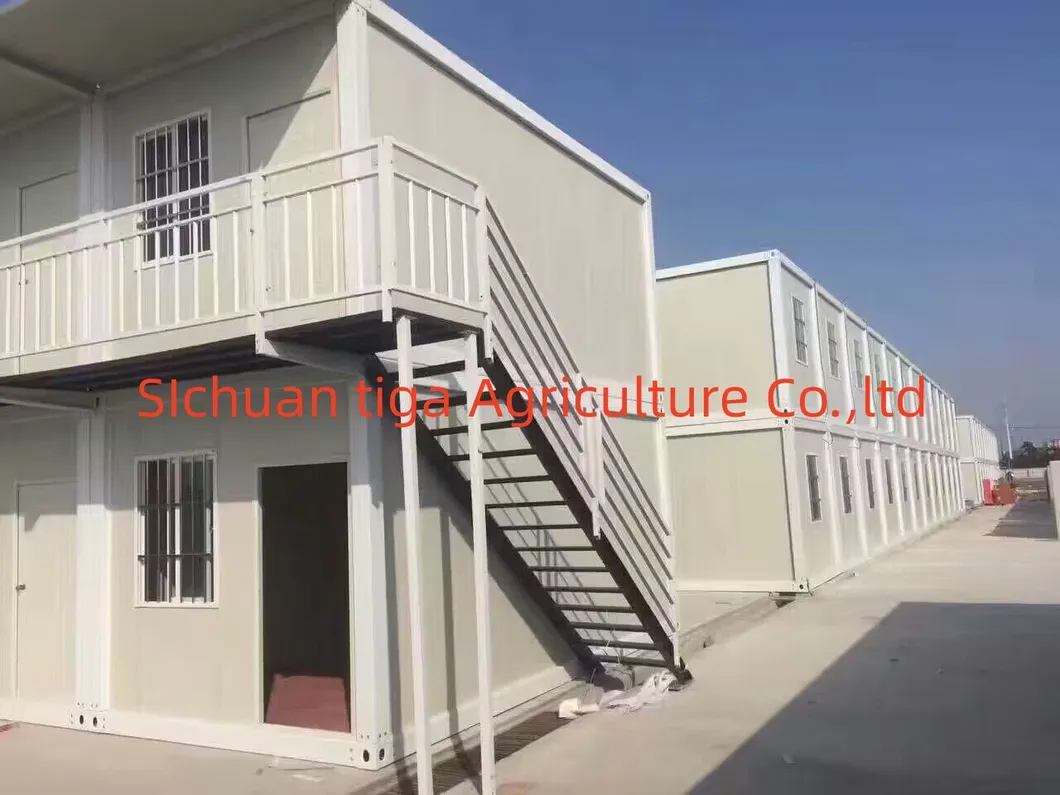

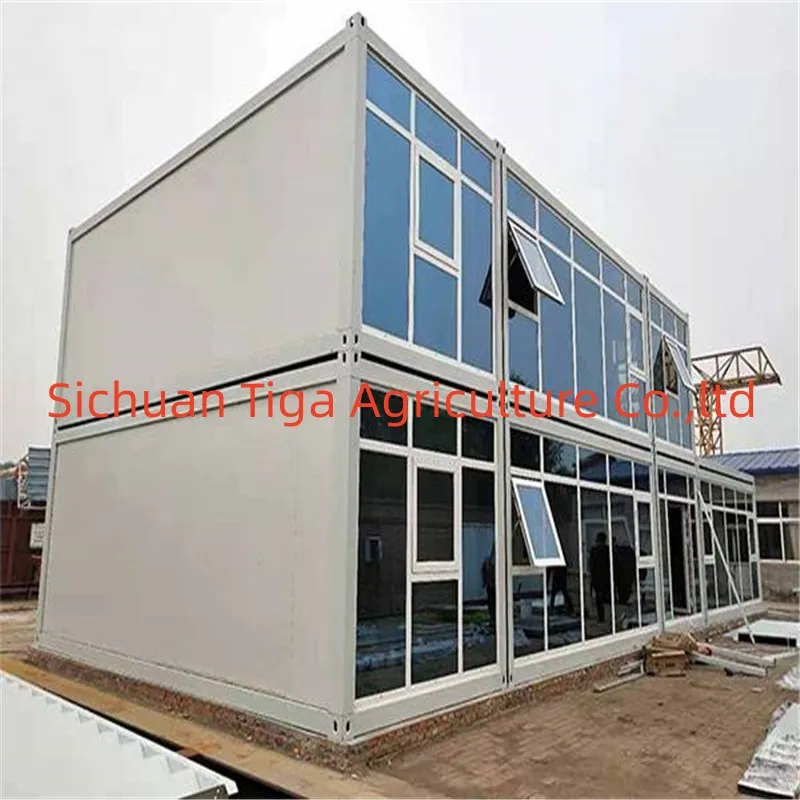

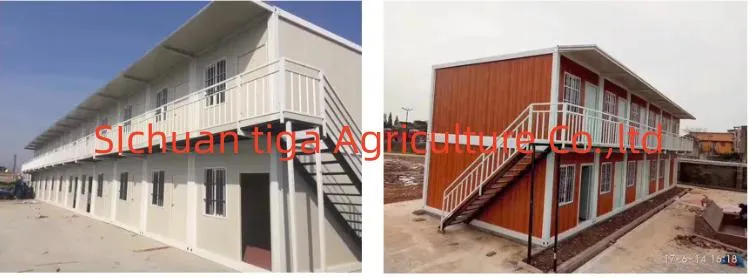

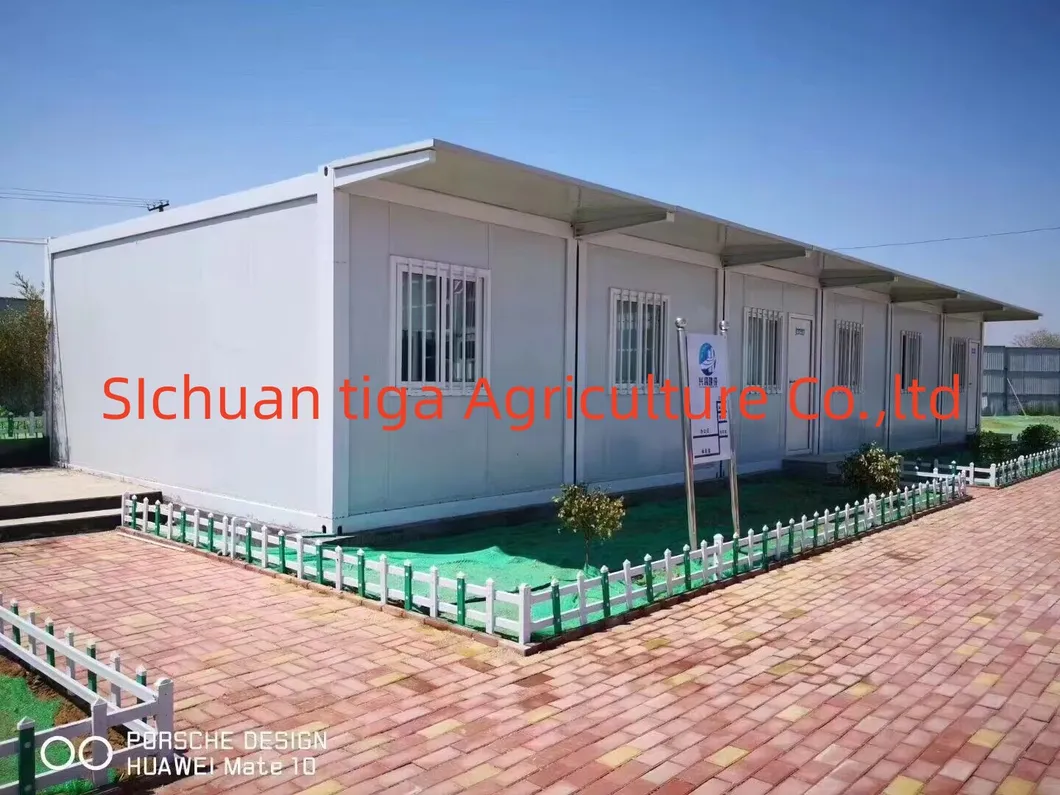

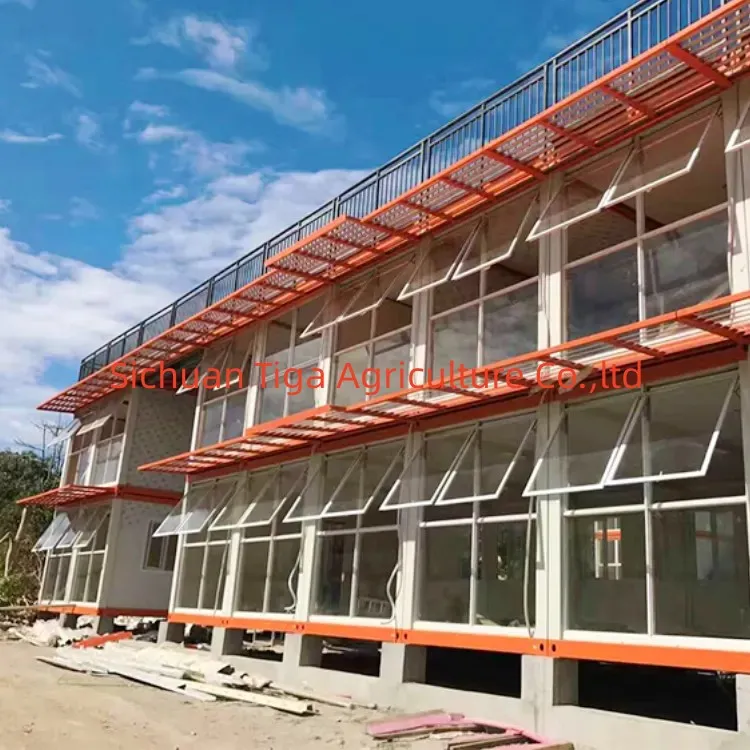

🖼️ Related Pictures
💡 Frequently Asked Questions (FAQ)
Q1: What are the dimensions of the flat pack container house?
A1: The standard size of our container house is 6055*2990*2896mm. Custom sizes can also be designed to suit your specific requirements.
Q2: How long does it take to install a flat pack container house?
A2: The installation is exceptionally quick. A crew of 6 workers can set up and complete one standard unit in approximately 2 hours.

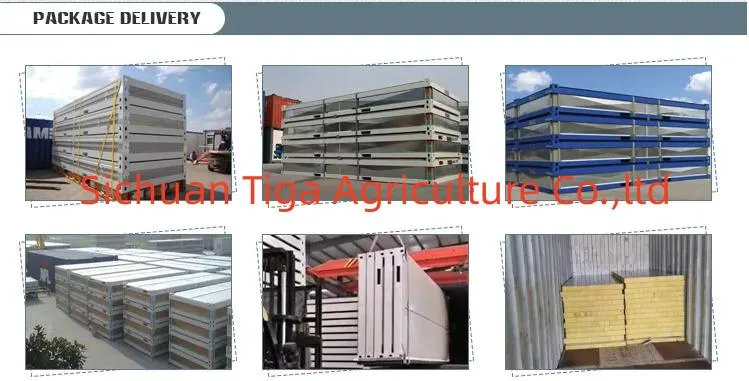

Q3: How many container houses can be transported in a standard container?
A3: For efficient and cost-saving transport, 6 standard flat pack container units can be loaded into one 40HQ shipping container.
Q4: What is the lifespan and weather resistance of these structures?
A4: These houses have a service life of 10 to 15 years. They are designed to withstand earthquakes up to Grade 8 and wind speeds of up to 210km/h.

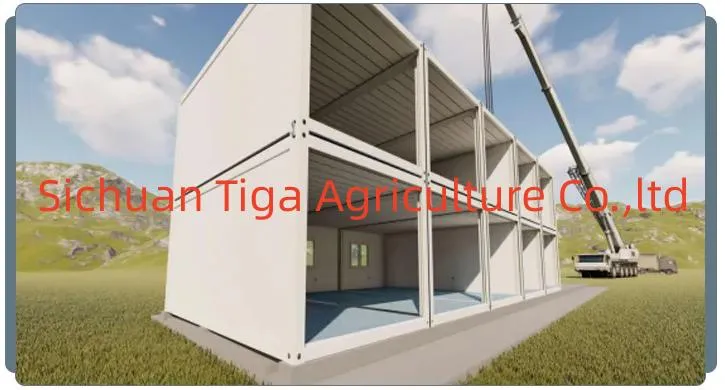

Q5: Can these modular container houses be stacked?
A5: Yes, they can be stacked up to 3 floors high, using the fully welded top and bottom frames with strong corner supports to ensure structure safety.
Q6: Are the wall and roof materials insulated and leak-proof?
A6: Yes, they features PU foaming integrated formed roofs and EPS/Rock wool/glass wool sandwich panels for walls, ensuring excellent heatproof, waterproof and anti-leak performance.
