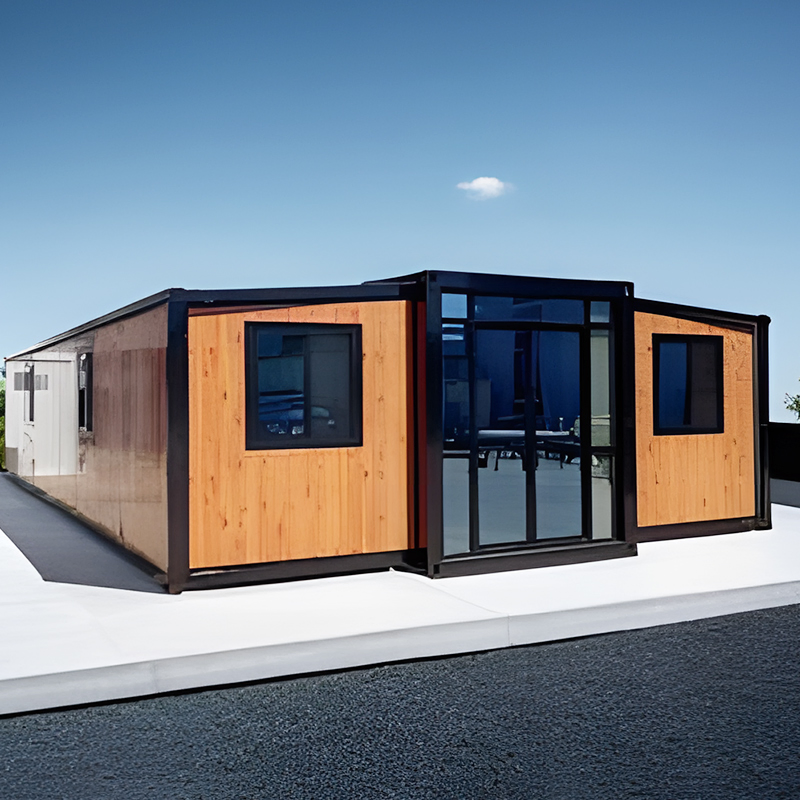

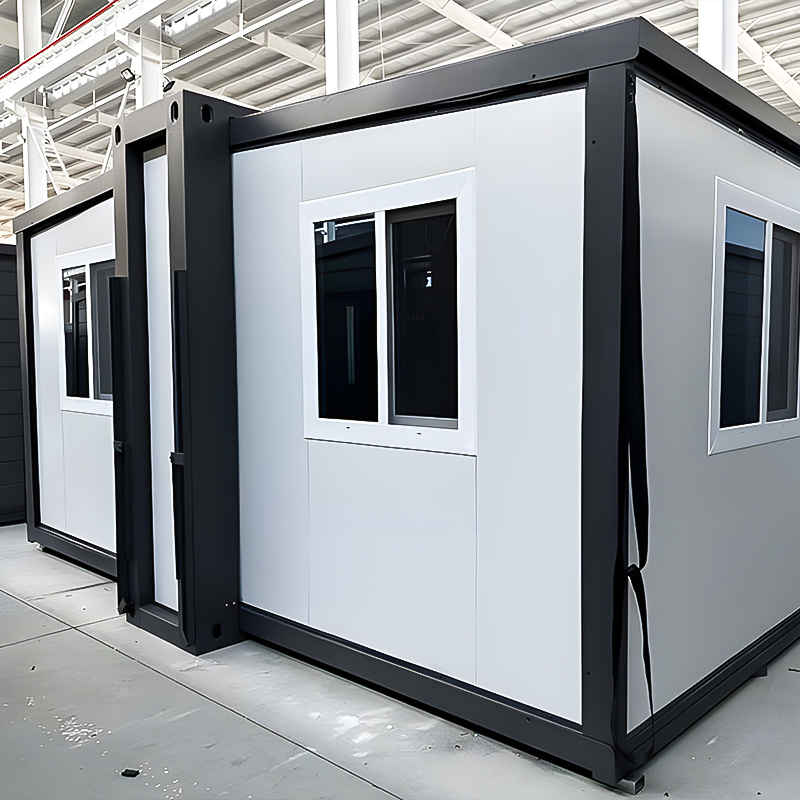

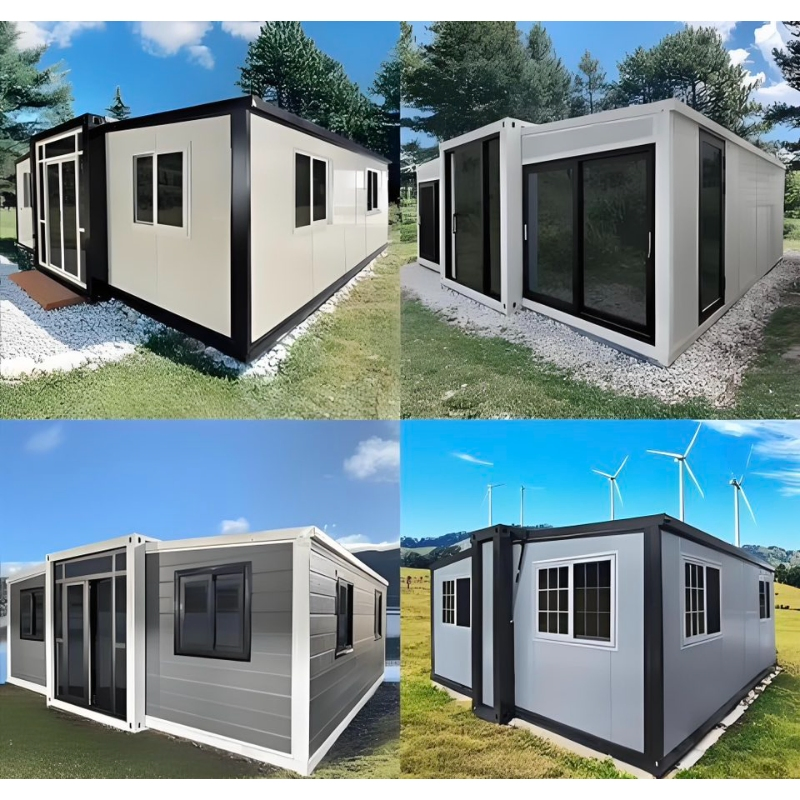

SES House
1 / 5

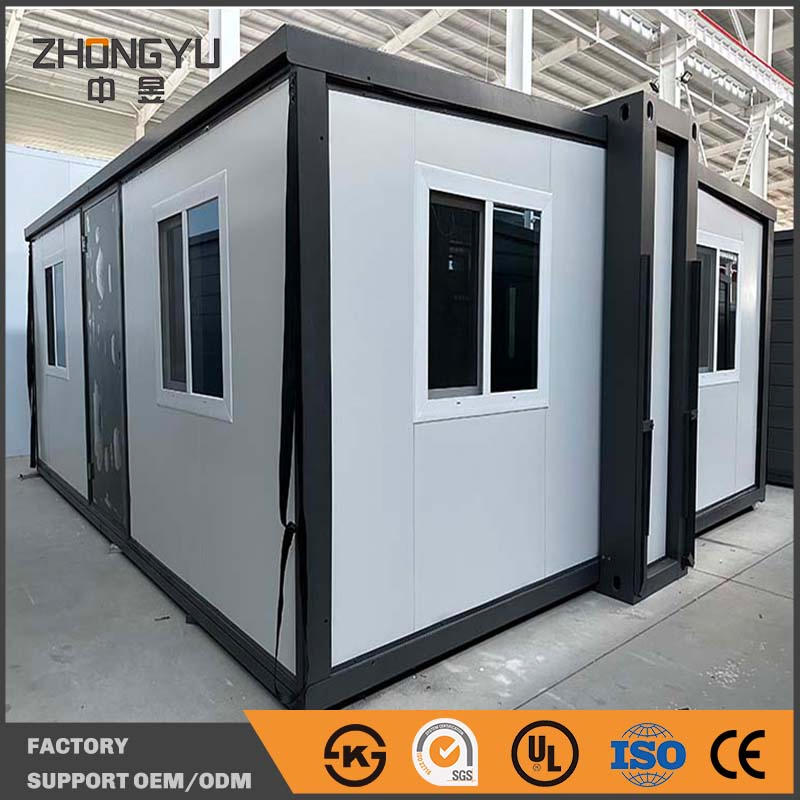

Size: L5850mm * W6300mm * H2480mm
Packing size: L5850mm * W2200mm * H2480mm
1. Structure:
Made of hot galvanized light steel frame with sandwich panels wall, doors and windows, etc.
2. Application:

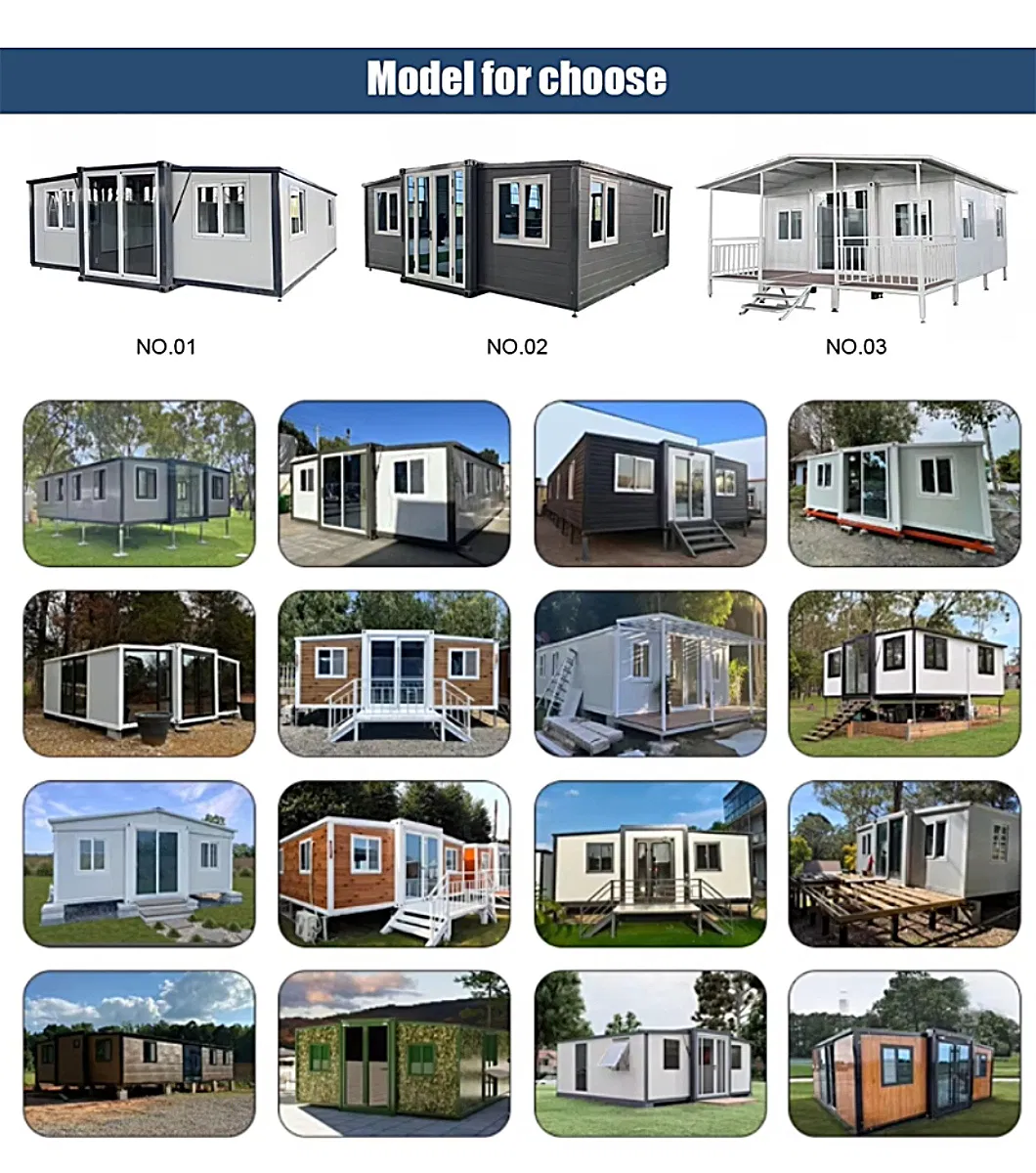

Can be used as accommodation, living house, office, dormitory, camp, toilet, bathroom, shower room, changing room, school, classroom, library, shop, booth, kiosk, meeting room, canteen, guard house, etc.
3. Advantage:
4. Service Support:
| Container Material List | ||||
|---|---|---|---|---|
| Box Size | Outer dimensions (L*W*H) | 5900*2200*2480mm | ||
| Expanded size (L*W*H) | 5900mm*6300mm*2480mm | |||
| Metrics | Heat-insulating property | In = 0.048W/m·K fire resistance | Wind resistance | 0.60kN/m² |
| Sound insulation value | ≥ 30dB | Fire protecting performance | A level | |
| Waterproof performance | Organized drainage, precipitation 16mm/min without leakage | Seismic performance | Level 8 | |
| Ground live load | 2.0kN/m² | Roof live load | 0.9kN/W² | |

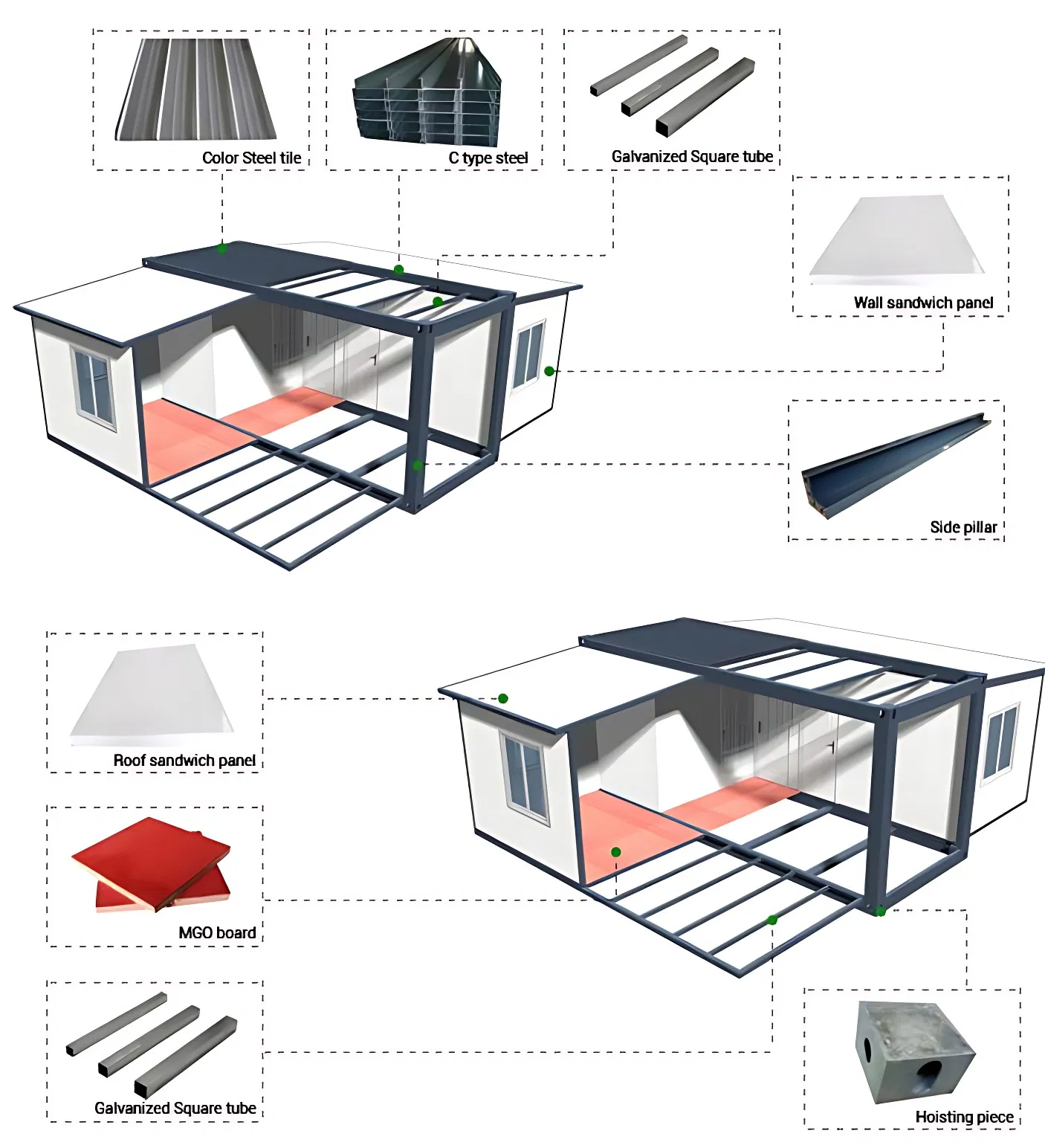

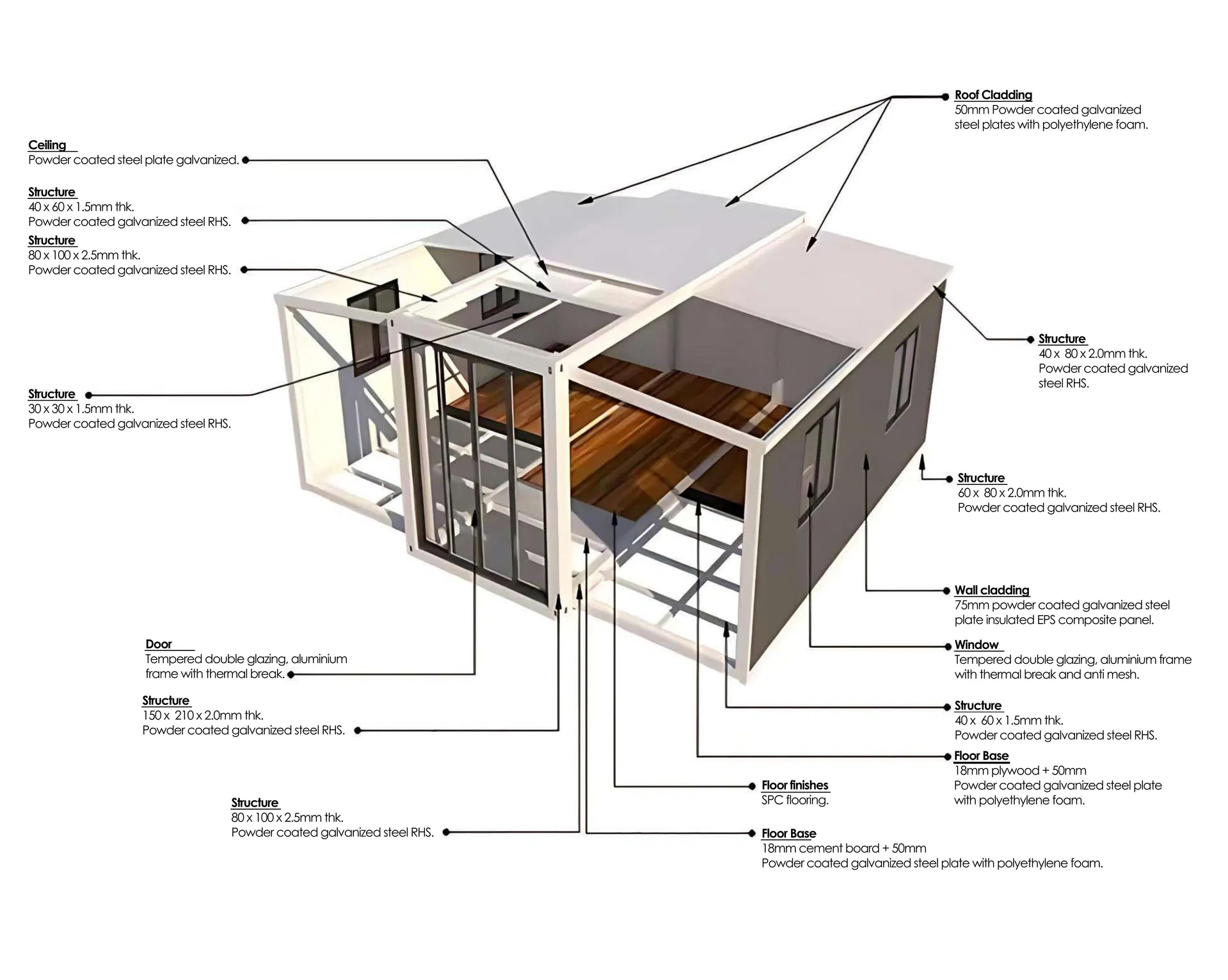

| Structure Frame | Main frame |
Main ground beam: 80mm*100mm square steel, galvanized beam 2.5mm thick; Ground subbeam: 60*40*1.5mm thick galvanized square tube; Pillar: 210*150mm, galvanized 2.5mm thick; Roof main beam: 80mm*100mm square steel, galvanized 2.5mm thick; Roof secondary beam: 40*40*1.5mm thick * 7 galvanized square tubes / 20*40*1.5 square tubes * 2 |
||
| Side frame |
P80*1.5mm Special pipe / P65*1.5mm Special pipe / L type special galvanized steel plate, thickness 2.0mm; 40*80*1.5mm Rectangular tube / L30*30*1.0 Angle steel |
|||
| Surface preparation | Electrostatic spray plastic powder paint > 80 Hm | |||
| Wallboard | Flame retardant board | Color steel EPS composite plate thickness 50mm, width 950mm, color steel plate thickness 0.3mm, white ash color, pure flat inside and outside, density 12kg/m³ flame retardant. | ||
| Roofing | Roof boarding | 50 thick EPS composite plate, steel plate thickness 0.3mm, top skin thickness 0.4mm | ||
| Furred ceiling | V195 type press plate | |||
| Floor | Structural slab | Main floor is cement board with a thickness of 18mm; side floors are 18mm plywood | ||
| Plastic flooring | PVC floor leather, thickness 2.0mm | |||

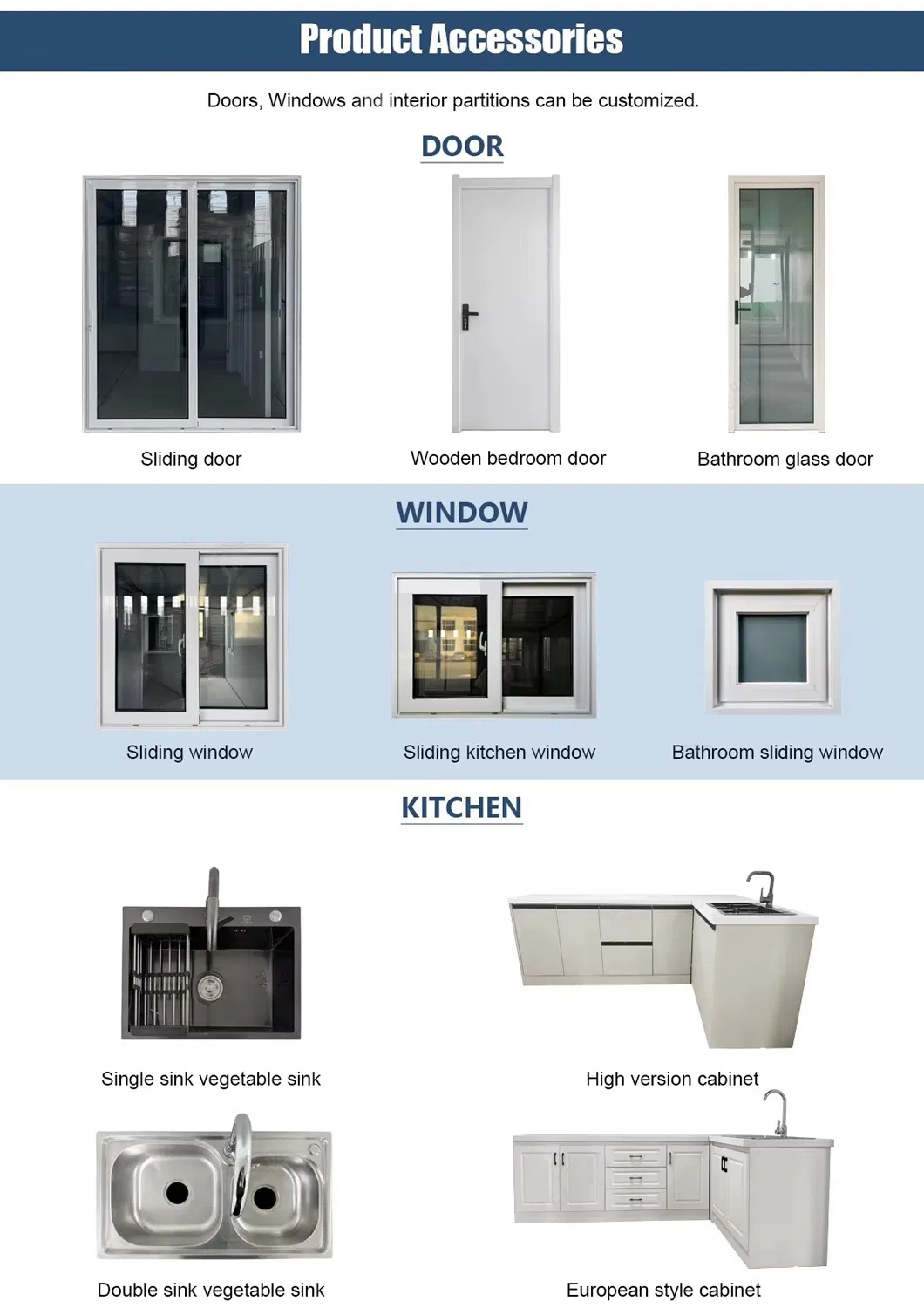

| Door | Entrance door | Double opening aluminum alloy bridge: ≥ W1900mm * H2280mm, tempered glass | ||
| Indoor doors | W780xH2050 Indoor steel doors | |||
| Window | Exterior window | Broken bridge aluminum window: 1.27m * 2.34m (4 windows); 1.97m * 0.97m (2 side strip windows); 1.21m * 0.54m (1 bathroom window) | ||

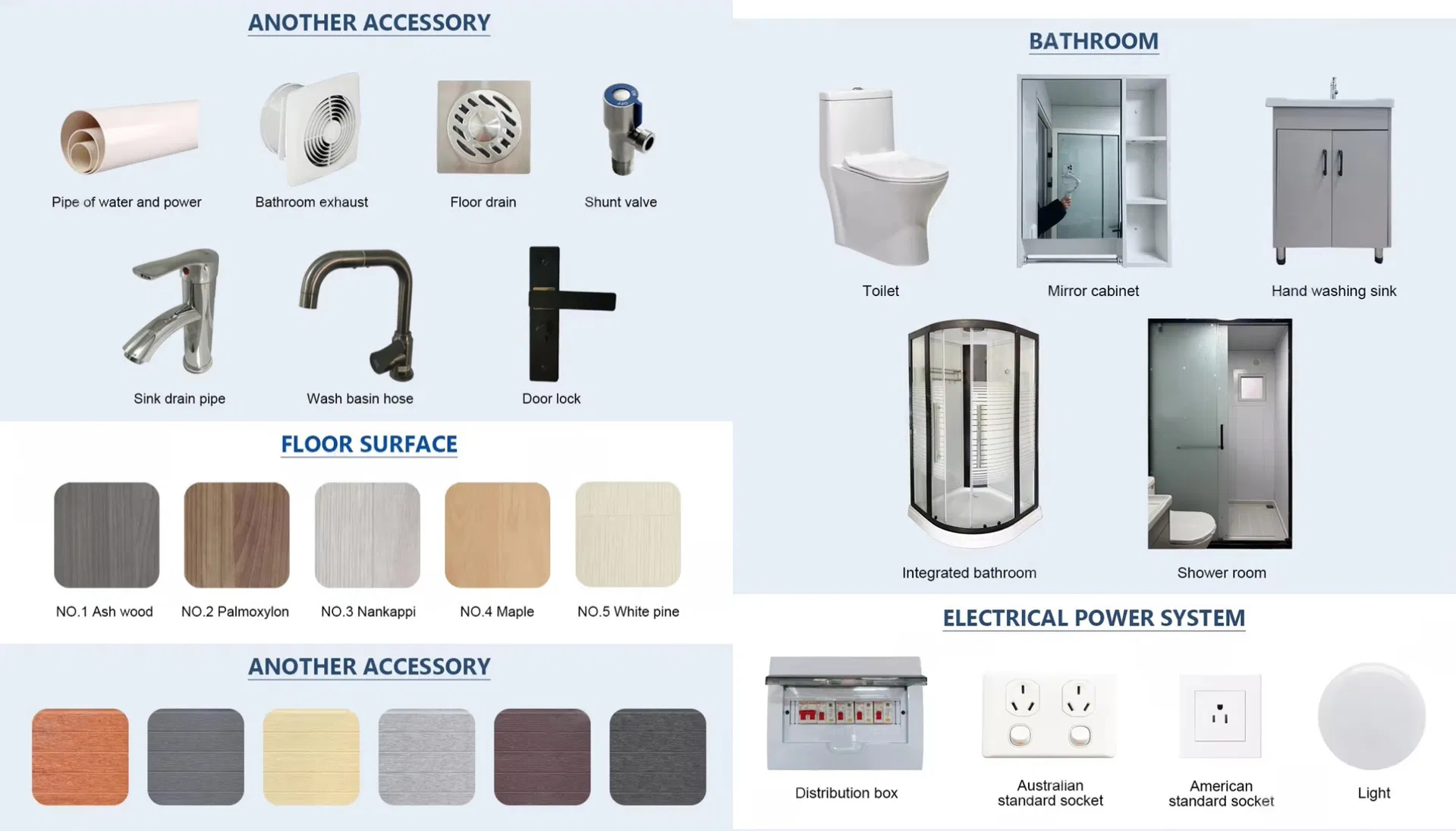

| Electrical | Lamp | LED round ceiling light 15W/set. Bathroom 12W | ||
| Sockets | Standard specification | |||
