SES House
1 / 5
| Sort | Name | Specification |
|---|---|---|
| Material | Wall | Sandwich panels could be EPS sandwich panels, rock wool sandwich panels, glass fiber sandwich panels, or PU sandwich panel, according to different requests. Thickness options: 50mm, 75mm, 100mm, or 10mm. |
| Roof | Steel frame, steel board, warm-proof fiberglass, and decoration board. External wainscot is 0.3 mm galvanized steel sheet metal, and insulation is glass wool. Supporting material is 16mm cement board, inside decoration is 2 mm rubber plastic flooring. | |
| Base | Permitted loading: 3.0kN/m² | |
| Door | Sandwich panel, steel or wood | |
| Window | Aluminium alloy shutter window and the plastic-steel window, single or double glass | |
| Floor | PVC, plywood or customized | |
| Technical Parameters | Resistant temperature | -20°C to 50°C |
| Wind resistance | Grade 11 | |
| Earthquake resistance | Grade 8 |
Steel: Q235B Stainless Steel, 2.3mm. Q235B has certain elongation, strength, good toughness and castability, easy to punch and weld, and is widely used in the manufacture of general mechanical parts. It is mainly used for welded structural parts with high quality requirements in construction and bridge engineering.

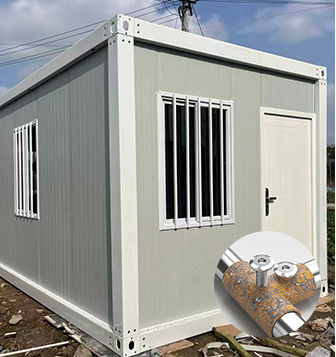

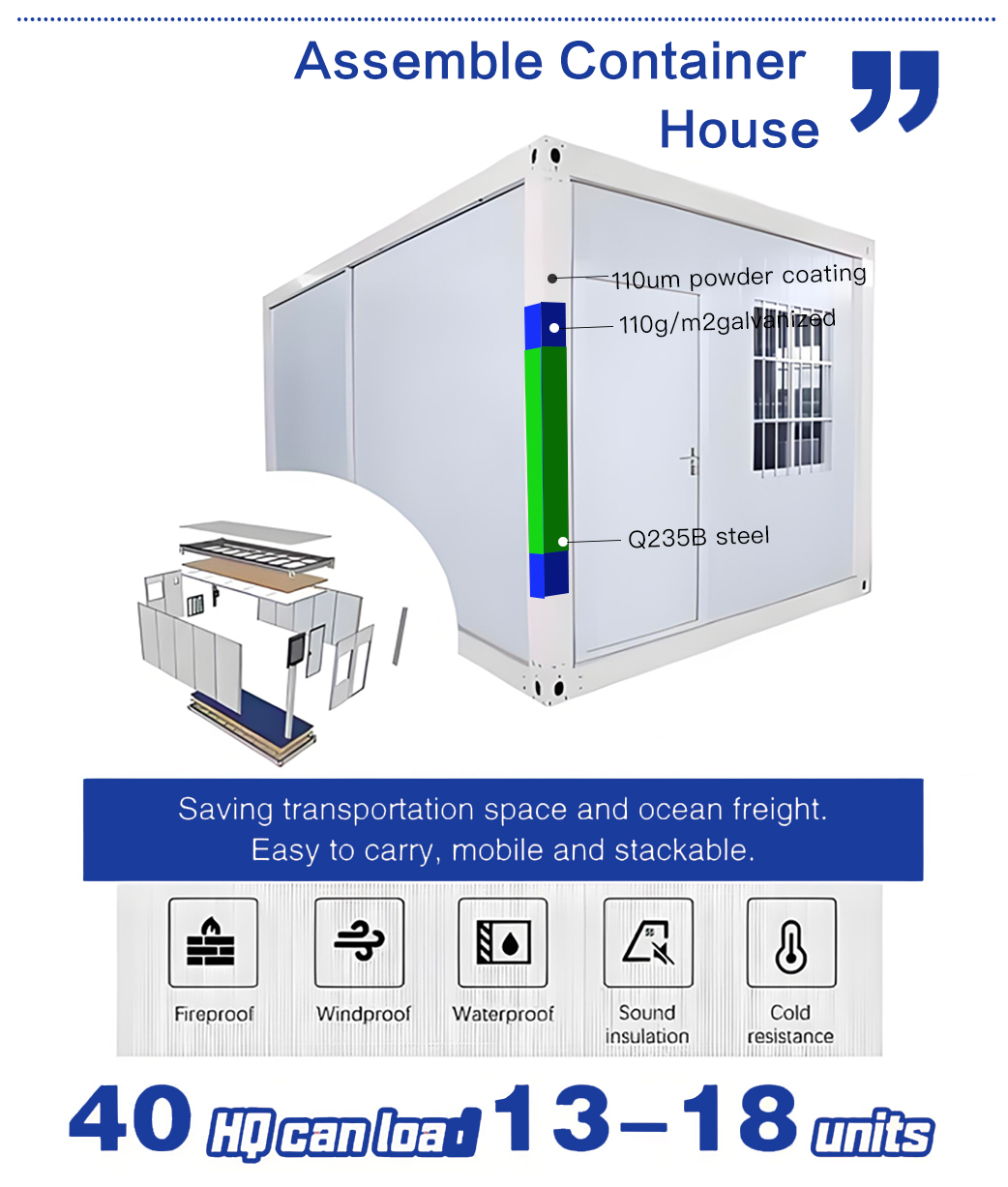

Anti-rust: Spray Paint (110μ/㎡) + Galvanized. While many suppliers only use spray paint (80 μ/㎡) which may rust in 2-3 years, we perform galvanizing first followed by a 110μ/㎡ anti-rust spray. This treatment can reach 10 years of anti-rust time, greatly extending the service life.

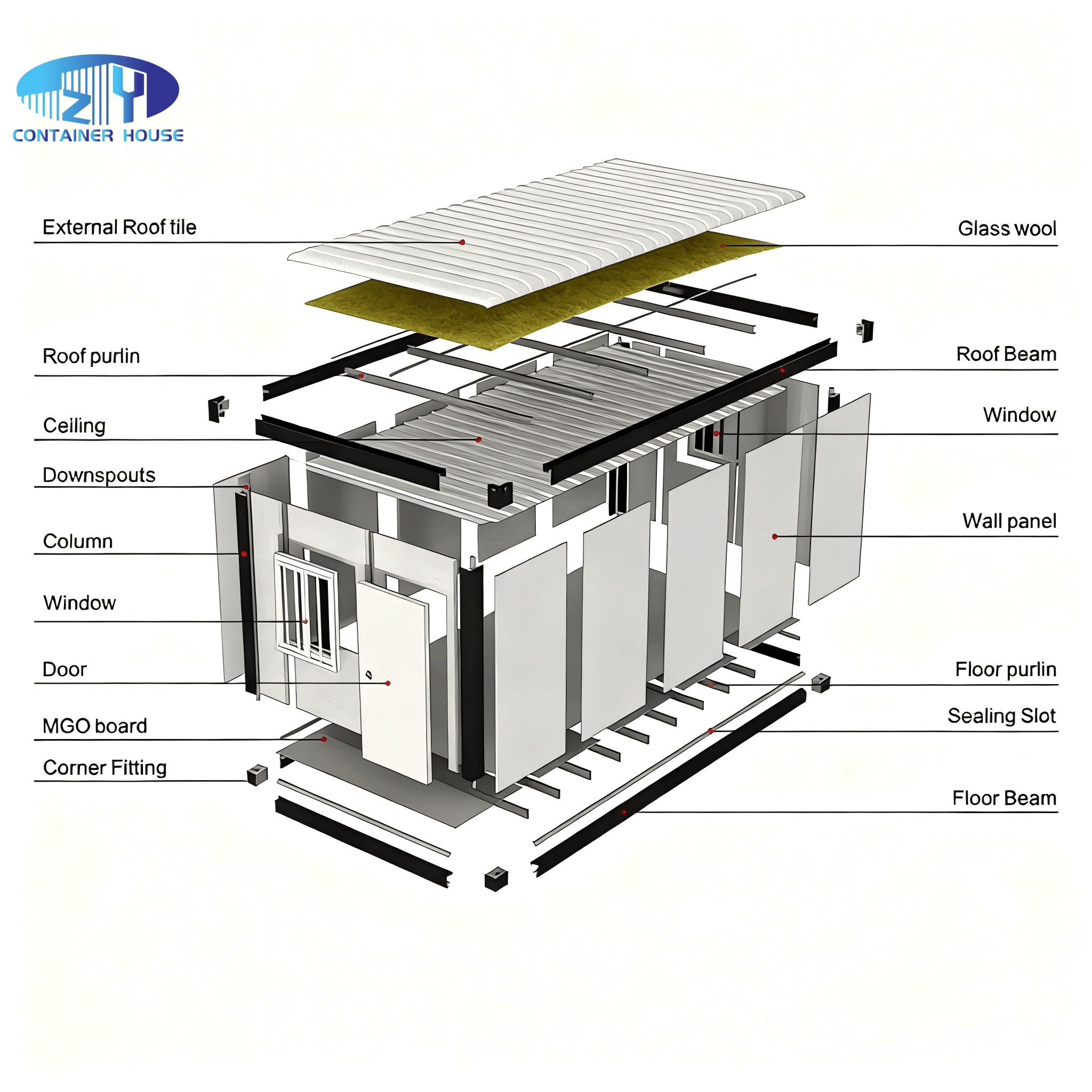

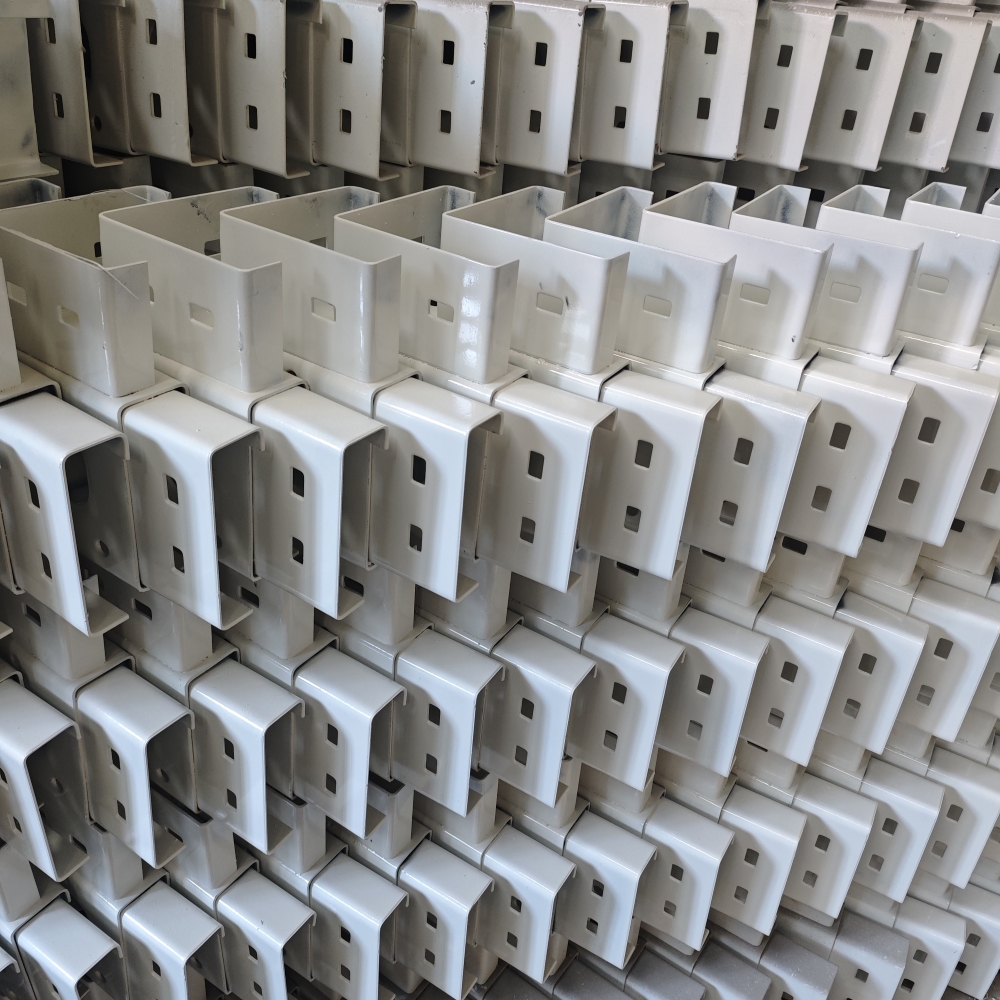

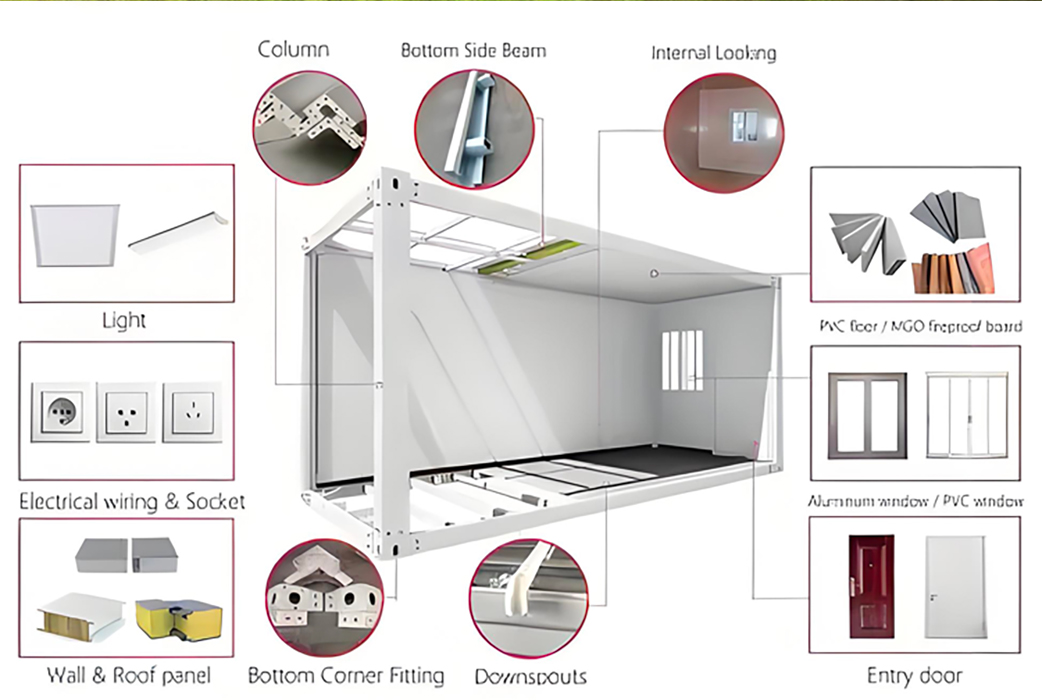

Corner Fitting: Made of 3.5 mm powder-coated galvanized steel. It connects beams, stringers, and columns. You can lift the completed houses by the hole in corner fitting.

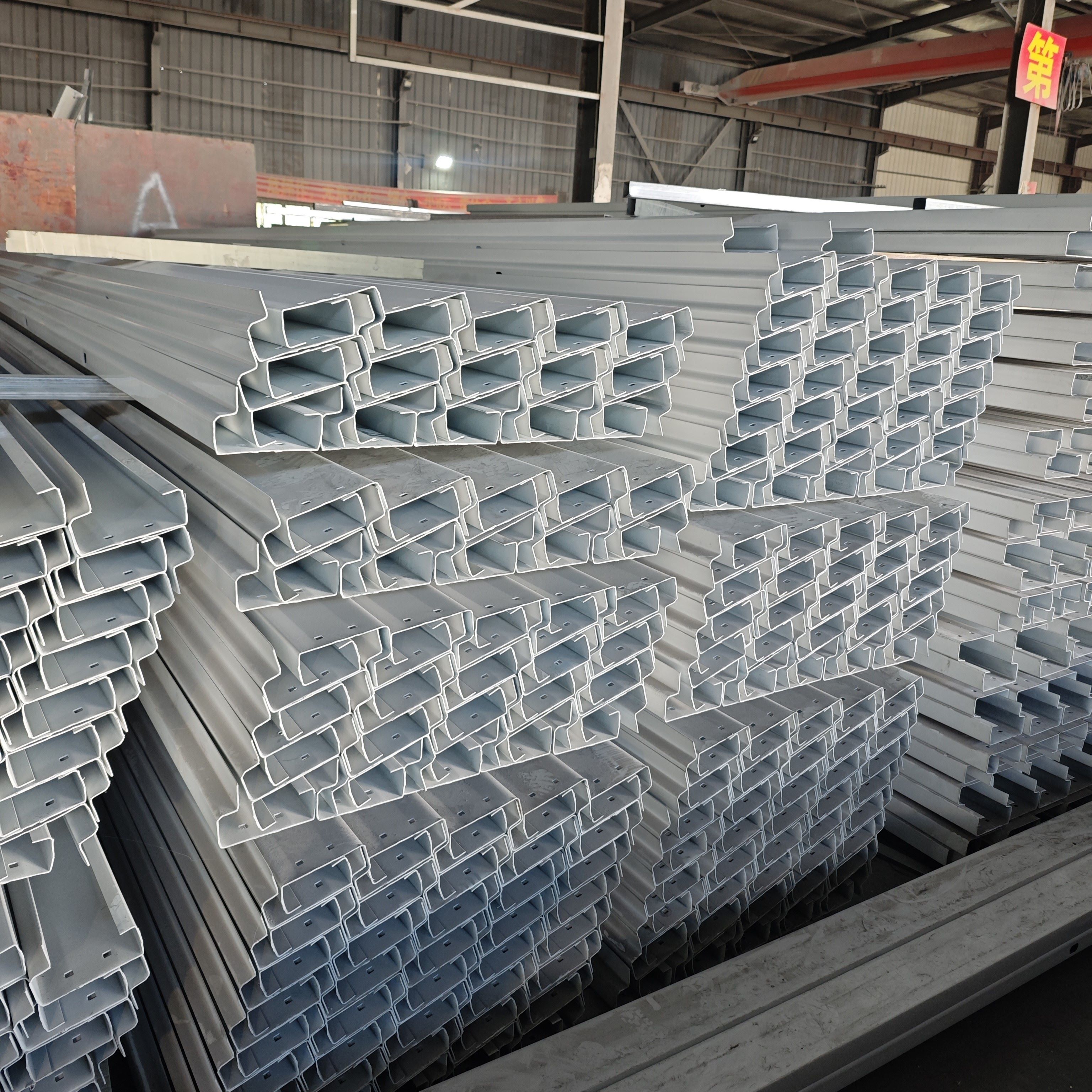

Column: Made of Q235 galvanized steel strip. There are 4 holes at each end to fix columns and corner fittings by screws. Length can be customized.

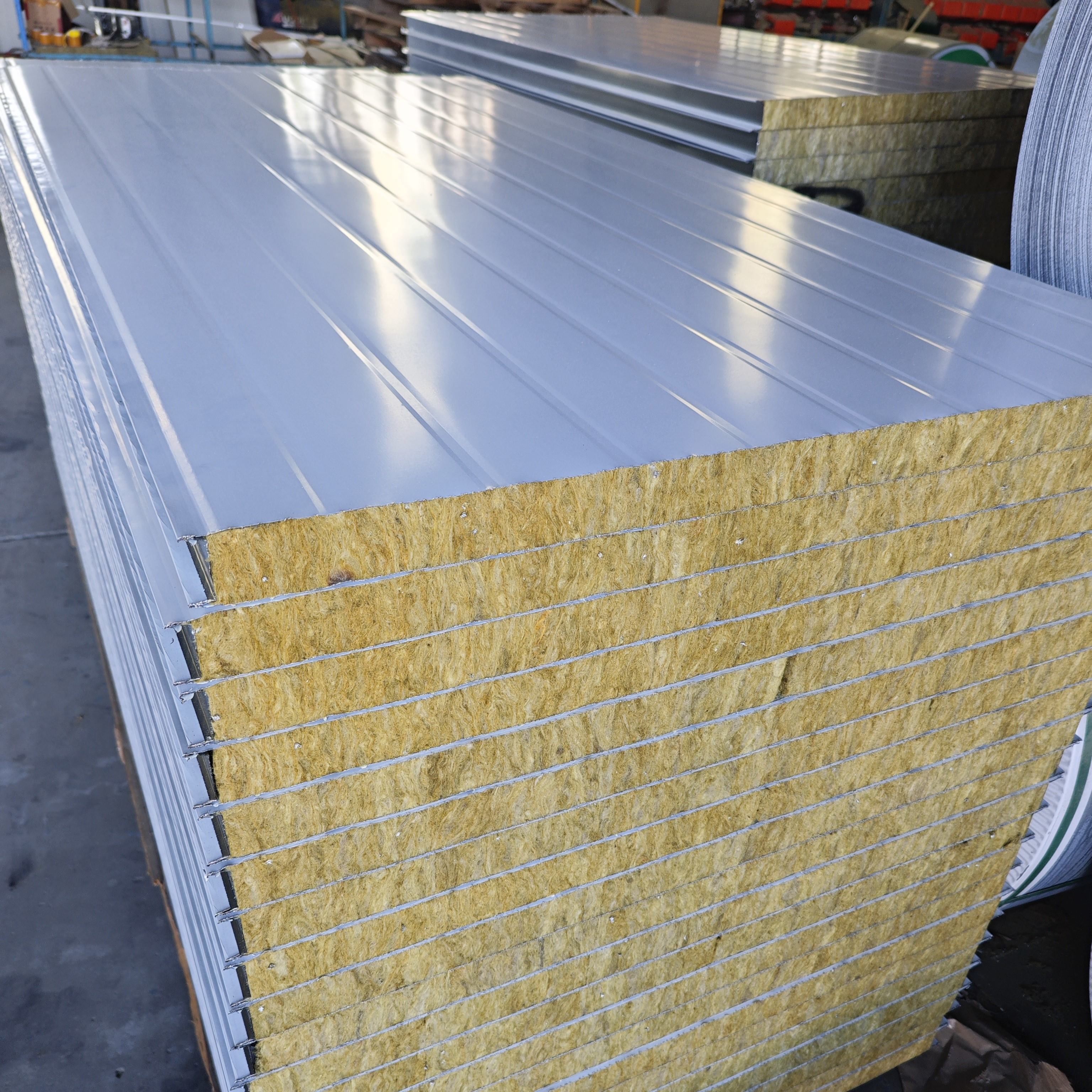

Wall Material: Usually rockwool or EPS sandwich panels. Thickness of steel and insulation density can be customized (50mm to 200mm available).

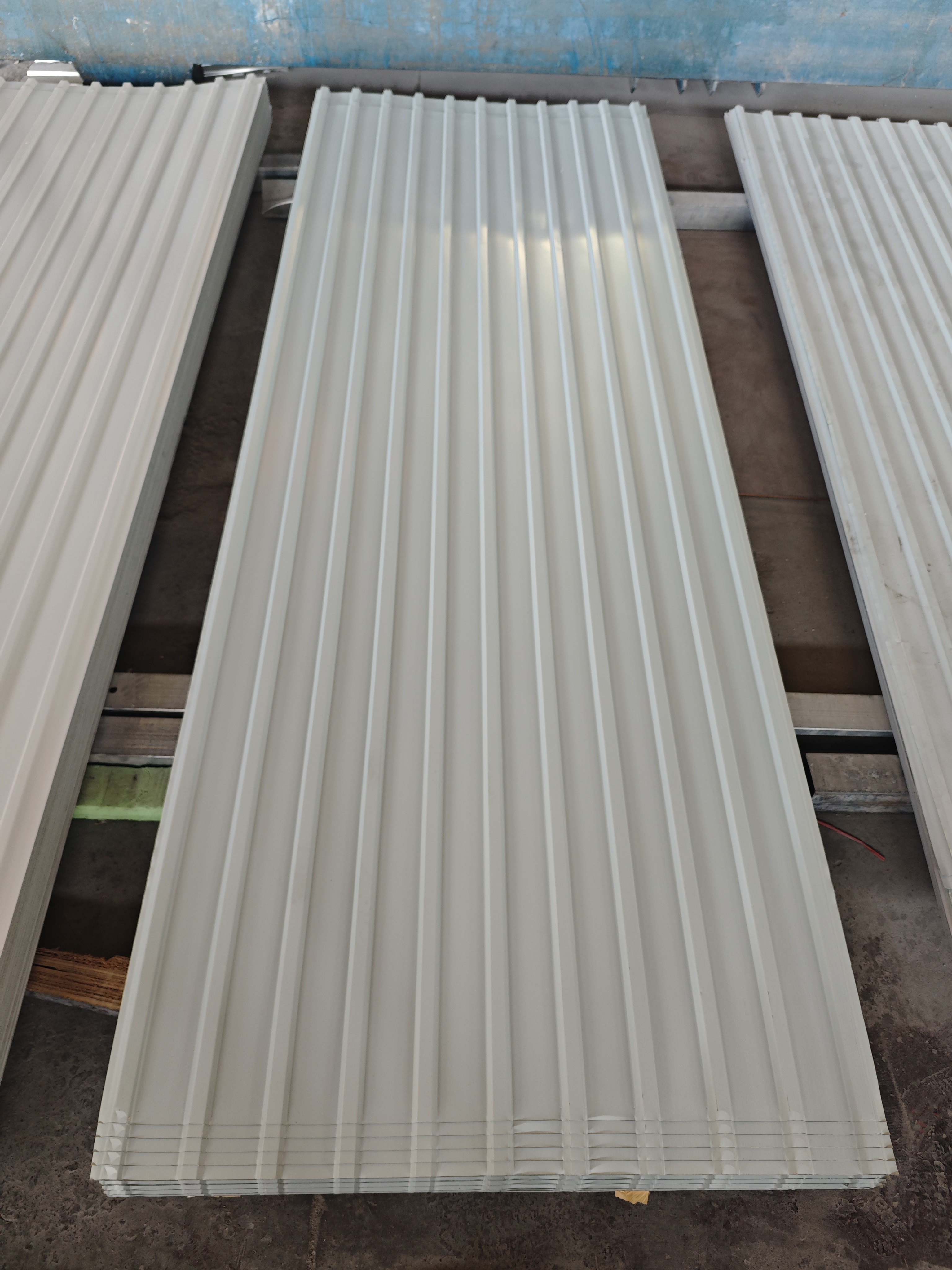

Roof & Ceiling: Made of paint-galvanized colored steel with excellent rust resistance. Corrugated structure ensures excellent waterproof performance.

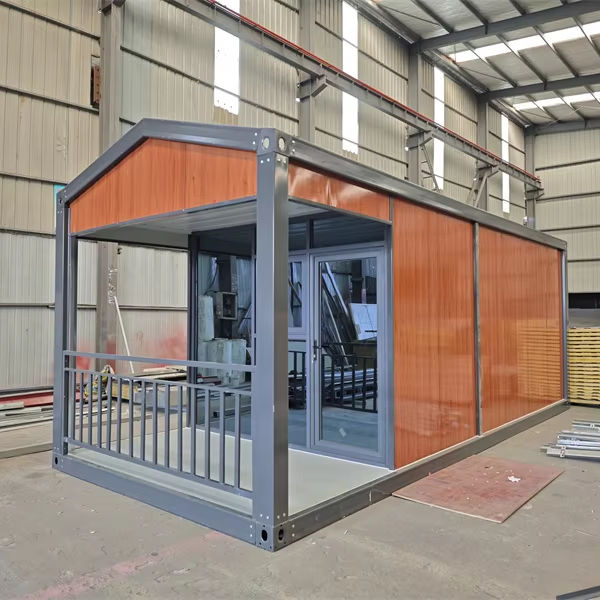

Would you like a unique rendering tailored exclusively for you? Our bespoke design service allows us to create customized housing solutions that perfectly align with your distinctive layout needs and architectural preferences.

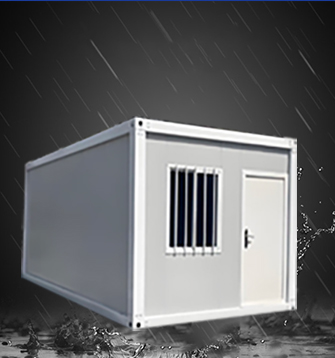

Waterproofing
Level iP54
Windbreaks
Level 8-10
Anti-rust
5+ Years Life

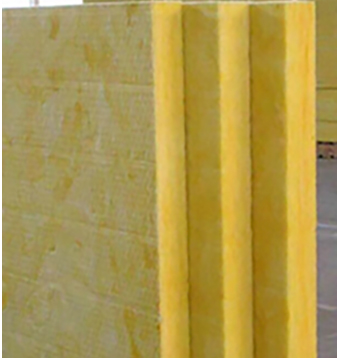

Soundproof
Medium Insulation
Fire Protection
A-level Prevention
Heat Preservation
10°+ Diff vs Outdoor

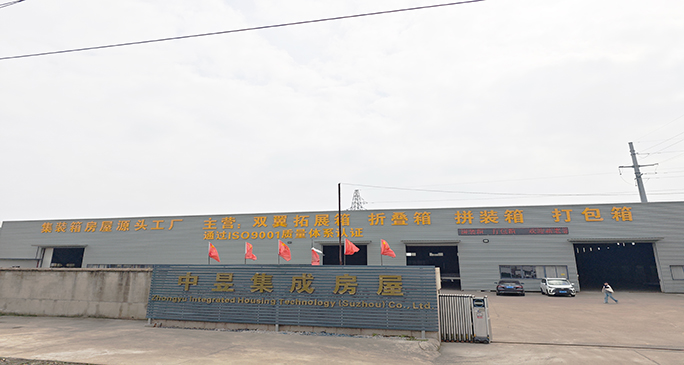

We are an integrated housing technology enterprise with over 15 years of industry experience, specializing in R&D, production, sales, and installation.

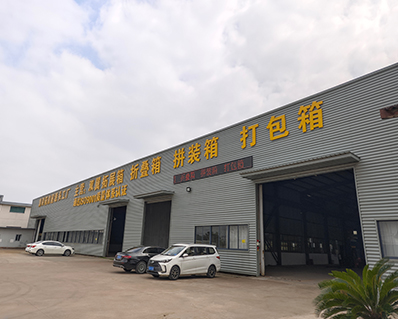

Equipped with modern production tools, we achieve a capacity of over 200 sets per day, exporting to over 160 countries worldwide.
