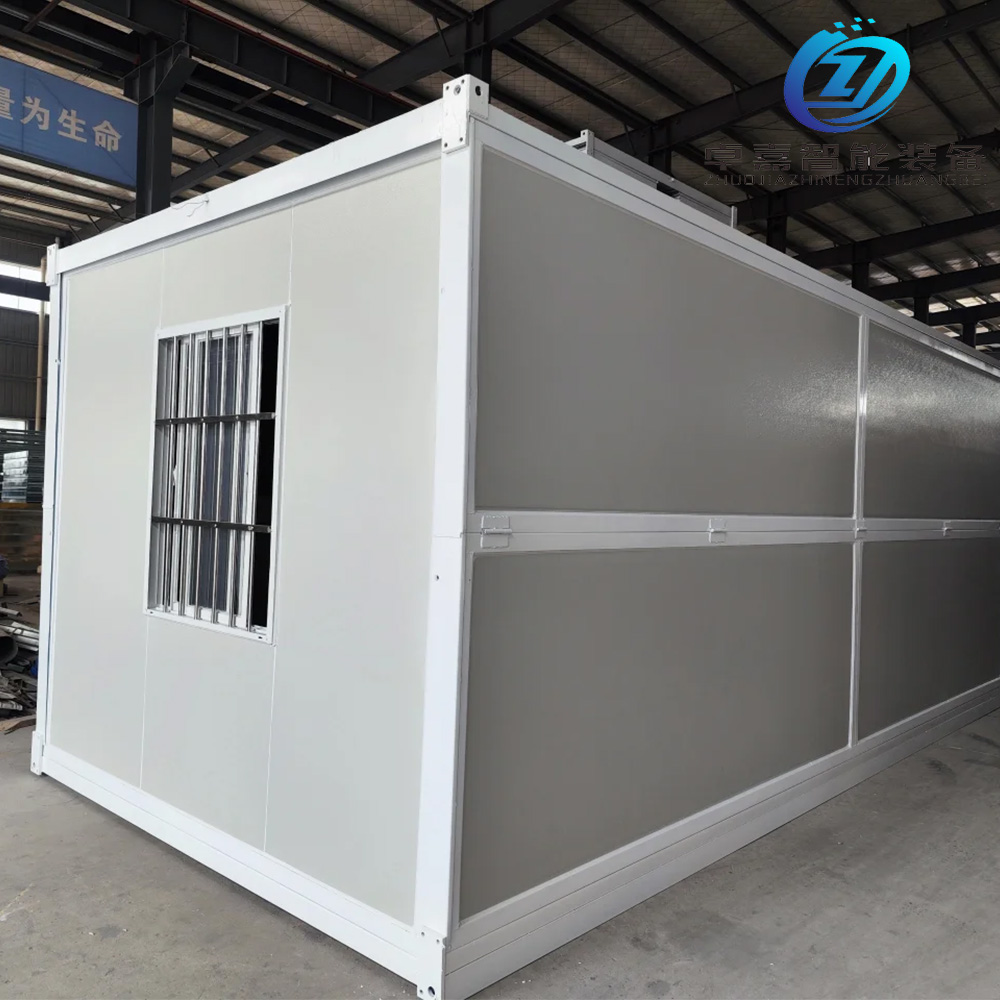

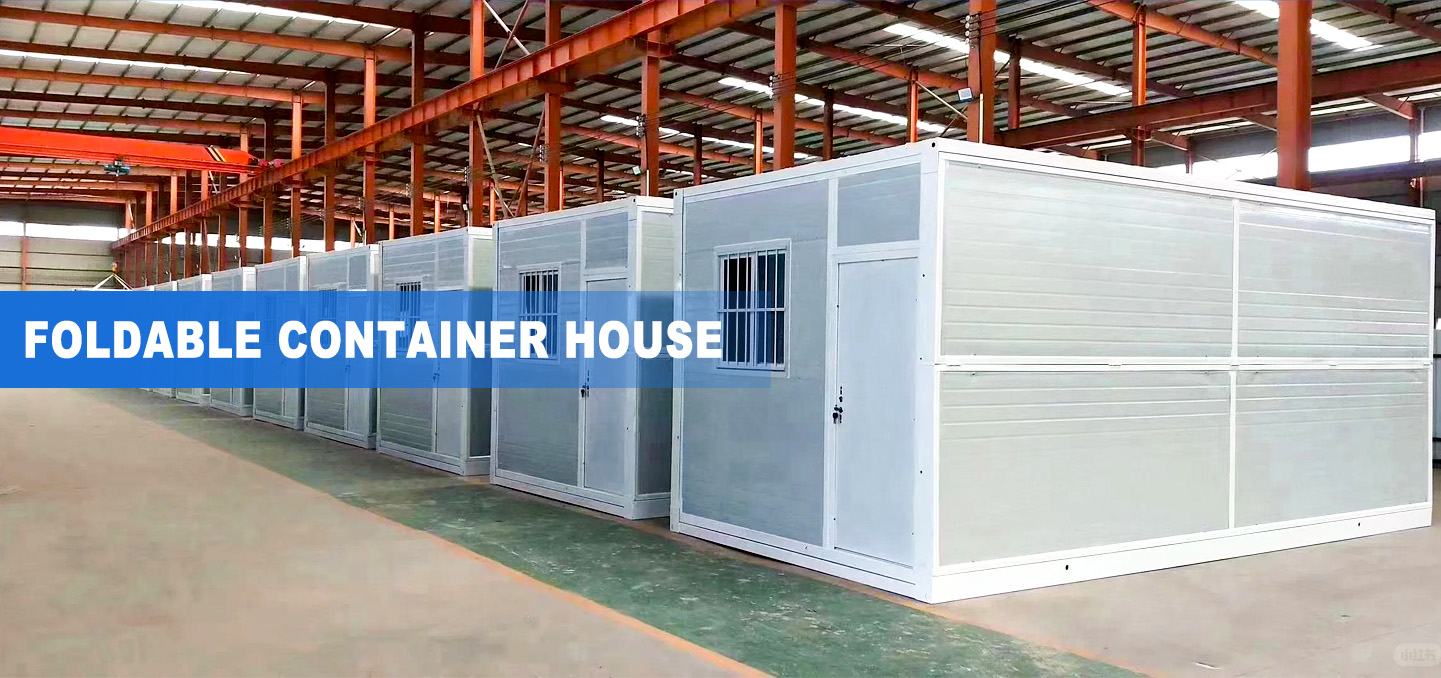

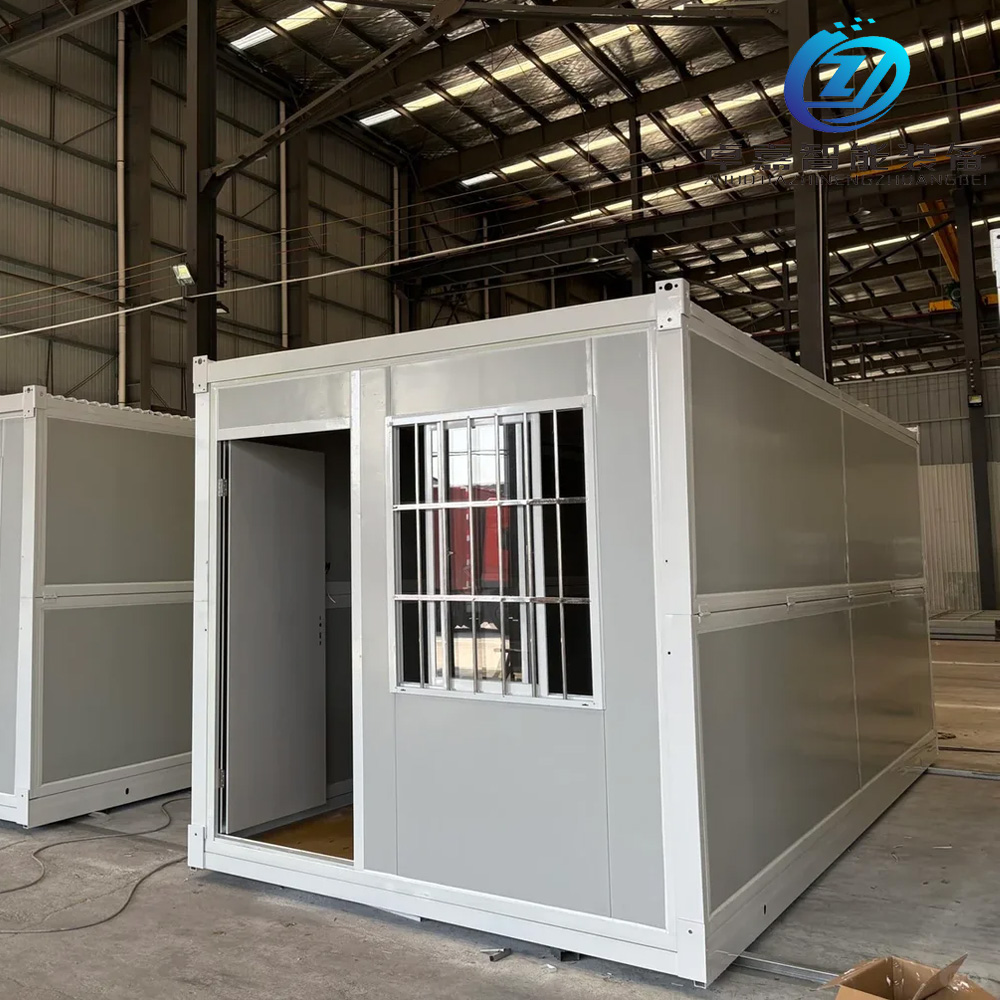

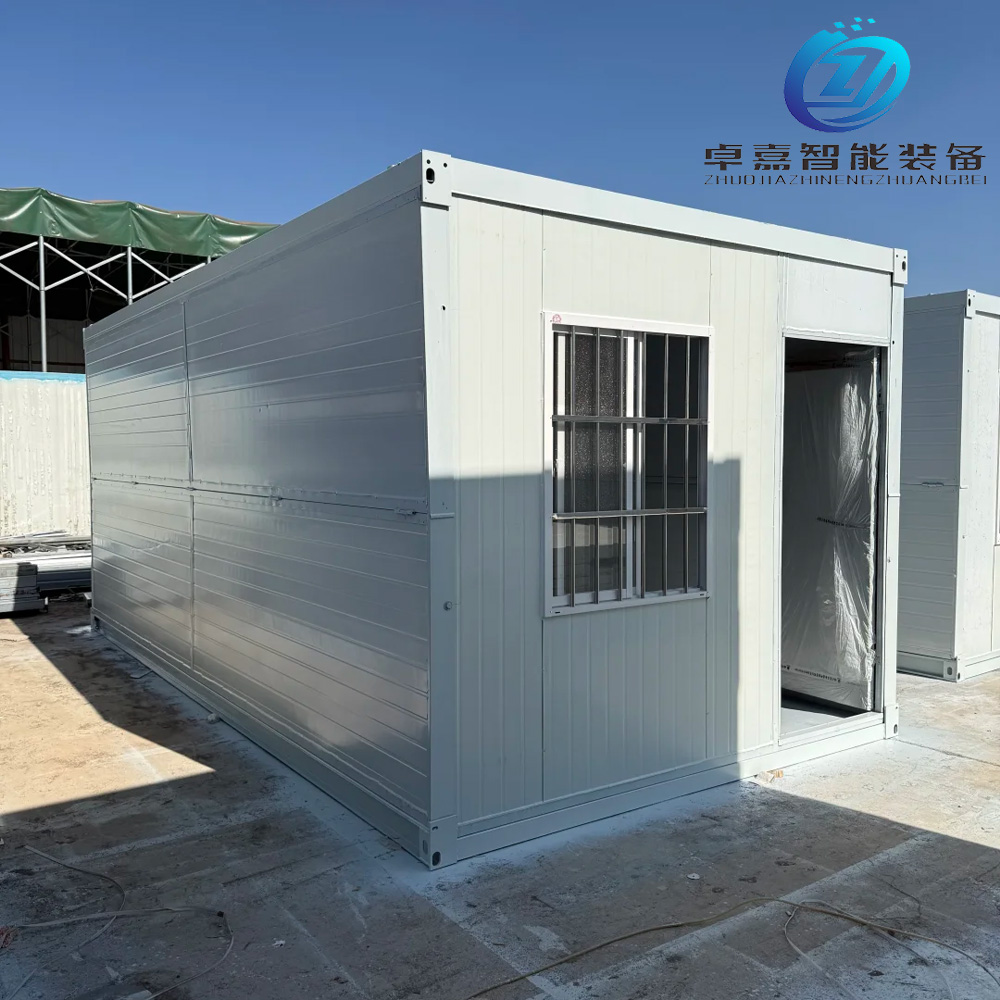

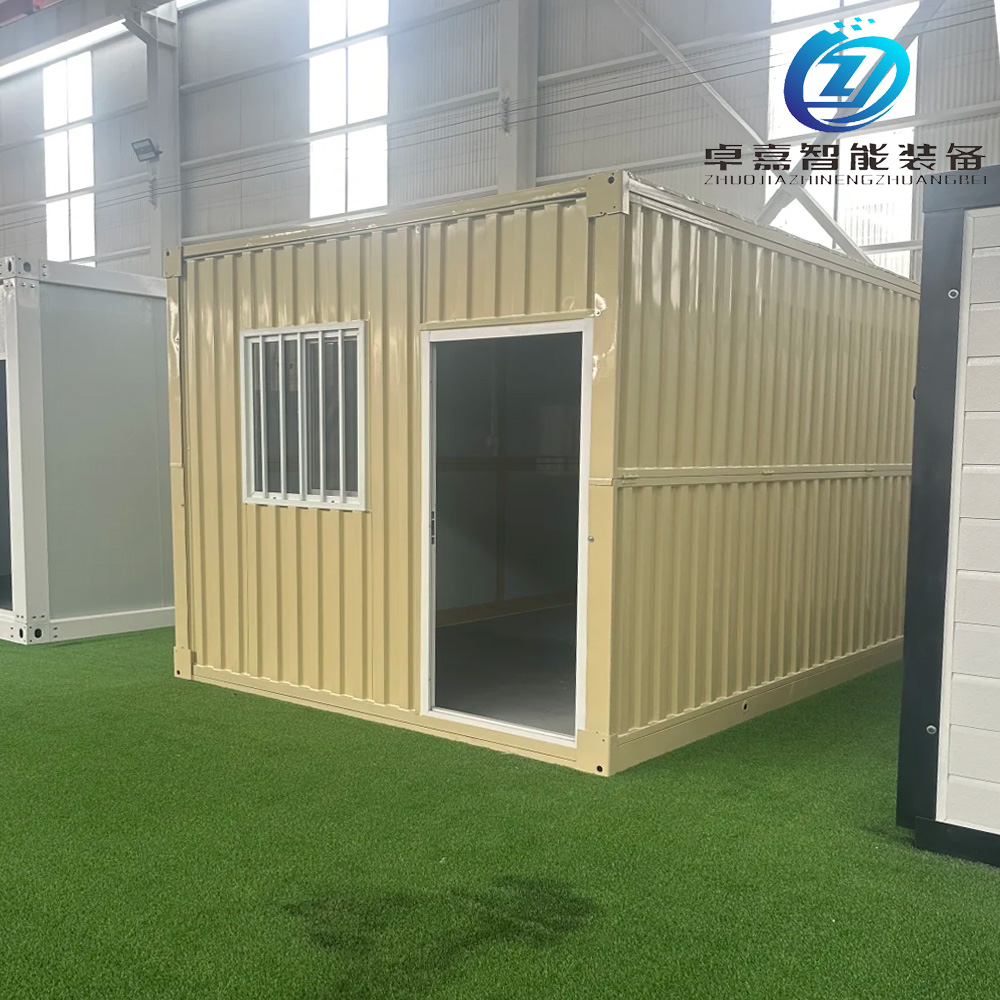

The folding container house is a modular structure designed around the concepts of "optimized logistics" and "instant habitation." Utilizing a sophisticated hinged linkage system, this product enables seamless transitions between an ultra-compact folded profile and a fully functional living space. It effectively resolves the critical pain points associated with traditional prefabricated housing—namely, high transportation costs and slow on-site installation—making it currently the most cost-effective choice for global engineering camps, emergency relief housing, and temporary commercial applications.

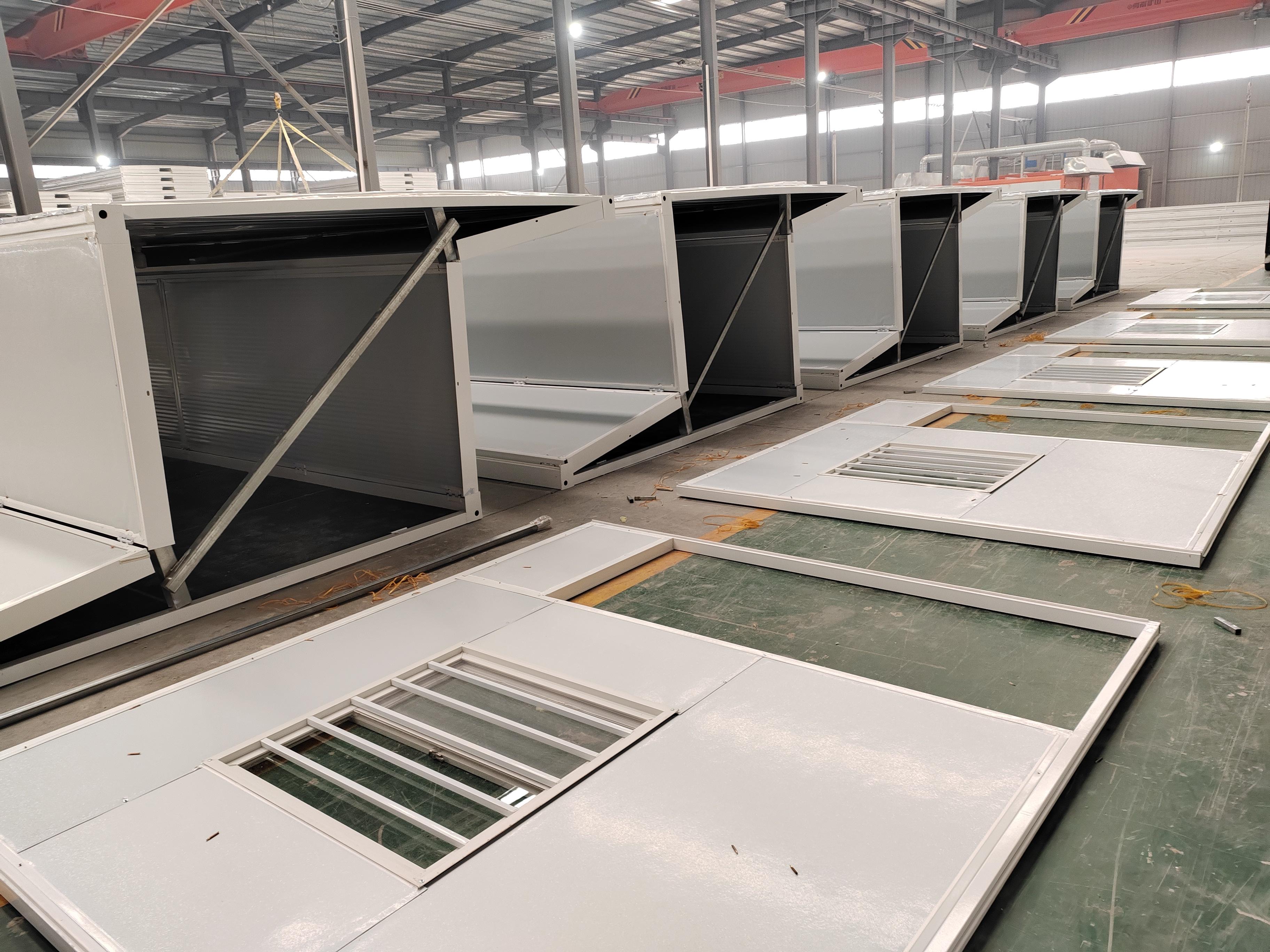

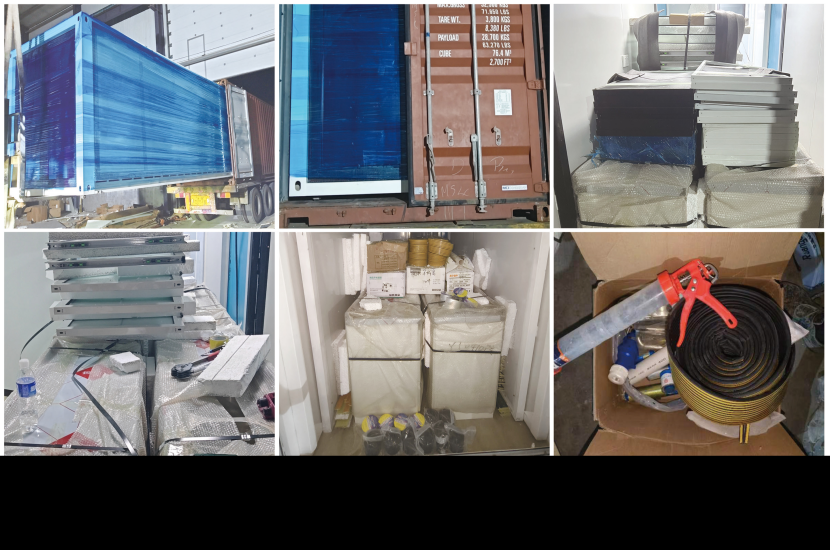

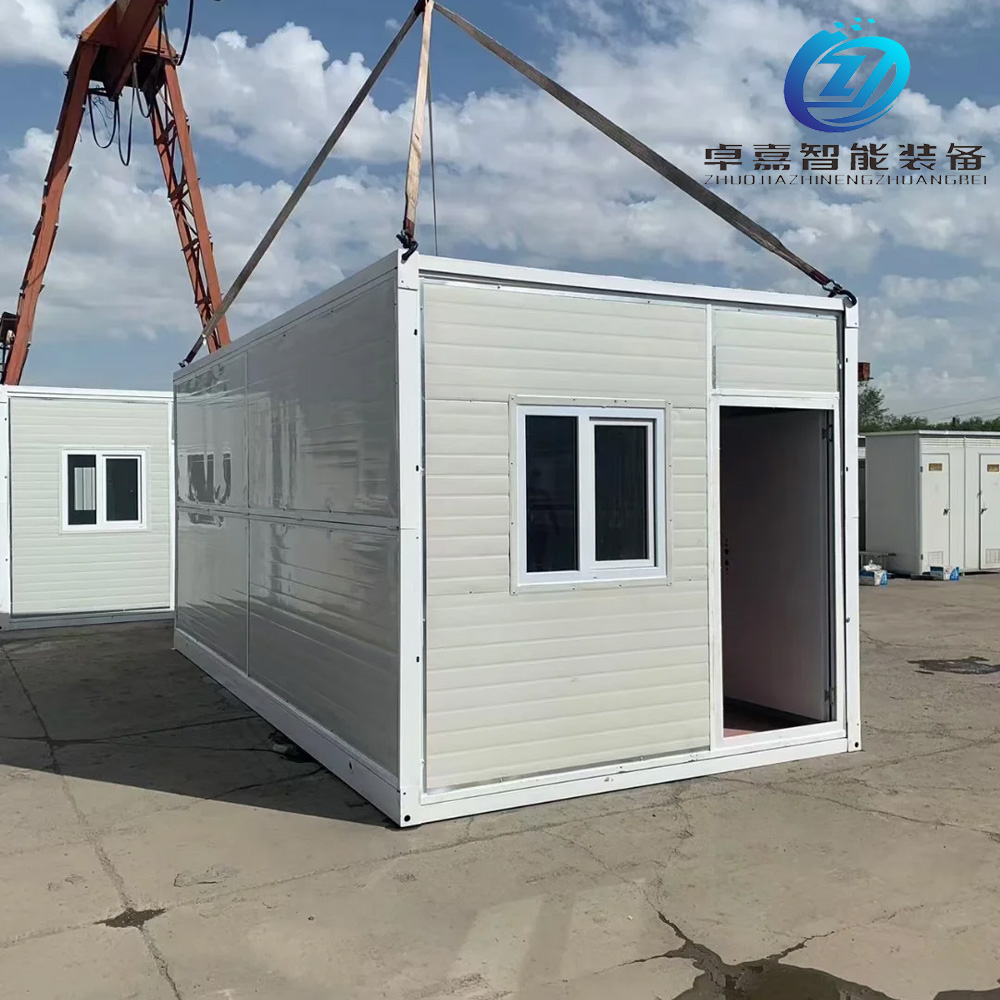

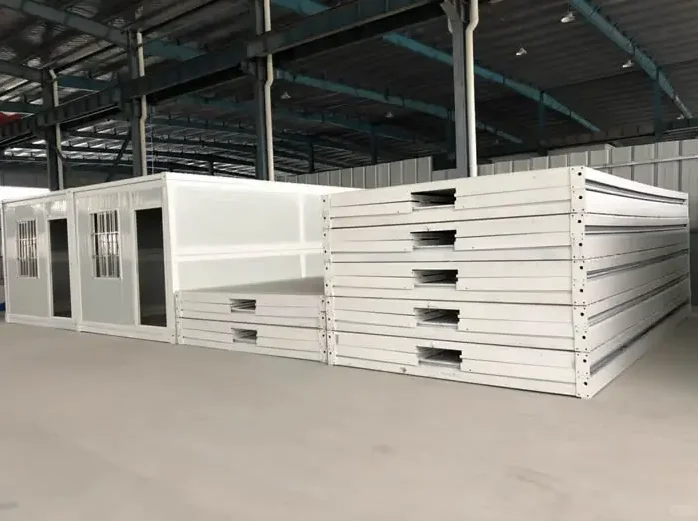

Thanks to its unique flat-pack design, a single 40HQ container can accommodate 12 housing units. Compared to standard container housing, the per-unit shipping cost is drastically reduced, thereby significantly boosting profit margins in international trade.

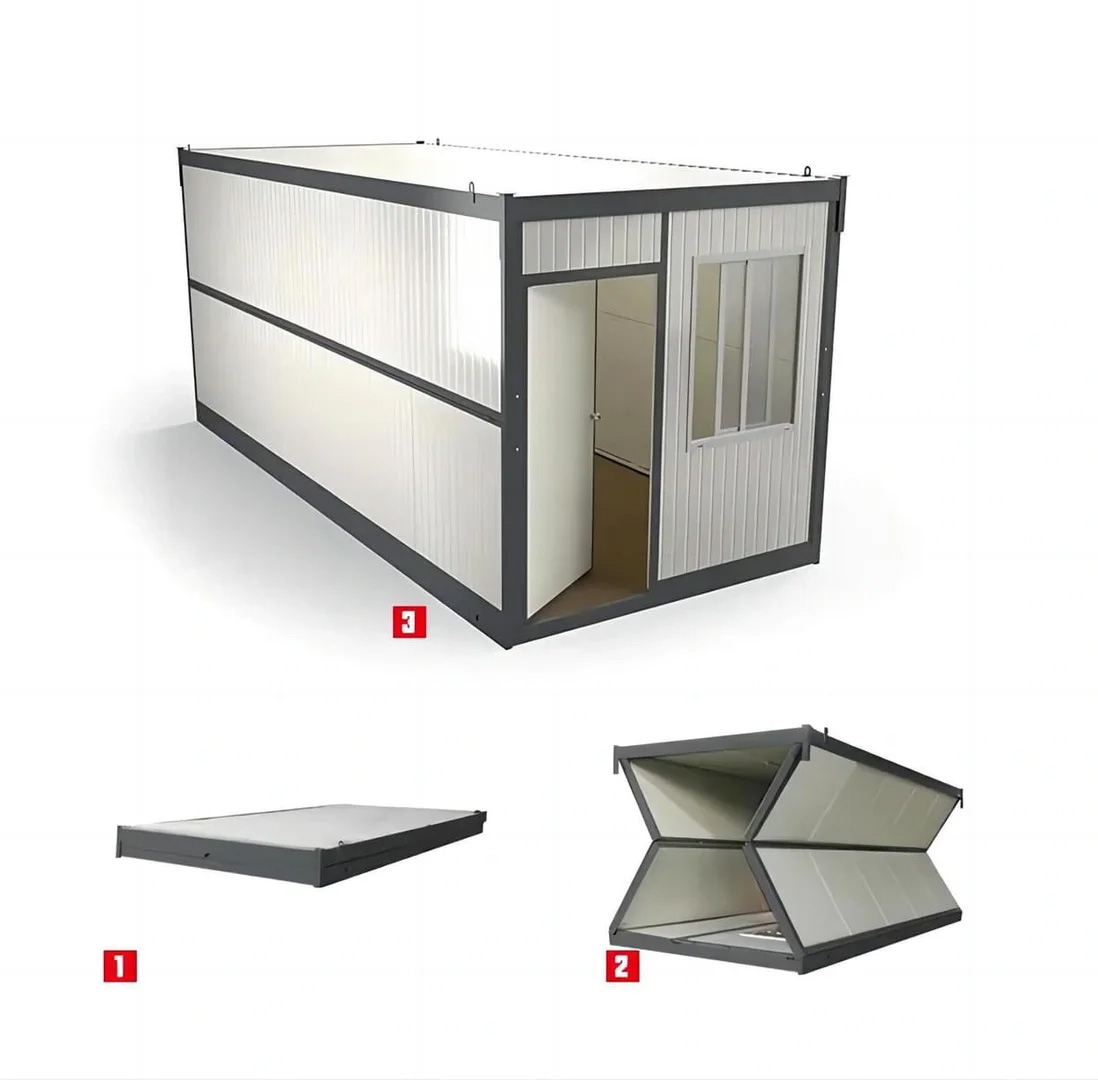

The housing unit arrives 90% pre-assembled from the factory (including electrical wiring, ceilings, and flooring). Upon arrival at the site, a finished structure can be fully delivered in just 10 minutes with the assistance of a forklift and a crew of 2 to 4 people, utilizing a simple process of lifting and fastening.
It features a reinforced galvanized steel structure, offering exceptional seismic and wind resistance. The roof features a drainage channel design, paired with automotive-grade sealing strips, to ensure the interior remains absolutely dry—even during tropical rainy seasons (such as those in Southeast Asia and South America).
| Technical Specifications | |
|---|---|
| External Dimensions | 5900mm * 2480mm * 2896mm |
| Internal Dimensions | 5690mm * 2270mm * 2540mm |
| Thermal Insulation Performance | λ = 0.037 W/m·K |
| Wind Resistance | 0.37 kN/㎡ |
| Main Profiles | Galvanized Steel Structure Frame |
| Surface Treatment | Polyethylene Electrostatic Powder Coating and Baking Process |
| Roof Waterproofing Layer | Color-Coated Steel Sheet |
| Thermal Insulation Layer | Glass Wool Blanket |
| Damp-proof Layer | PE Resin Film |
| Decorative Layer | YX28-277-831 Strip Ceiling Panel |
| Structural Board | Magnesium Oxide Board |
| Floor Treatment | PVC Flooring |
| Entrance Door | Steel Door Set |
| Interior Decorative Corner | Color Steel Formed Corner Fittings |
| Lamp | LED Dustproof Light |
| Switch | Single-Key Switch × 1 |
| Socket | 10A 5-hole sockets × 3, 16A air conditioner socket × 1 |
| Distribution Box | Flush-mounted Distribution Box × 1 |
| Industrial Plug | 220V, 50Hz, 3-Phase, 32A × 1 |
| Wiring | Incoming Main Line: 3 × 6 mm²; Air Conditioning Outlets: 3 × 4 mm²; 5-Hole Outlets: 3 × 2.5 mm²; Lighting: 3 × 1.5 mm² |
Applicable in a Wide Range of Scenarios

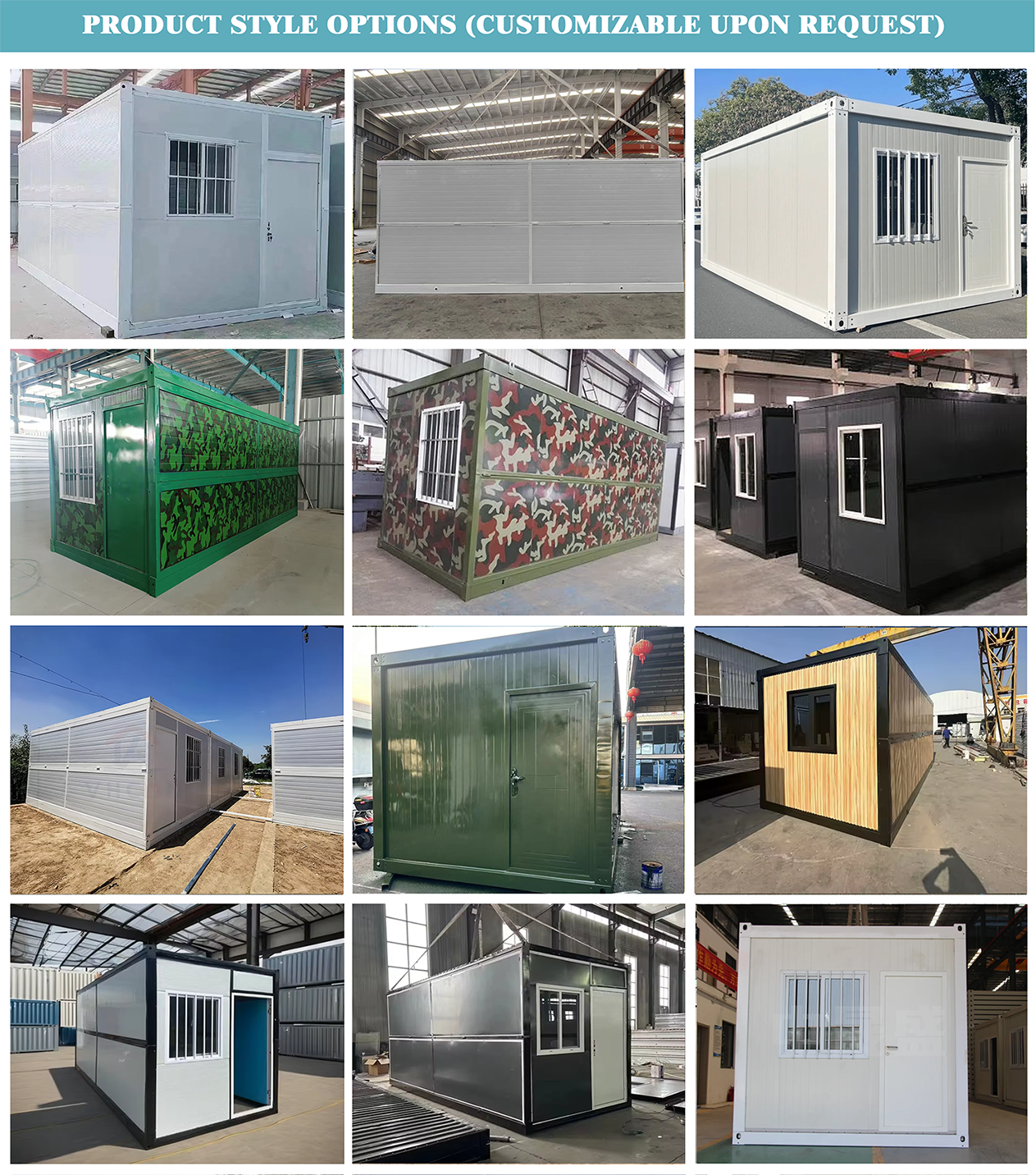

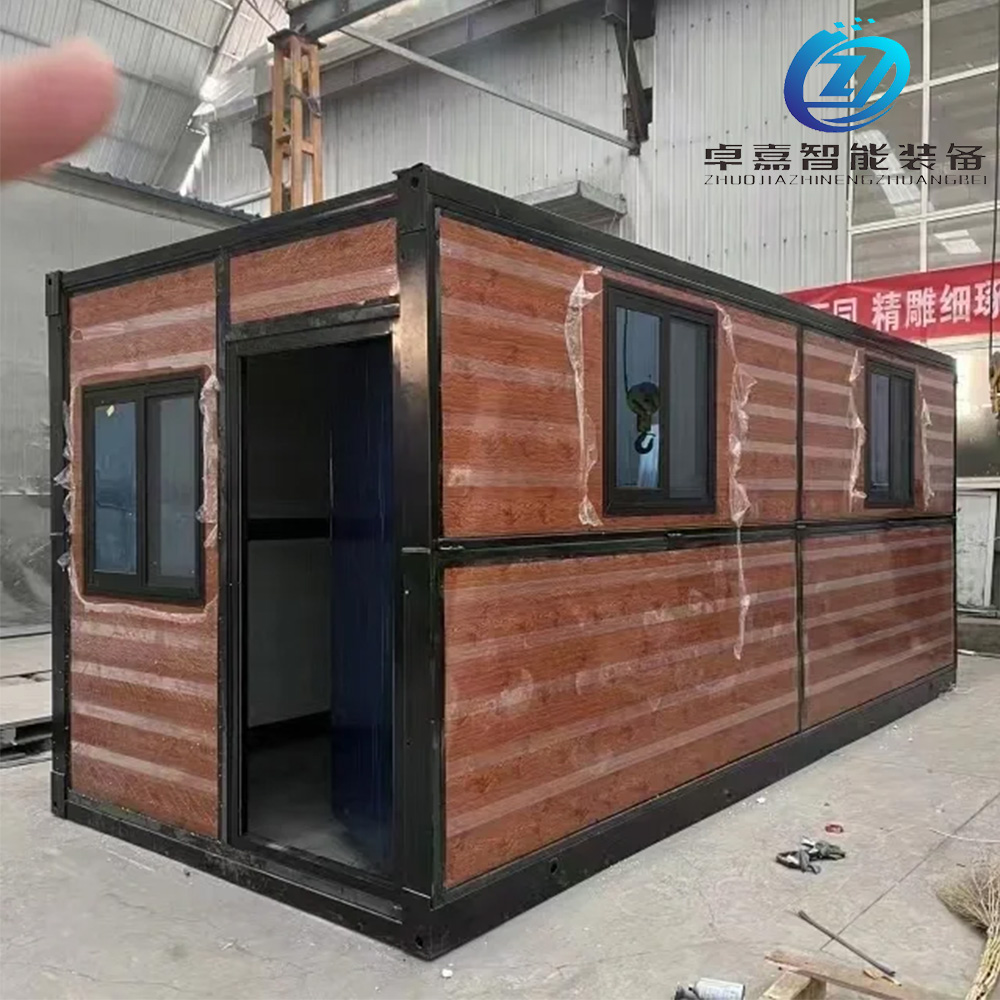

Wall panels available in a variety of customizable colors.

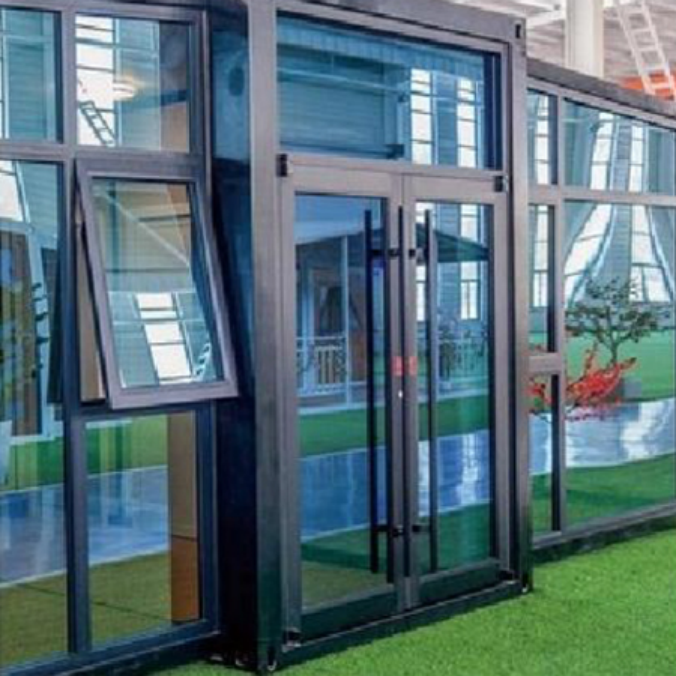

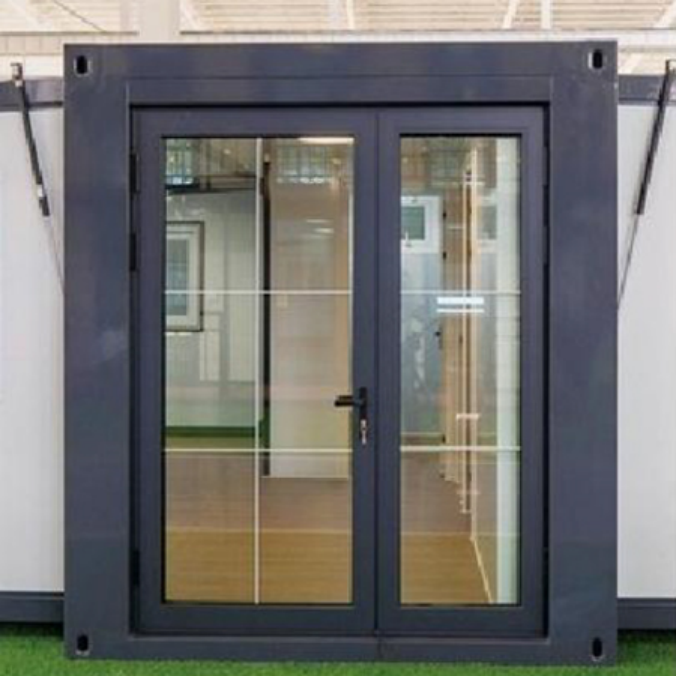

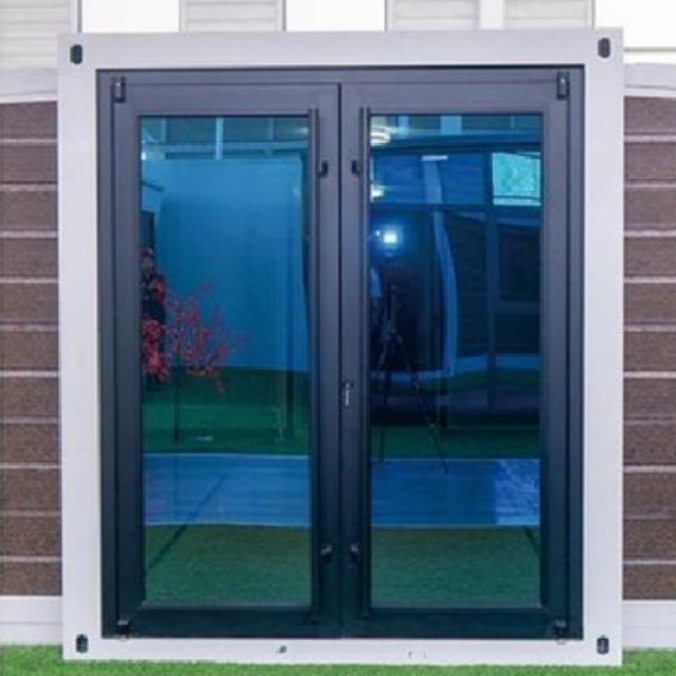

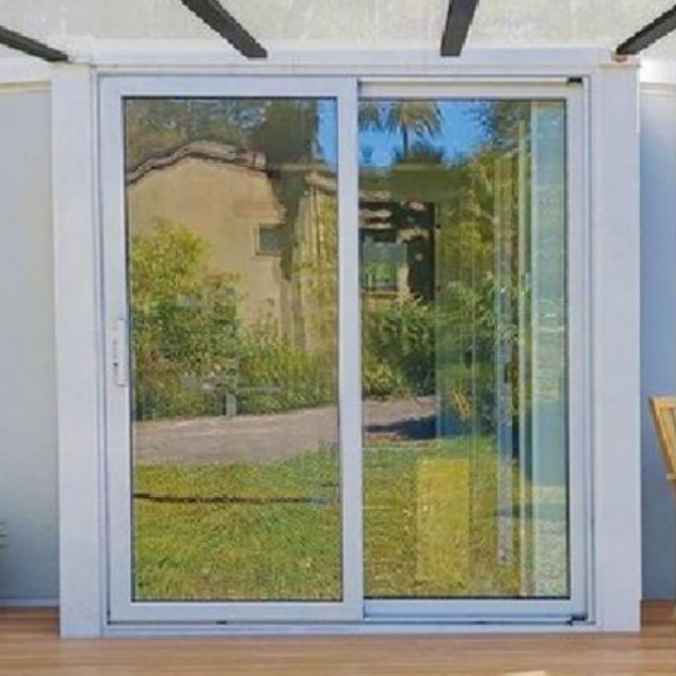

Entrance door: Glazed sliding door | Bedroom: wooden/EPS/Purification door | Bathroom: Titanium magnesium alloy door | Color: white or customized

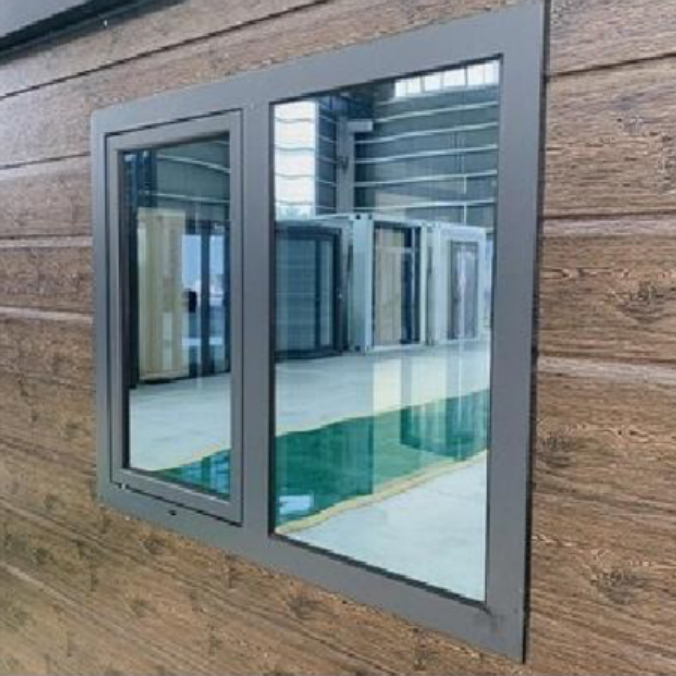

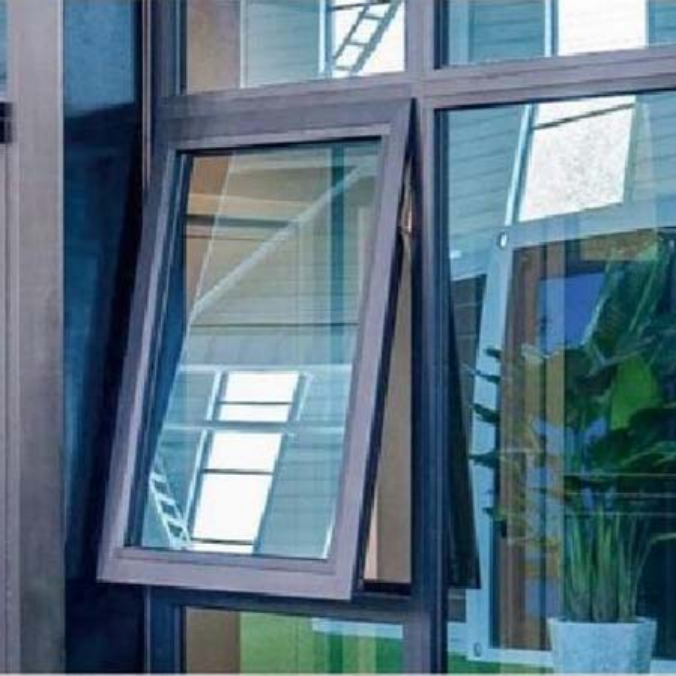

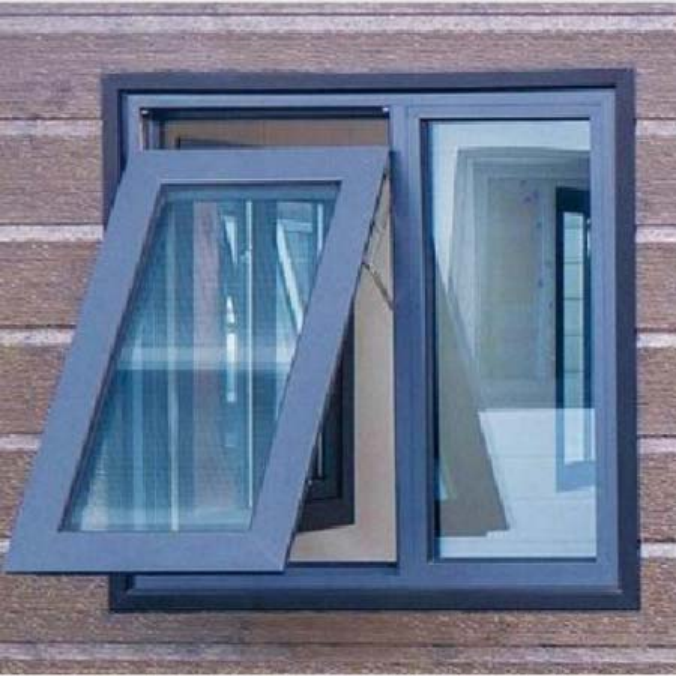

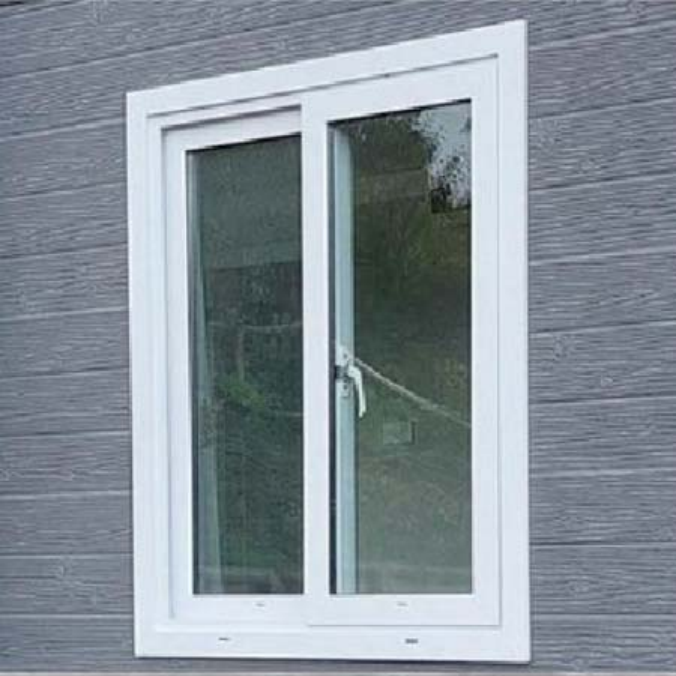

Plastic-steel material (optional: Aluminum Alloy material) | Double glazed | White color (Optional: black) | Quantity: 4 pcs + 1 pcs (Can be equipped with bars)

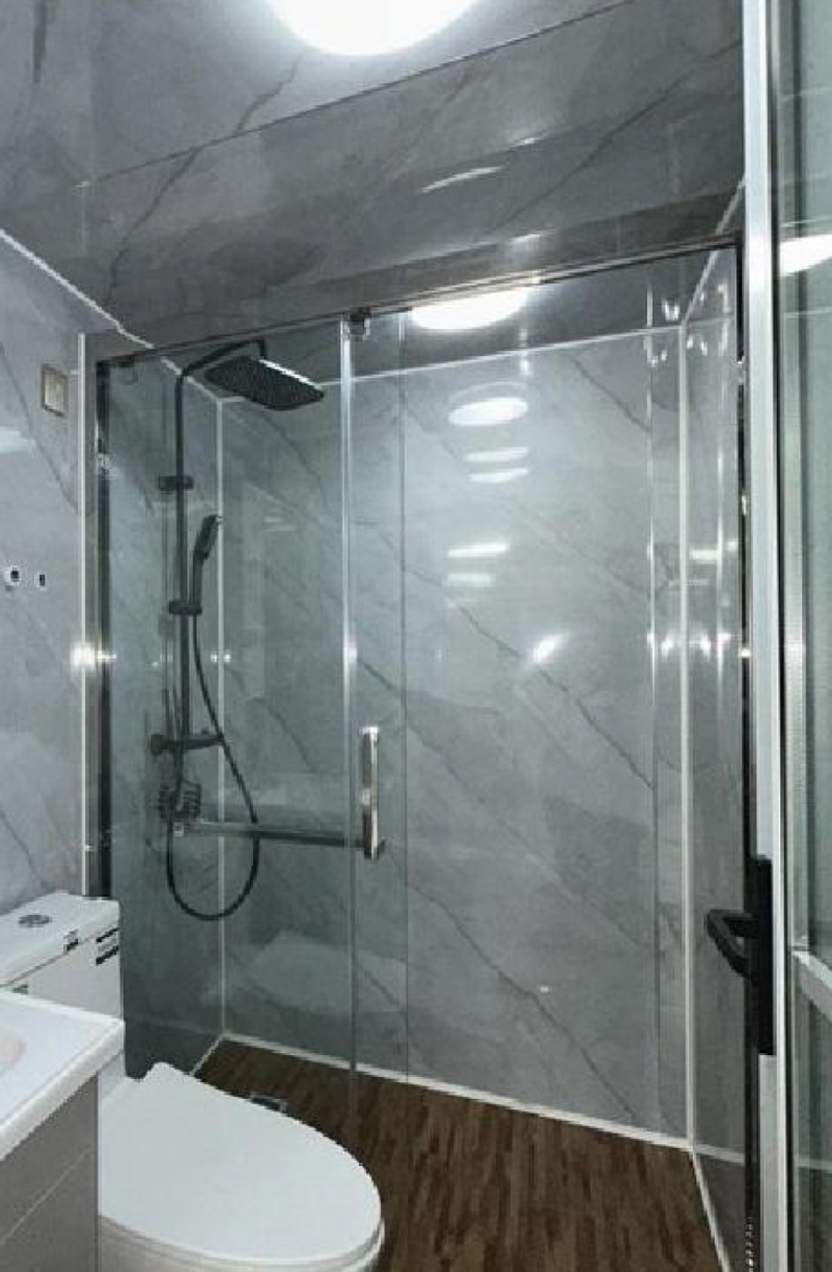

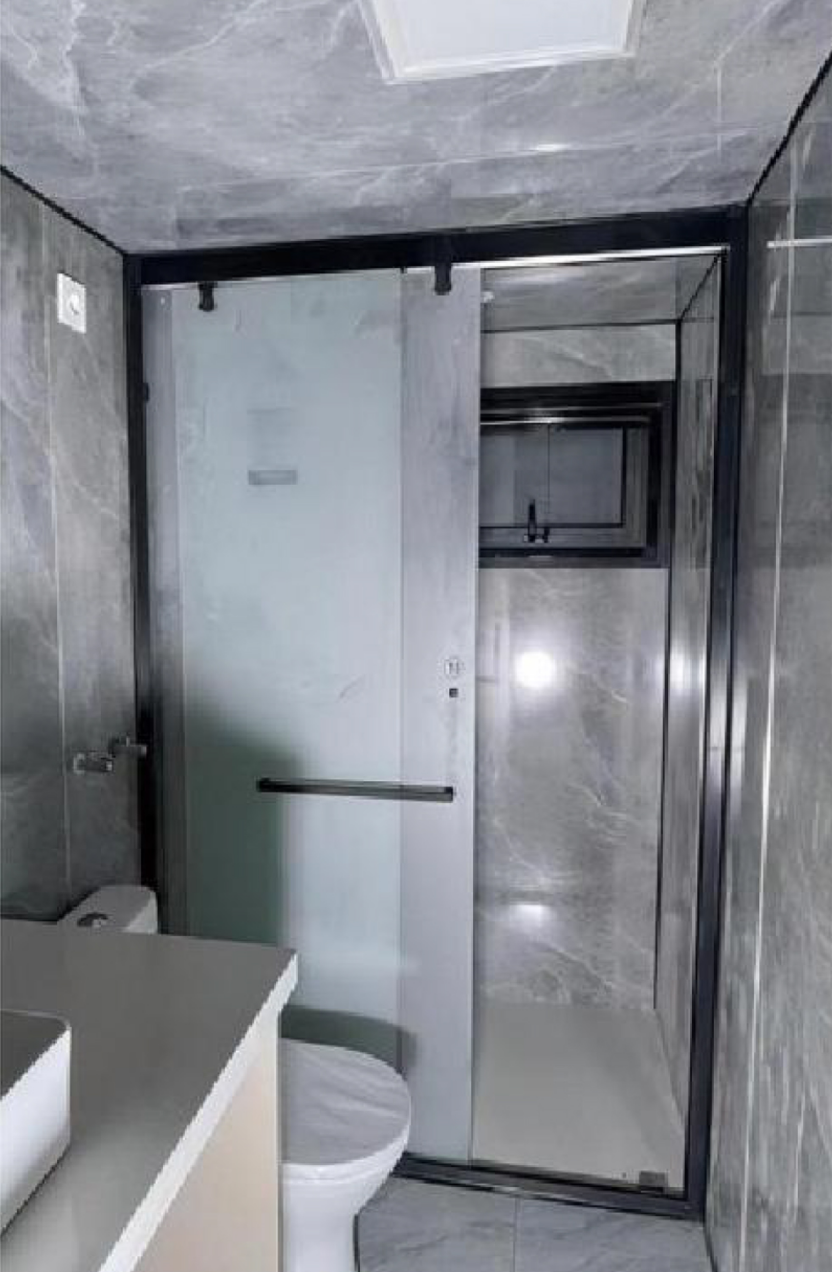

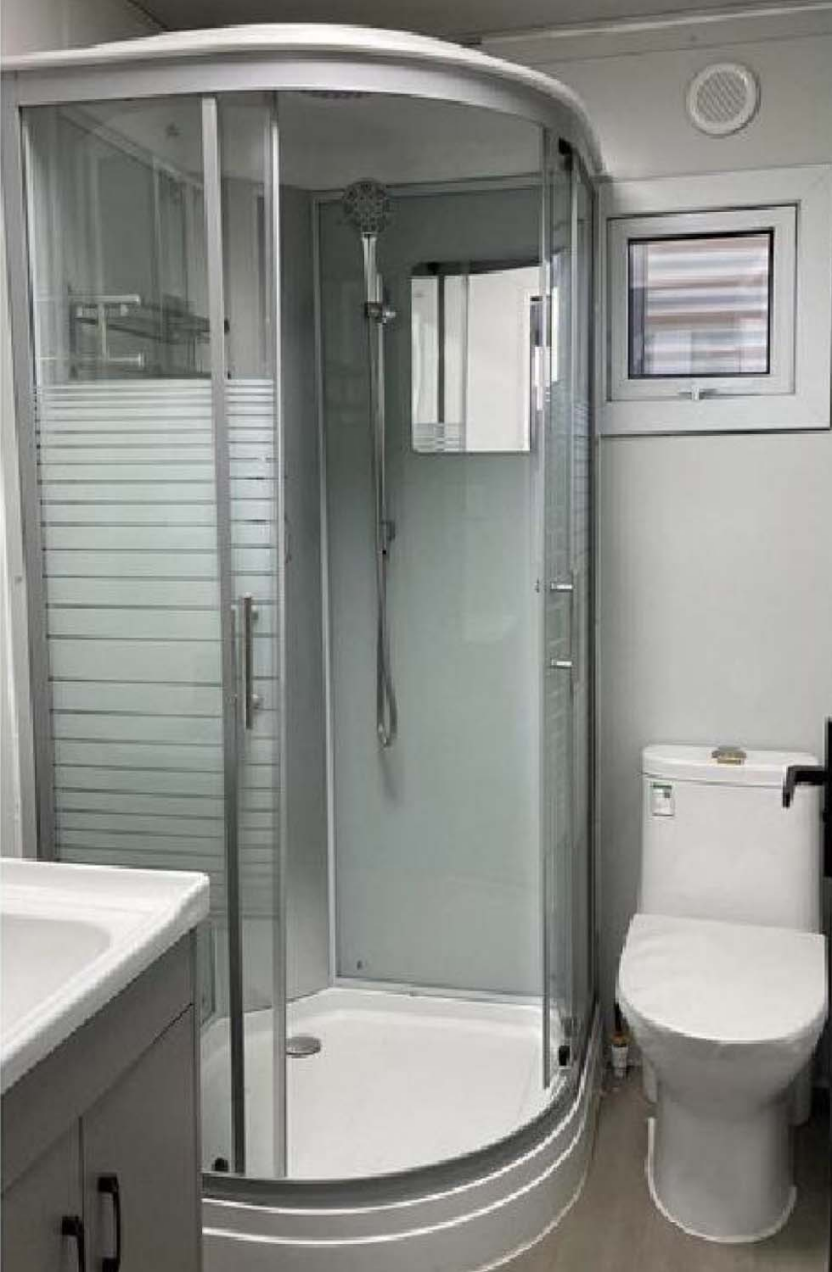

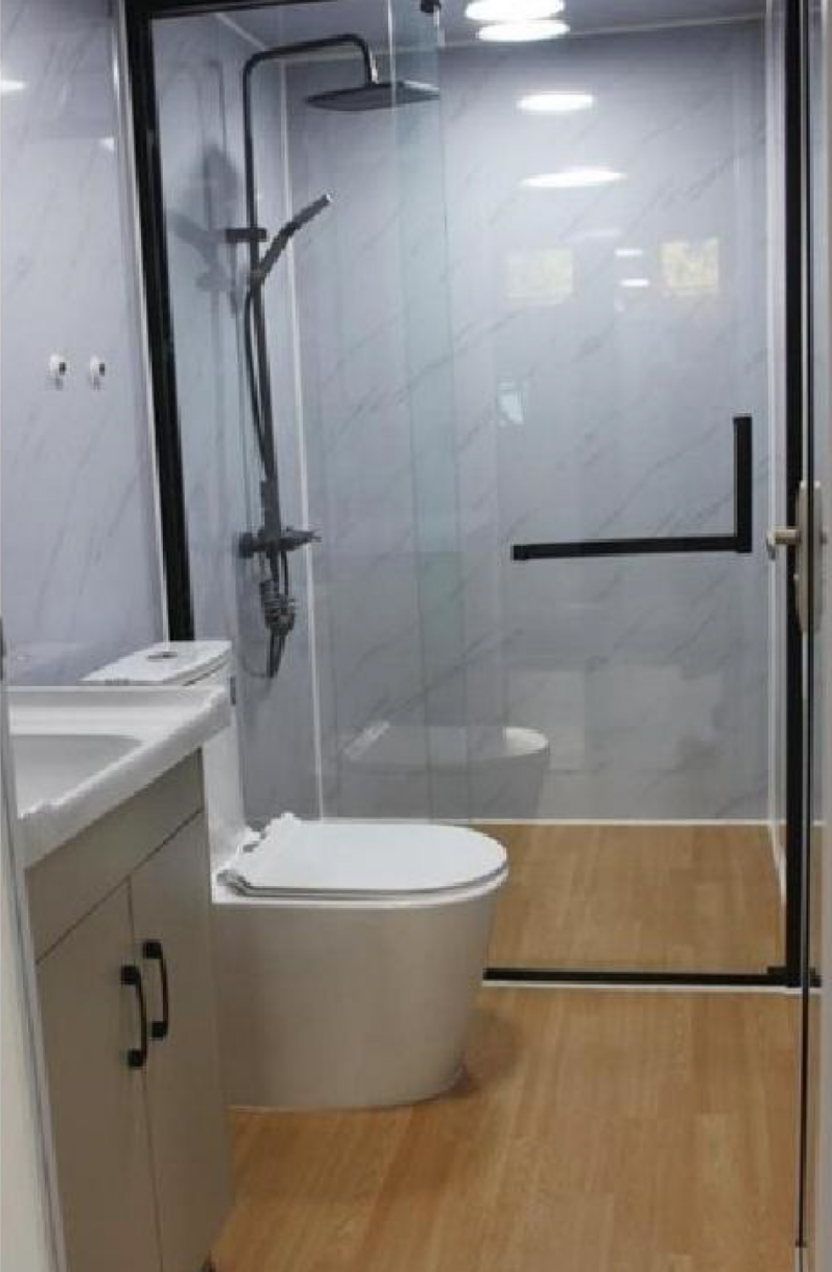

Fully furnished with sanitary. Shower room (900mm * 900mm) | Seated toilet | Basin | Mirror | Towel rack and paper roller

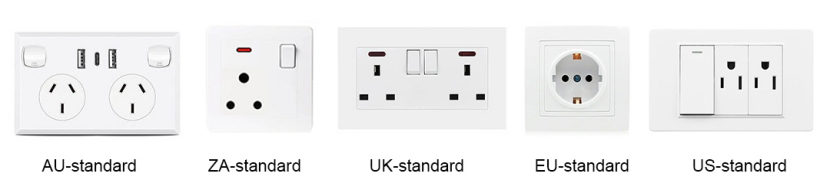

Configurations for multiple countries can be customized. Incoming line: 6 mm²; Water heater line: 4 mm²; Kitchen outlets: 4 mm²; Air conditioner outlets: 4 mm²; General outlets: 2.5 mm²; Lighting: 1.5 mm².
Multiple reuse. Collapsible houses are designed to be used thousands of times. After completing the project at this location, you can fold the house in minutes and then transport it to a new project site for reuse.

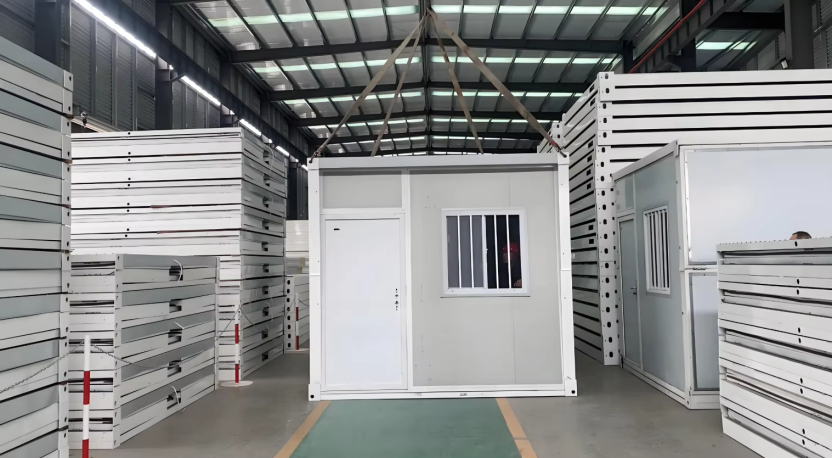

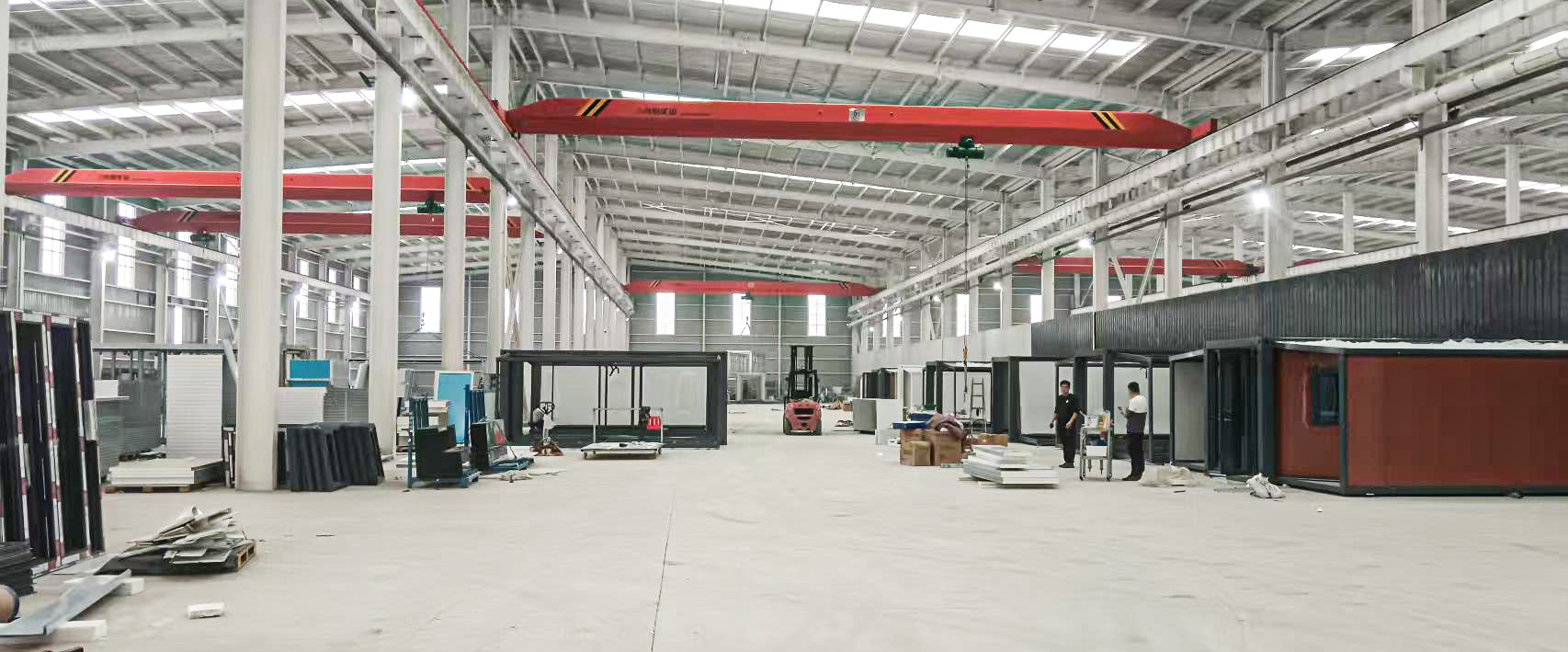

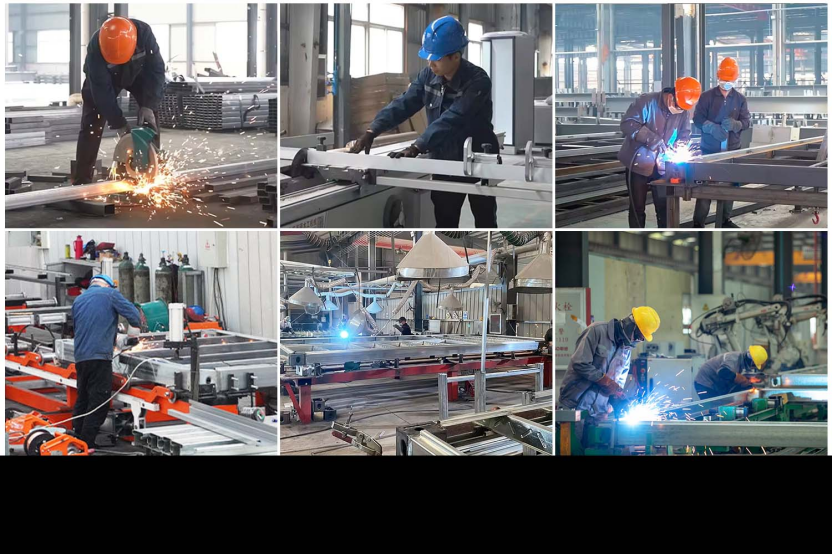

Established in 2024, our factory is a specialized manufacturer of double-wing expandable container homes and modular integrated housing. Leveraging our dedicated production lines and mature technology, we provide reliable prefabricated building solutions to clients worldwide. Our double-wing expandable container homes and modular integrated housing are backed by our own independent production lines and mature technological expertise.
Of the utmost quality to meet customer needs, featuring carefully selected packaging and quality that is widely recognized.
Q1. Are you the Factory or Trading Company?
We are a factory operating over five production lines. We primarily manufacture prefabricated houses, mobile toilets, container homes, and steel-structure buildings.
Q2. How about your delivery time?
Typically, the lead times are as follows: Prefabricated houses: 7–15 days; Container houses: 10–15 days; Mobile toilets: 5–10 days.
Q3. What is the monthly capacity?
Prefabricated Houses: 100,000 square meters; Container Houses: 1,000 units; Mobile Toilets: 2,000 units.
Q4. What is the minimum order?
Prefabricated Houses: 100 sq. m; Container Houses: 2 units; Portable Toilets: 6 units.
Q5. What are your payment terms?
T/T, Cash, or LC. For standard products: 50% deposit before delivery, 50% balance before delivery. Customized Products: Depends on the design.
Q6. What is the lifespan and warranty period?
The service life of prefabricated houses is 10 to 15 years, container houses 15 to 20 years, and villas 50 to 90 years. The warranty period for all houses is 12 months from the date of delivery.
