SES House
1 / 5
| Profile | 1 | L*W*H（mm） | 6055*2435*2896（Internal 5845*2225*2520） |
| 2 | Roof Type | Bread roof, with central drainage system for water flow via 4 columns | |
| Parameter | 3 | Floor Live Load | 2.0KN/㎡ |
| 4 | Roof Live Load | 0.5KN/㎡ | |
| 5 | Wind Load | 0.5KN/㎡ | |
| Frame | 6 | Corner Column | Galvanized plate, t=3.0mm, steel profile SGH340 |
| 7 | Roof Main Beam | Galvanized plate, t=3.0mm, steel profile SGH340 | |
| 8 | Floor Main Beam | Galvanized plate, t=3.0mm, steel profile SGH340 | |
| 9 | Roof Second Beam | Steel profile Q235B, high strength | |
| 10 | Floor Second Beam | π type high strength, metal code Q345 | |
| 11 | Coating | Powder coating, coating thickness 80μm, grey white | |
| Roof Decoration | 12 | Roof Sheet | Galvalume sheet, white color |
| 13 | Insulation | Glass wool, density≥14kg/m³ | |
| 14 | Ceiling | Galvalume sheet, white color | |

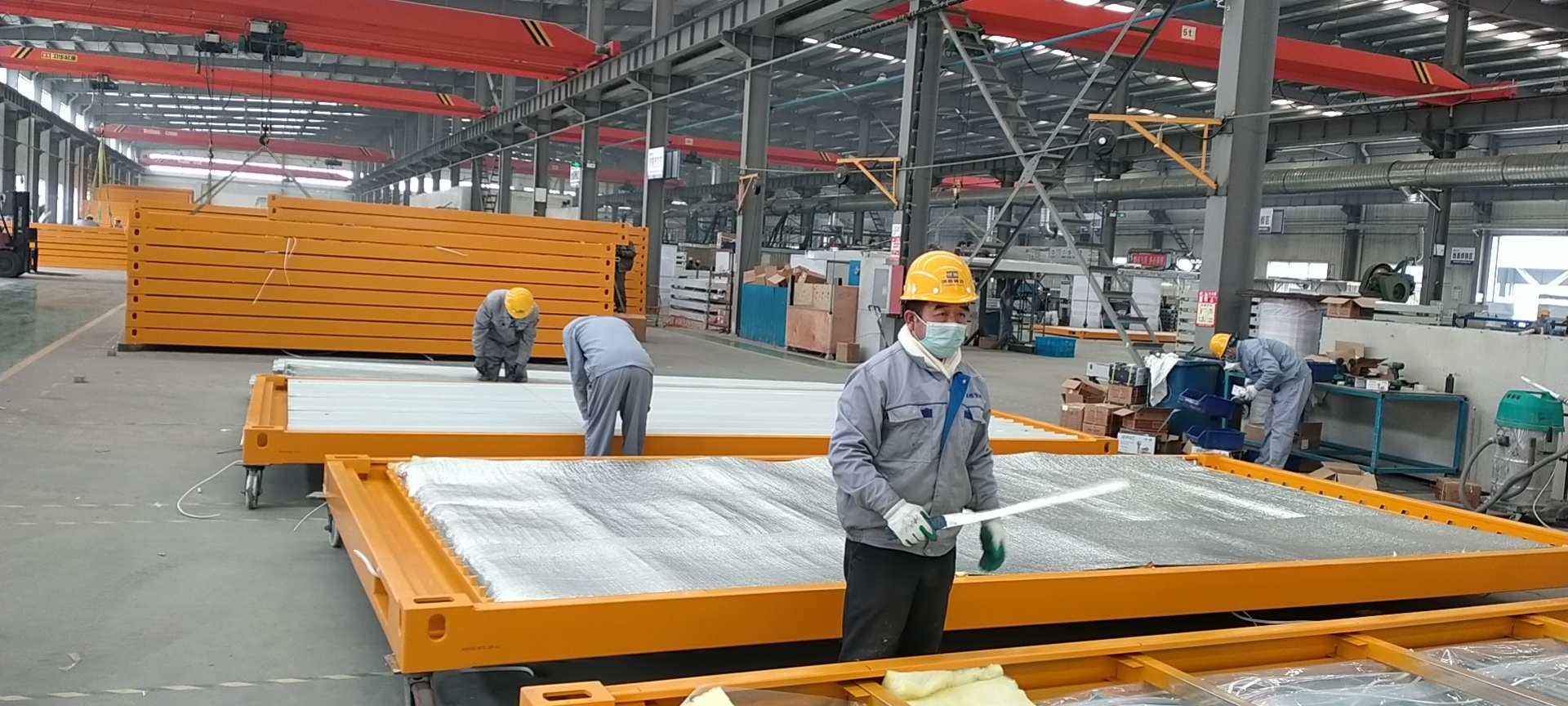

| Floor Decoration | 15 | Surface | Rubber flooring sheet, marble white color |
| 16 | Baseplate | 18mm thickness cement board | |
| 17 | Insulation | Without | |
| 18 | Underneath Sheet | Without | |
| Wall Panel | 19 | Thickness |
75mm thickness sandwich panel Decoration Options: External wall surface: marble stone, metal engraving plate, cement board, water-proof film Partition wall surface: wood plastic plate, PVC gusset plate, wallpaper |
| 20 | Insulation | Glass wool or rock wool | |
| Door | 21 | Size（mm） | Width X Height=840*2035 |
| 22 | Material | Metal door (Can be aluminum alloy door as option) | |
| Window | 23 | Size（mm） | Width X Height=1120*1100 (Can be aluminum alloy window or other size of PVC windows as option) |
| 24 | Material | PVC sliding window with security bar and window screen | |
| 25 | Glass | Double glazed | |
| Electrics | 26 | Voltage | 220V~240V，50HZ |
| 27 | Electric Wire | Main circuit BVVB-3*6.0, air conditioner BVVB-3*4.0, socket BVVB-3*2.5, lamp BVVB-3*1.5 | |
| 28 | DB box | 10 digit unexposed PVC distribution box*1（Including high breaking circuit breaker 10A/1P, high breaking circuit breaker 20A/2P, high breaking circuit breaker 5A/2P, leakage protection circuit breaker 16A/2P, 1 piece each break） | |
| 29 | Lamp | LED strip lamp（LED 16.5W*2）*2 | |
| 30 | Socket | Industrial socket（3P/32A）*1, three-pole multi-functional socket (250V 13A)*4, one gang switch*1 | |
| 31 | Electrics for Units Combination | For standard, using 100*50*1.5mm galvanized metal bridge for keeping outdoor cables, the cables are 3*6mm2 for usual | |
| Fittings | 32 | Female Corner | 0.5mm metal sheet, white color |
| 33 | Wall Channel | 0.7mm metal sheet, white color |
