| Category | Component | Specifications Details |
|---|---|---|
| Product Name | Flat Pack Container Houses | |

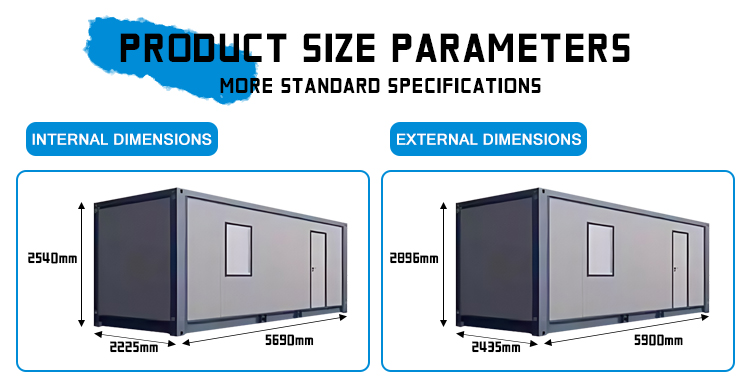

| Size | 5900*2435*2896mm (14.36m²) | |

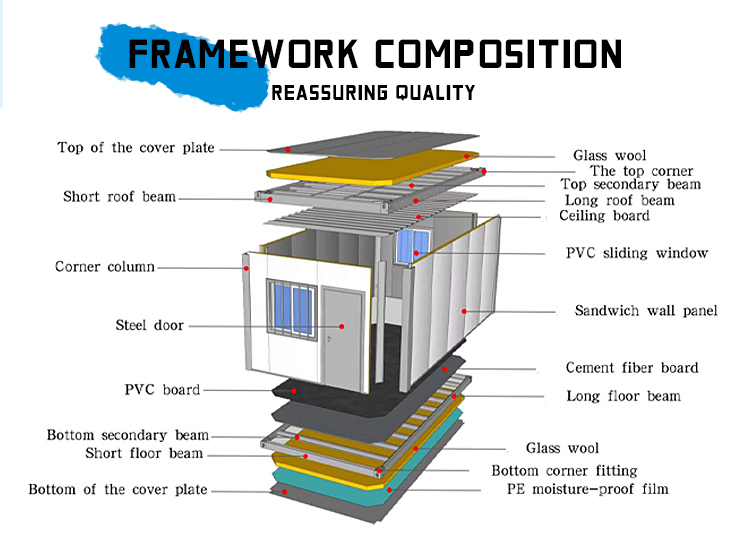

| Main Frame | Top main beam | Roller profile thickness 2.5mm, section height 178mm |
| Top second beam | Galvanized square tube 70×40×1.5mm | |
| Bottom main beam | Roller profile thickness 2.2mm, section height 195mm | |
| Bottom second beam | Galvanized square tube 30×15×1.5mm | |
| Steel columns | 10×150×2536mm, Thickness is 2.75mm | |
| Structural Connections | M12×40, install 6 bolts per corner piece | |
| Surface Treatment | Galvanized substrate zinc content 80g, Surface powder spraying | |
| Roof | Waterproof layer | 0.4mm thick galvanized color steel plate, white gray, PE coating; 180 degree overlap |
| Insulation layer | Core insulation material: glass wool, with edge sealing, bulk density 80kg/m³, Fire-proof A grade | |
| Decorative layer | YX35-323-831 ceiling strip, 0.4mm, pearl white, PE coating | |
| Wall Panel | 0.326 / 0.376 / 0.426 / 0.476mm THC steel sheet | |
| 50 / 75 / 100mm THC EPS / rock wool / glass wool / PU sandwich panel | ||
| Wall Color | White grey and more (depending on quantity) | |
| Door | 0.326 / 0.376 / 0.426 / 0.476mm THC steel sheet | |
| 50mm THC EPS / rock wool / glass wool / PU sandwich panel with lock | ||
| Window | Aluminum PVC sliding door with security bar | |
| Floor | MGO / cement fiber floor board | |
| Electricity | Pre-wired with lighting and circuit distributor installed | |
| Wind Resistance | Grade 12 Wind, wind speed ≤ 120 km/h | |
| Earthquake Resistance | Grade 8 | |
| Roofing Snow Load | 0.6kn/m² | |
| Roofing Live Load | 0.6kn/m² | |
| Wall Permitted Loading | 0.6kn/m² | |
