Send Inquiry

Product Description

Product Overview
LGS System Framing Design Production System
The LGS SYSTEM is a fully automatic wall, floor and roof truss frame design production system using one single dedicated C & U shape profile. This framing system engineers, designs and produces wall frames, floor truss, and roof trusses complying to all major international light steel framing building codes.
Product Specifications
Specification Item Details
Section Type C type
Profile Dimensions Metric Sizes:
50mm x 41mm x 6mm
60mm x 41mm x 10mm
75mm x 41mm x 13mm
90mm x 41mm x 13mm
100mm x 41mm x 13mm
140mm x 41mm x 13mm
150mm x 41mm x 13mm 		Imperial Sizes:
2” x 1.625” (200S162)
2.5” x 1.625” (250S162)
3” x 1.625” (300S162)
3.5” x 1.625” (350S162)
3.625” x 1.625” (362S162)
4” x 1.625” (400S162)
5.5” x 1.625” (550S162)
6” x 1.625” (600S162)
Material Thickness 0.8-1.2 mm, G300-G550 zinc plated, aluminum zinc plated
Main Motor 7.5 KW Servo motor
Transmission System Gear transmission + chain drive
Operational Speed 40m/min (without punching and cutting)

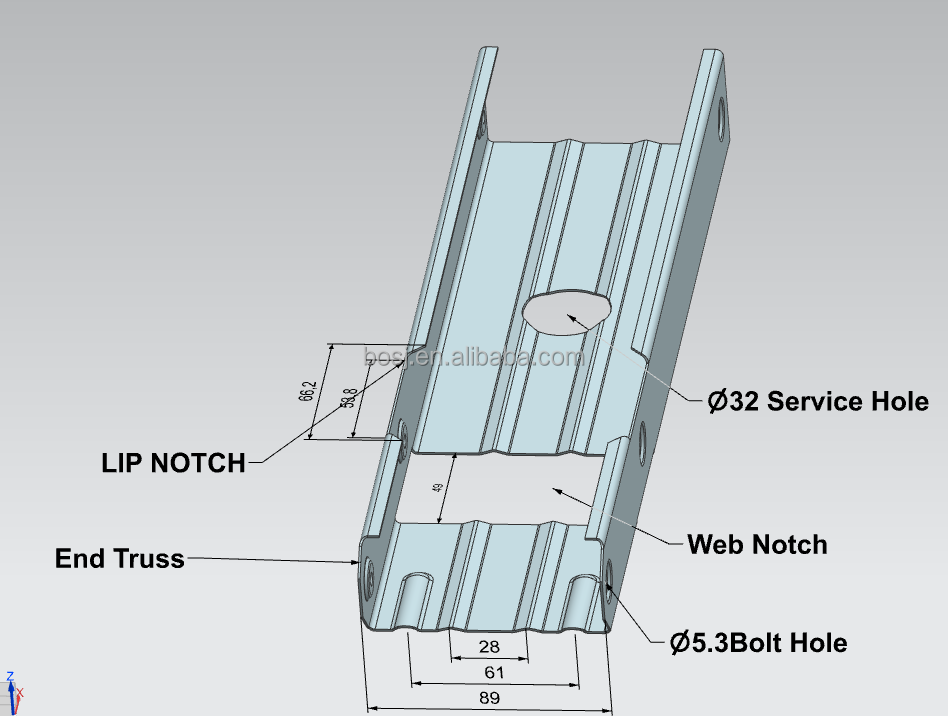

LGS Profile Model

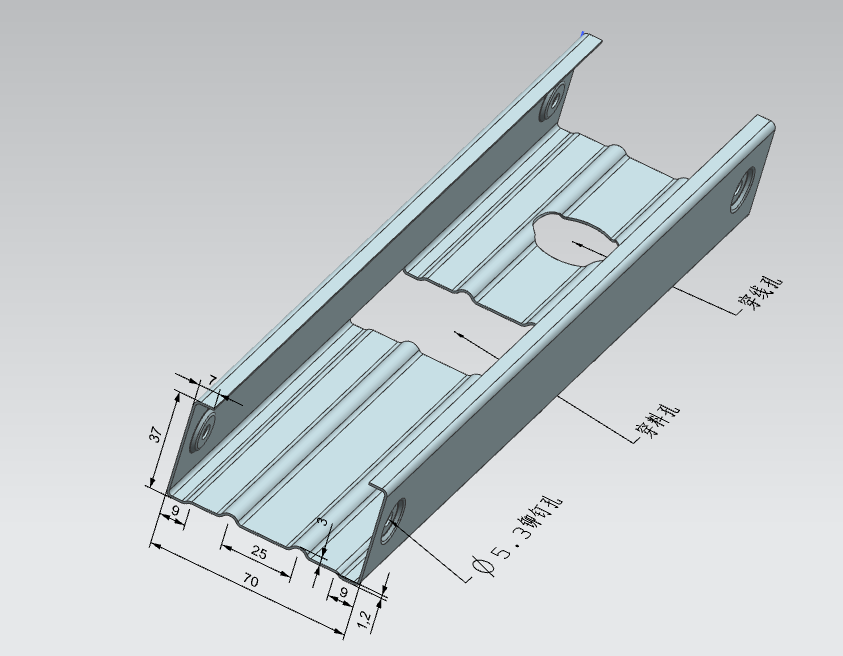

LGS Frame Assembly

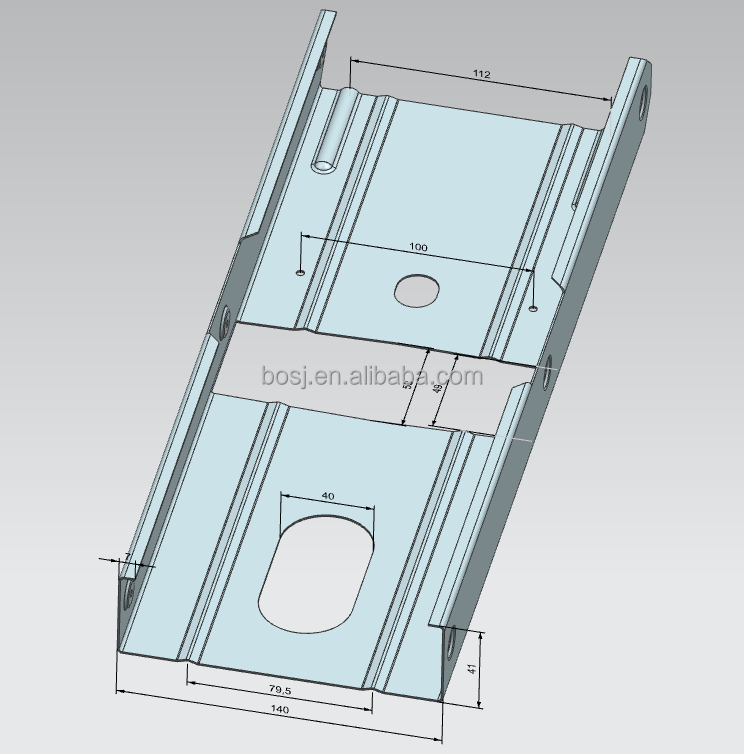

Steel Stud Framing

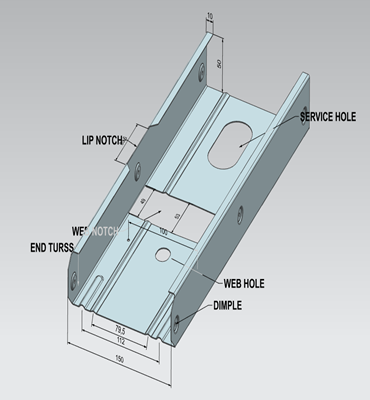

Truss Profile Detail

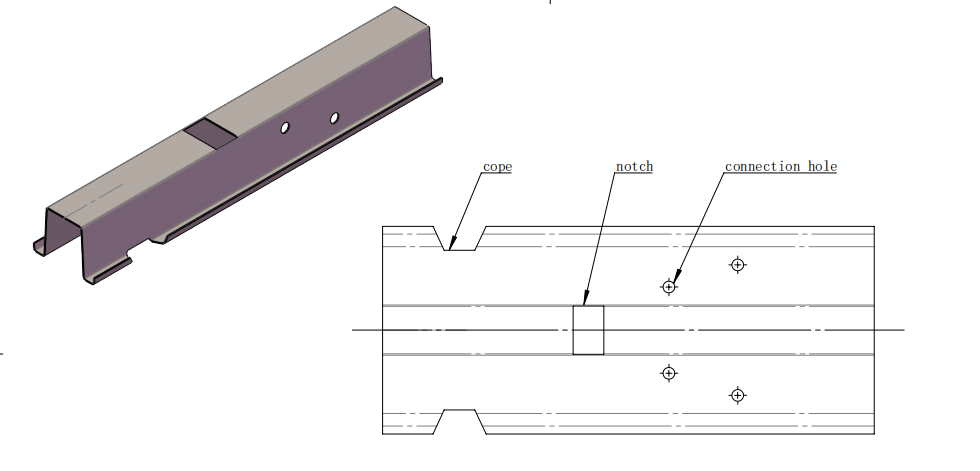

LGS Frame System

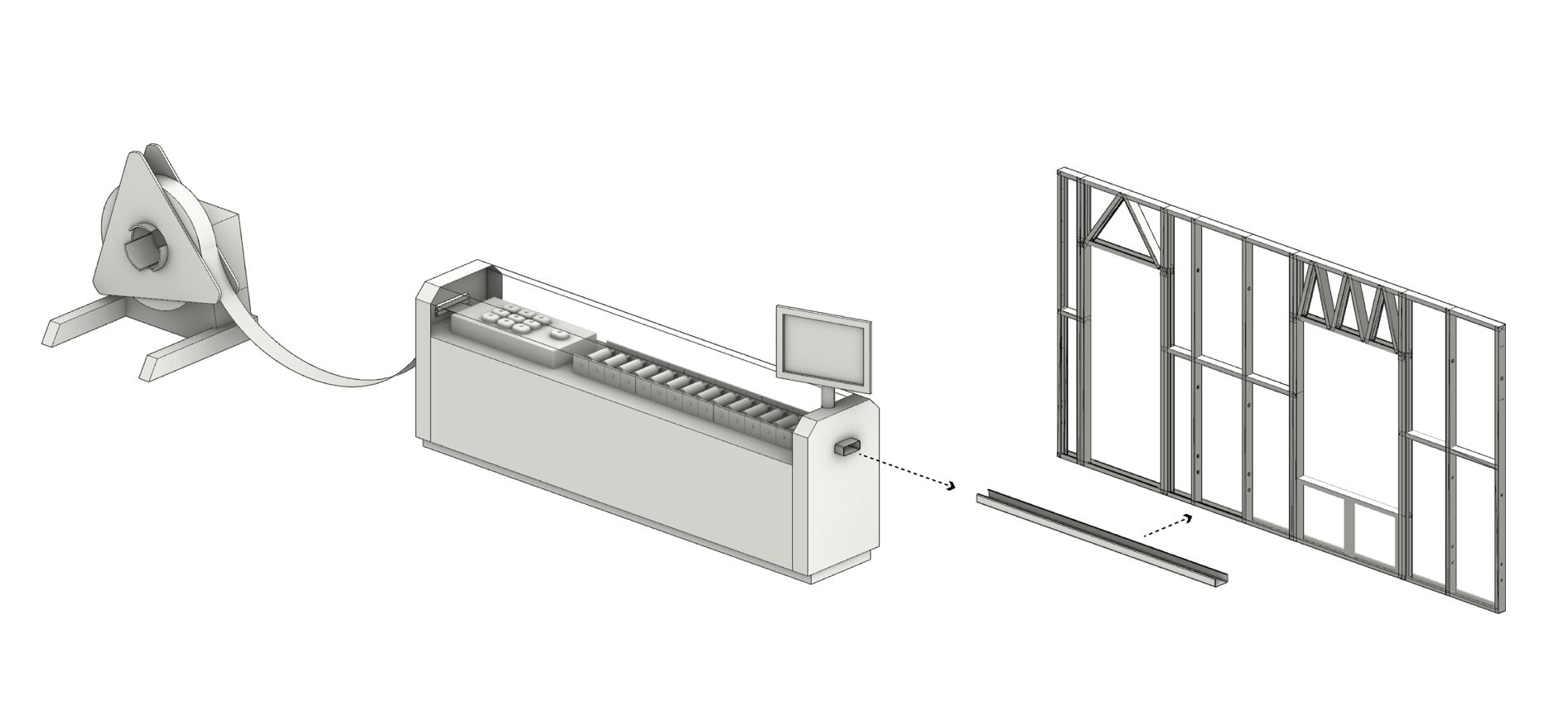

LGS Machine Frame Structure

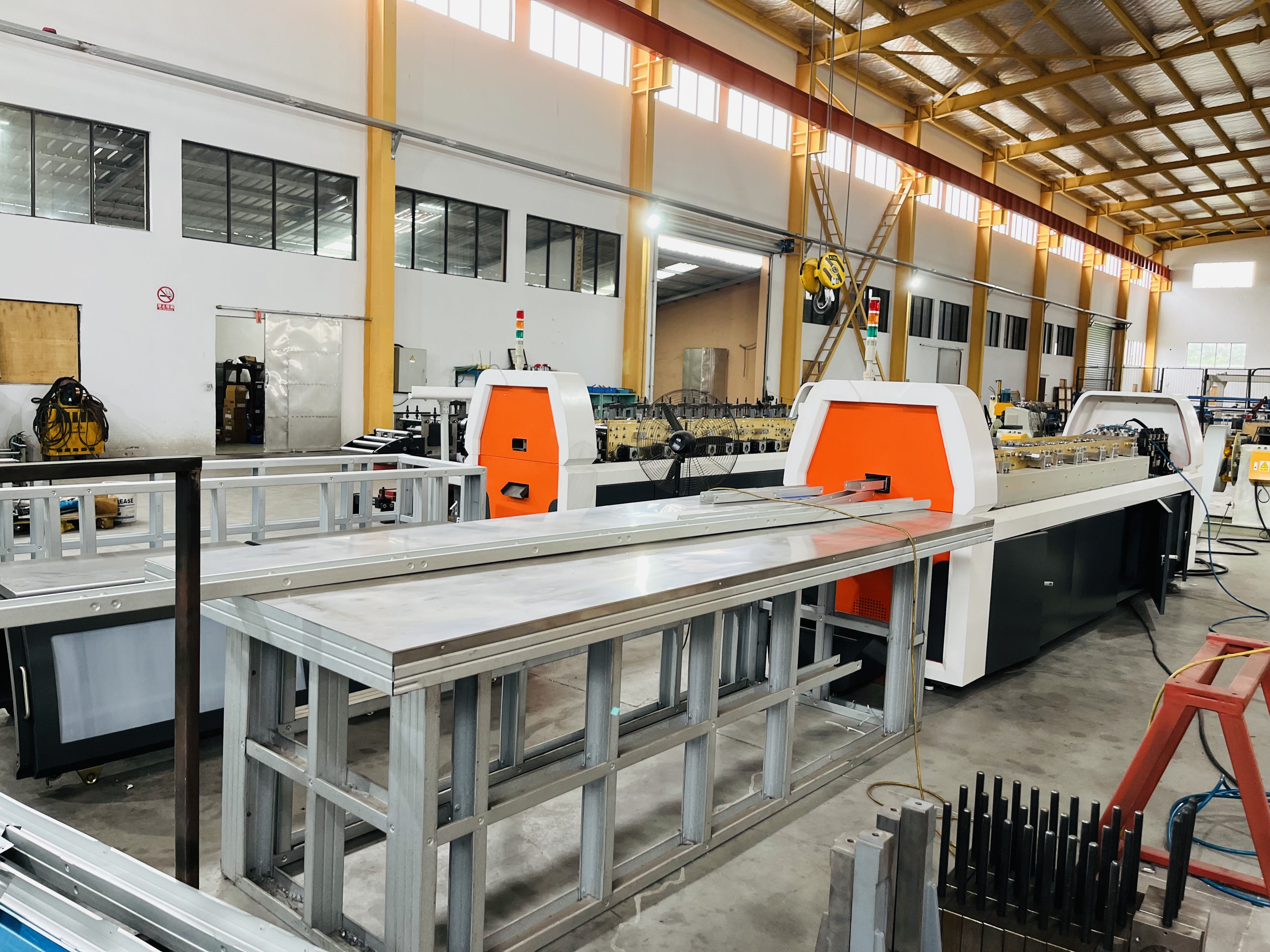

Light Steel Framing Production

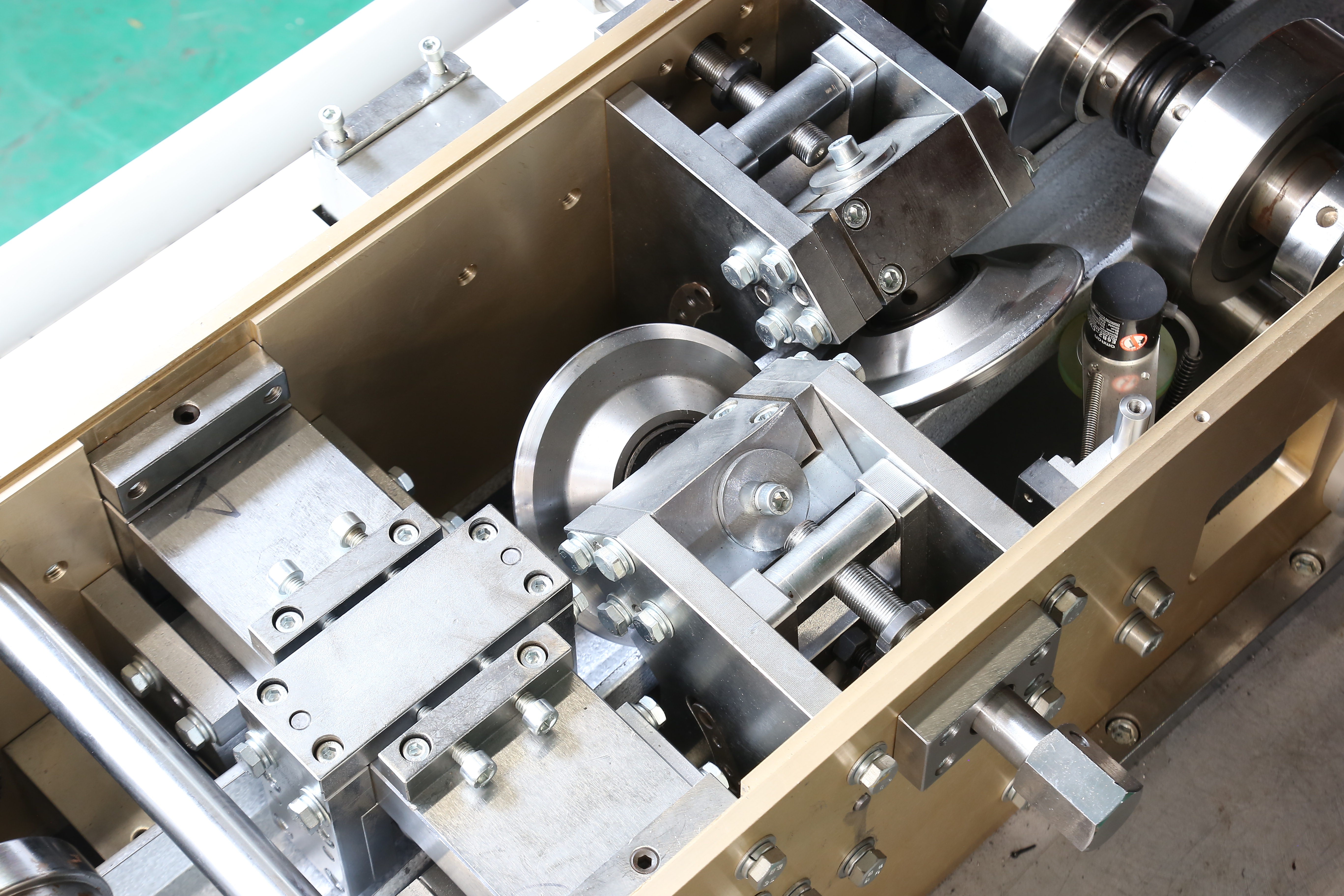

Roll Forming Component

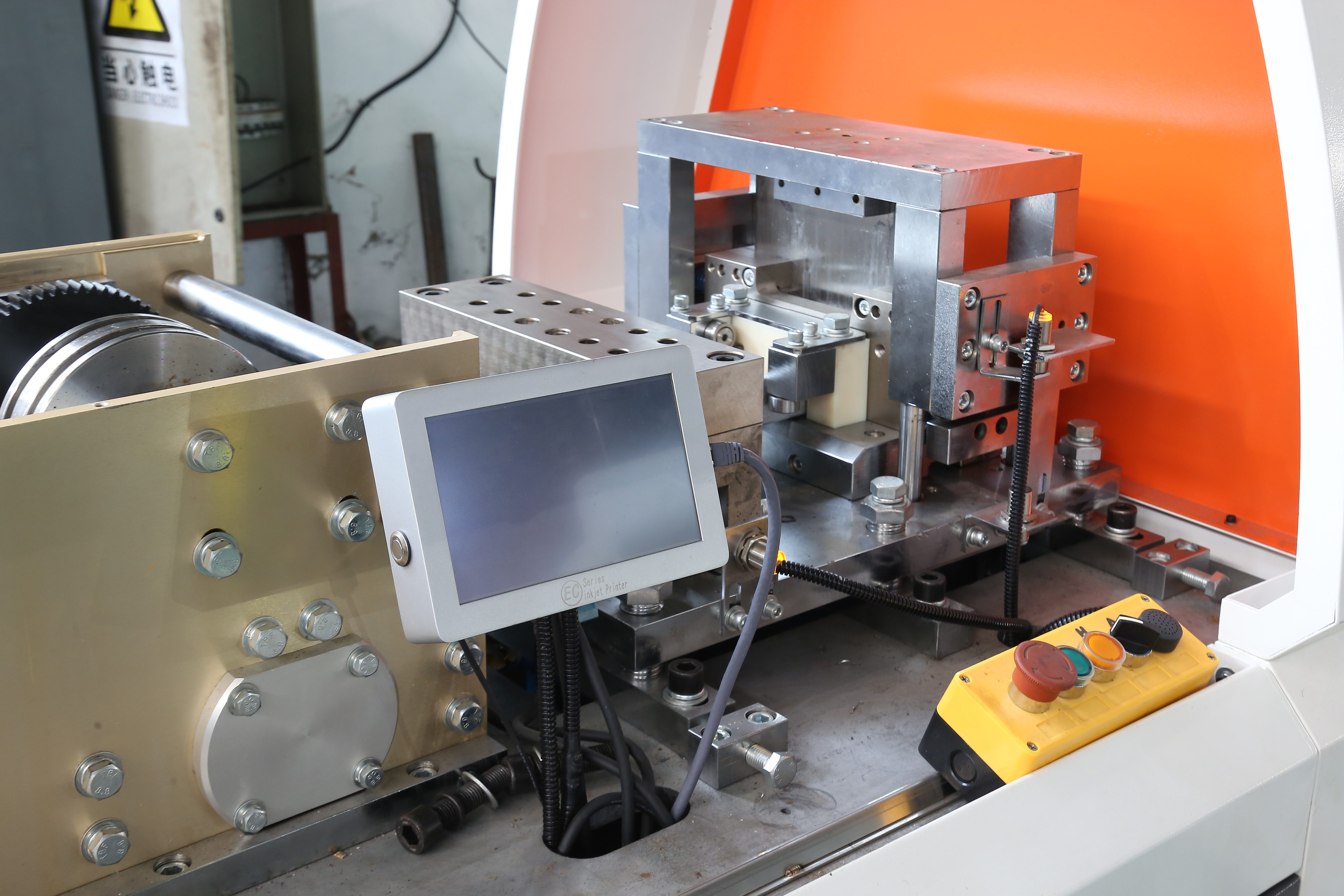

Steel Framing Construction
High Speed Continuous Punch Tools
  • Service hole punch
  • Left & right lip notch punch
  • Web notch punch
  • Truss end cut punch
  • Flange dimple hole punch
  • Shear cut
  • End crimp punch

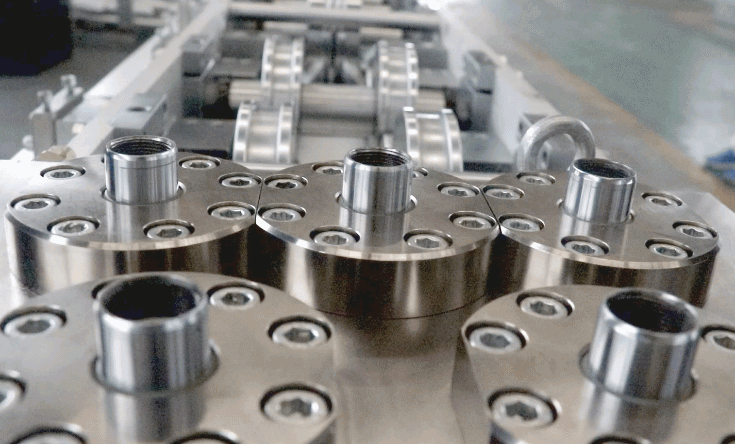

Punch Tool Detail 1

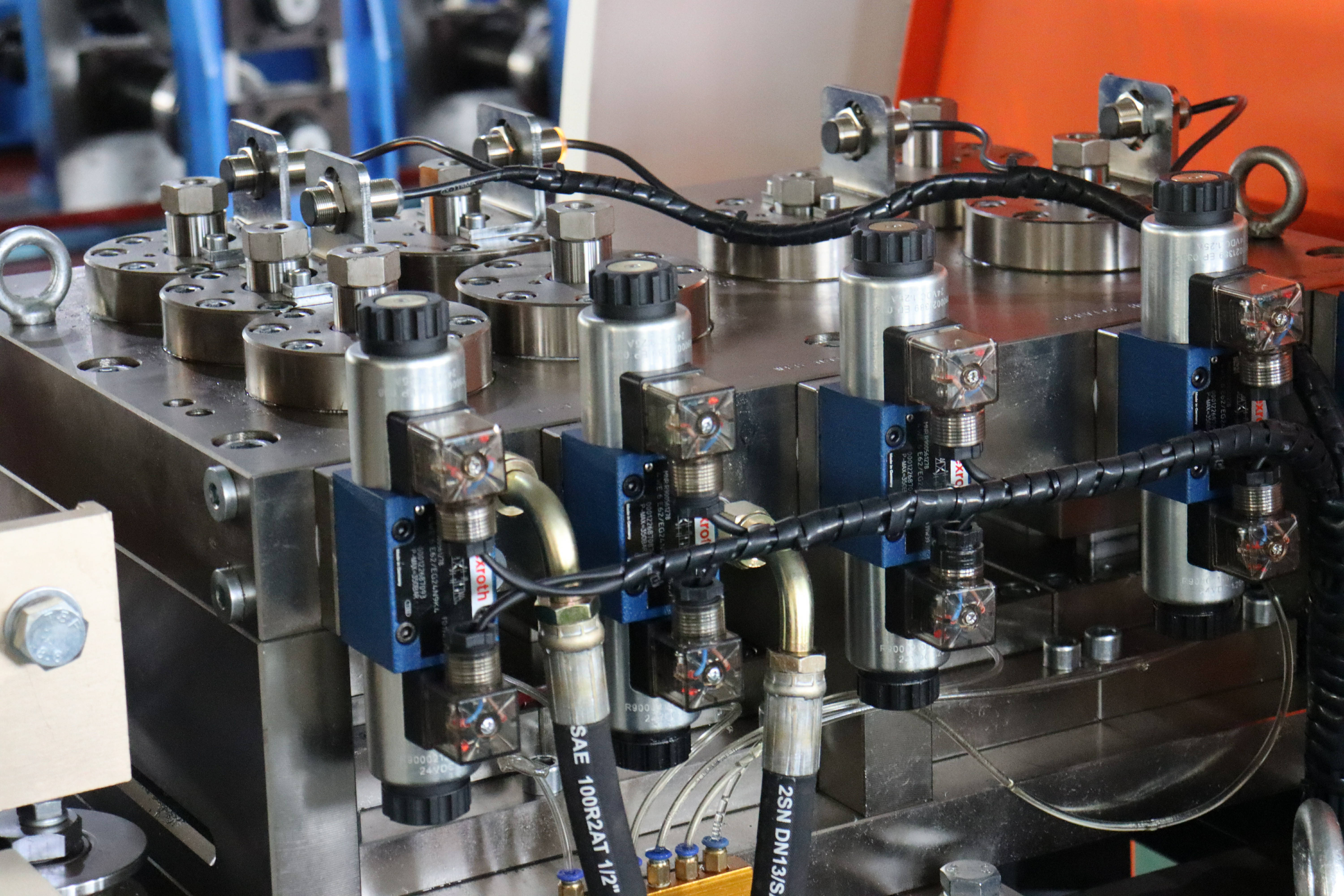

Punch Tool Detail 2
Designer Cases
Structure Design Overview

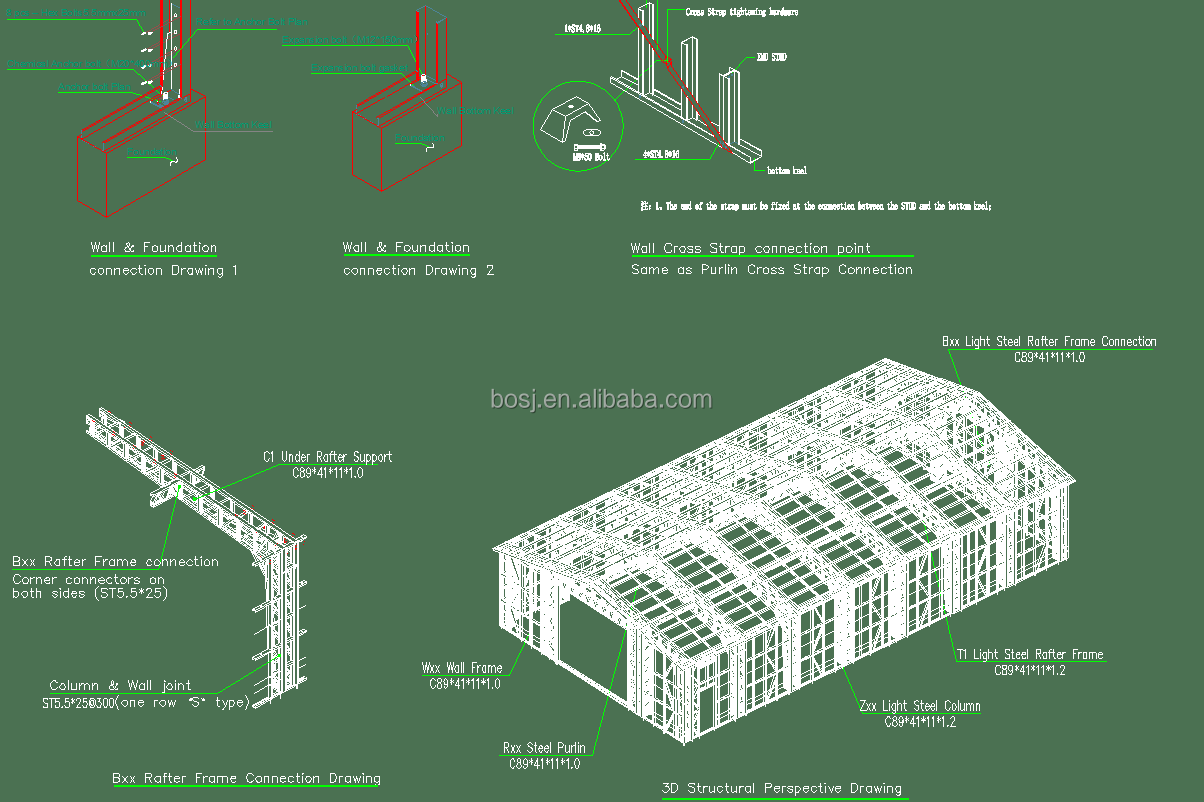

Structure Design Plan
LGS Framework Render
LGS Wall Panel Design
Major Building Applications of LGS Machine System
  • Low Rise Residential Building Structures
  • Mid Rise Residential Building Structures
  • Student Staff Accommodation Facilities
  • Floor Roof Truss production
  • Portable Buildings Cabins
  • Light Medium Column Beam Warehouse Structures
  • Light Medium Modular Building Structures
  • Light Medium Commercial and Industrial Building Structures

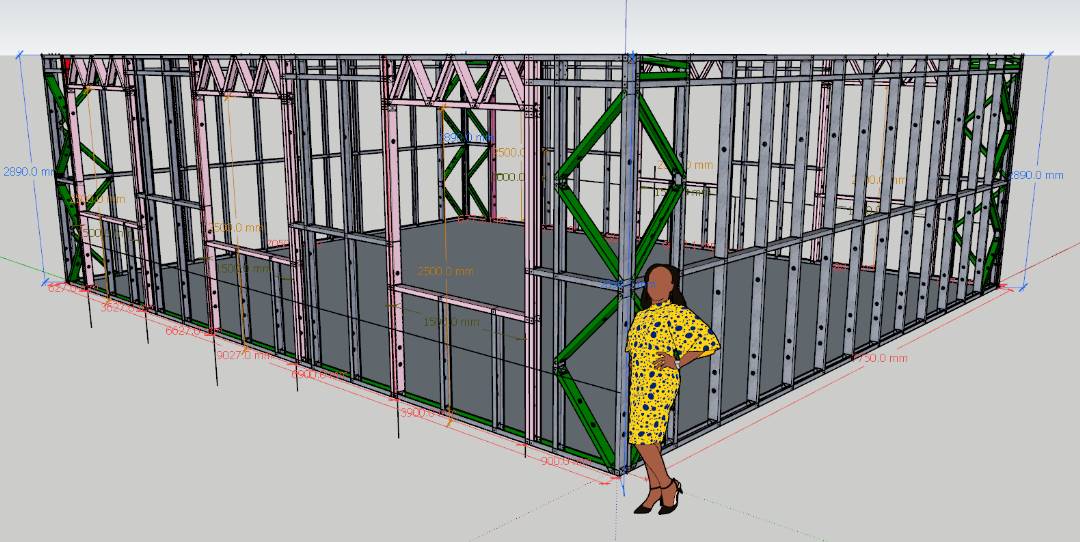

Residential Structure Build

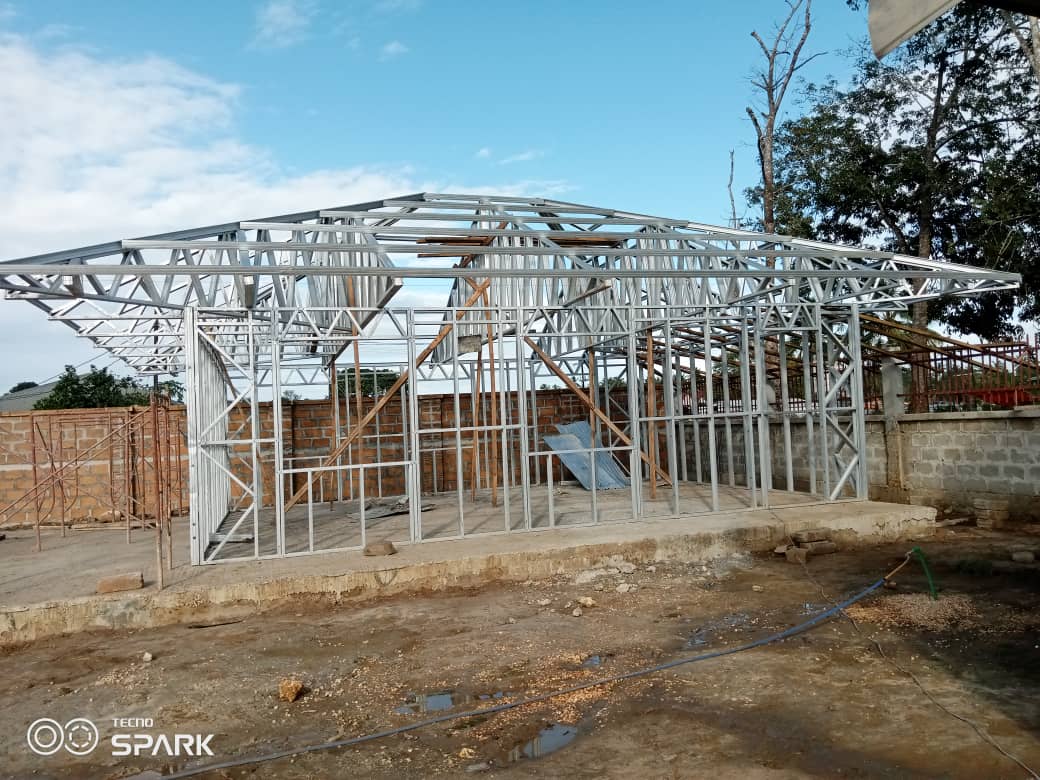

Truss Framework Installation

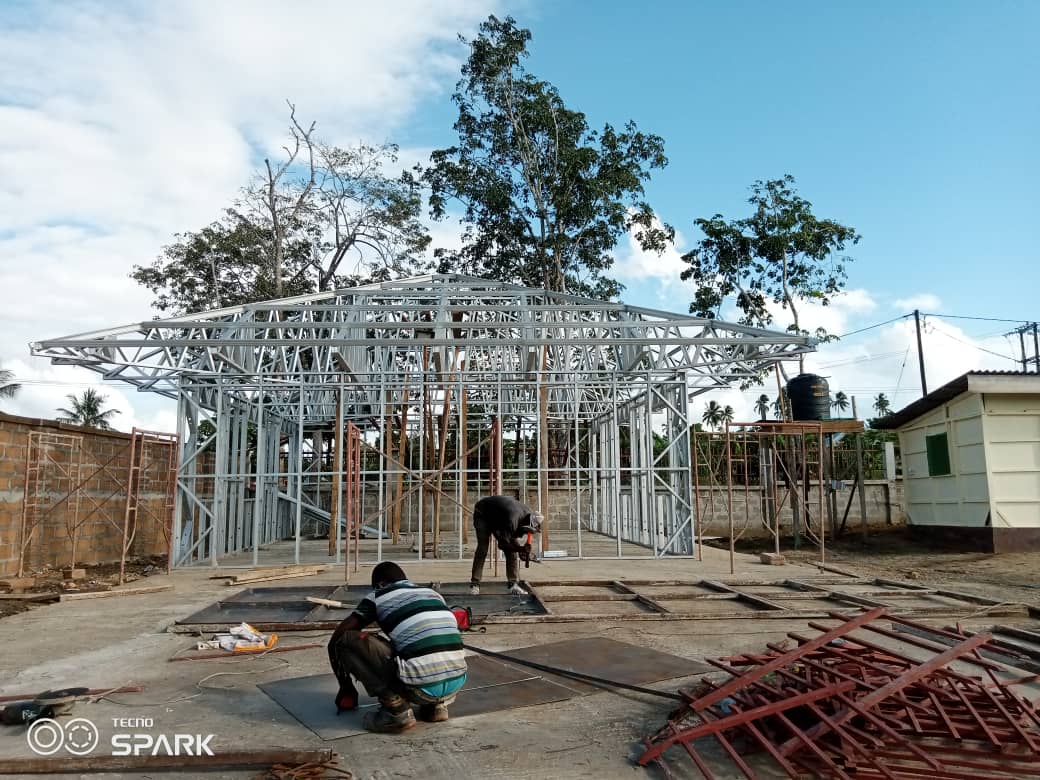

Multi-Story LGS Frame

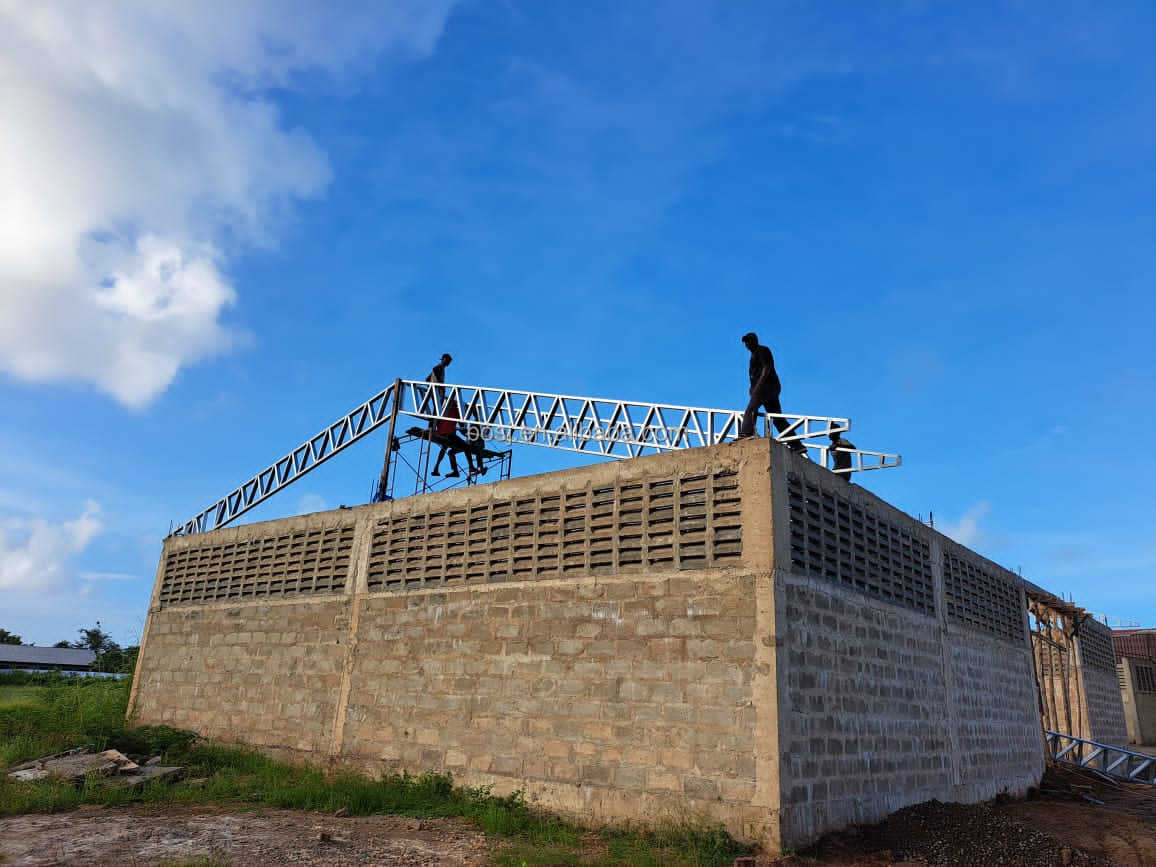

Modular Unit Setup

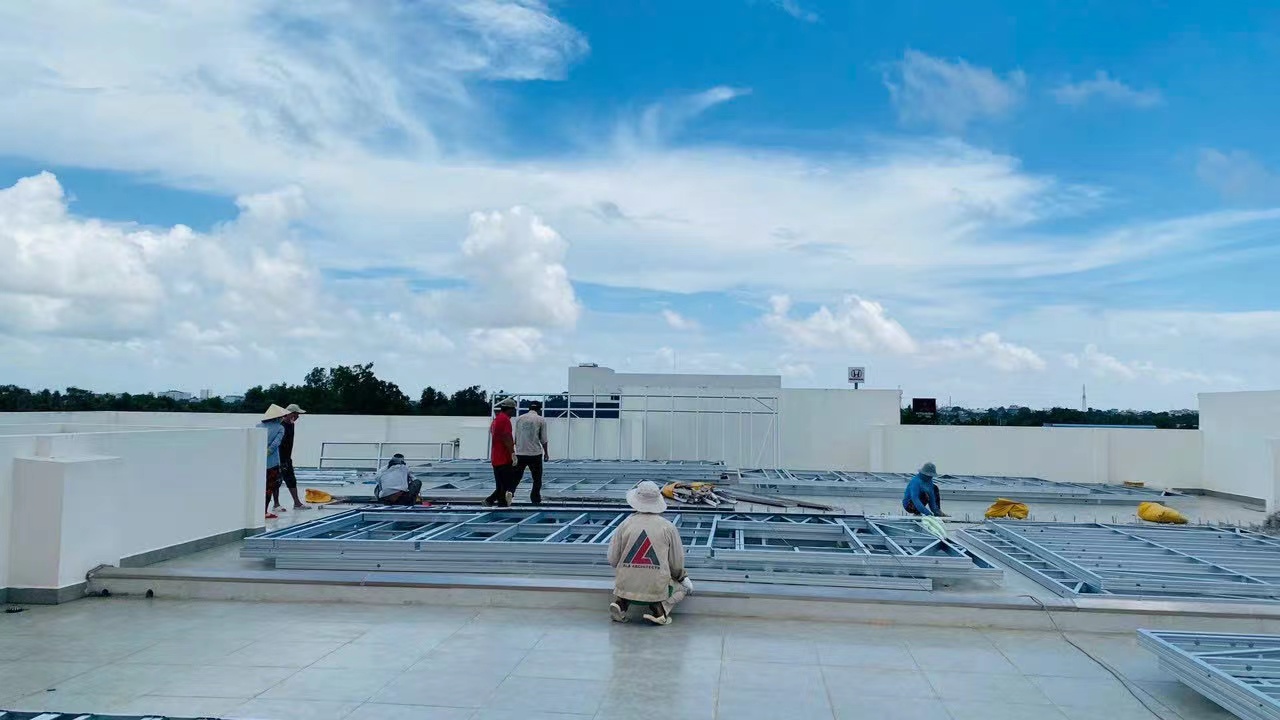

Light Steel Truss Roof

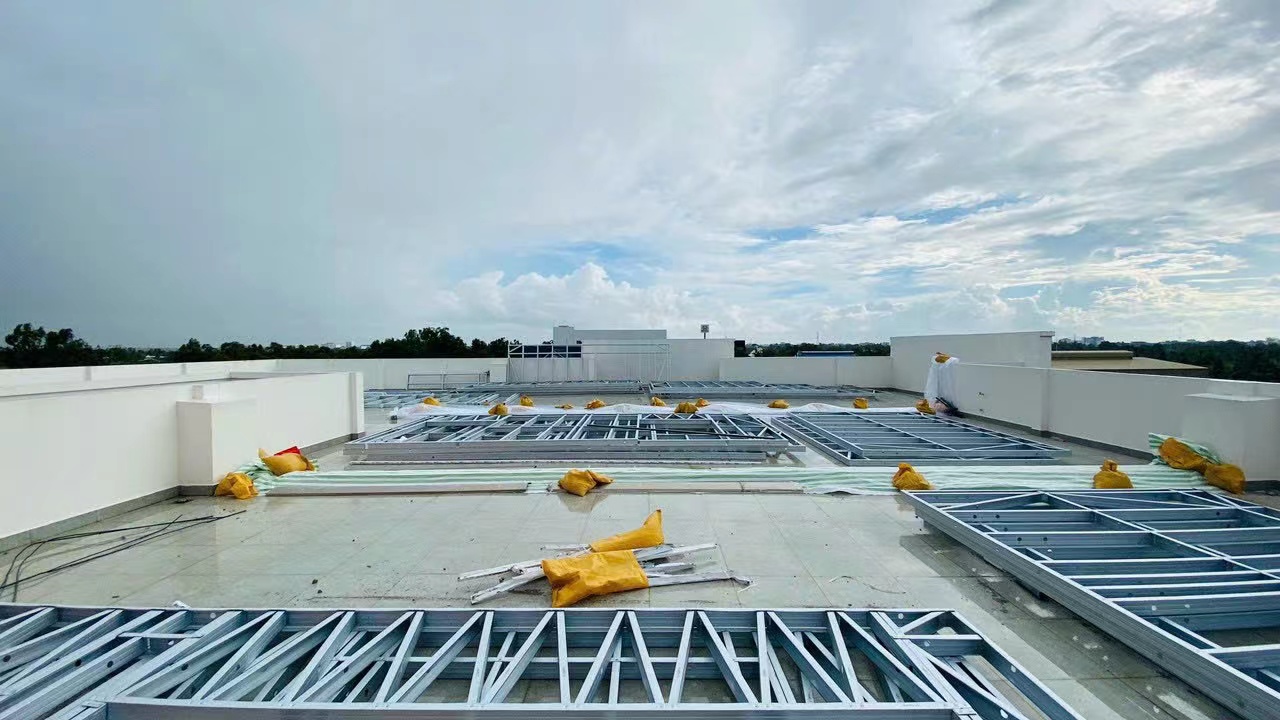

Commercial Building Structure

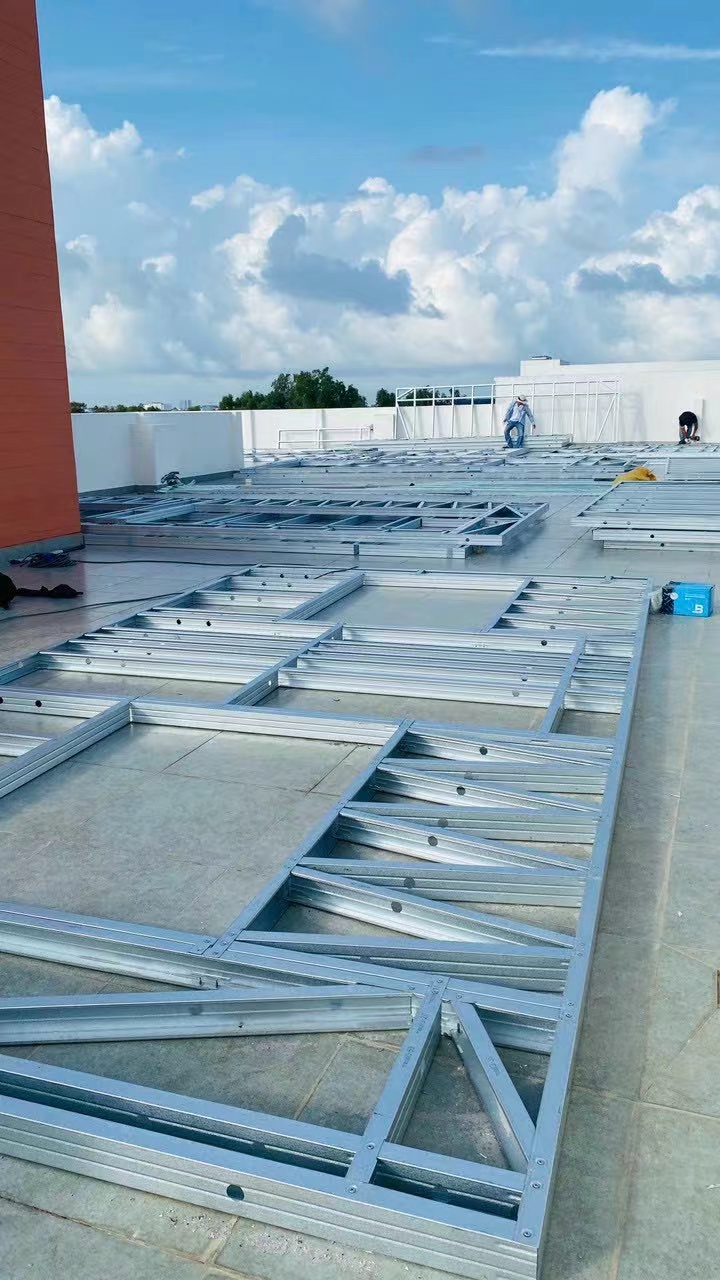

Low Rise Construction Site

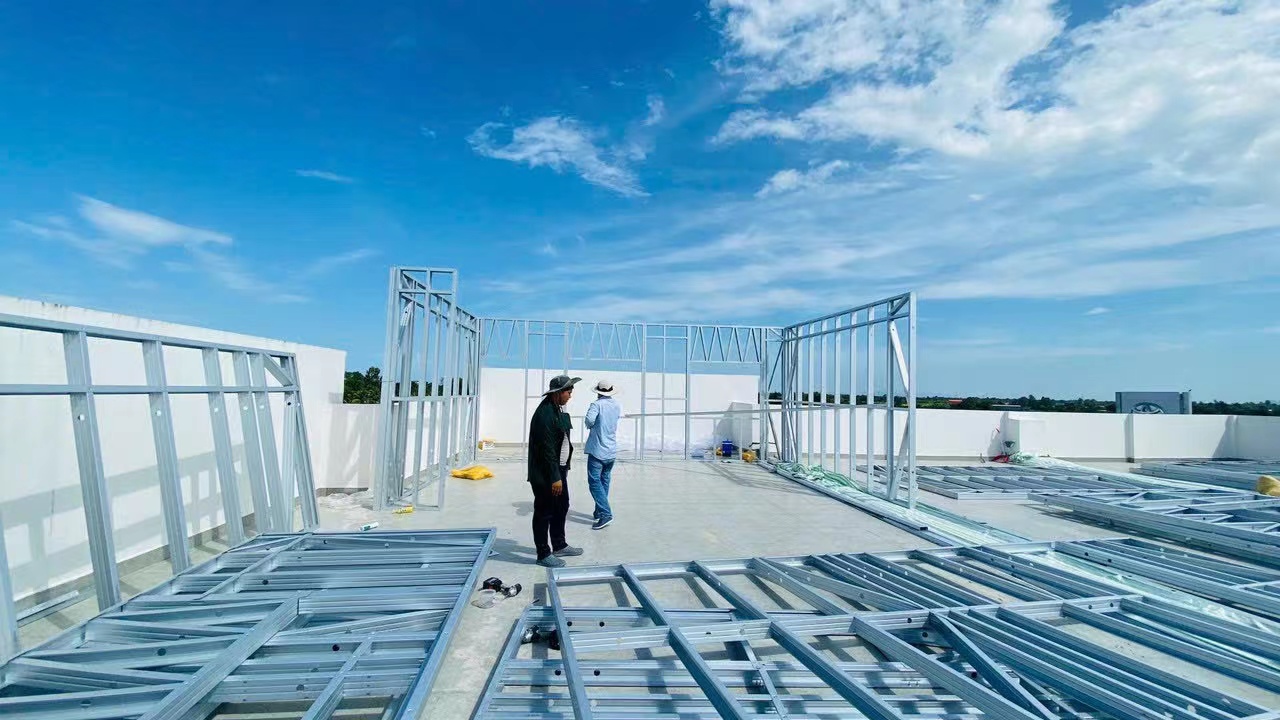

LGS Framework Completion
Software

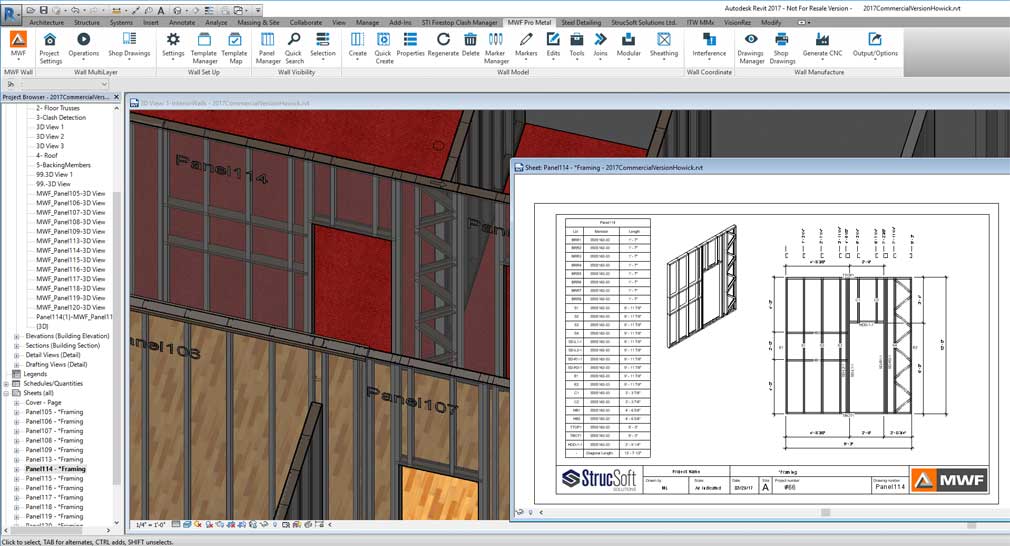

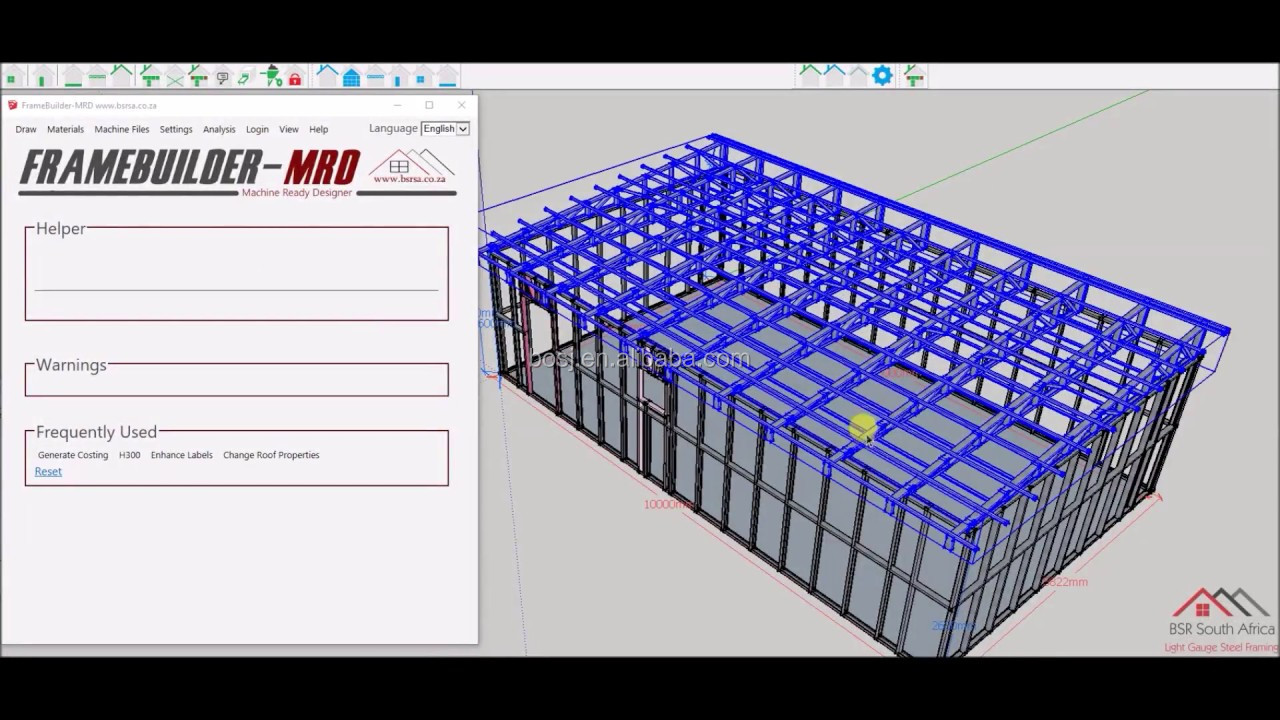

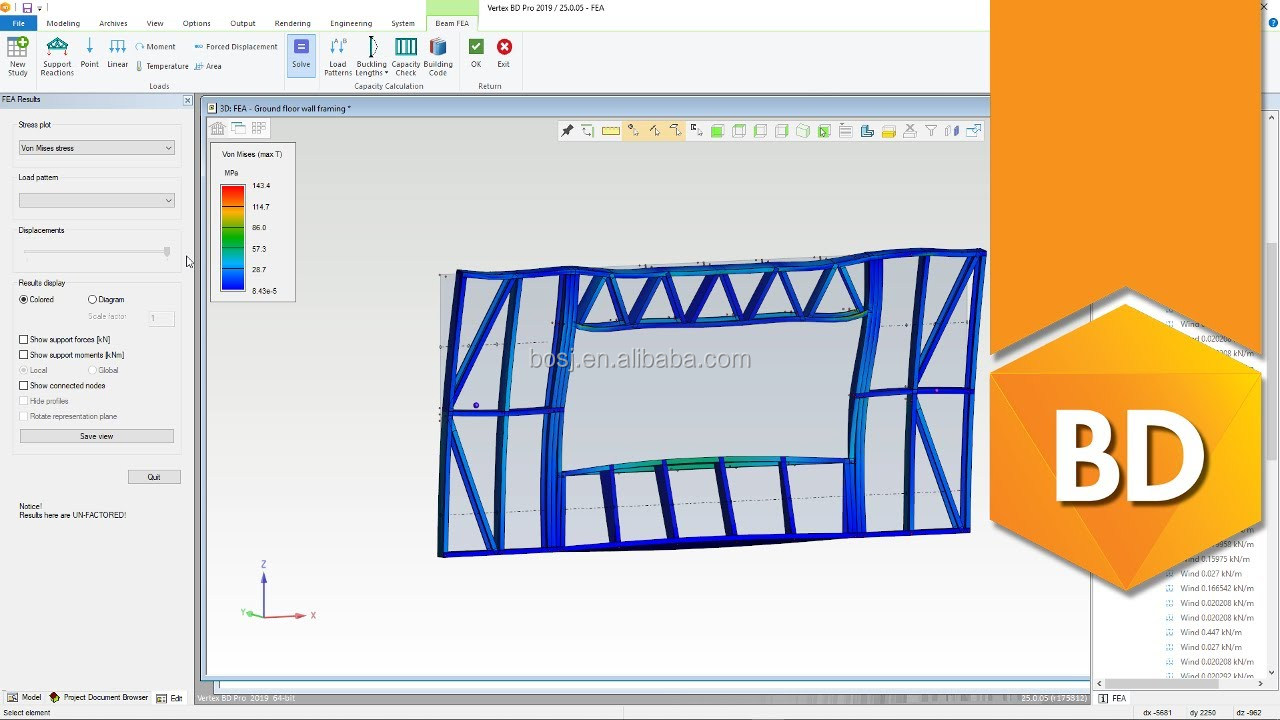

Software Interface 1
Software Interface 2
Software Interface 3
Profile
Manufacturing Profile 1
Manufacturing Profile 2
Frequently Asked Questions
Q What is the primary function of the LGS Framing System?
The LGS System is a fully automatic wall, floor, and roof truss frame design production system that utilizes a single dedicated C & U shape profile.
Q Which structural dimensions and profile sizes are supported?
The machine supports profile widths ranging from 50mm to 150mm (metric) and 2” to 6” (imperial), using material thicknesses between 0.8mm and 1.2mm.
Q What features does the high-speed continuous punch tool support?
The integrated punch tool system includes a service hole punch, left & right lip notch, web notch, truss end cut, flange dimple hole, shear cut, and end crimp punch.
Q What are the primary building applications of this LGS system?
It is ideal for low-rise and mid-rise residential structures, student staff accommodation, modular units, portable cabins, floor and roof trusses, and light-to-medium industrial buildings.
Q What is the production speed and transmission setup of the machine?
The system reaches a production speed of up to 40 meters per minute (without punching and cutting) driven by a 7.5 KW Servo motor with gear and chain transmission.
Q Does the system comply with international building codes?
Yes, the framing design system engineers, designs, and manufactures frames complying with all major international light steel framing building codes.
