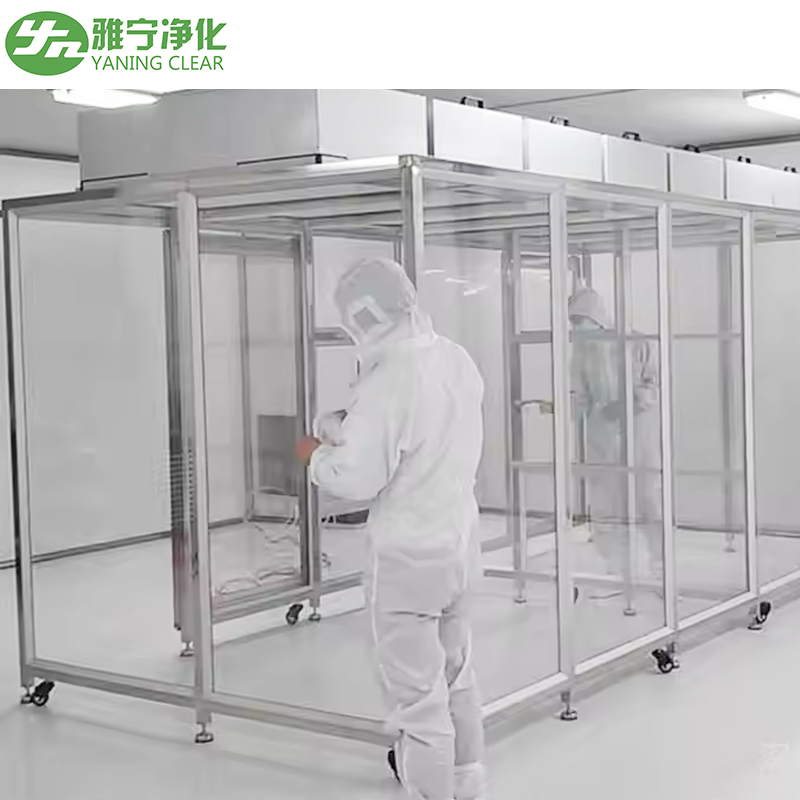

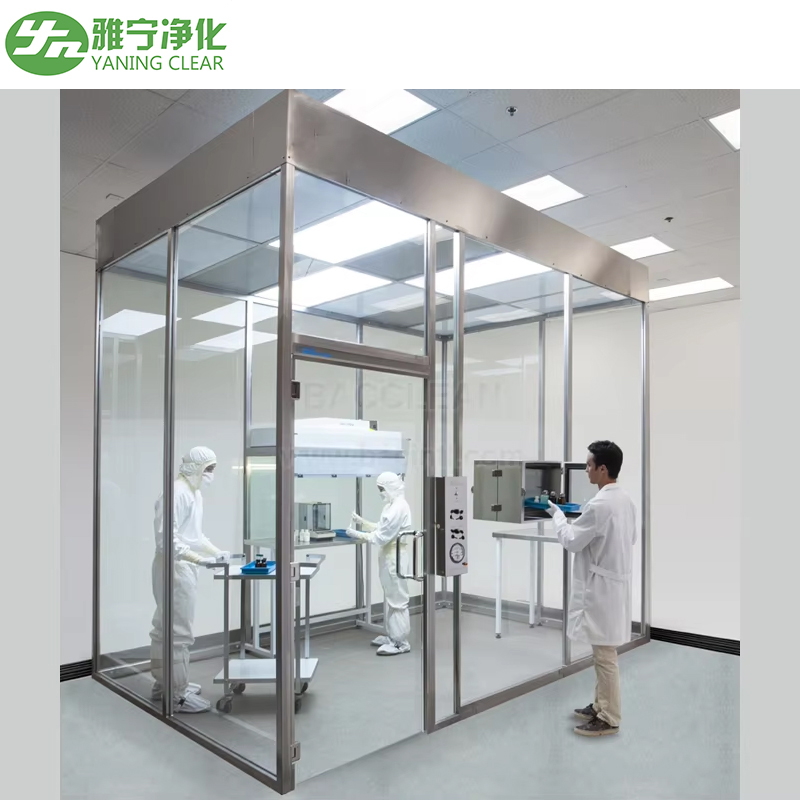

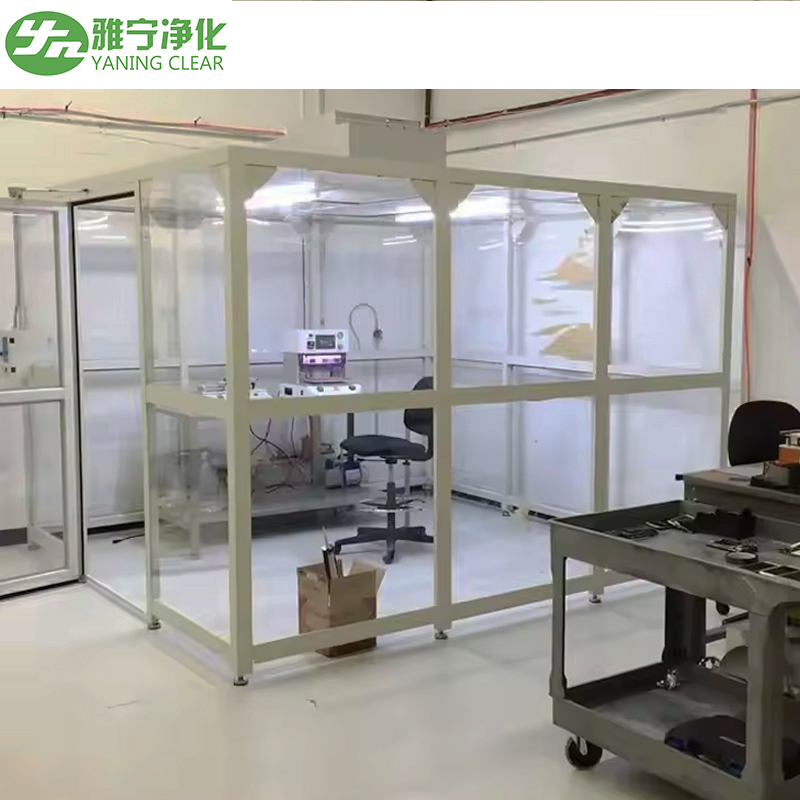

YANING Manufacturer's Modular Laboratory Clean Room Container Dust-Free Working Room HEPA Filter New Condition Sofwall Cleanroom

1 / 5

YANING Manufacturer's Modular Laboratory Clean Room Container Dust-Free Working Room HEPA Filter New Condition Sofwall Cleanroom

Send Inquiry

Product Description

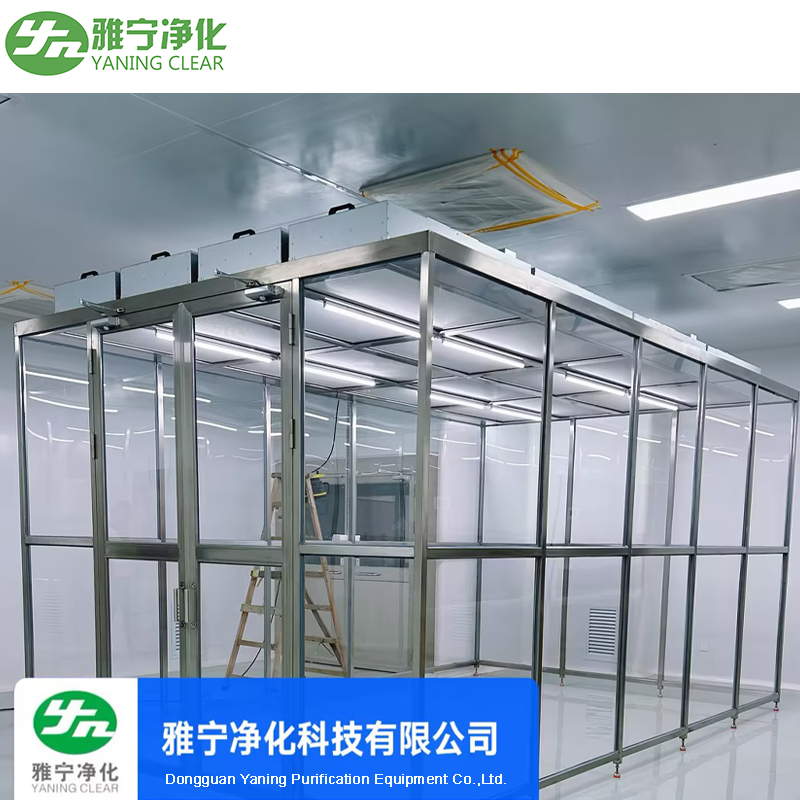

Clean Booth

⚡Product Description

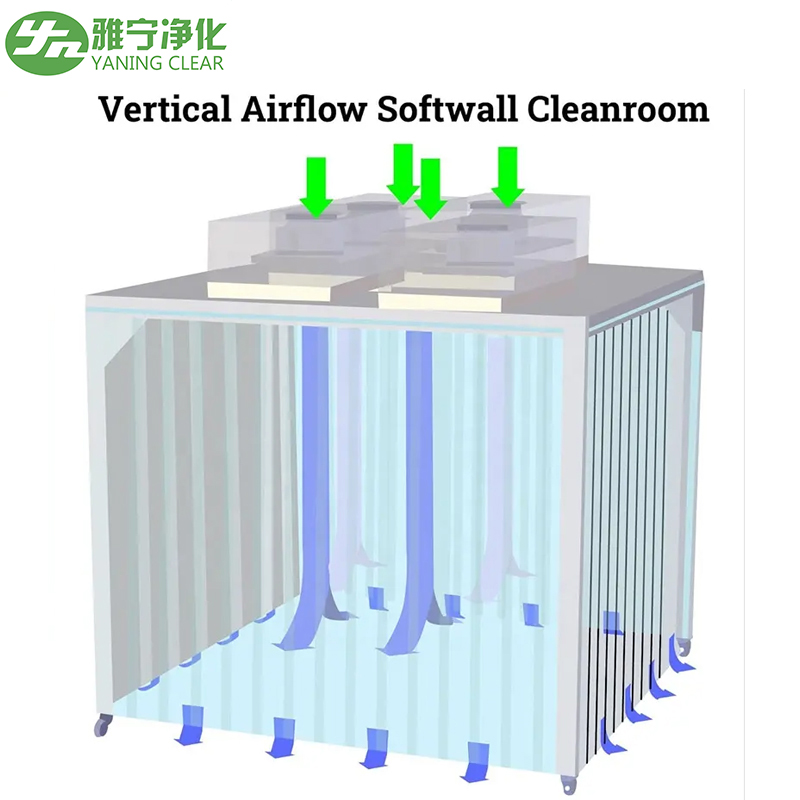

Clean booth (simple clean room) is a kind of air purification equipment that can provide local high clean environment. It is a simple clean room for the fastest and most convenient establishment. The top FFU inhales the air, and the clean air filtered by the filter presents a vertical unidirectional flow on the entire air outlet surface, thus ensuring the required cleanliness in the working area.

Available Types

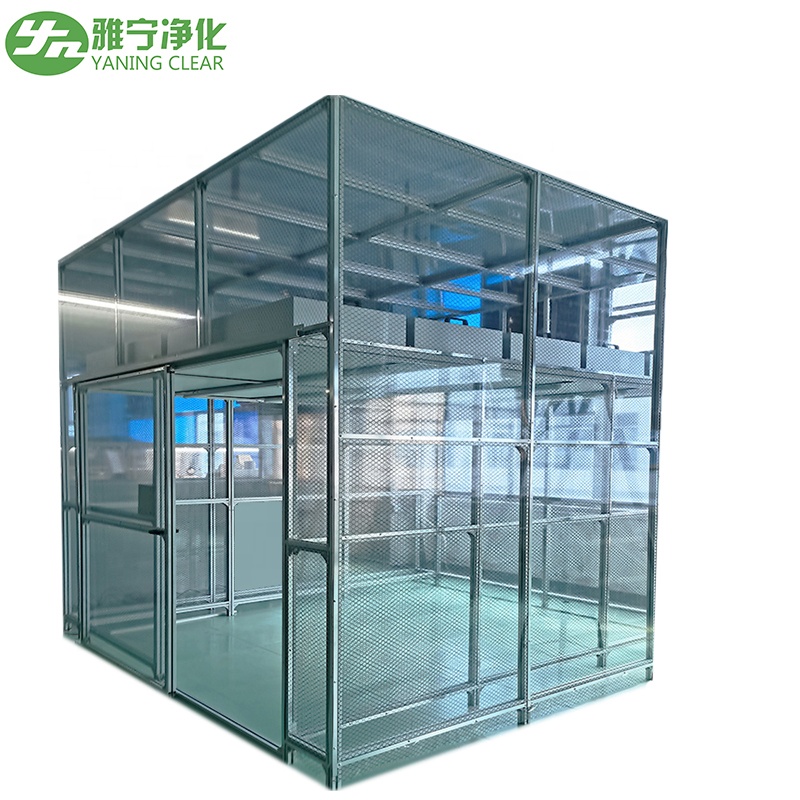

Hardwall Cleanroom

Hardwall cleanrooms have a strong support frame and panels. They are made from rigid materials, such as stainless steel, welded steel, acrylic, tempered glass, PVC, etc.
More permanent than soft wall clean rooms.
Offer excellent environmental and contamination control.
Often made with modular construction which is more efficient assembly and disassembly.

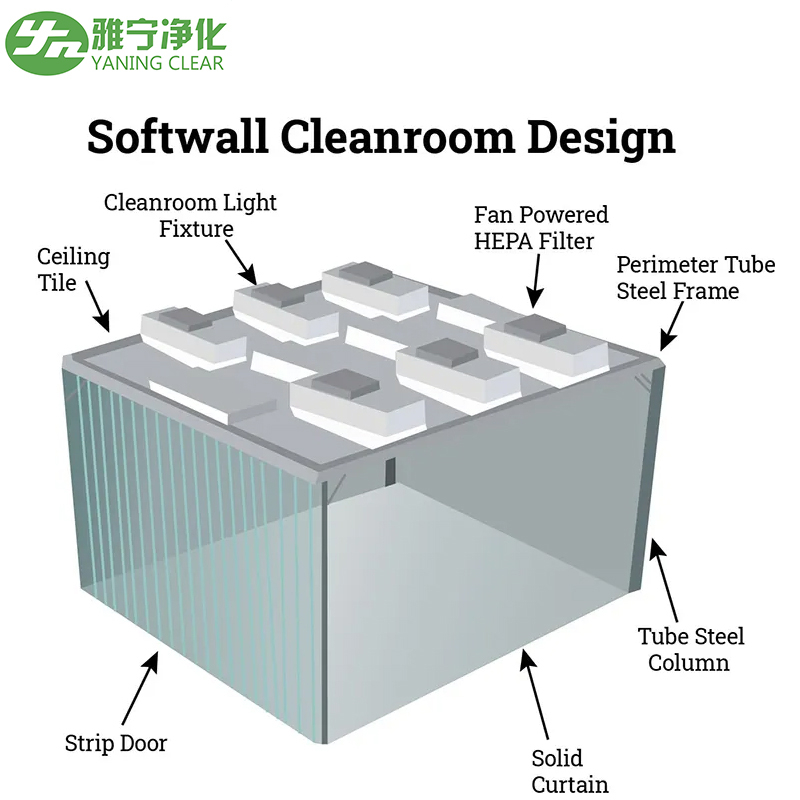

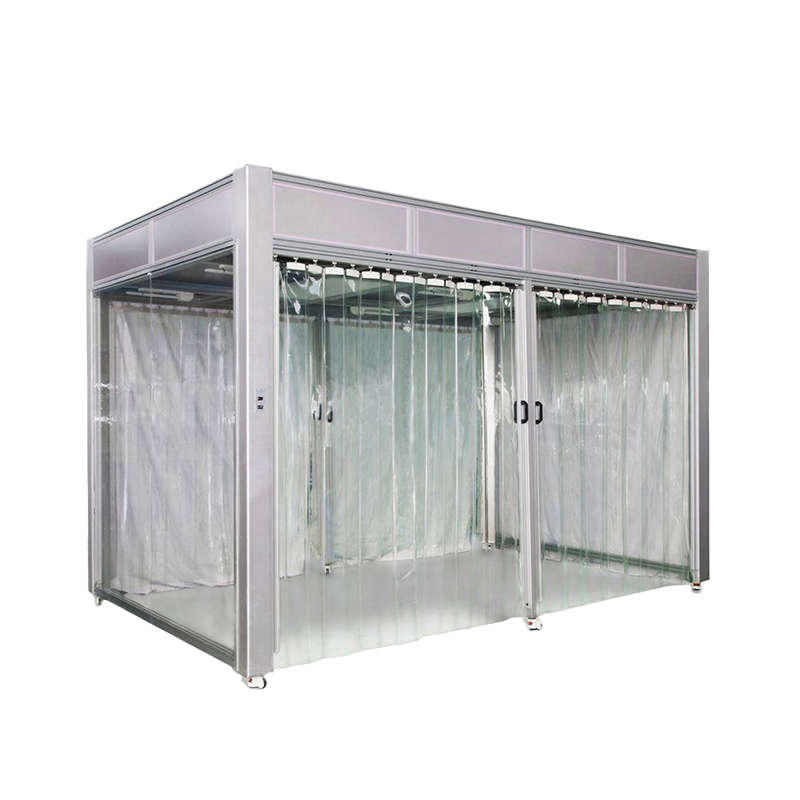

Softwall Cleanroom

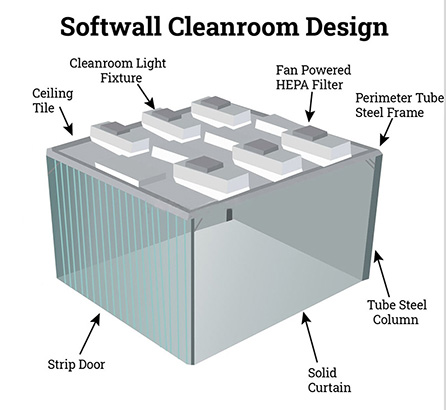

A softwall cleanroom is a confined controlled space with a metal frame, clear panel walls, an entrance, high efficiency particulate air (HEPA) filters, and exceptional lighting designed to provide a contaminant and particulate matter free workspace.
Softwall cleanrooms are cleanrooms with fabric walls. These fabric walls may either be made from free-hanging plastic strips or fabric stretched tightly over a frame.
Highly portable, and may be designed modularly for more efficient assembly and disassembly.

Product Specifications

Model Item		YN-CS1500	YN-CS200	YN-CS3000	YN-CS5000
Size (mm)		150020002400	200030002400	300040002400	500050002400
Material	Framework	Cold rolled steel / Aluminum / Stainless steel
Material	Around	Plexiglass, Soft curtain, Anti-static strip curtain
Clean class level		100	1000	10000	100000
HEPA Filter	Size (mm)	61061069	122061069	122061069	122061069
	Efficiency %	99.99	99.99	99.99	99.99
	Air flow (m³/h)	4000	5040	7560	12000
Pre filter		Optional
Motor Spec	Power supply	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ
Motor Spec	Noise (dB)	62	63	62	63

Product Details

Technical Architecture

Frameworks: Epoxy powder coated steel / Stainless steel square pipe / Extruded aluminum
Wall material: Anti-static strip curtain / Anti-static grid curtain / Sliding door
Ceiling material: Stainless steel / Cold-rolled steel with powder coated / Anti-static grid curtain / Anti-static acrylic board
Clean class: ISO5 / ISO6 / ISO7

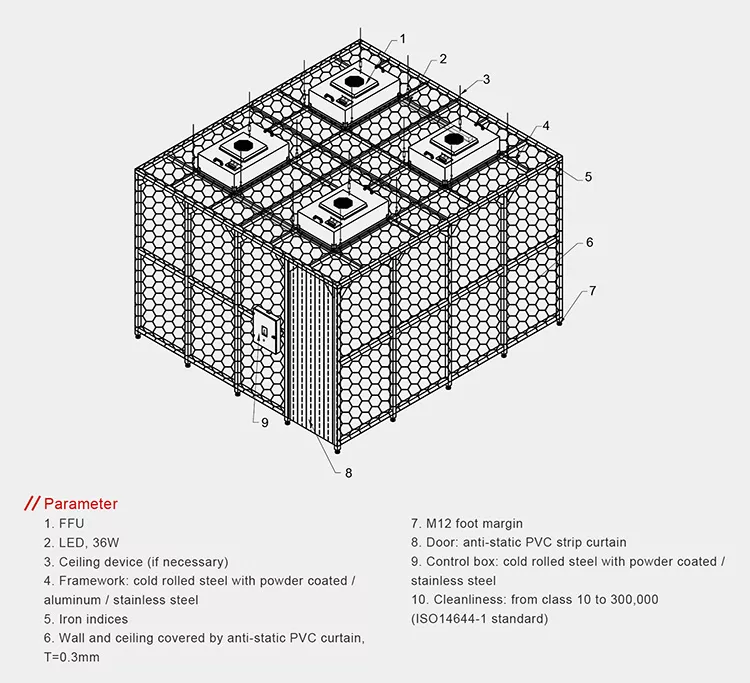

System Parameters

1. FFU
2. LED, 36W
3. Ceiling device (if necessary)
4. Framework: cold rolled steel with powder coated / aluminum / stainless steel
5. Iron indices

6. Wall and ceiling covered by anti-static PVC curtain (T=0.3mm)
7. M12 foot margin
8. Door: anti-static PVC strip curtain
9. Control box: cold rolled steel with powder coated / stainless steel
10. Cleanliness: from class 10 to 300,000 (ISO 14644 standard)

Component Details

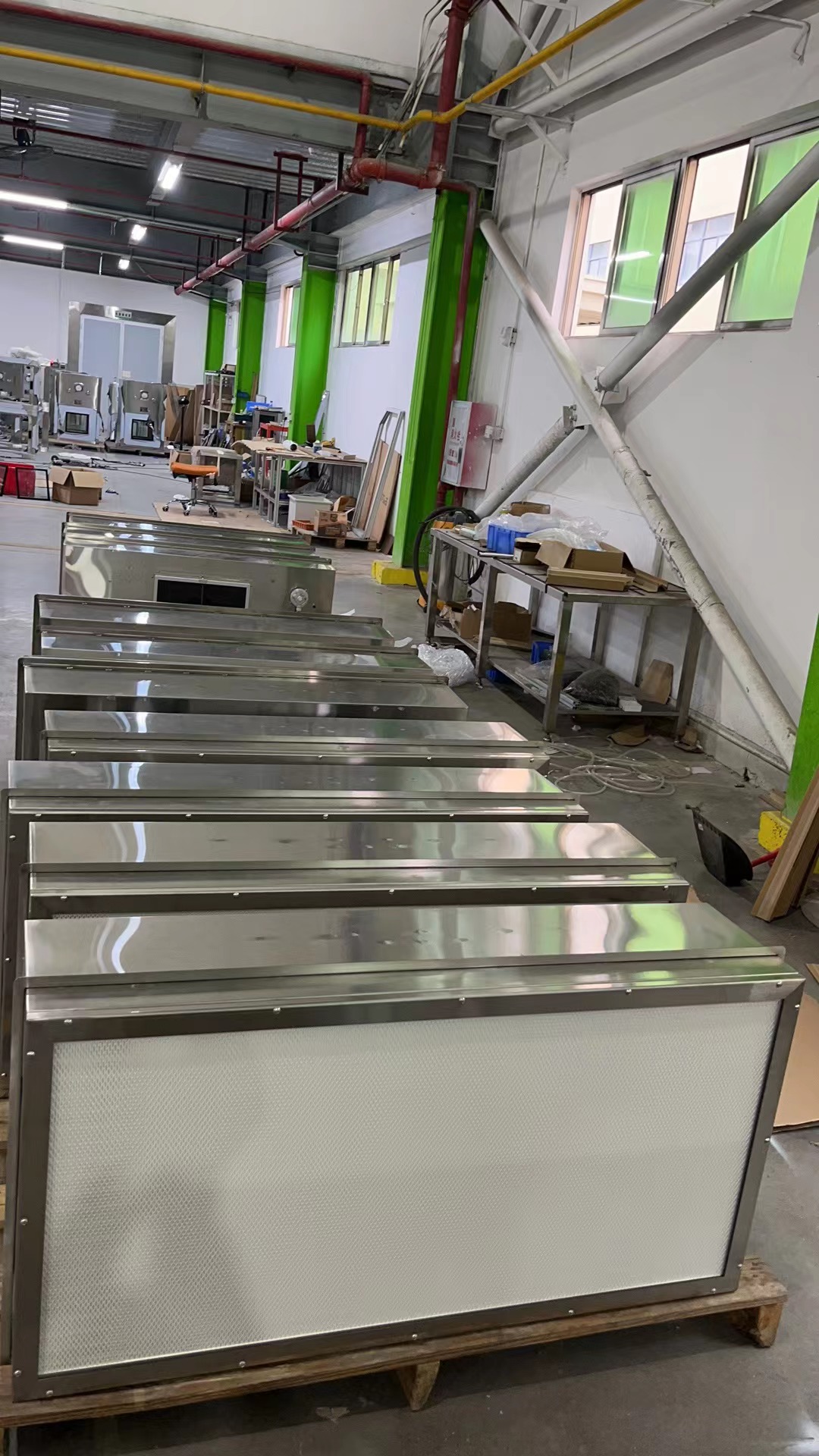

304 stainless steel FFU

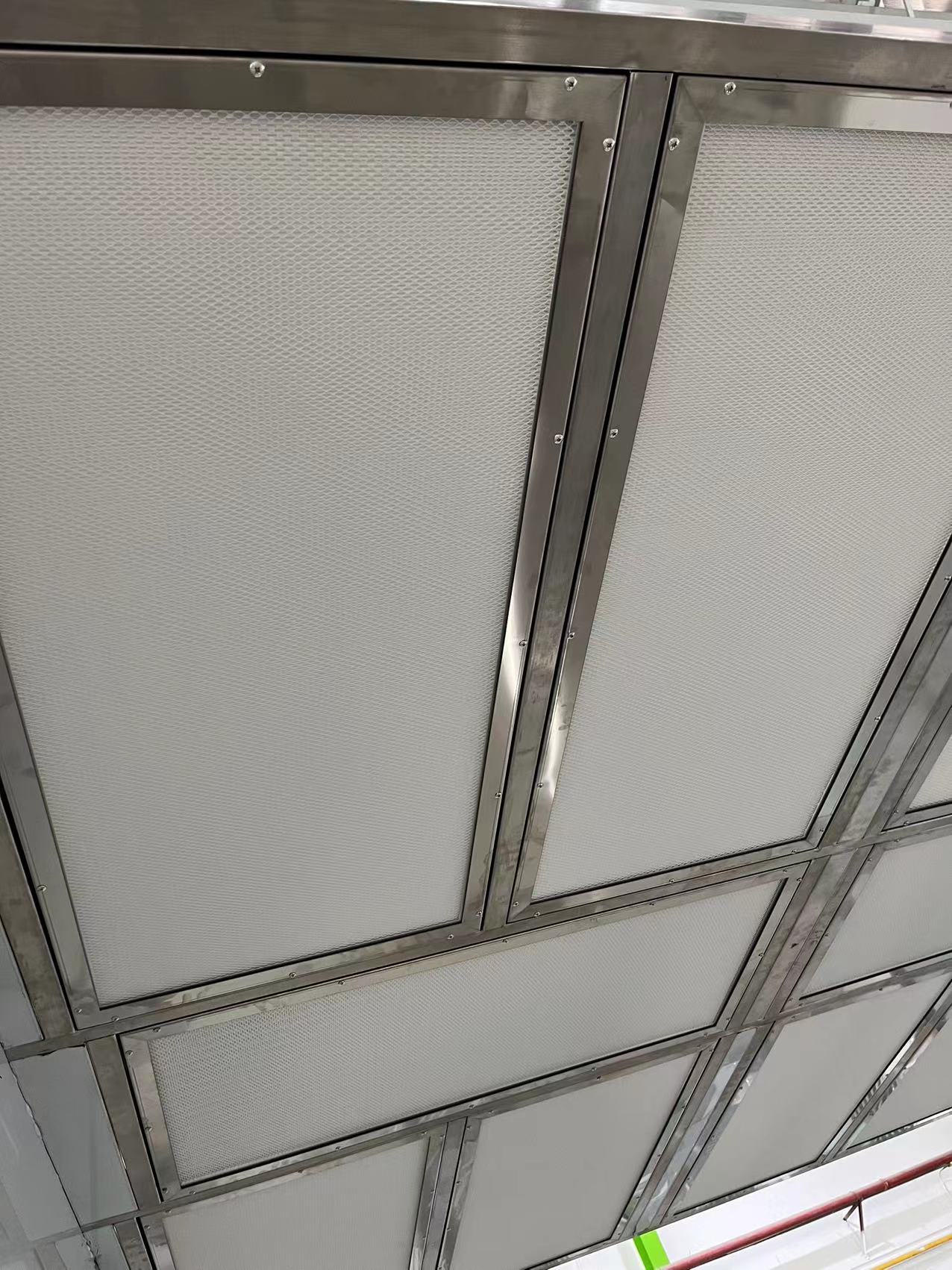

Top FFU keel mounting

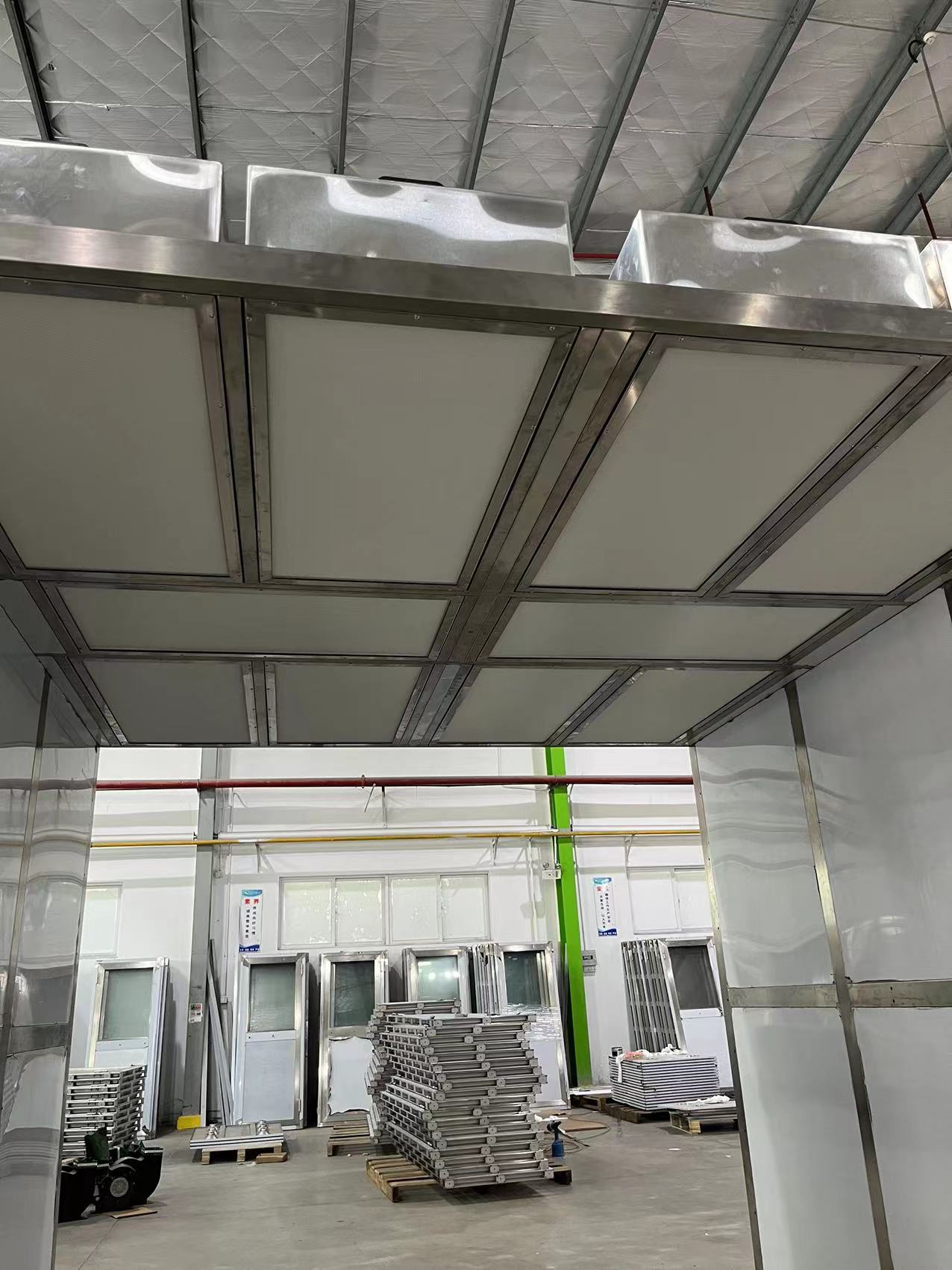

The top FFU inhales the air

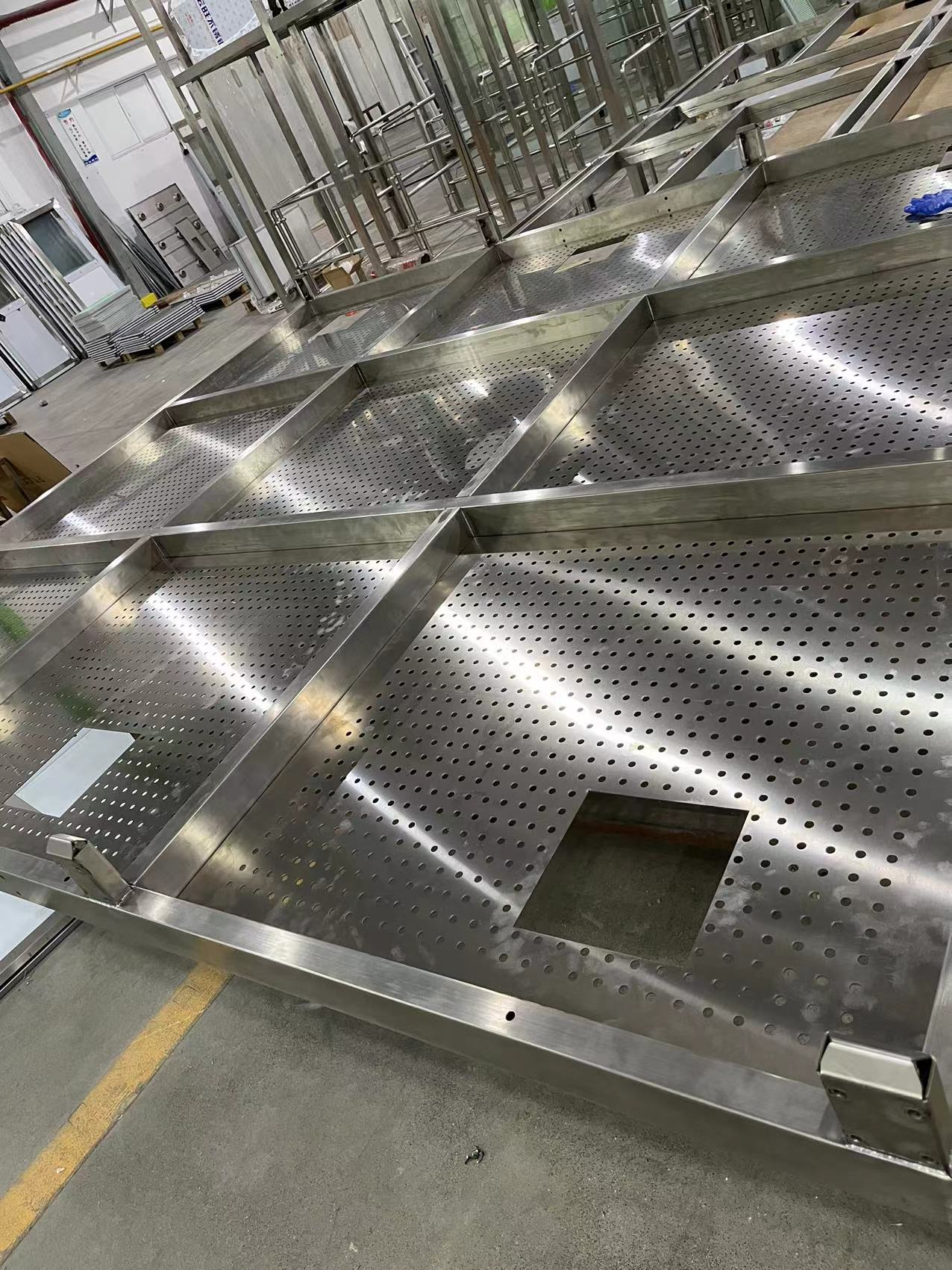

Clean shed bottom plate

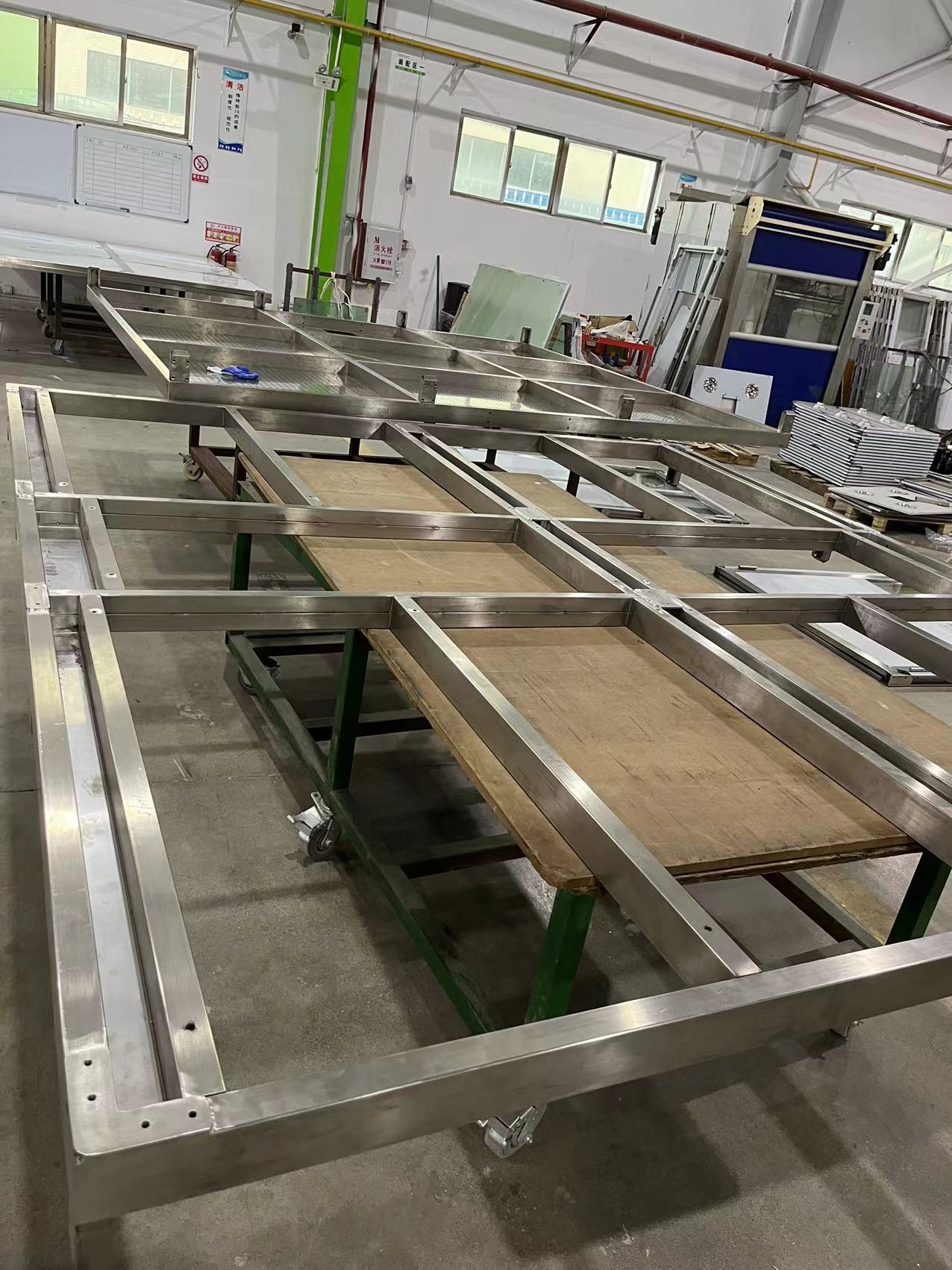

Or with stainless steel 304 frame

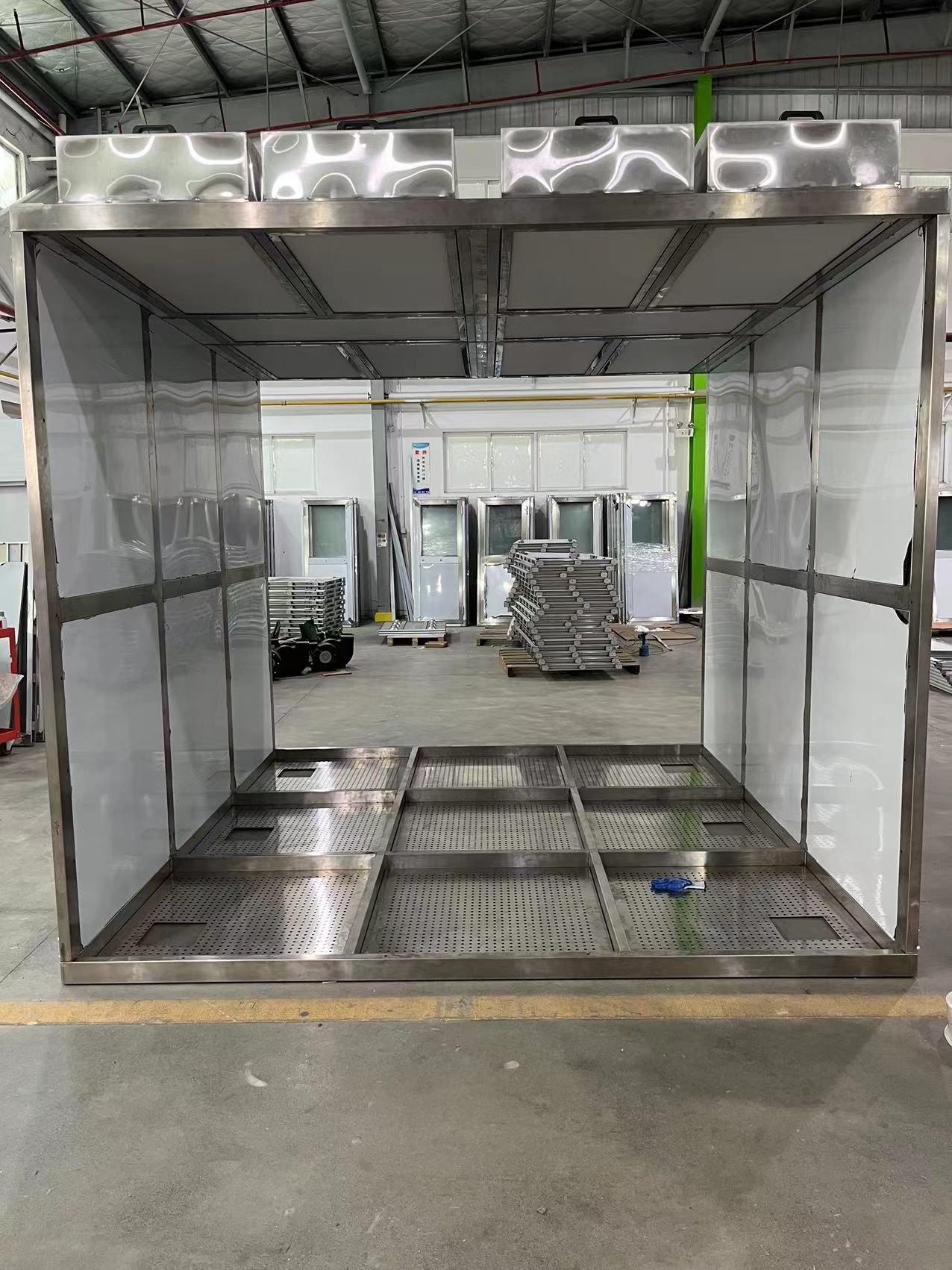

complete installation

Advantages

Clean booth, also known as clean shed or clean workstation. It is quick and easy to create as a simple clean room. Internal clean class can reach up to 100 - 100,000 level. In order to reduce the cost of the structure, the traditional design concept is changed by using a mini-clean unit integrated design.

Clean booth has a variety of independent clean areas; it uses an independent air-conditioning and return air system. The advantage of this design is its flexibility, ease of spacing, and low construction costs. Clean booth can separate people and equipment or products effectively, minimizing human interference and pollution, thereby enhancing the rate of qualified products.

💎Economy

Compared to the traditional civil style clean room, the cost is greatly reduced.

⚡Efficiency

Supplies clean vertical airflow, maintaining the clean class level of the indoor space.

🛠️Convenience

A standard 10' x 10' clean booth just takes a few hours to install, and is easy to disassemble.

🔄Flexibility

Bracket type can increase the number of FFU in order to raise the clean class level from ten thousand up to one hundred.

⚙️Advanced Configuration

Uses independent HEPA filters or ULPA filters. FFU blower consists of an advanced clean room system.

Key Benefits & Specifications

⭐Benefits:

Sturdy structure, beautiful and durable, no rust, no dust.
Simple clean room with the lowest cost and quick construction.
Can be customized to meet the needs of the site space and usage.
UV sterilization lamp can be installed.

🔧Config & Applications:

Frame: Aluminum profile / Stainless Steel
Curtains: 40mm Thick Clear Vinyl / Static Dissipative Material / Easy-to-use Dual Lock Attachment / Strip Doors for Convenient Access
Filters and Lights: Motorized Ceiling H14 HEPA Filter Units / Variable Speed Control / Class 100,000 to Class 10 (ISO 8 to ISO 4) / LED Flat Panel Lights / Available Flow-thru lights Recommended
Applications / Industries: Microelectronics / Pharmaceutical / Research and Development / Semiconductor Manufacturing

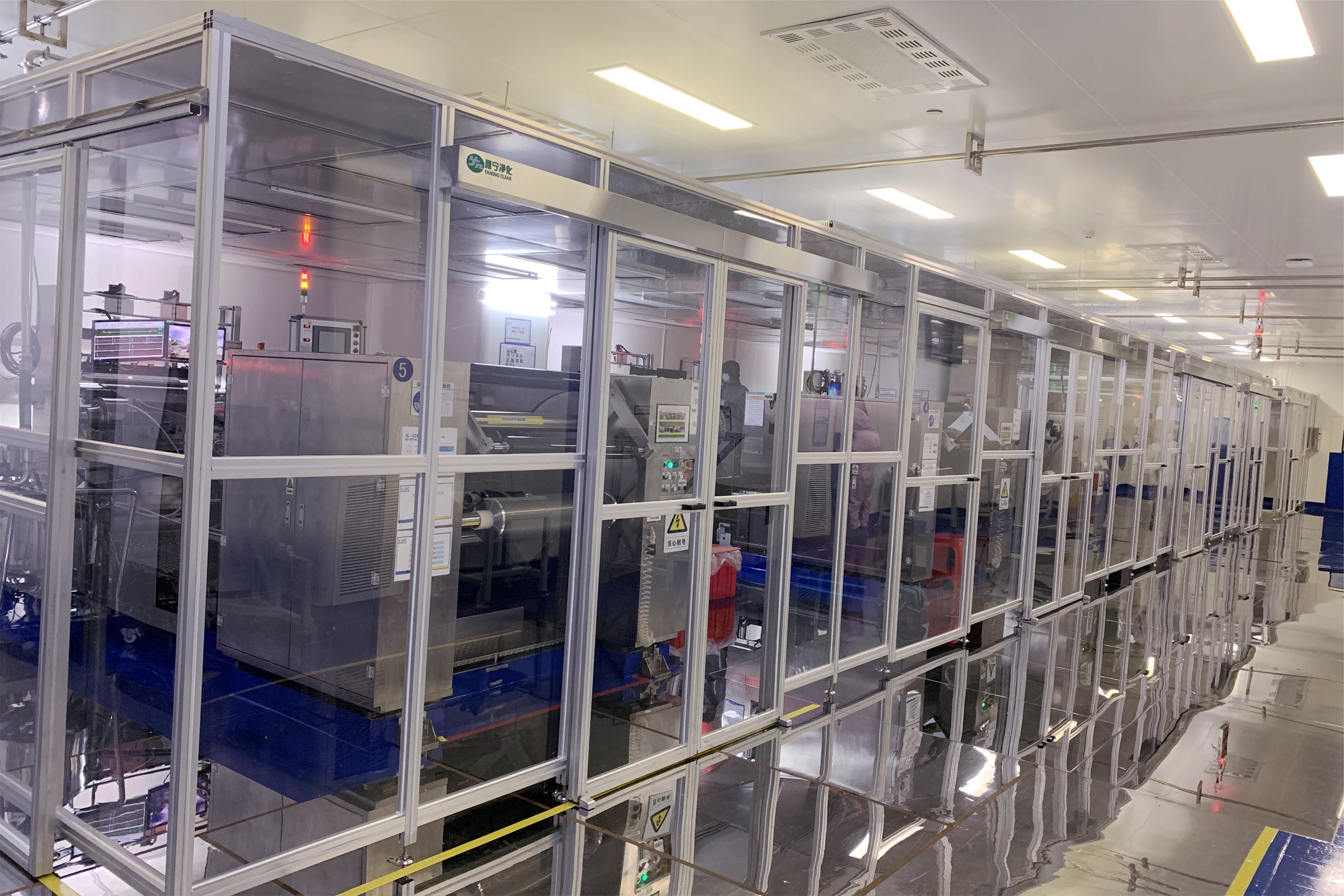

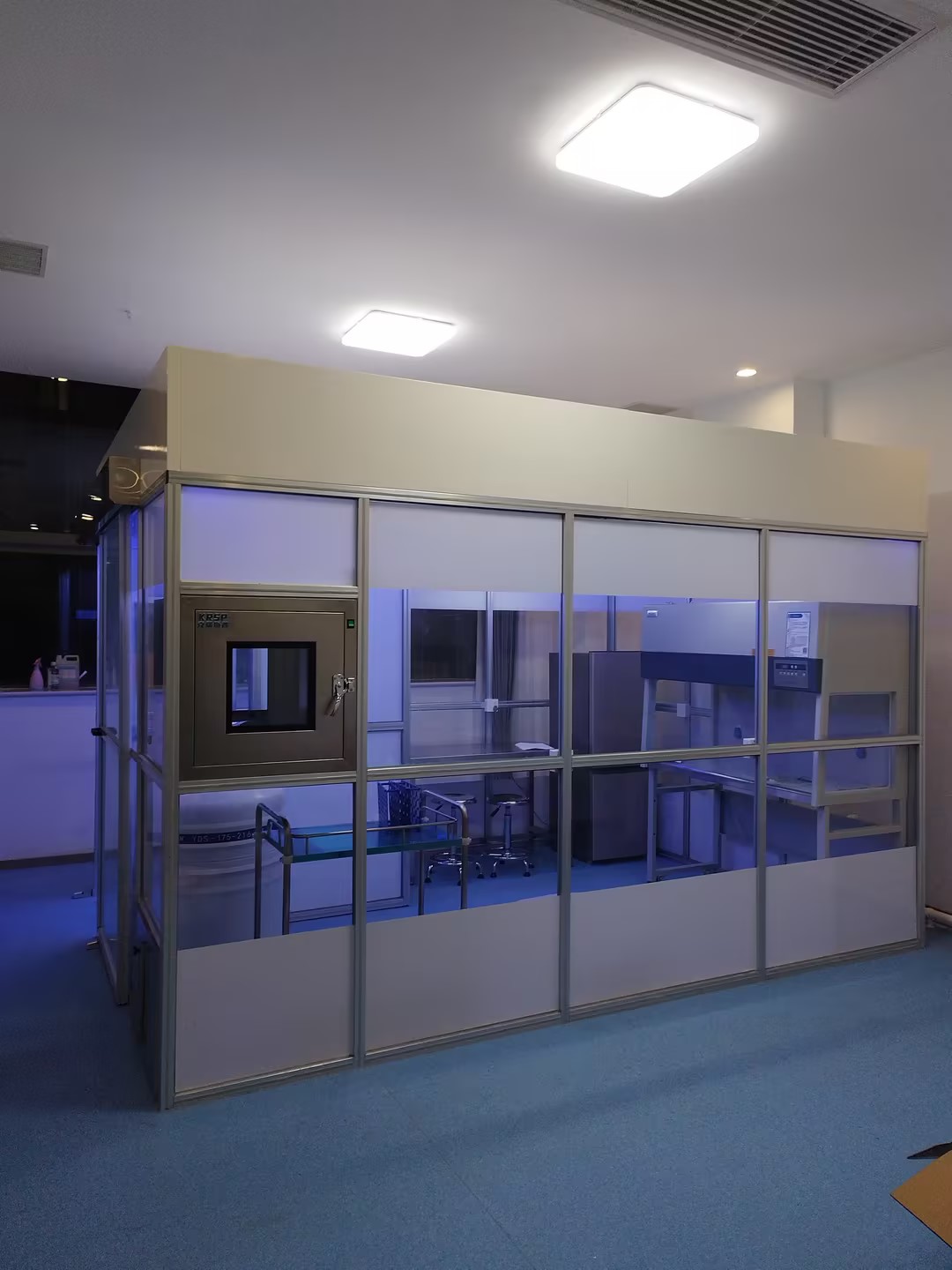

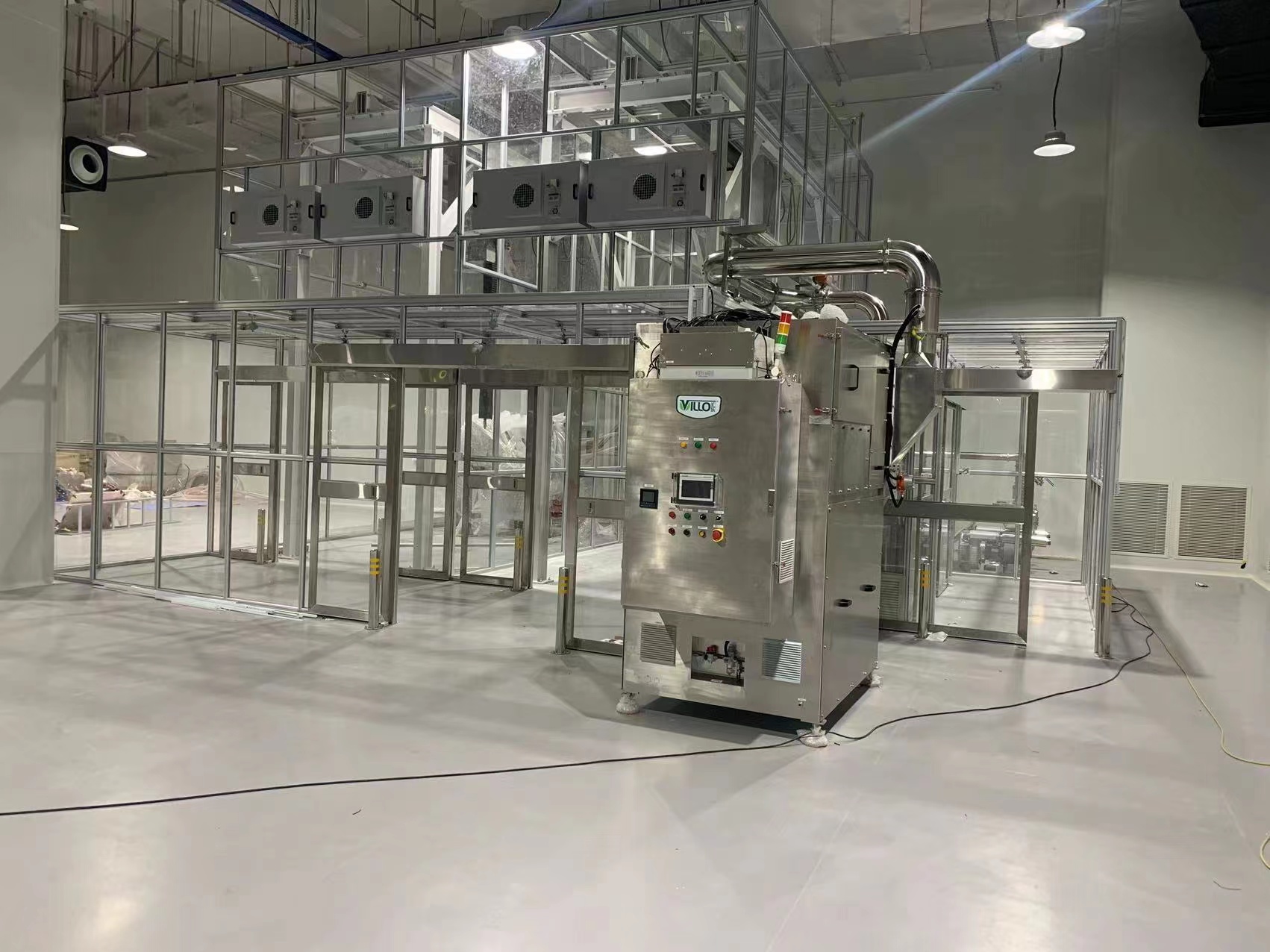

Success Cases

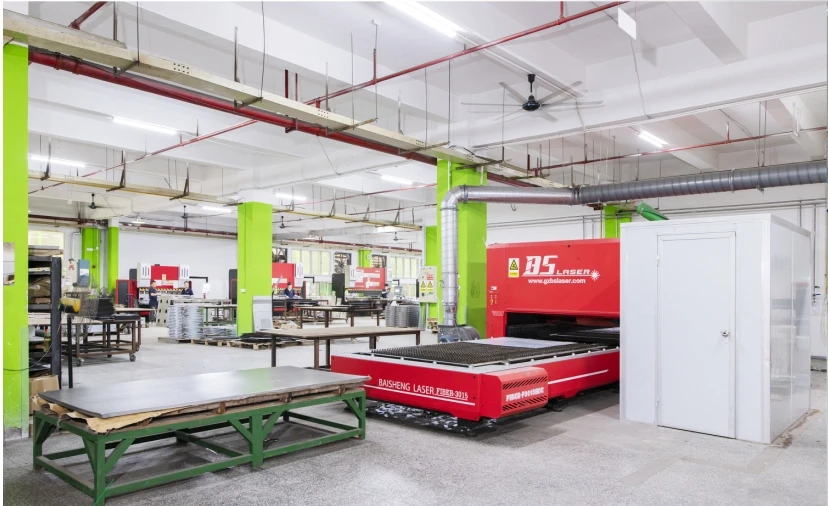

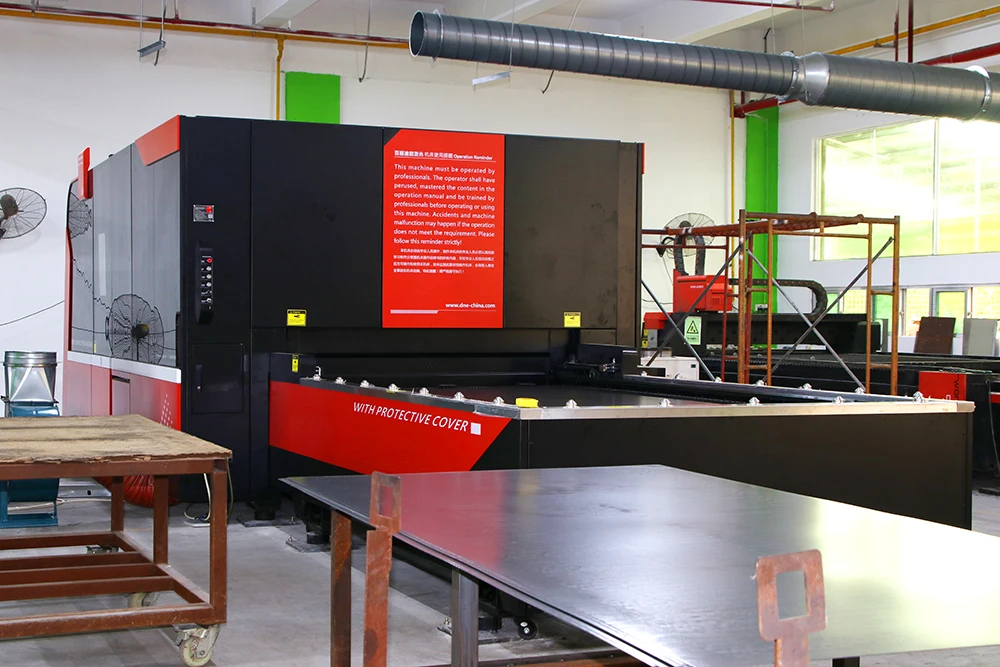

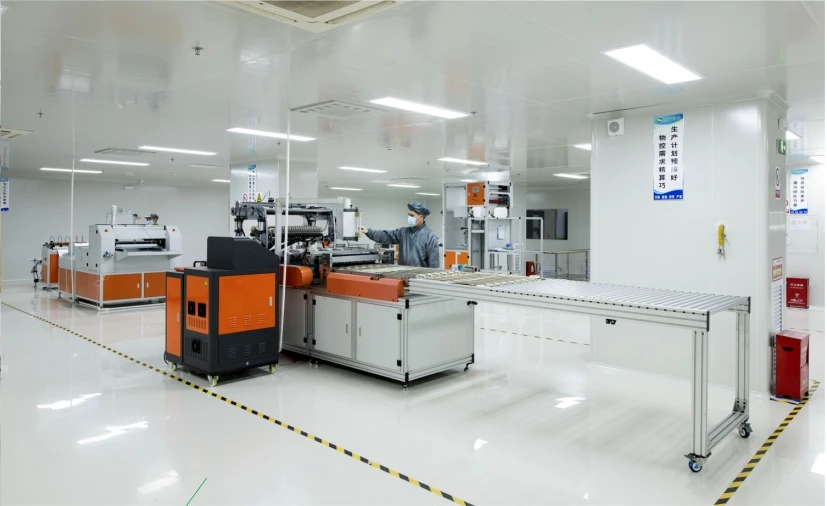

Factory Gallery

Packaging & Delivery

📦Packaging Details

The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.

🚢Shipping Details

Samples are shipped by international express methods such as DHL, FedEx, and UPS. Mass production orders are shipped by Air or Sea.

Industry Exhibitions

Frequently Asked Questions

Q1: What is a Clean Booth?

A clean booth is a kind of air purification equipment that can provide a local high-clean environment. It is the fastest and most convenient simple clean room to establish, utilizing top FFU filters to output vertical unidirectional clean air to ensure the cleanliness of the workspace.

Q2: What clean equipment or items are available?

Available products include Air Shower, Cargo Air Shower, PVC Fast Rolling Shutter Door, HEPA Box, FFU, BFU, Pass Box, Clean Bench, Clean Booth, Operating Room equipment, Medical Cabinets, Laminar Flow Ceiling, Medical Scrub Sink, and Air Filters.

Q3: How long is the standard delivery time?

Normally it takes 10-15 days for a small bulk order after receiving payment and confirming specifications. Delivery times may vary depending on the specific equipment requirements and total bulk production quantity.

Q4: What are the standard payment terms?

We require a 50% deposit after PI confirmation, and the remaining 50% balance must be paid before shipment. For orders below $5000, 100% advance payment is required.

Q5: Are product samples provided?

Yes, samples can be provided. The customer covers the sample fee and shipping cost. The sample fee can be refunded after an official bulk order is placed for the same models.

Q6: What materials can be chosen for the framework of the clean booth?

The framework supports multiple configurations including epoxy powder coated steel, stainless steel square pipe, and extruded aluminum depending on requirements.
