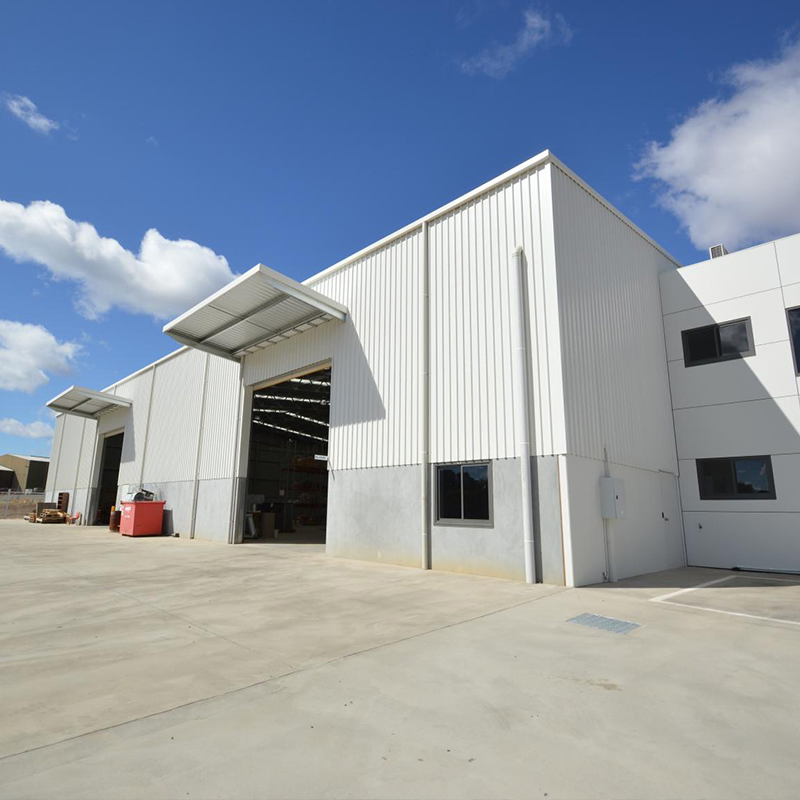

Cheap Low Cost Sandwich Panel Steel Prefab Prefabricated Modular Steel Building Kit for Worker Camp Dormitory

Customization: Available
Connection Form: Bolt Connection
Certificate: ISO

Product Description

Basic Specifications
Model NO.
3051
Product Name
China Supplier Custom Made Prefab Steel Industrial
Material
Light Steel Frame
Column and Beam
Hot Rolled or Welded H Section, I Section
Surface Processing
Painted or Galvanized
Steel Grade
Q235B, Q345b
Roof & Wall Panel
PU, EPS, Rock Wool/Fiber Glass Sandwich Panel
Window and Door
PVC or Aluminum Alloy; Sliding Door or Roll up Door
Service Life
More Than 50 Years
Drawing
Design The Drawing as Your Demand
Installation
Engineer Helps to Instruct Installation
Additional
Overhead Crane, Mezzanine Floor, Ventilation
Purlin
C or Z Type Section
Skylight
Transparent Sheet
Foundation
Cement Foundation
Type
H-Section Steel
Standard
GB, ASTM, JIS
Trademark
Carbon Structural Steel, ridge
Forming
Hot-Rolled Steel
Member
Steel Column
Type of Steel
H-Section Steel
Carbon Structural Steel
Q235
Wall Structure
Wallboard
Application
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge
After-sales Service
24
Warranty
24
Transport Package
Bulk
Specification
Customized
Origin
China
HS Code
7308900000
Production Capacity
5000 Ton Per Month
Key Advantages
Cheap Low Cost Sandwich Panel Steel Prefab Prefabricated Modular Steel Building Kit
1. Light weight, high strength, 50 years durable use, no construction waste.
2. Quality certification ISO: 9001: 2008
3. Cost considering: Time saved, cost saved;
4. Easy move, materials can be recycled used, environmentally;
5. Used widely, used as factory, warehouse, office building, aircraft hangar etc;
6. Structural durabilities, easy maintenance.

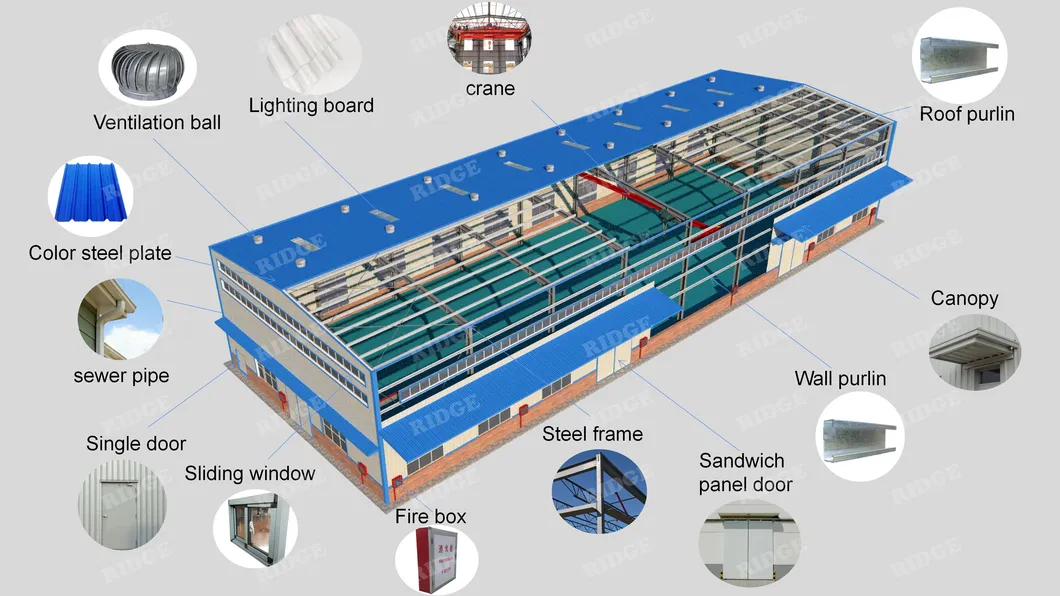

Cheap Low Cost Sandwich Panel Steel Prefab Prefabricated Modular Steel Building Kit
Detailed Specifications
Specifications
1) Size (m): Width * Length * Height;
2) Type: Single slope, double slope, Multi-slope;
Single span, double-span, Multi-span;
Single floor, double-floor, Multi-floor;
3) Base: Steel foundation bolts
4) Steel frame: Material Q345(S355JR)(Gr50) or Q235(S235JR) steel;
Straight cross-section or Variable cross-section;
Steel welded H section painted or galvanized.
5) Bracing: X-type or V-type or other type bracing made from angle, round bar, etc.
6) Wall & Roof Purlin: C section channel or Z section channel, Size from C80~C300; Z100~Z300;
7) Roof & wall cladding: Single color corrugated steel sheet 0.326~0.7mm thickness;
Sandwich panel with EPS, ROCK WOOL, GLASS WOOL, PU etc. insulation, thickness around 50mm 75mm 100mm 120mm 150mm 200mm;
Recommend coating PVDF SMP HDP PE
8) Window: UPVC/PVC or Aluminum Alloy window frame with glass.
9) Door: Exterior door: Sliding or Roller shutter door.
Internal door: 50mm thickness EPS sandwich panel with an aluminum alloy door frame.
10) Gutter material: Color steel sheet or galvanized steel or stainless steel;
11) Rainspout: PVC pipe
12) Connection: High strength bolts, intensive bolt, self-drilling screws.
13) Accessories: Skylight panel, Ventilation, Fasteners etc.
14) Surface process: Shot blasting Sa2.5; Two layers of Anti-rust Painting or galvanized
15) Packing: Main steel frame without packing load in 40' GP, roof and wall panel load in 40' HQ
Cheap Low Cost Sandwich Panel Steel Prefab Prefabricated Modular Steel Building Kit

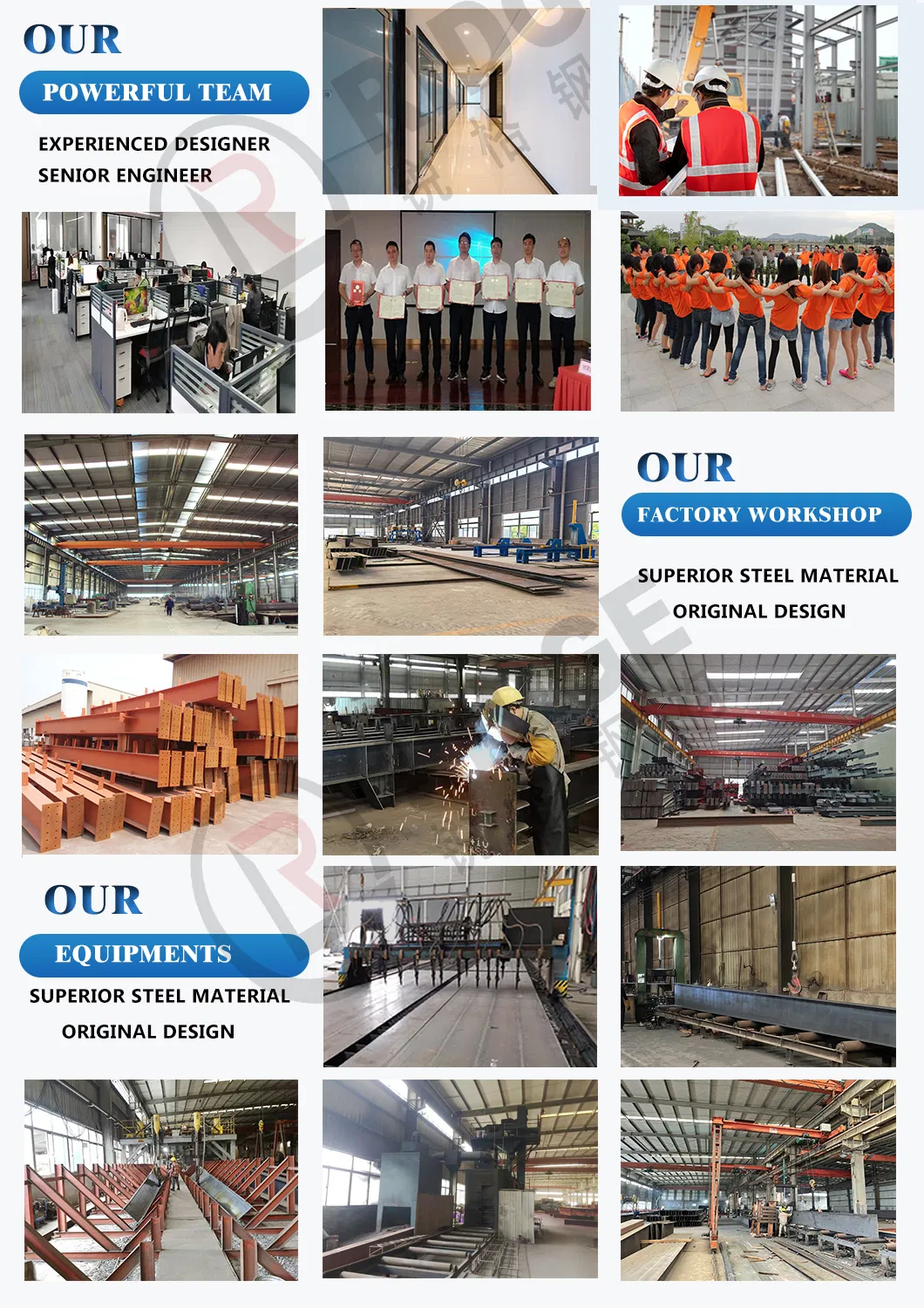

Manufacturing Capacity

Established in 1998, we are a professional manufacturer of steel structure with 15 years of exporting experience. Finished 1,820 projects totaling 7,600,000 square meters. We have 2 modern factories with a total area of 21,000 m² and a 60,000 tons annual produced capacity. We will make our full effort to supply you with the best products and the best service, and hope to set up a long-term business relationship with you!

Prefabricated Steel Construction
Modular Steel Building System
Industrial Steel Workshop
For Steel Structure Cost Estimations, Please Provide:
  • Dimension: Length, width, height, eave height, roof pitch, etc.
  • Doors and windows: Dimension, quantity, position.
  • Local climate: Wind speed, snow load, seismic magnitude etc.
  • Insulation material: Panel type, sandwich materials, sandwich thickness.
  • Crane metal structures: If overhead crane is required, please tell the lifting height and lifting weight.
  • Import restrictions/materials that are not allowed to import to the target country.
  • Other requirements, such as fire proofing, insulated roof, etc.
  • It's better if you have your own drawings or pictures.
Item Popular Size Popular Height
Steel warehouse 30x50m 5m
Steel workshop 40x60m 7m
Storage shed 16x36m 4m

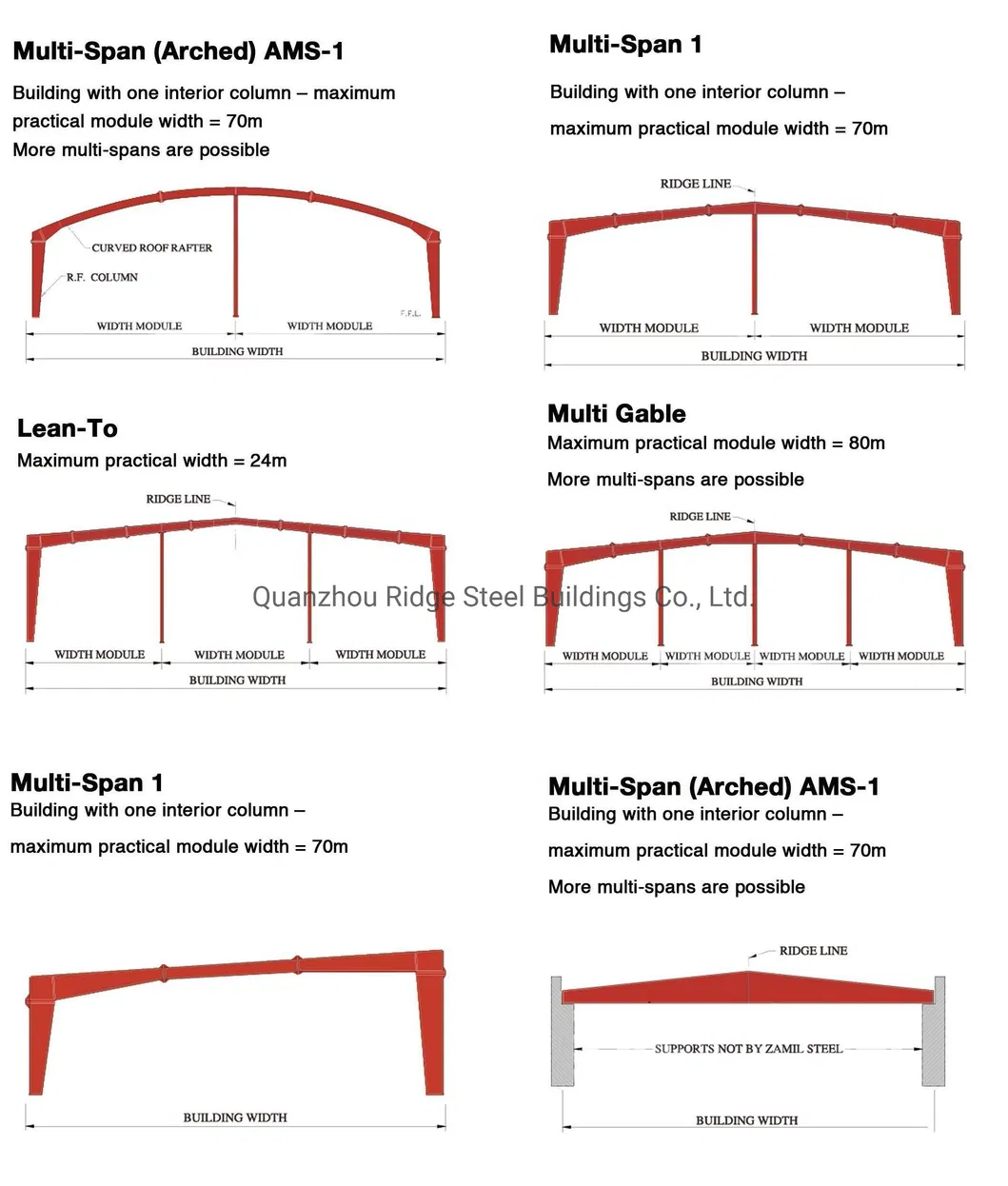

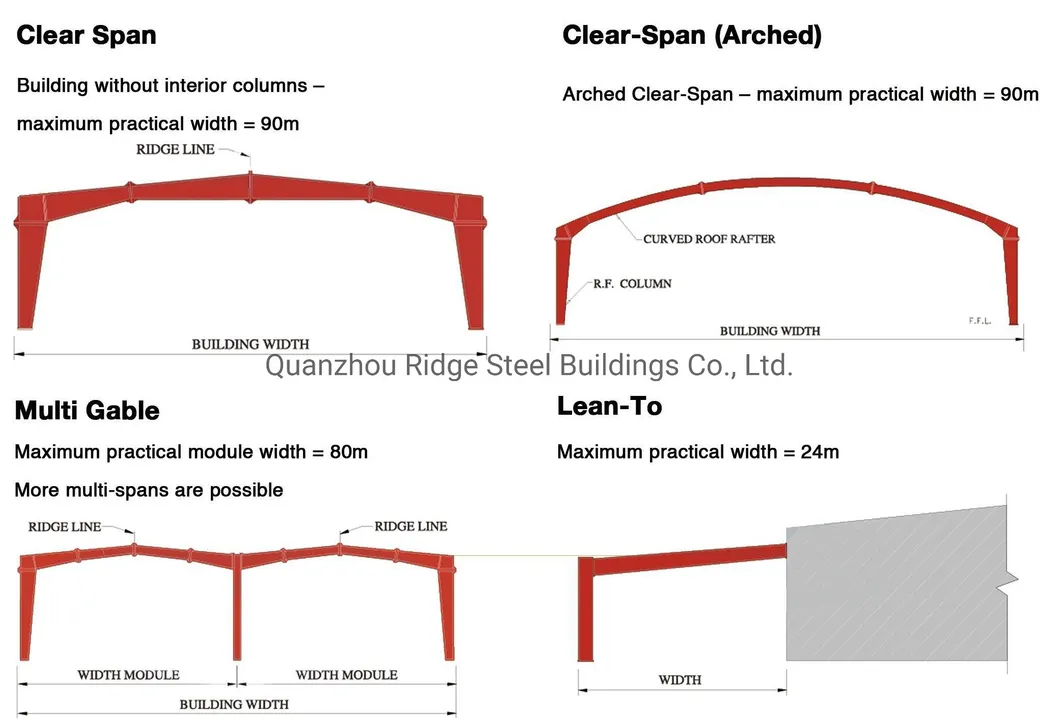

Pre-engineered Steel Buildings Frame Types
Frame Types
Frame Types Detailed
Frame Types Diagram
Frequently Asked Questions
Can I visit the factory before placing an order?
Welcome to visit our factory. We will pick you up at the nearest airport, and hotel booking services are available.
Is your price competitive compared with other companies?
Our business objectives are to give the best price with the same quality and the best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Do you accept container loading inspection?
You are welcome to send an inspector, not only for the container loading, but at any time during the production process.
Do you offer design services?
Yes, we can design full solution drawings to match your requirements. By using AutoCAD, PKPM, 3D3S, Tekla Structures (X steel) etc., we can design complex industrial buildings.
What is the delivery time?
Delivery time depends on order quantities. In general, the delivery time to the nearest seaport in China will be 30 days after receiving the deposit.
How can I get a quotation for my project?
You can reach out to us 24/7 and you will get a reply within 8 hours. Please send your project details and requirements first, and we will offer a custom design. If needed, the drawings will be revised until your final confirmation.
