Temporary Labour Camp Worker Accommodation Modular Prefabricated Steel Building

Customization:	Available
After-sales Service:	One-Stop Service
Connection Form:	Bolt Connection

Basic Info

Model NO. Customization

Construction Member Steel Column

Grade Carbon Structural Steel

Molding Method Cold Drawn Steel

Residential Wall Structure Wall Support

Standard GB

Steel Type H-Section Steel

Structure Frame Structure

Size Customized

Drawing CAD, Tekla, 3D Model, 3D3s, Pkpm

Purlin C or Z Type Section

Roof & Wall Panel PU, EPS, Rock Wool/Fiber Glass Sandwich Panel

Transport Package Standard Export Package or Customer's Requirement

Specification Square Meter

Packaging & Delivery

Package Size 50.00cm * 50.00cm * 50.00cm

Package Gross Weight 5.000kg

Product Description

Temporary Labour Camp Worker Accommodation Modular Prefabricated Steel Building

■ Light Steel Residential | Prefab Steel Workshop | Warehouse Steel Structure

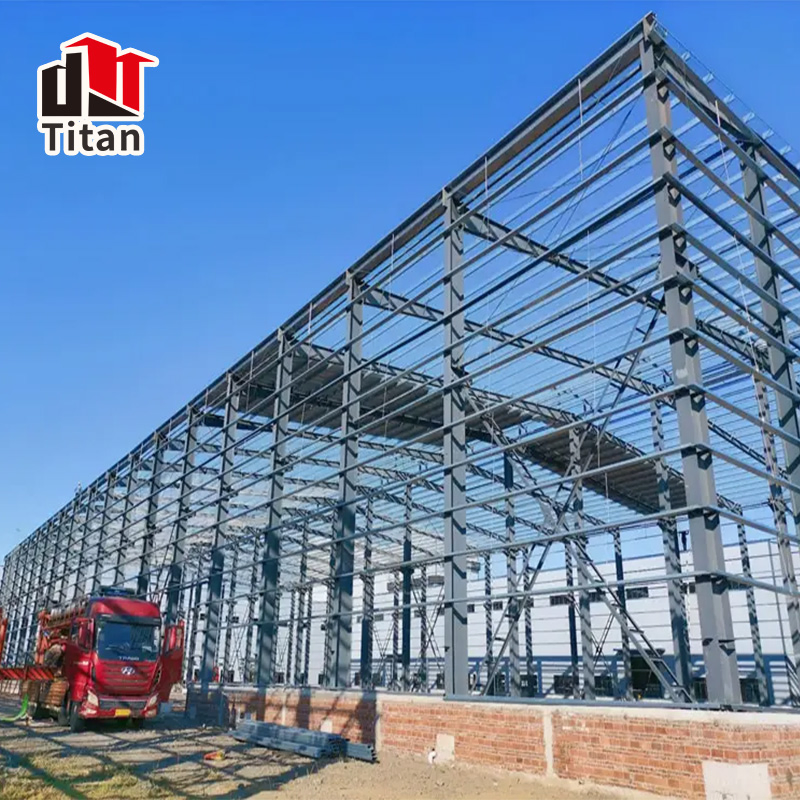

Steel structure building is formed by the main framework through linking up the H beam, C purline, Z purline steel components. Roof and wall using a variety of panels together with other components such as windows and doors. The steel building has the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.

Specification

Component Type	Material Details / Description
Main steel frame	H section steel beam and columns, painted or galvanized, galvanized C section or steel pipe
Secondary frame	Hot dip galvanized C purlin, steel bracing, tie bar, knee brace, edge cover etc.
Roof panel	EPS sandwich panel, glass fiber sandwich panel, rock wool sandwich panel, and PU sandwich panel or steel sheet
Wall panel	Sandwich Panel or Corrugated Steel Sheet
Tie Rod	Circular Steel Tube
Brace	Round Bar
Knee Brace	Angle Steel
Roof Gutter	Color Steel Sheet
Drawings & Quotation:
(1) Customized design is welcomed.
(2) In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather. We will quote for you promptly (7*24 hours service).

Advantages

1

Light weight, high strength, 50years durable use, no construction waste.

2

Quality certification ISO: 9001: 2008.

3

Cost considering: Time saved, cost saved.

4

Easy move, materials can be recycled used, environmentally.

5

Used widely, used as factory, warehouse, office building, aircraft hangar etc.

6

Structural durabilities, easy maintenance.

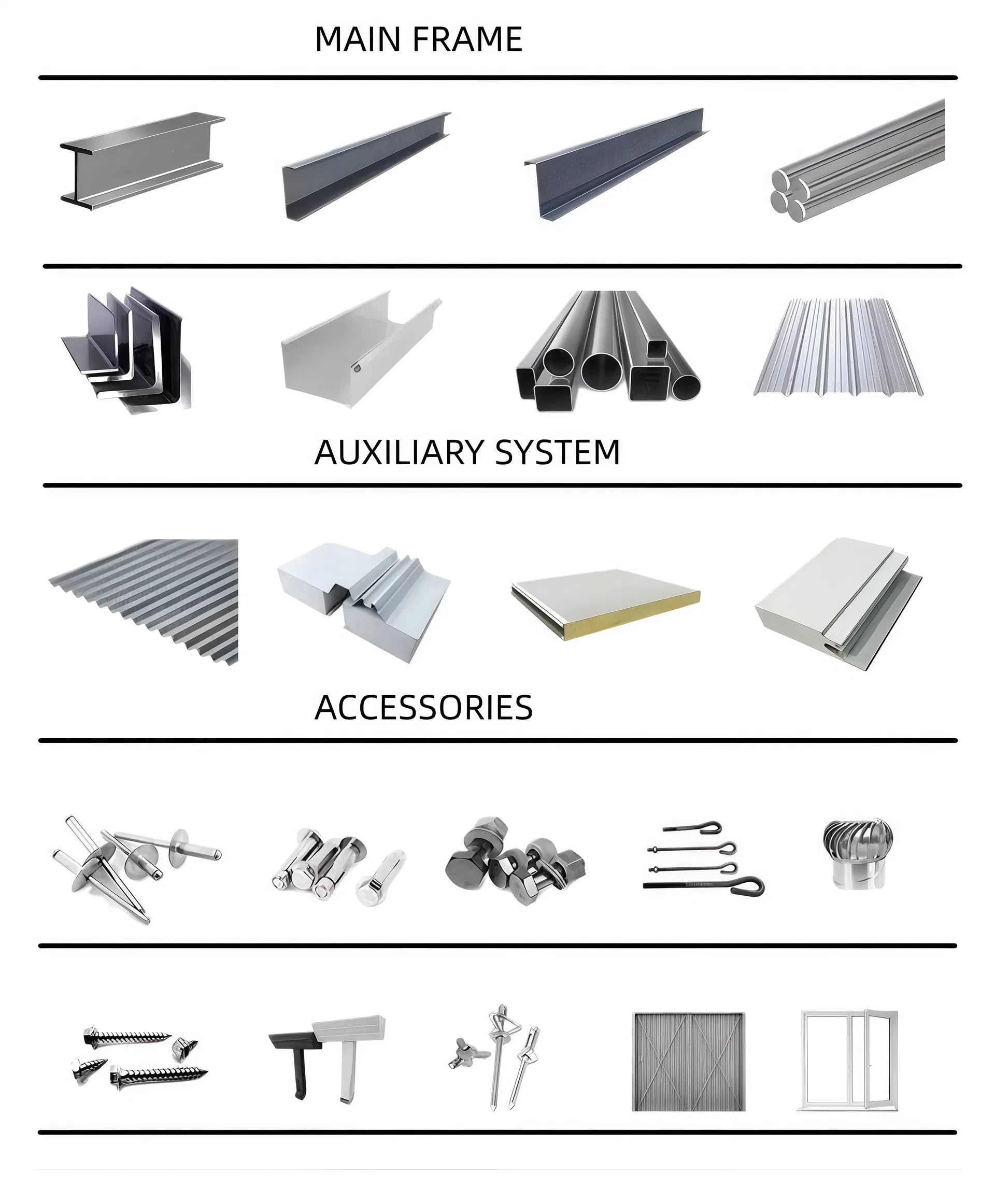

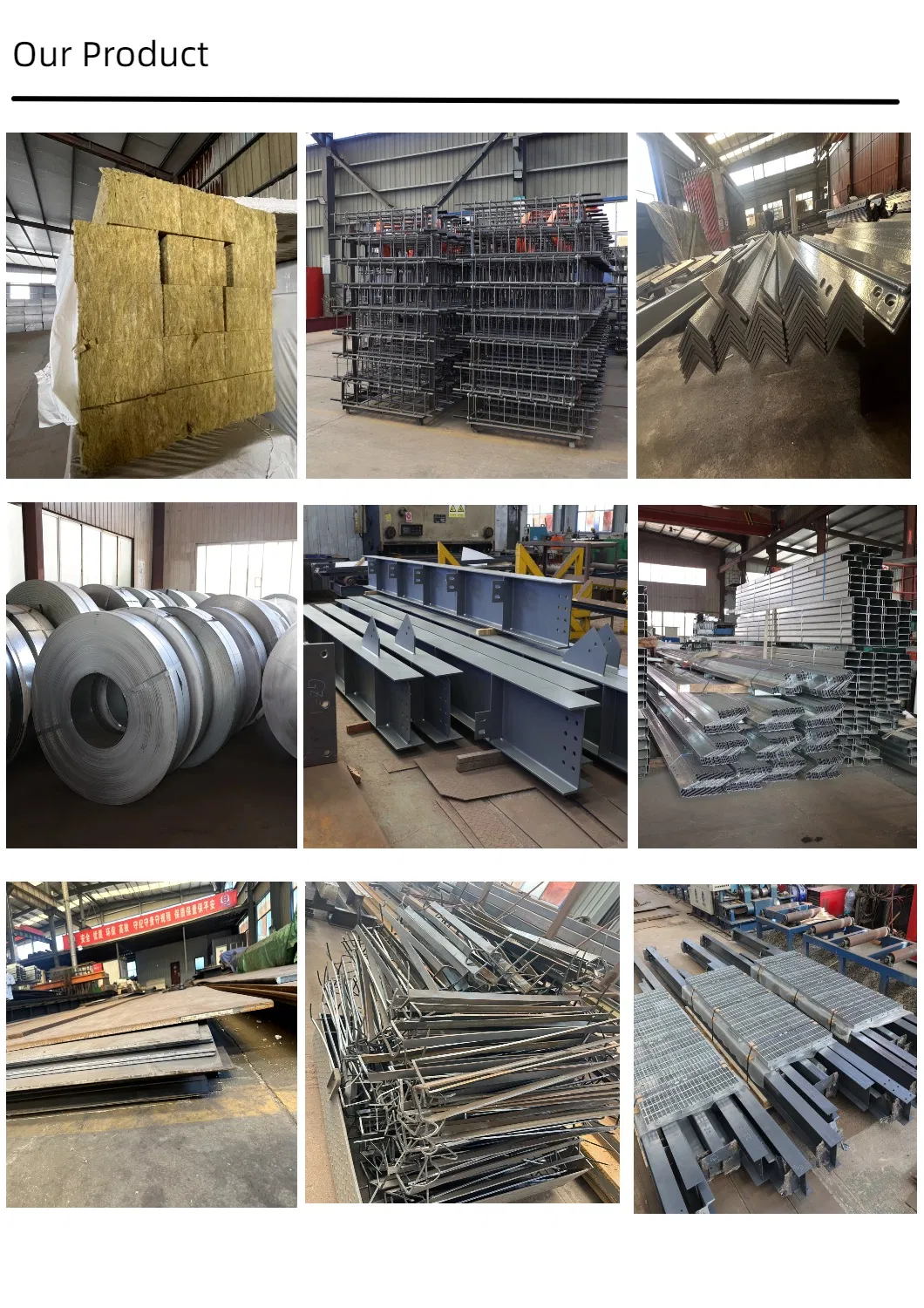

Components Show

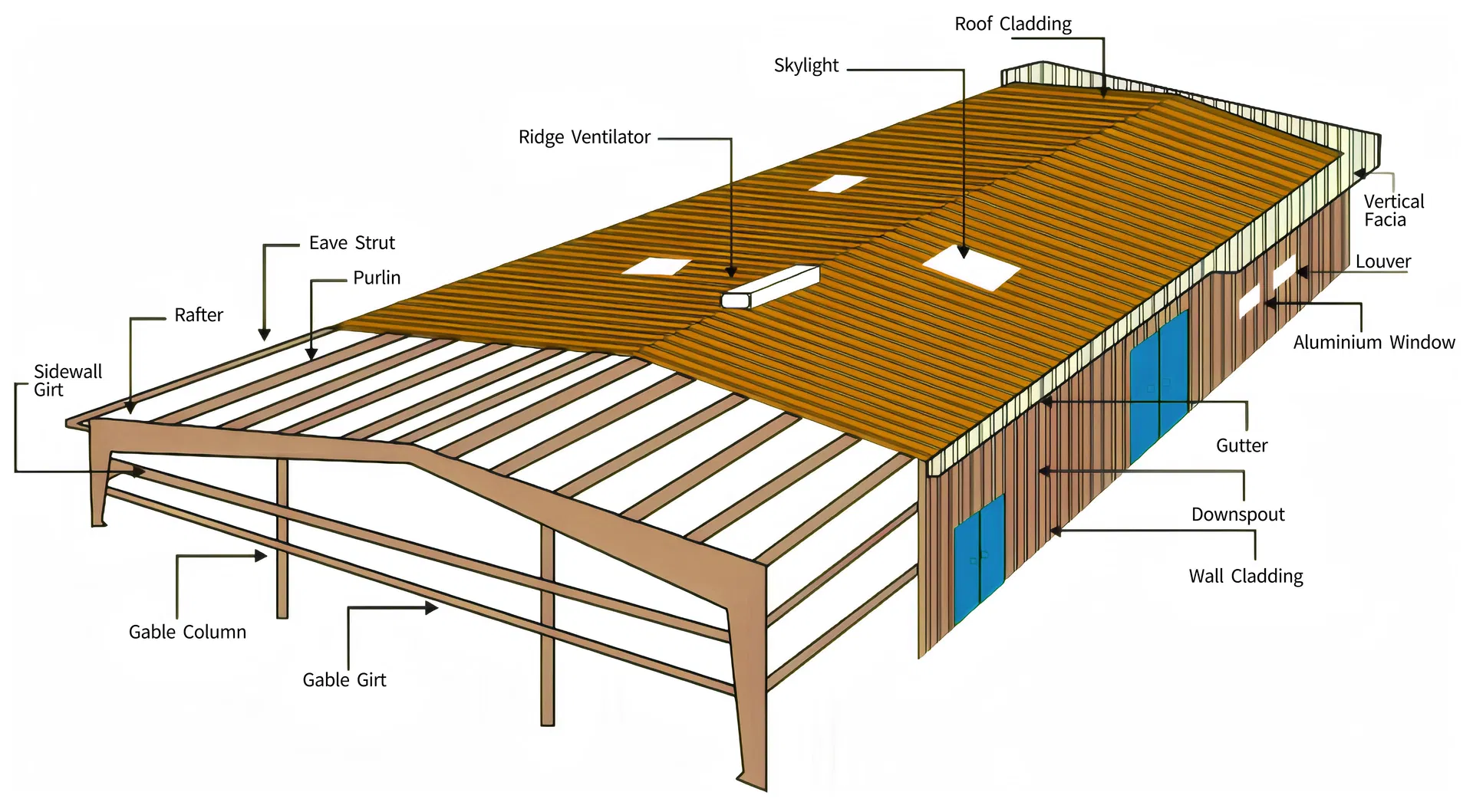

■ Steel Structure Building Component System

Steel structure building componet system: primary members H steel, secondary members, roof and wall sheeting (or sandwich panel) connected to each other and various other building components. These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, canopy, bridge crane if need, insulation etc., based on the customer's requirements. All the steel buildings are custom designed to be lighter in weight and high in strength. Thus steel building designs have become more flexible, durable and adaptable over the last four decades which has made steel one of the preferred materials for building construction.

Related Products

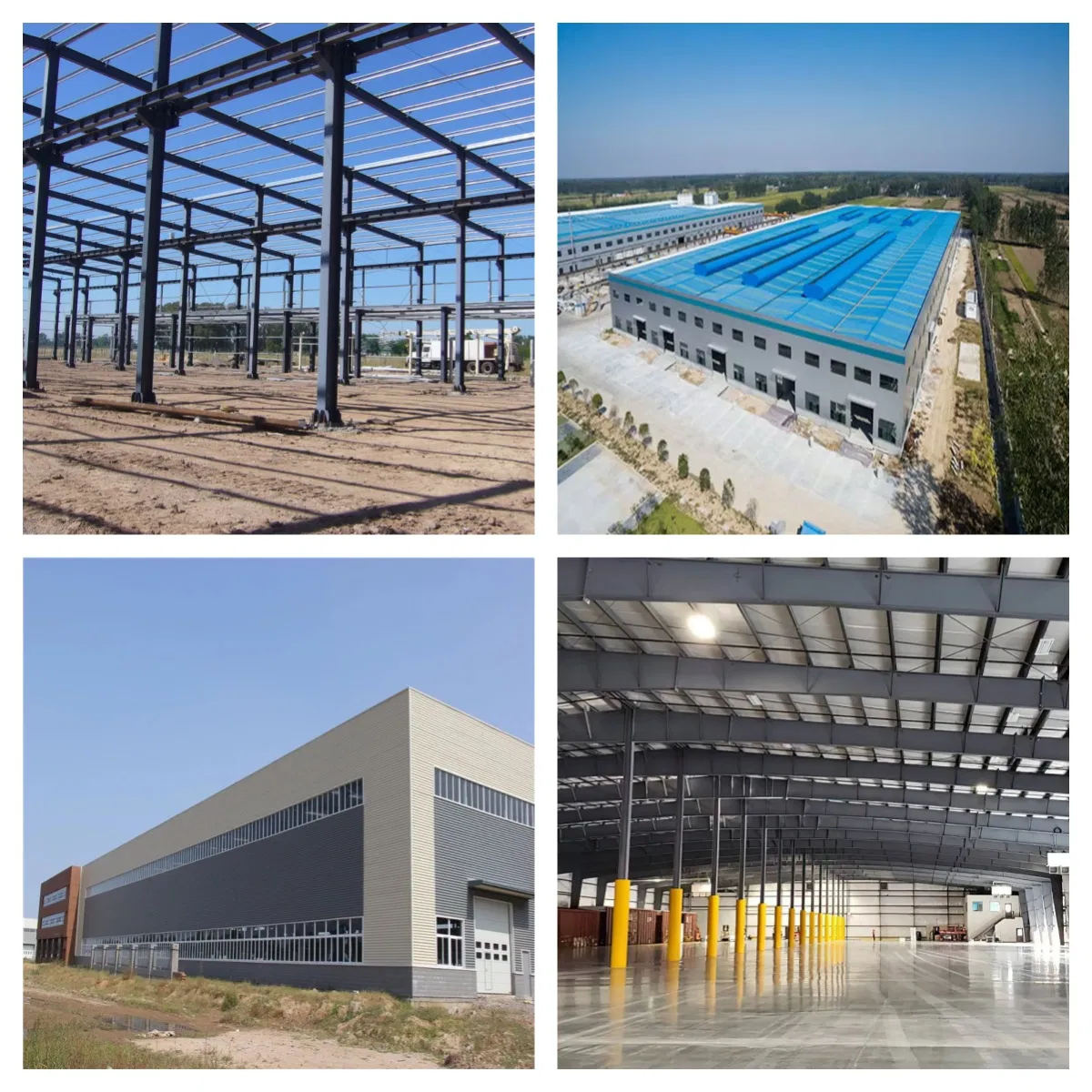

■ Business Scope

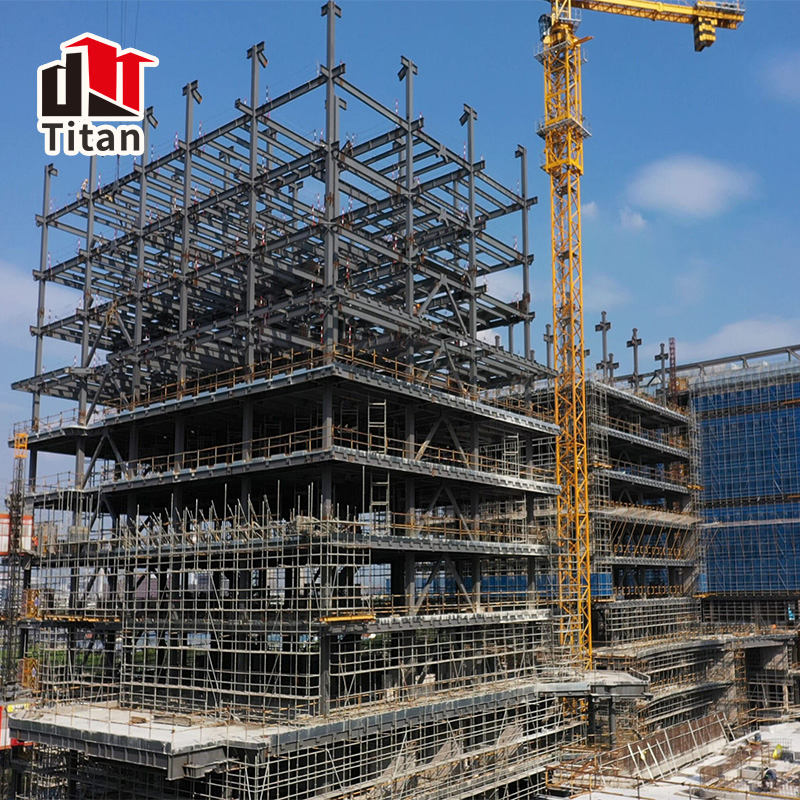

Our project scope covers prefabricated steel structure workshops, warehouses, garages, logistics parks, high-rise residential buildings, exhibition centers, stadiums and gymnasiums, airports, railway stations, bridges, etc.

Customer Visit & Certifications

■ Customer Visit

■ Certifications

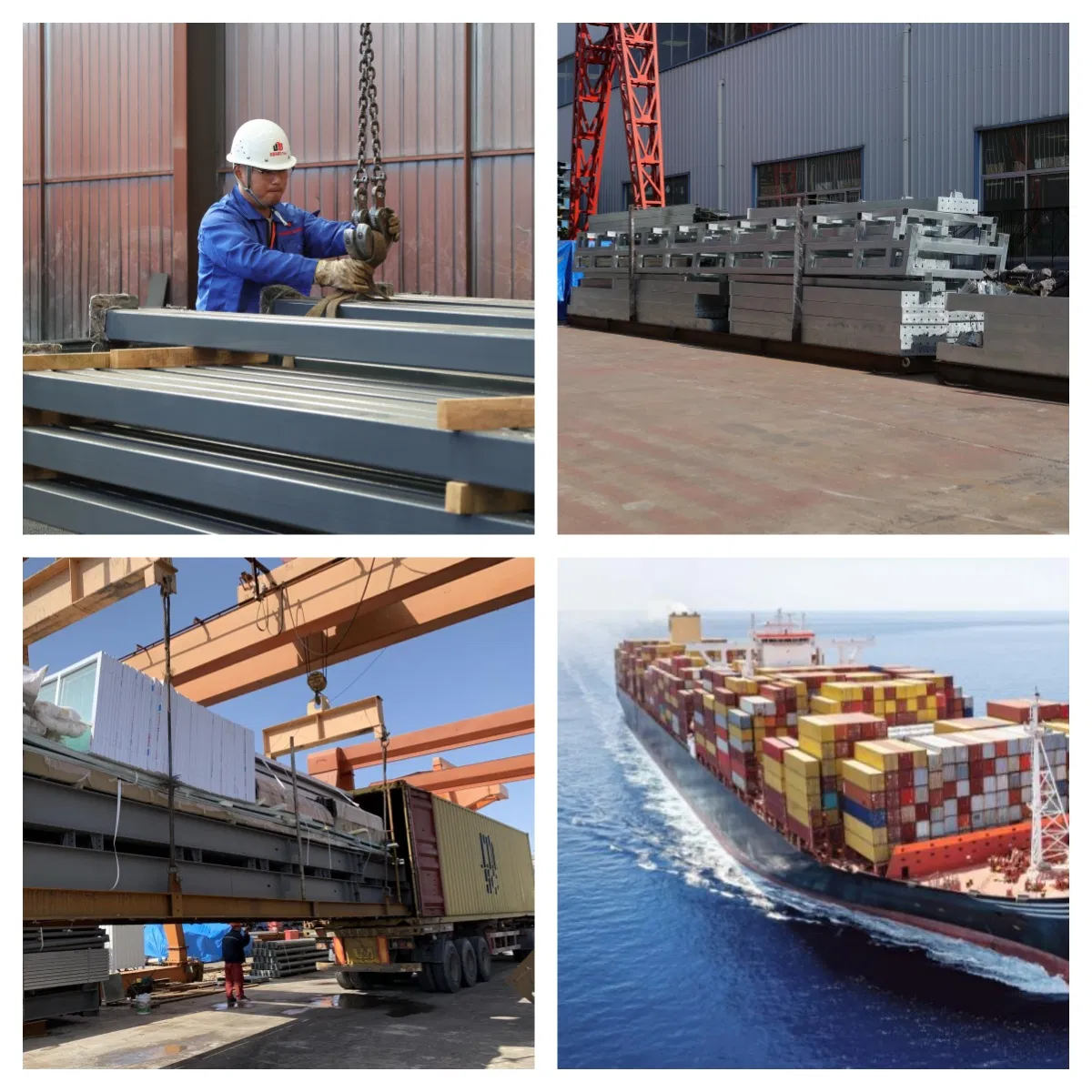

Packing & Delivery Details

✉ Customized design is welcome, it would be better if you could provide the following information:

1. Location: _____country, area

2. Size: Length*width*height _____mm*_____mm*_____mm

3. Wind load (max. Wind speed): _____kn/m2, _____km/h, _____m/s

4. Snow load (max. Snow height): _____kn/m2, _____mm

5. Anti-earthquake: _____level

6. Brickwall needed or not: If yes, 1.2m high or 1.5m high

7. Thermal insulation: If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok.

8. Door quantity & size: _____units, _____(width)mm*_____(height)mm

9. Window quantity & size: _____units, _____(width)mm*_____(height)mm

10. Crane needed or not: If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m

Frequently Asked Questions

Q What are the key advantages of choosing a steel structure building?

Steel structure buildings are lightweight, highly robust, and durably built to last up to 50 years. They generate no construction waste, allow for easy relocation, and utilize environmentally friendly, recyclable materials.

Q Which materials are available for the roof and wall panels?

You can select from high-efficiency thermal insulation options including PU, EPS, Rock Wool, or Fiber Glass sandwich panels, or basic single corrugated steel sheets depending on your project budget and thermal protection requirements.

Q Can the structure be customized, and what design platforms do you support?

Yes, every building is custom engineered. Structural models and production drawings are detailed using leading software applications including CAD, Tekla, 3D Model, 3D3s, and PKPM to meet global construction standards.

Q What application scenarios do these steel structures support?

Our design and manufacturing capability covers industrial workshops, warehouses, commercial garages, logistic parks, high-rise residential projects, exhibition centers, sport stadiums, hangars, and railway stations.

Q What initial parameters are needed to request a layout design and quote?

Please provide the construction site location (for wind, snow, and seismic evaluations), desired dimensions (length, width, height), door/window configurations, thermal performance requirements, and details of any bridge crane operations.
