Long Life Span Labour Camp Light Steel Frame Building for Worker Dormitory

Customization: Available
Width: 10m
Length: 22m

Product Description

Basic Info

Height 2.85m
Steel Structure 2.0-2.5mm
Thickness of Roof 50mm
Thickness of Wall 50mm
Usage Dormitories, Temporary Offices, Workshop, Canteen, Storage, Classroom, Church
Certification ISO, CE, SGS, BV, ASTM
Material Steel Structure+Sandwich Panel
Customized Customizable
Transport Package Standard Packing
HS Code 940690
Capacity 50000 Sqm Per Month

Product Description

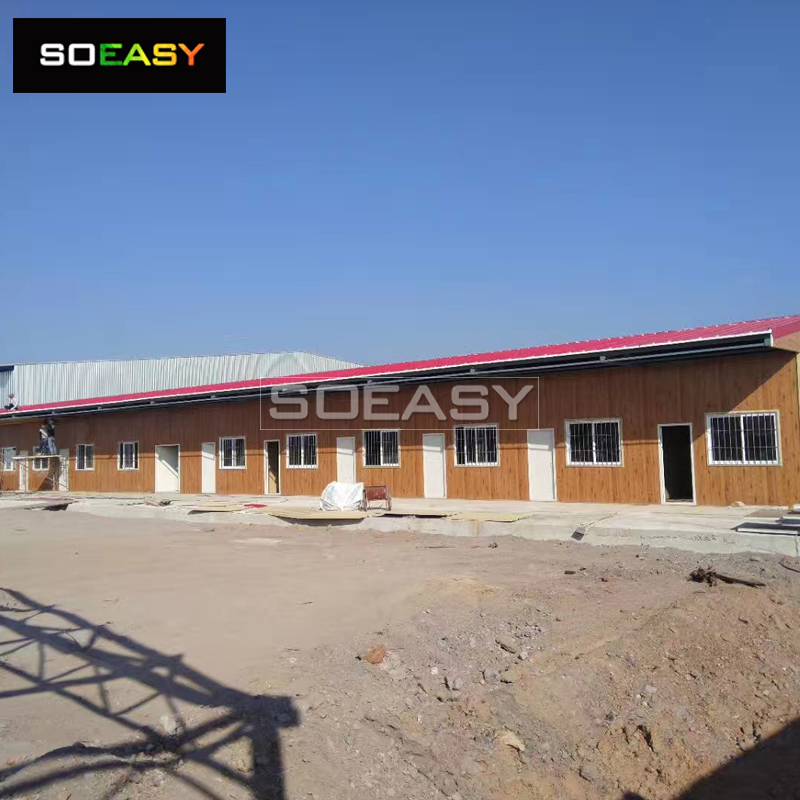

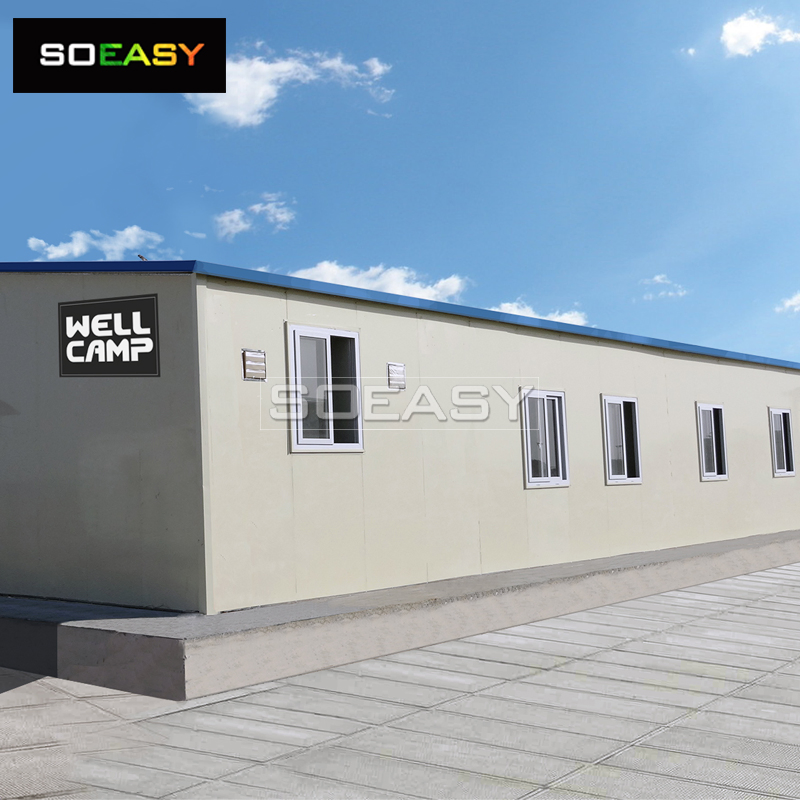

Labour Camp Light Steel Frame Building for Worker Dormitory
This PREFABRICATED T HOUSE is suitable for the office / accommodation / storage / canteen / labor camp, etc.

The T house, also called T Prefabricated House, Prefab House, Prefabricated house, Prefabricated Building, Prefabricated Dormitory, Prefabricated Modular house, Prefabricated Labor Camp House & Economic Prefabricated House. It is houses that are designed & manufactured with steel structure frame & sandwich panels assembled together with doors, windows.

This T prefabricated house is the most economic design & is commonly used in construction sites, oil sites, mining sites as workers' quarters, site offices, also used for solider camps, government projects & school projects as labor accommodation, solider accommodation, employee accommodation, student dormitory, teacher`s office, engineers office, site offices, canteen, clinic, laundry room etc.

Sometimes used as rental houses, refugee houses or low income family housing, which are durable and easy to set up. Therefore, the T house is also known as the Disaster Relief House or Low Income Family House.

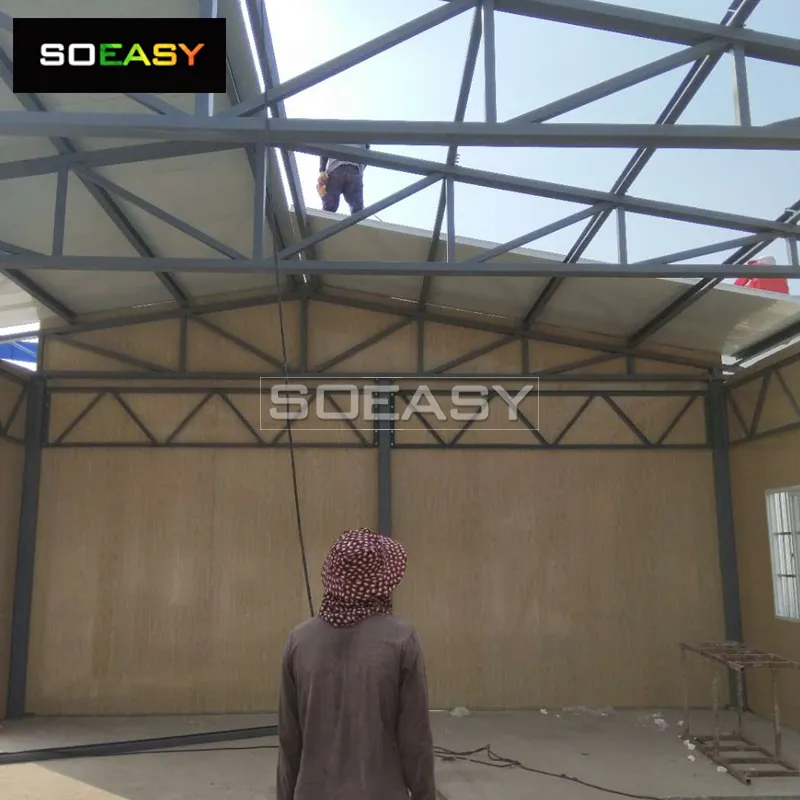

Completed as 1 set! Come in Parts & install at site based on Cement Foundation made by local contractor. All parts fabricated according to design requirements. All steel parts welded & painted. Assembly structures by bolts & attach panels to steel structure members or parts by screws & rivets according to designs.

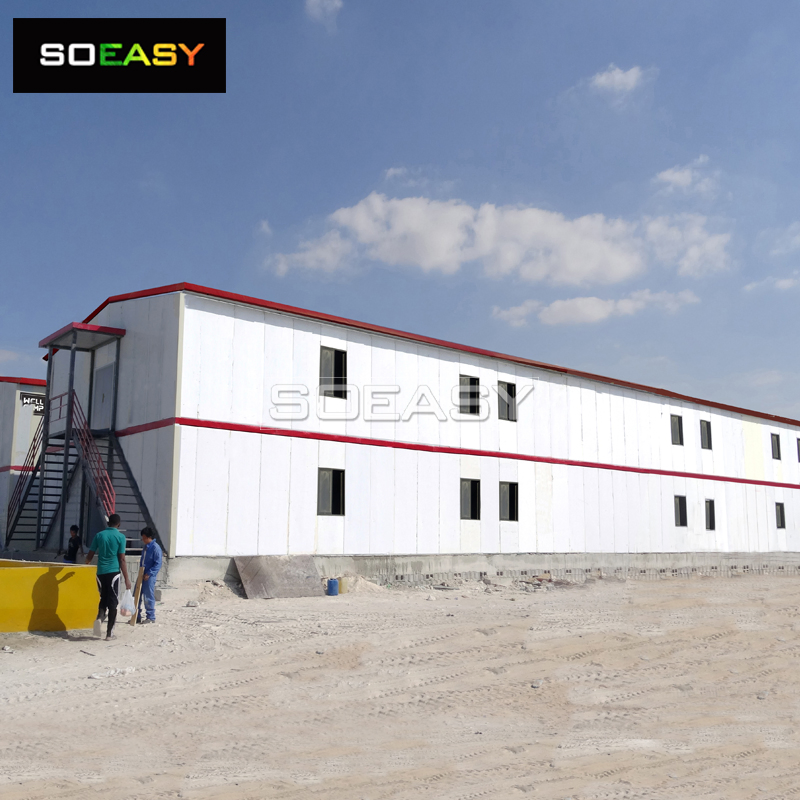

T prefabricated houses come in different sizes, can use fixed parameters to calculate the dimensions & areas or customize according to customer requirements. The most common design is 12T*40T*6H, dimension 11.4m*38m*6H, which is 884.4m2 area of 2 floors including 2 stairs & 1 indoor walkway, can fit in 3*40`HQ as 1 set. 1*40HQ can load around 200-250m2. The main steel structure is made from Square Tube Steel or H Section Steel, with EPS / IEPS / Glass Wool / Rock Wool / PU sandwich panel for wall & roof! 6 workers can build 100sqm in one day! Can be done as 1 floor, 2 floors or 3 floors building!

MORE MODERN & LUXURY option for Contractor Offices, Labor Camp set up! We Already export to Malaysia, India, Thailand, Myanmar, Vietnam, Oman, Saudi Arabia, Qatar, Indonesia, UAE, Philippines, Kenya, Uganda, Tanzania, Congo, Nigeria, Ghana, Mozambique & many other countries.

Main Materials

Material Component Specifications & Options
Steel Structure Square tube or "H" shape beam
Wall Panel 50mm EPS / Glass wool / Rock wool / PU sandwich panel
Roof 50mm EPS / Glass wool / Rock wool / PU sandwich panel
Window Aluminum sliding window
Door Sandwich panel door
Floor 18mm Plywood / cement board

Technical Parameters

Wind Resistance Grade 11 (102-120 km/h)
Earthquake Resistance Grade 7
Roof Load Capacity 50 kg / m²
Floor Load Capacity 180 kg / m²
Container Capacity Approx. 250 m² per 40HQ
Delivery Time Usually 20 to 25 Days

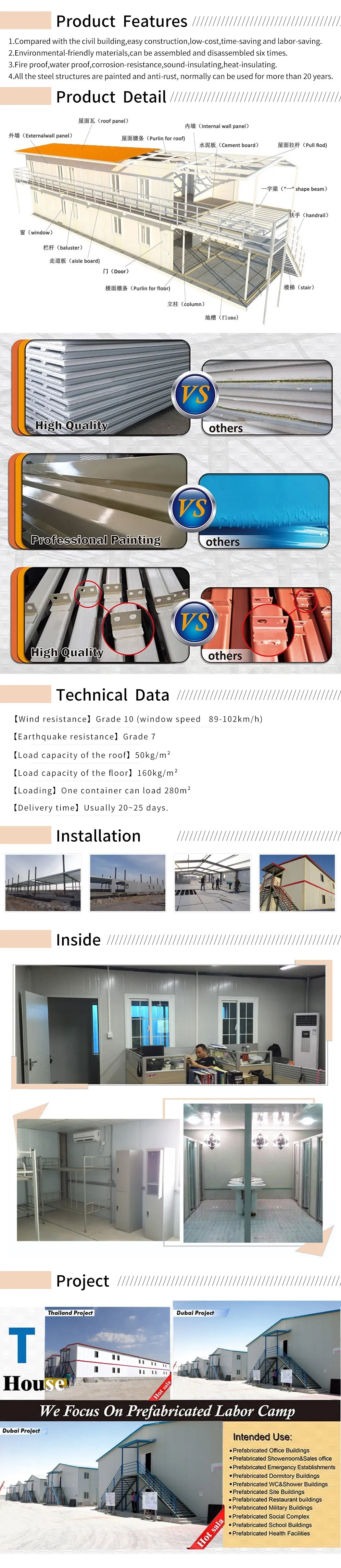

Technical Layout and Dimensions

The revolutionary Folding Container House can easily set up in 4 minutes and has successfully shipped to USA, Germany, France, Australia, Japan & many different countries. We also offer Flat Pack Container Houses, Detachable Container Houses, Expandable Container Houses, Modified Shipping Container Houses, Container Villas, Container Offices & Container Classrooms.

Installation Process Guide

Frequently Asked Questions

Q1. Are you a factory or a trading company?
A1. We are a factory offering comprehensive manufacturing and design services for steel structures and modular housing solutions.
Q2. What products do you offer?
A2. We focus on prefabricated labor camps, steel structures, container houses, and modular villas.
Q3. What is your payment term?
A3. Our accepted payment terms are T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Q4. What is your MOQ (Minimum Order Quantity)?
A4. For prefabricated houses, the MOQ is 200 square meters. For container houses or small unit houses, the MOQ is 1x40'HQ container.
Q5. Do you have experience cooperating with government projects?
A5. Yes, we have successfully completed projects with governments, international joint ventures, construction companies, and charity organizations in fields such as military, oil camps, and disaster relief.
Q6. How is your after-sales service and installation process?
A6. We provide 24-hour support, 3D installation drawings, and instructions. If required, we can also dispatch an engineer to assist with training and worker guidance on-site.
