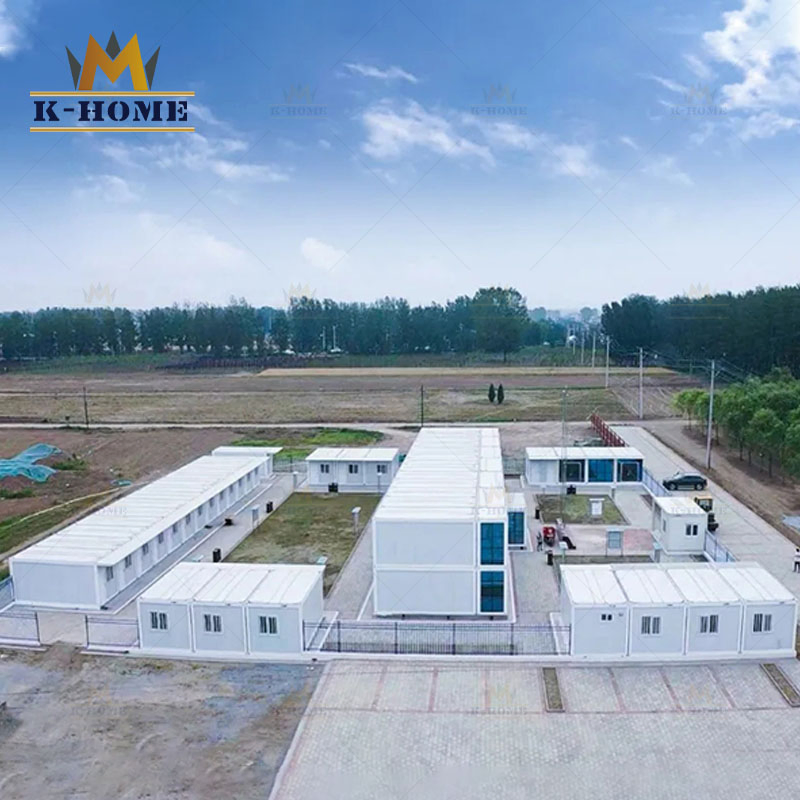

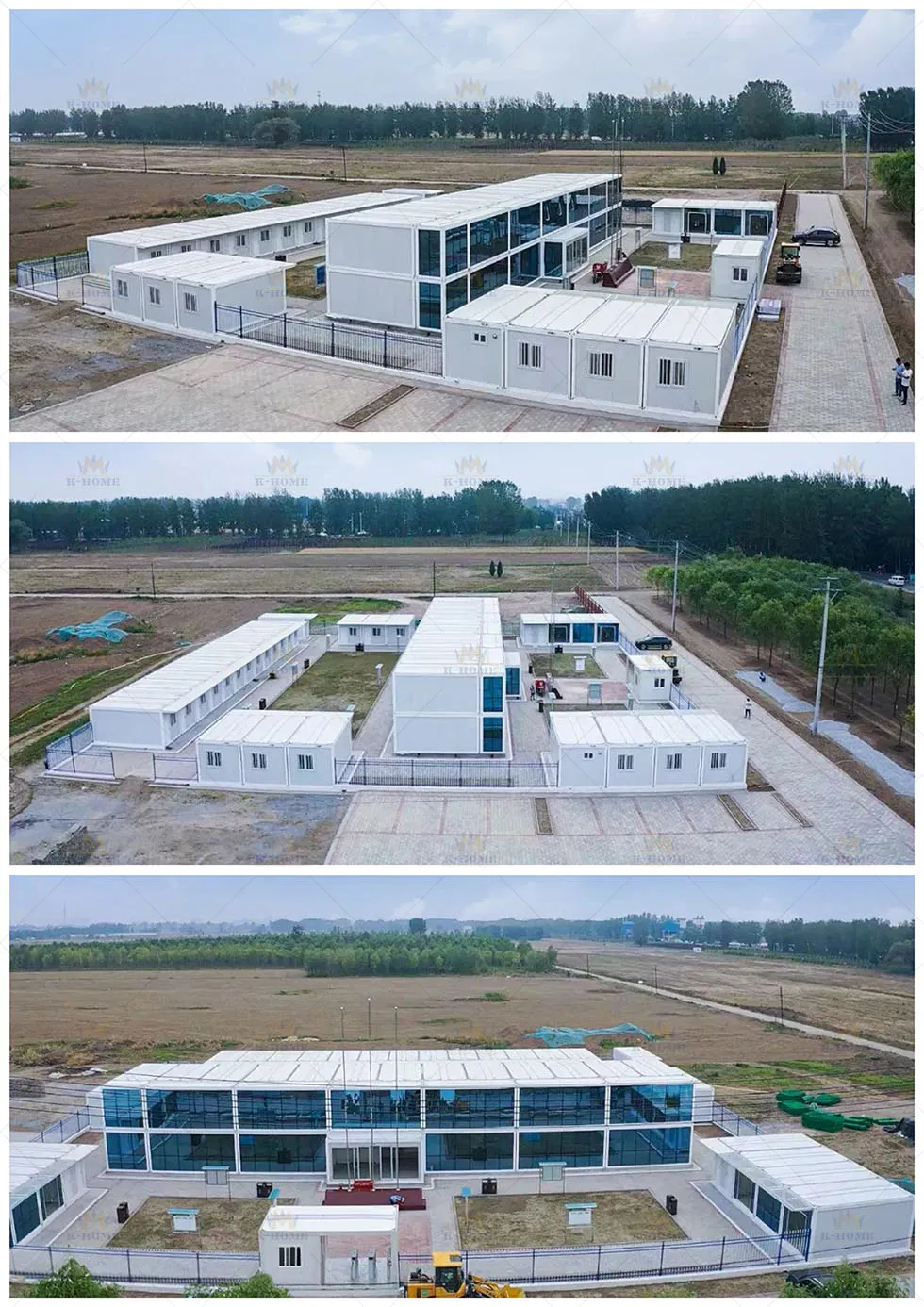

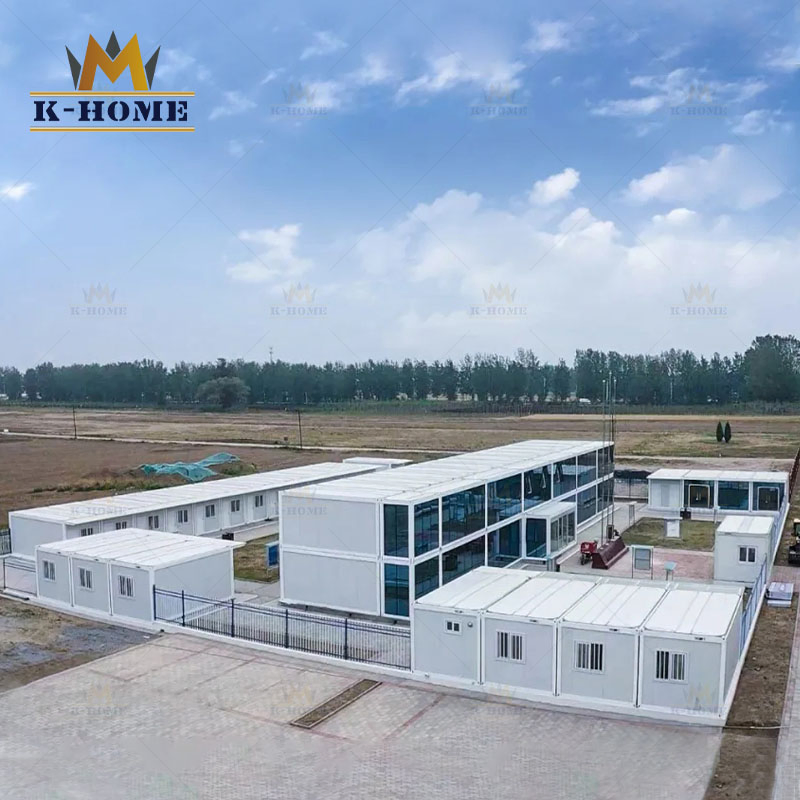

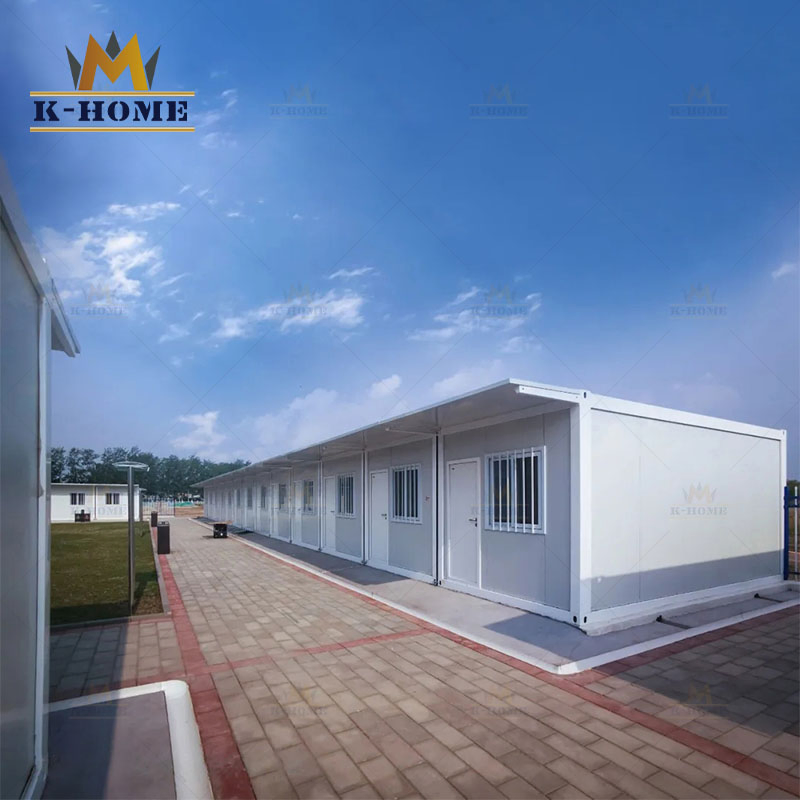

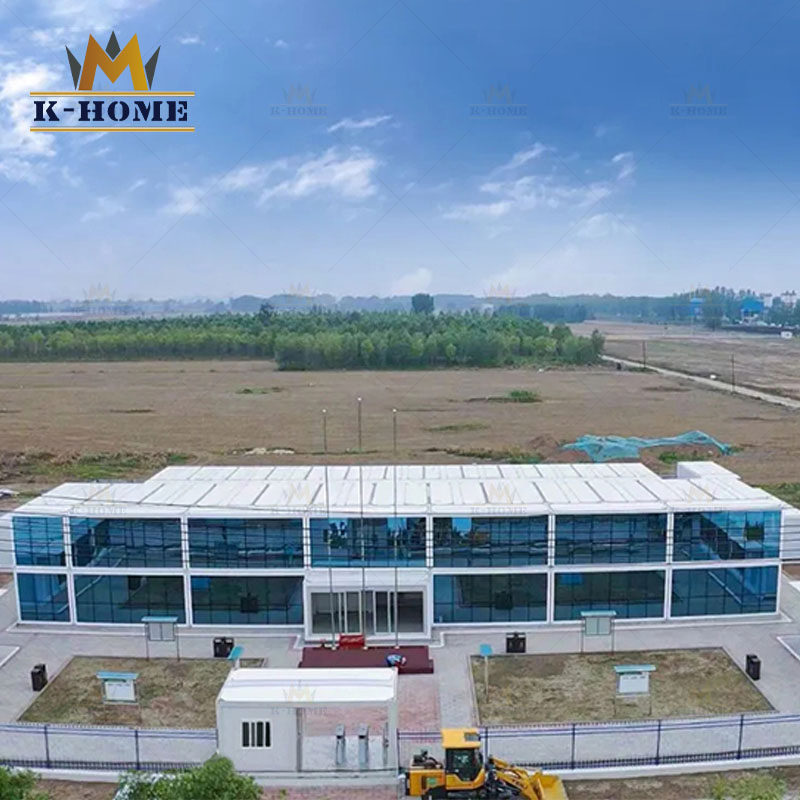

Designing remote mine site camp buildings for workers involves careful consideration of various factors to ensure the well-being, safety, and productivity of the workforce. Here are the key aspects to consider:

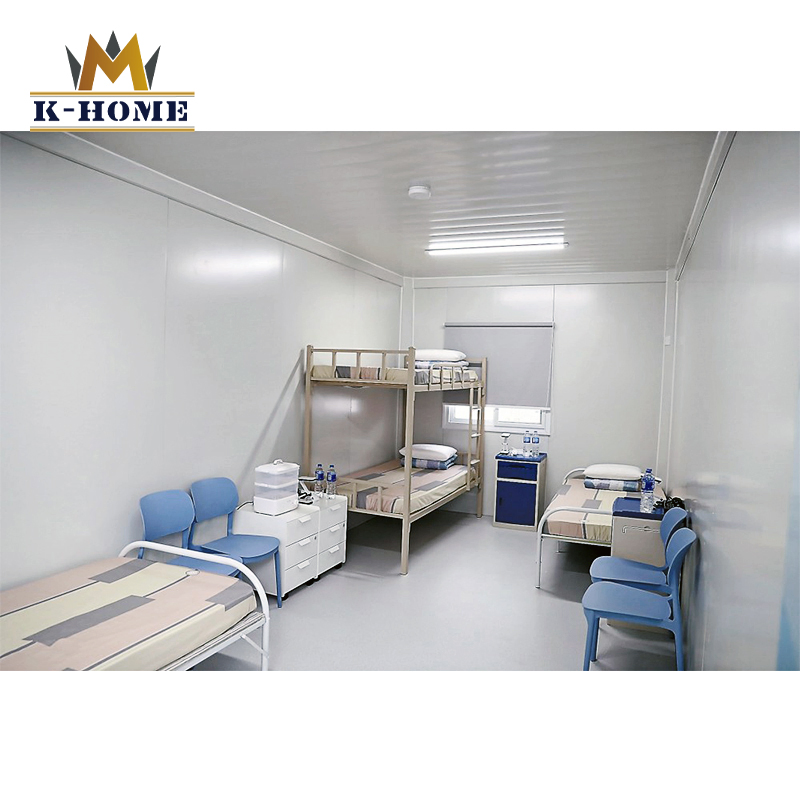

Provide comfortable and secure sleeping quarters with proper ventilation. Ensure a degree of privacy for individuals through well-designed room layouts, and include basic amenities such as beds, storage space, and personal lighting.
Design a spacious and functional dining area to accommodate the workforce during meal times. Include recreational spaces for relaxation and socialization, such as a lounge or recreation room.
Designate space for administrative offices or a workspace for tasks that may need to be conducted on-site, along with areas dedicated for training sessions or meetings.

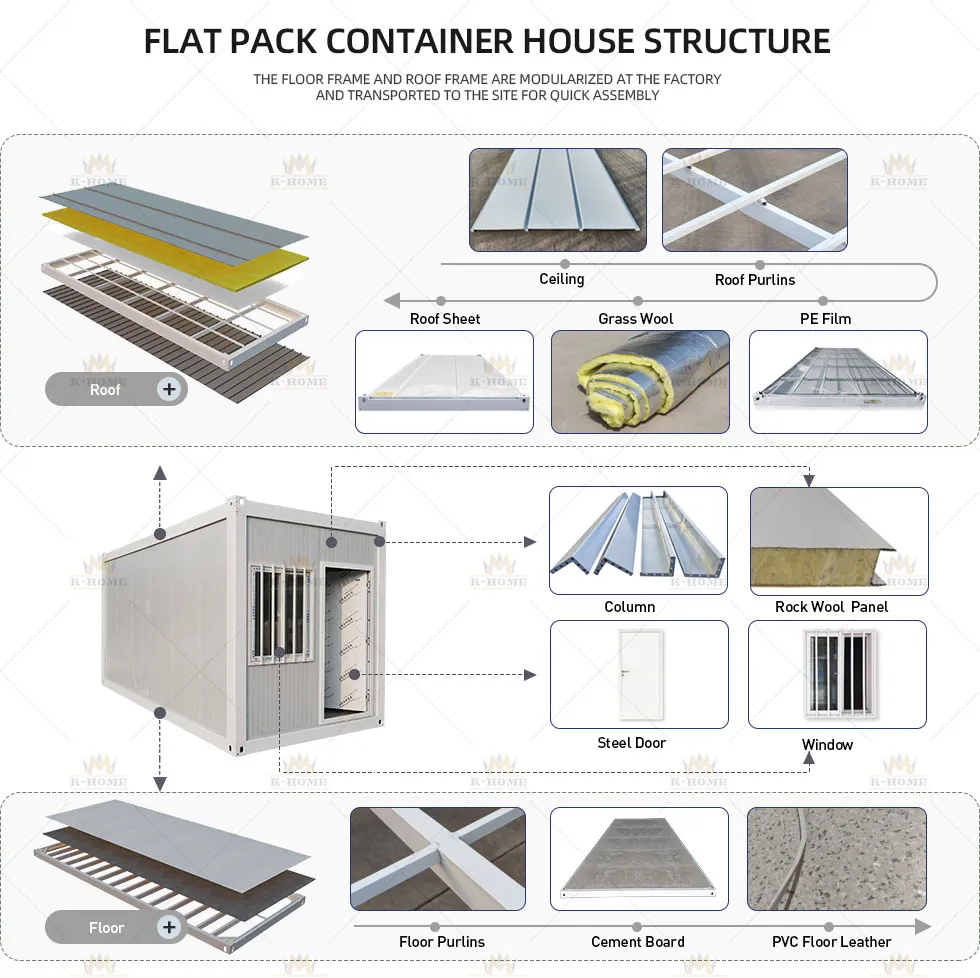

| Item | System | Specification |
|---|---|---|
| Part 1 | Roof System | |
| I. | Steel frame | Q235 galvanized fitting |
| II. | Roof insulation | Ceiling is steel pre-coated 0.4mm outside strong steel sheet; With 50mm glass wool insulation material |
| III. | Roof ceiling | Shaped steel plate with different pattern options |
| Part 2 | Floor System | |
| I. | Steel frame | 3mm Galvanized Steel for main structure + 1.5mm square tube for secondary beam |
| II. | Floor | 15mm chipboard + PVC leather floor |
| Part 3 | Column System | |
| I. | Column | 2.3mm Shaped Galvanized Steel |
| Part 4 | Sandwich Wall System | |
| I. | Wall Panel | 50mm EPS Foam Sandwich Panel; Outside color is light silver gray (0.35mm thickness steel); Inside is white color steel (0.35mm thickness steel) |
| Part 5 | Door & Window System | |
| I. | Door | Steel door; Size: 2000*980mm(H*W) |
| II. | Window | Aluminum alloy steel double hollow glass sliding window (including screens); Size:1200*1000mm(H*W) |
| Part 6 | Electric System | |
| I. | Electric system | Includes ordinary LED light, A-SW double sockets 2 sets, A-SW air-switch 2 sets; Electrical box with safety protection device connecting cable |
| Part 7 | Accessories | |
| I. | Accessories | Electric wire, sealant, wiring tube, screws, and other basic assembly accessories |

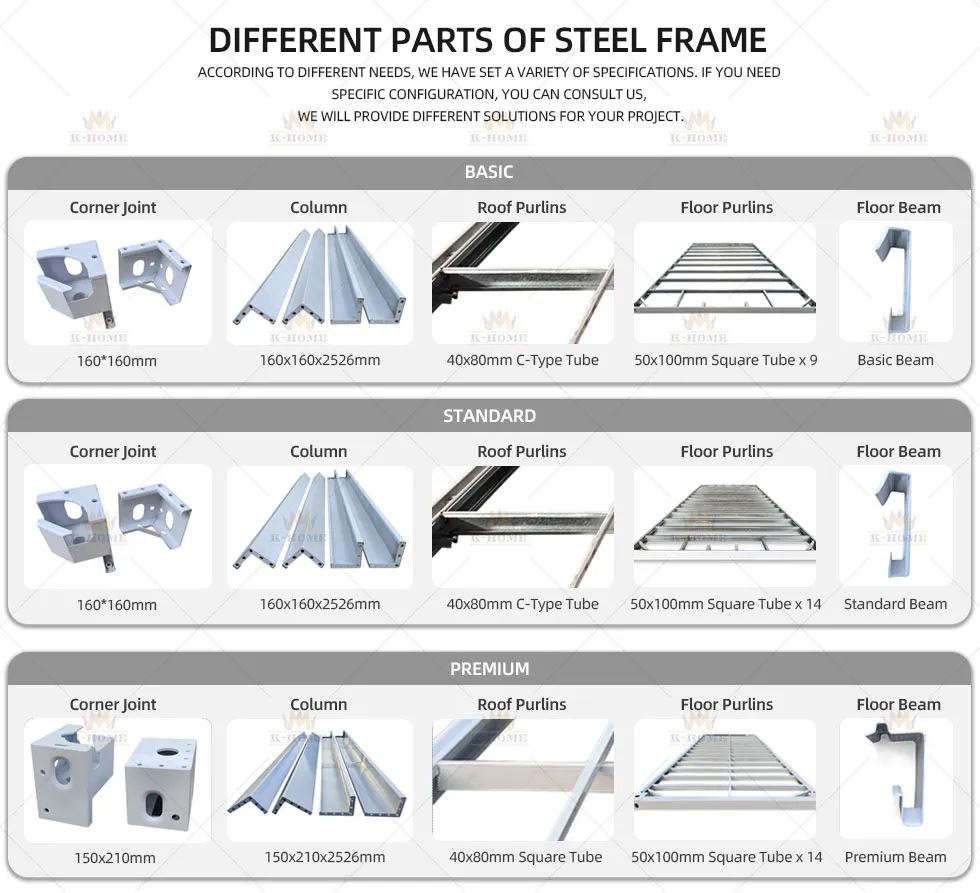

We differentiated the steel frame and made three different specifications. Different specifications and prices will fluctuate, allowing you to choose the optimal plan according to your project budget.

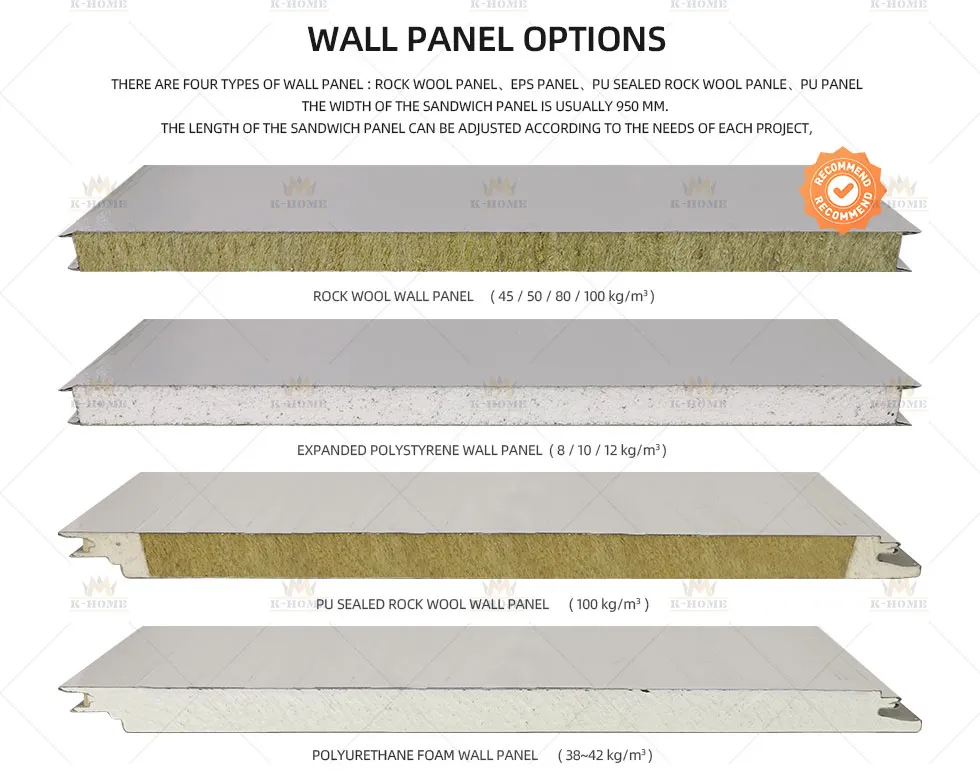

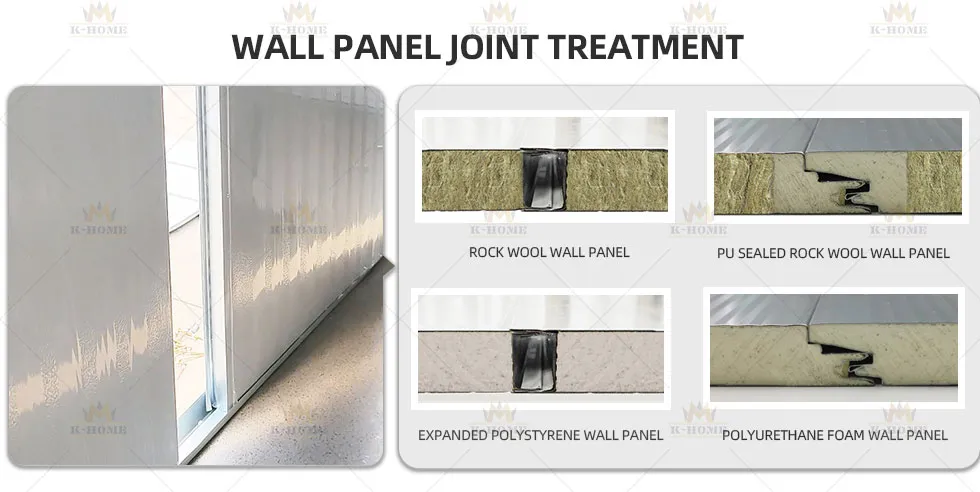

There are four distinct options for the wall panels of the container house to meet varying climate and functional requirements:
Four types of wall panels: EPS sandwich, Rock wool sandwich, PU panel, and PU sealed rock wool panel.
EPS sandwich and rock wool sandwich options can meet most standard environments. If you have special insulation or fire-protection requirements, the PU sealed rock wool panel or solid PU panel are highly recommended for your upgrade options.
Generally, standard modular kit homes adapt the rock wool sandwich panel as the wall material. It uses refined basalt as the main raw material, combined with a special binder and dust-proof oil using a PE coating. It provides good adhesion, rich color, standard durability, and low cost. The rock wool sandwich panel delivers superior adiabatic performance, excellent sound insulation, and sound absorption capacity. It is highly temperature-resistant, capable of bearing temperatures up to 600 degrees Celsius.

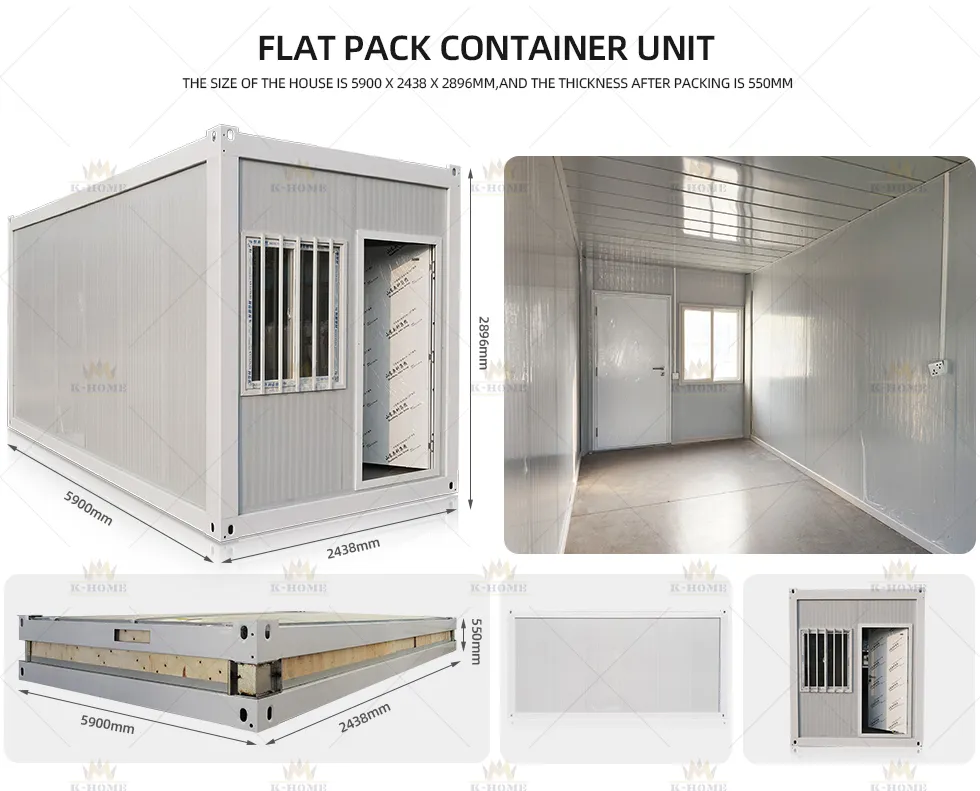

The prefabricated container house looks simple in appearance, but it is highly advantageous in terms of practicality and cost-efficiency. The ground foundation setup is minimal. Simply arrange cement blocks at designated points according to the container's size, and lift the container unit onto them to prevent moisture. The standard flooring of the modular container utilizes fireproof board. If a roof terrace is required, we can substitute cement board to improve waterproofing and rain protection.

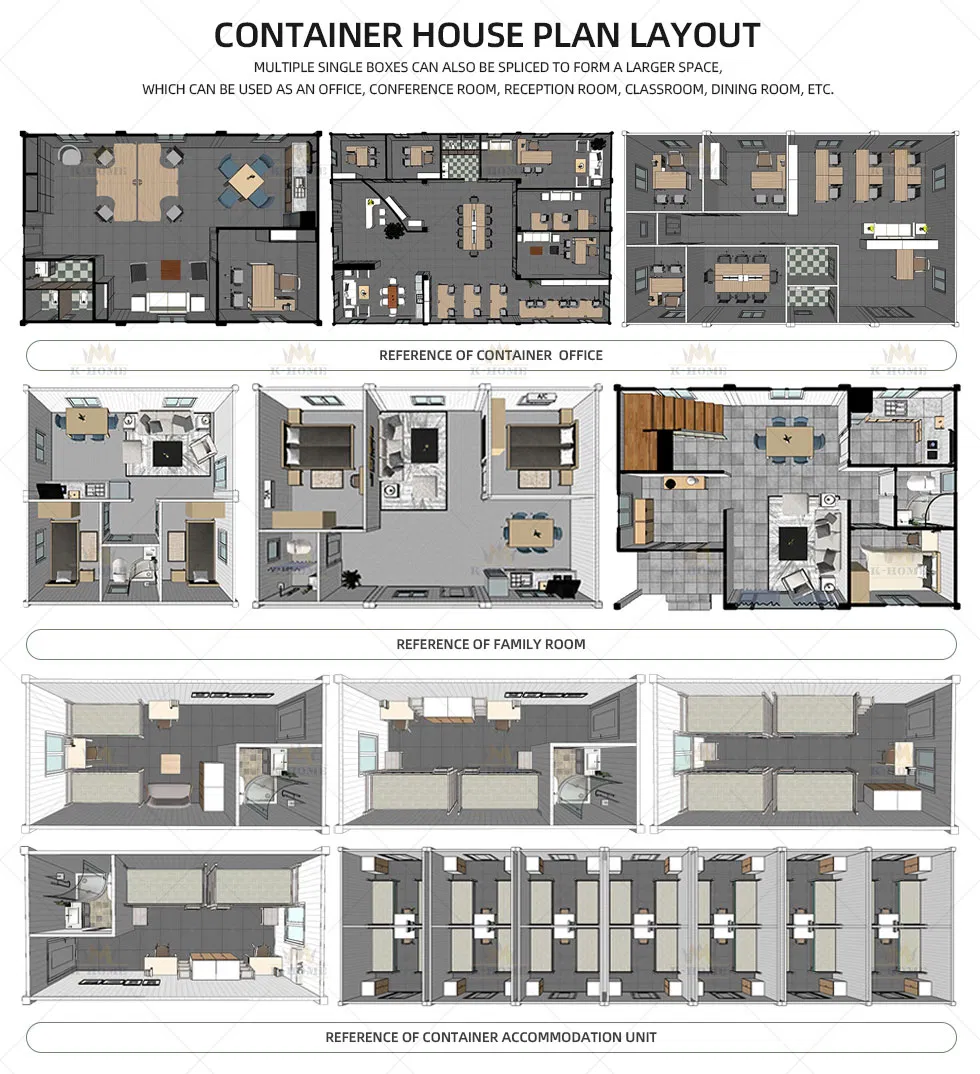

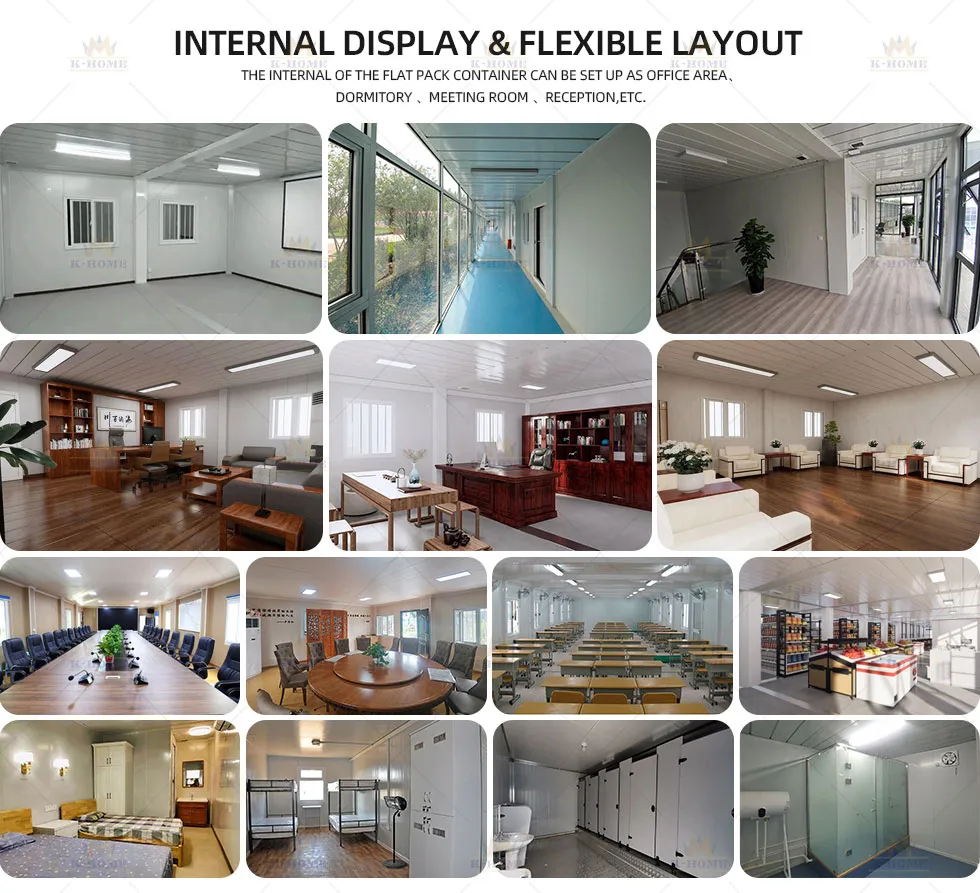

The prefabricated container houses allow full customization of exterior/interior designs and space layouts. The steel structure is simple yet highly functional. It can be equipped with living rooms, separate bathrooms, laundry areas, and kitchenettes. Whether you need two bedrooms, three bedrooms, or other custom designs, we can make it happen. The container housing units are highly customizable and can be painted or styled to suit local preferences.

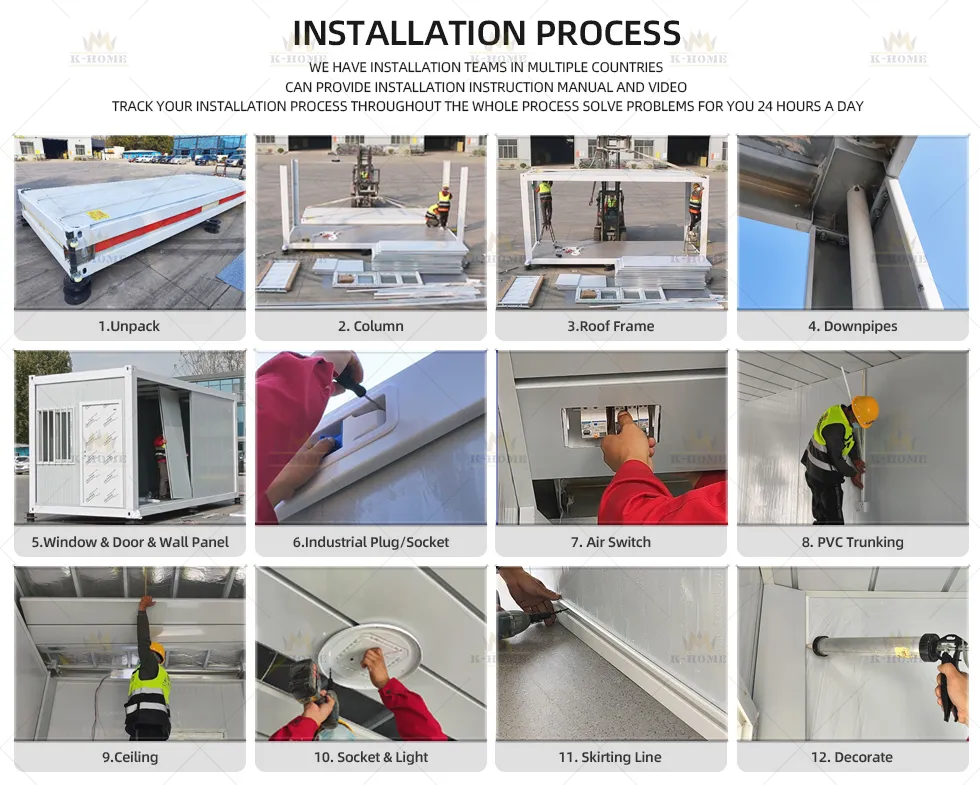

These units boast a high degree of prefabrication, enabling rapid on-site installation. They are detachable, movable, energy-saving, and environmentally friendly. Exceptional thermal and sound insulation provide a comfortable living environment. Built tough and firm, they give residents a sense of security and are robust enough to withstand the local climate variations.
We promise to provide professional after-sales service and long-term maintenance guidance for all customers:
